ASUS

ASUS PRIME PRIME B550-PLUS AC-HES AM4 ATX Motherboard

ASUS PRIME PRIME B550-PLUS AC-HES AM4 ATX Motherboard

$225.00
$225.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
AMD B550 (Ryzen AM4) ATX motherboard with dual M.2, PCIe 4.0, WIFI 5, 1 Gb Ethernet, DisplayPort/HDMI, SATA 6 Gbps, USB 3.2 Gen 2 Type-C®, front USB 3.2 Gen 1 Type-C® and Aura Sync ARGB headers support
  • Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
  • AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
  • Ultrafast connectivity: Dual M.2, PCIe 4.0, WIFI 5, 1 Gb Ethernet, rear USB 3.2 Gen 2 Type-A and Type-C®, front USB 3.2 Gen 1 Type-A and Type-C®
  • Comprehensive cooling: VRM heatsinks, PCH heatsink, hybrid fan headers, and Fan Xpert 2+
  • Aura Sync RGB: Onboard addressable Gen 2 headers for ARGB LED strips, easily synced with Aura Sync-capable hardware
  • CEC Tier II ready
Model
PRIME B550-PLUS AC-HES

Memory



4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory*

Dual Channel Memory Architecture

*ECC memory (ECC mode) support varies by CPU.
*Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.



Graphics

*Graphics specifications may vary between CPU types.

Expansion Slots

1 x PCIe 4.0 x16 + 1 x PCIe 3.0 x16 (max. x4) + 3 x PCIe 3.0 x16 (x1),

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors

1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD B550 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)*
3 x PCIe 3.0 x16 slots (support x1 mode)*
*PCIE 3.0 X16_4 will run x1 mode when any of the PCIE 3.0 x16_2/3/5 slots is occupied.
**Support PCIe bifurcation for RAID on CPU function.



Storage



AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
AMD B550 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
6 x SATA 6Gb/s ports
Support RAID 0, 1, 10
*M.2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled.



USB



2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)

2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)





1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports



Audio



Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit




Back Panel I/O Ports



2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI™ port

1 x ASUS Wi-Fi Module

1 x Realtek 1Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port



Internal I/O Connectors



Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin AIO Pump header

2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

2 x AURA Addressable Gen 2 headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header



Special Features



ASUS 5X PROTECTION III

- DIGI+ VRM

- LANGuard

- Overvoltage Protection

- SafeSlot Core

- Stainless-Steel Back I/O

ASUS Q-Design

- Q-DIMM

- Q-Slot

ASUS Thermal Solution

- VRM heatsink design

AURA Sync

- Addressable Gen 2 RGB headers

CEC Tier II ready



Software Features



ASUS Exclusive Software

Armoury Crate

- AURA Creator

- AURA Sync

AI Suite 3

- Performance and Power Saving Utility

TurboV EVO

EPU

DIGI+ VRM

Fan Xpert 2+

- EZ update

ASUS CPU-Z

AI Charger

DAEMON Tools

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode



BIOS



256 Mb Flash ROM, UEFI AMI BIOS



Manageability

WOL by PME, PXE

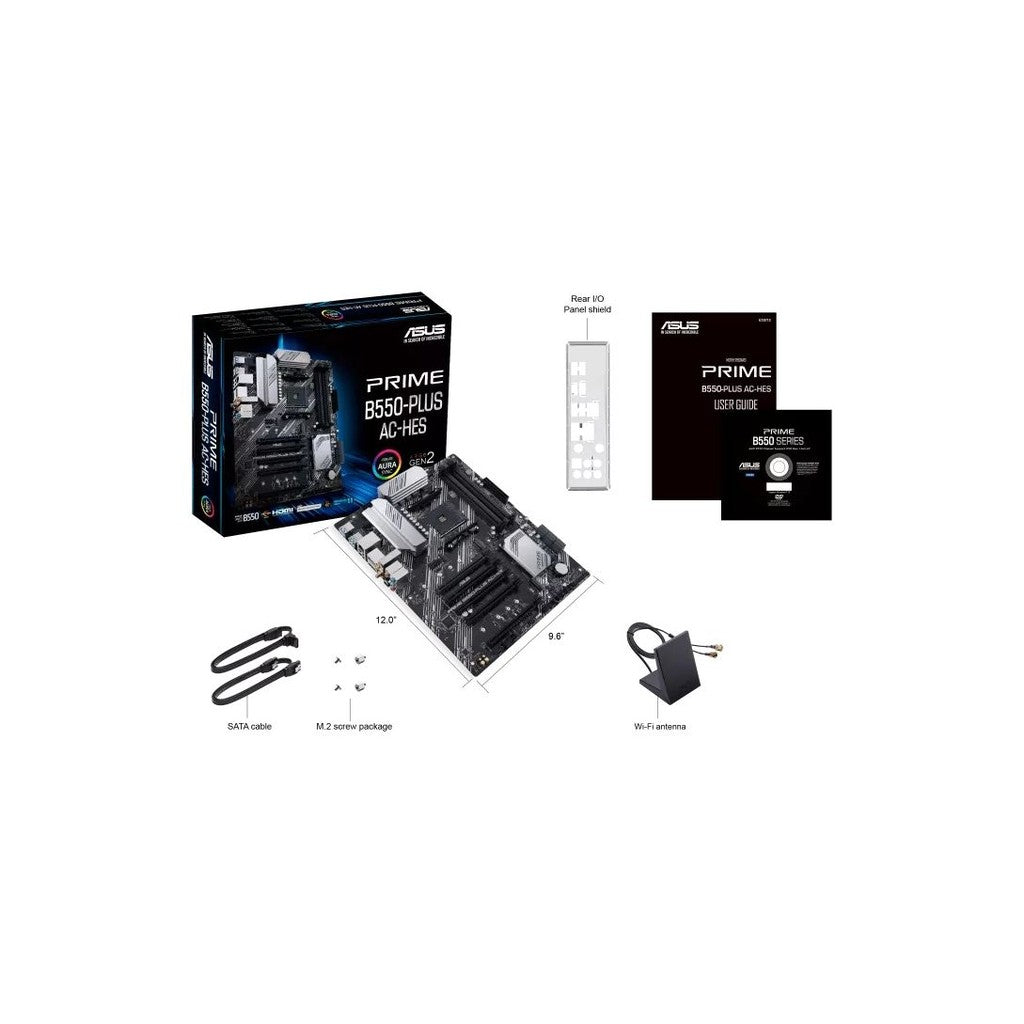

Accessories



Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x I/O Shield

1 x M.2 SSD screw package

Installation Media

1 x Support DVD

Documentation

1 x User manual



Operating System

Windows 10 64bit

Form Factor

ATX, 30.5cm x 24.4cm
