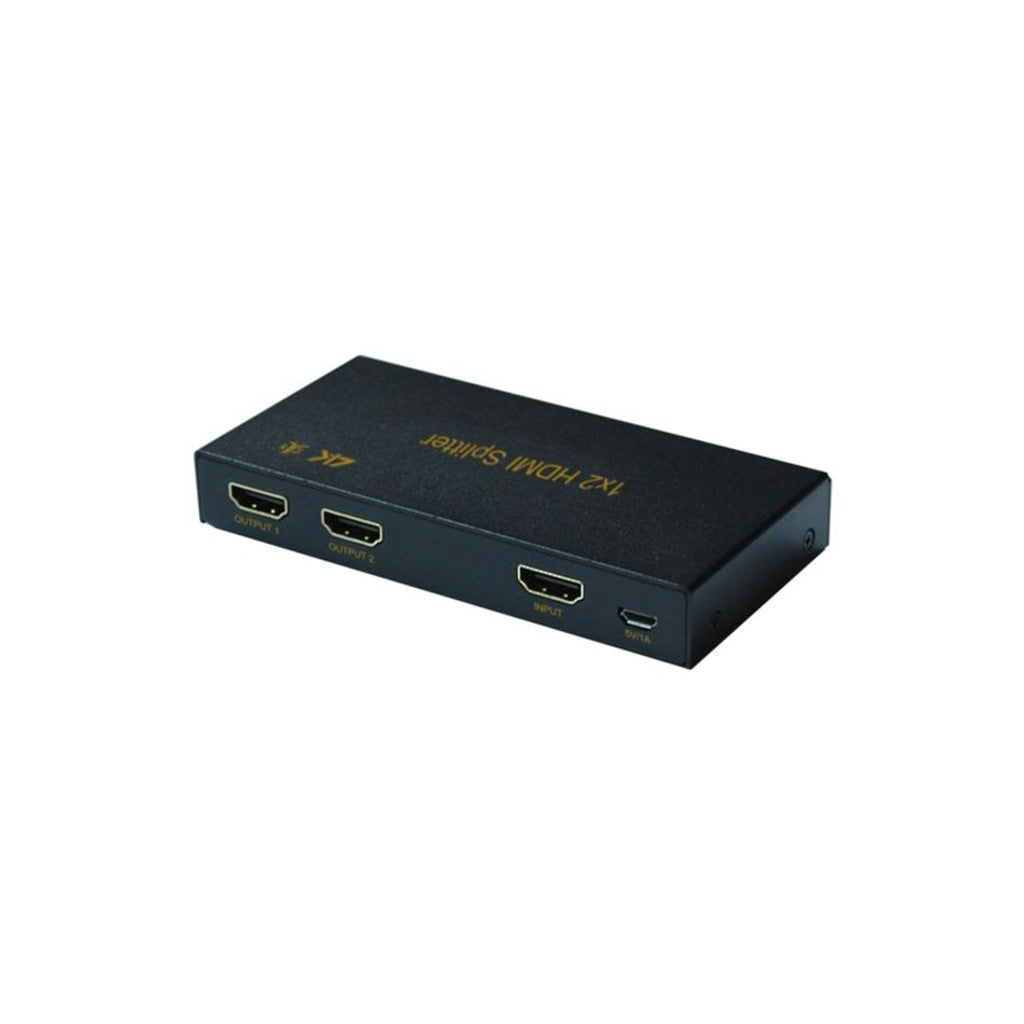

AVS AHDSP2 Ultra Slim 1x2 HDMI Splitter with 4Kx2K and EDID Management
AVS AHDSP2 Ultra Slim 1x2 HDMI Splitter with 4Kx2K and EDID Management
Couldn't load pickup availability
AVS AHDSP2
Ultra Slim 1x2 HDMI Splitter with 4Kx2K and EDID Management
The perfect solution for anyone who needs to send one source of digital high definition video to multiple displays.
- HDMI, HDCP 1.2 and DVI compliant
- Support full 3D pass-through
- Support 4k x 2k high resolution
- Super IR control system, IR transport channel can be forward or backward per your installation
- Support CEC bypass
- External and internal EDID settings
Specifications
Input Port
1x HDMI(Female connector), 1x USB
Output Port
2x HDMI(Female connector), 1x IR Channel
Bandwidth
10.2Gbps
Output resolution
480i~1080P @ 50/60,1080P @ 24/50/60, VGA~UXGA
Operating Temperature
-15C~55C/5°F~131°F
Deep Colour
36bit
Chassis
Metal Shell
Dimensions
120mm(L)x60mm(W)x18mm(H)
Weight
185g
Power Supply
DC 5V
Package Contents
1 x HDMI Splitter Unit
1 x 3ft USB A to micro B cable
1 x USB power adaptor
1 x User Manual
