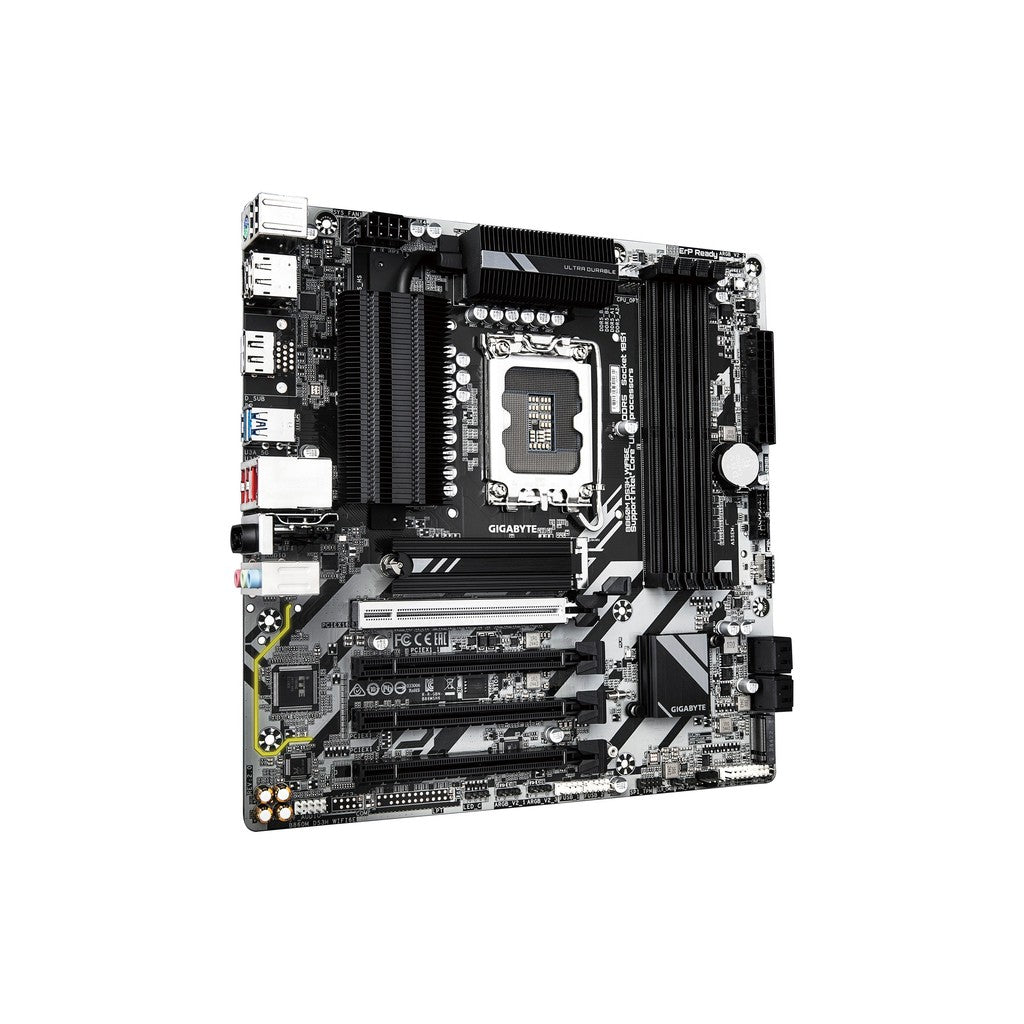

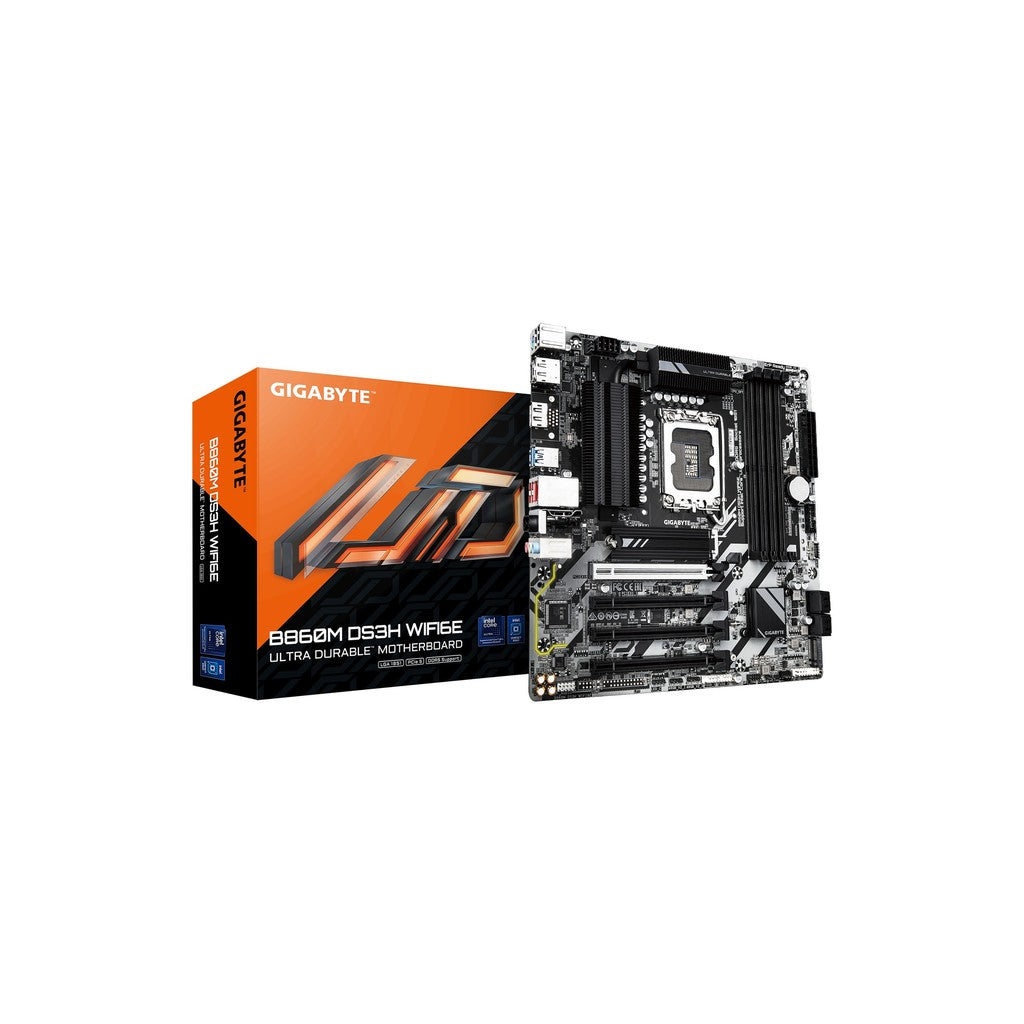

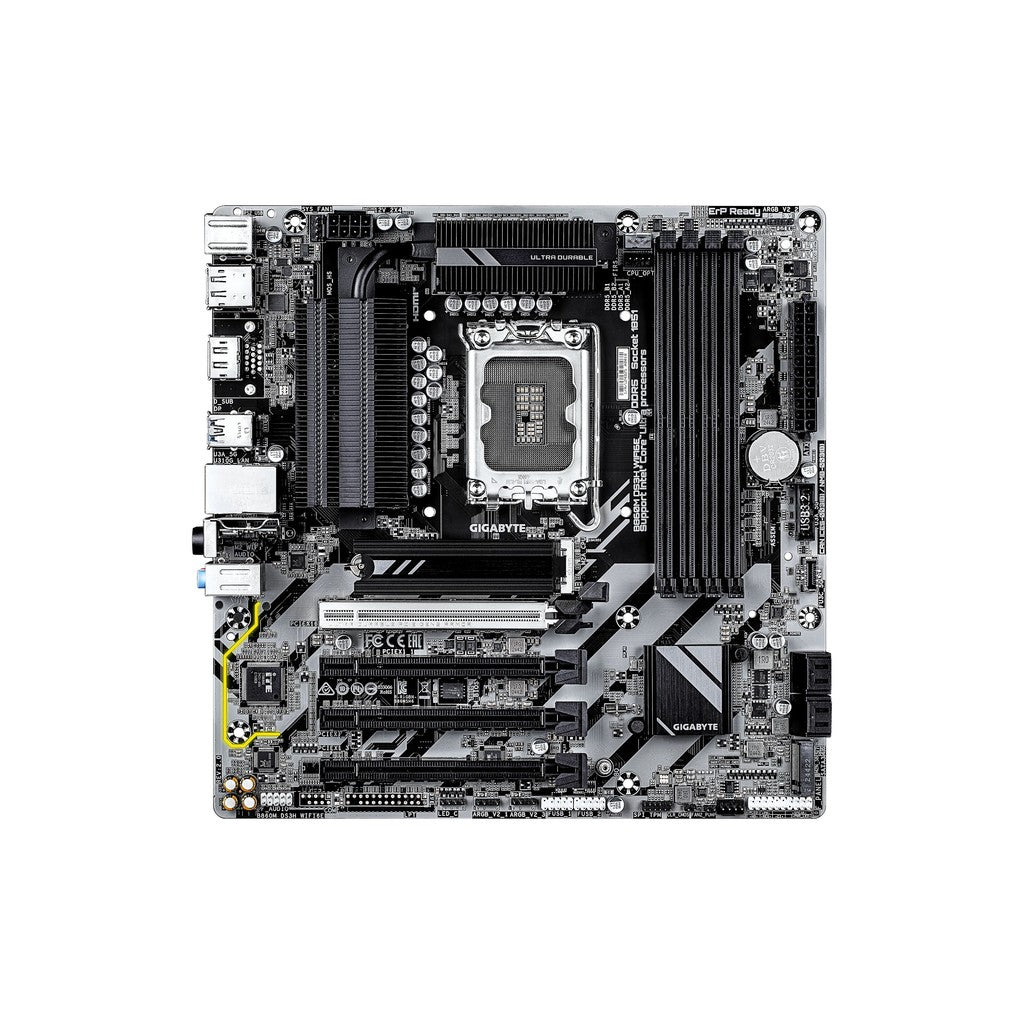

Gigabyte B860M DS3H WIFI6E 2.0 mATX LGA 1851 Motherboard
Gigabyte B860M DS3H WIFI6E 2.0 mATX LGA 1851 Motherboard
Couldn't load pickup availability
Key Features
- Supports Intel® Core™ Ultra processors (Series 2)
- Hybrid 5+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch : PCIe x16 Slot with Quick Release Design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Power Monitor : Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced with Fins-Array & M.2 Thermal Guard
- Fast Networking : 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity : 2*DisplayPort, HDMI
| Details | |
| CPU Support | LGA1851 socket, Supports Intel® Core™ Ultra Processors |
| Chipset | Intel® B860 Express Chipset |
| Memory |
4 x DDR5 DIMM sockets (Up to 256 GB, 64 GB max per DIMM) Dual channel memory architecture Supports DDR5 9066(O.C) down to 5600 MT/s Supports Extreme Memory Profile (XMP) Supports ECC & non-ECC Un-buffered memory modules |
| Onboard Graphics |
1 x HDMI 2.1 (Up to 4096x2160@60Hz, HDCP 2.3) 2 x DisplayPort 2.1 (Up to 3840x2160@144Hz) Supports up to 3 displays simultaneously |
| Audio |
Realtek® Audio CODEC High Definition Audio (2/4/5.1/7.1-channel) |
| LAN (Network) | Realtek® 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wireless & Bluetooth |
Intel® Wi-Fi 6E AX211 (a/b/g/n/ac/ax, 2.4/5/6 GHz) Bluetooth 5.3 Supports 11ax 160MHz |
| Expansion Slots |
CPU: 1 x PCIe 5.0 x16 slot Chipset: 3 x PCIe 4.0 x1 slots |
| Storage Interface |
CPU: 1 x M.2 connector (PCIe 5.0 x4/x2) Chipset: 1 x M.2 connector (PCIe 4.0 x4/x2) 4 x SATA 6Gb/s connectors (RAID 0, 1, 5, 10 support) |
| USB Ports (Total) |
1 x USB Type-C® (USB 3.2 Gen 1, internal) 1 x USB 3.2 Gen 2 Type-A (Back panel) 6 x USB 3.2 Gen 1 (2 back, 4 internal) 7 x USB 2.0/1.1 (3 back, 4 internal) |

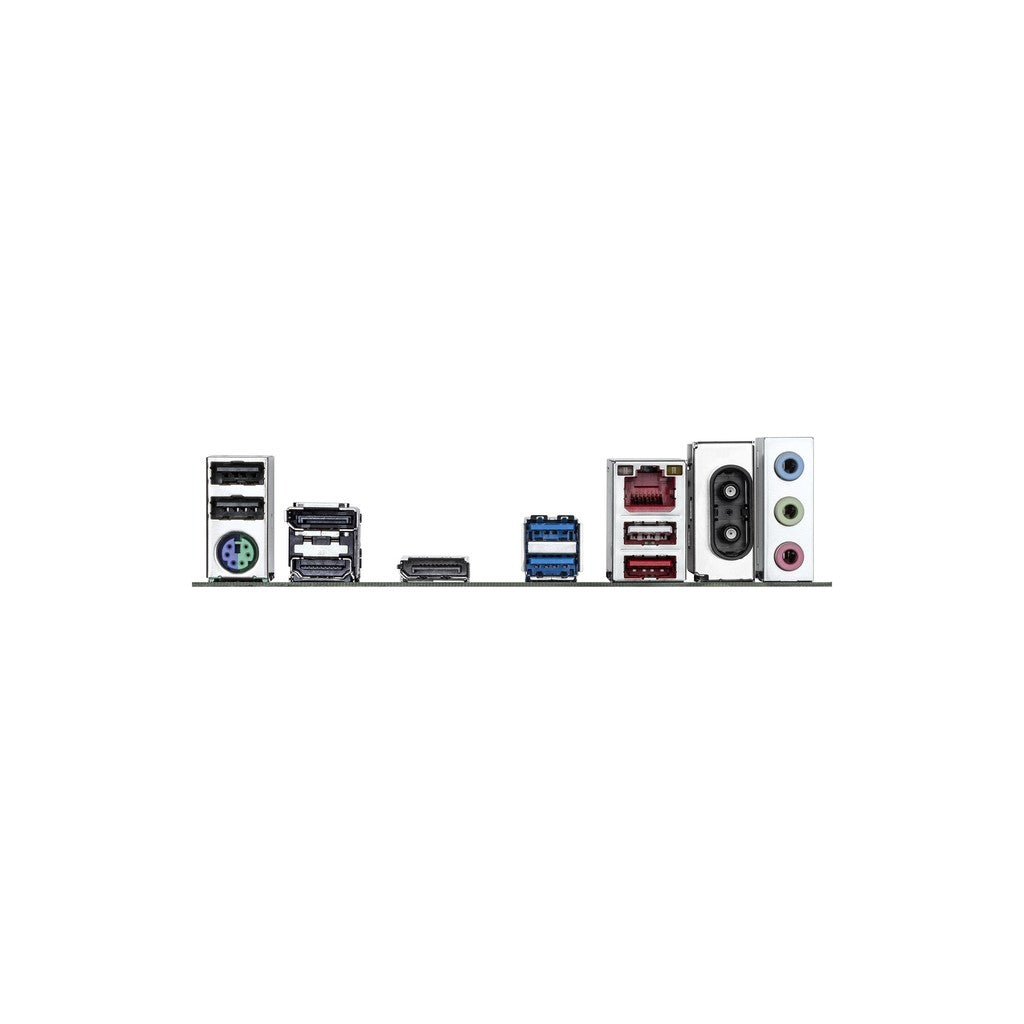

| Back Panel I/O |
1 x PS/2 keyboard/mouse port 1 x HDMI, 2 x DisplayPort 1 x USB 3.2 Gen 2 Type-A 2 x USB 3.2 Gen 1 3 x USB 2.0/1.1 1 x RJ-45 port 2 x Wi-Fi antenna connectors 3 x Audio jacks |
| Internal I/O |
1 x 24-pin ATX, 1 x 8-pin ATX 12V power Fan headers (CPU, system, water cooling) RGB headers (3 x Gen2 ARGB, 1 x RGB) Front panel, audio, TPM, and USB headers Q-Flash Plus button, Clear CMOS & reset jumpers |
| Hardware Monitoring |
Voltage, Temperature, Fan speed, Water cooling flow rate detection Fan fail warning & speed control |
| BIOS & Features |
256 Mbit flash, AMI UEFI BIOS Supports GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX (24.4cm x 24.4cm) |
