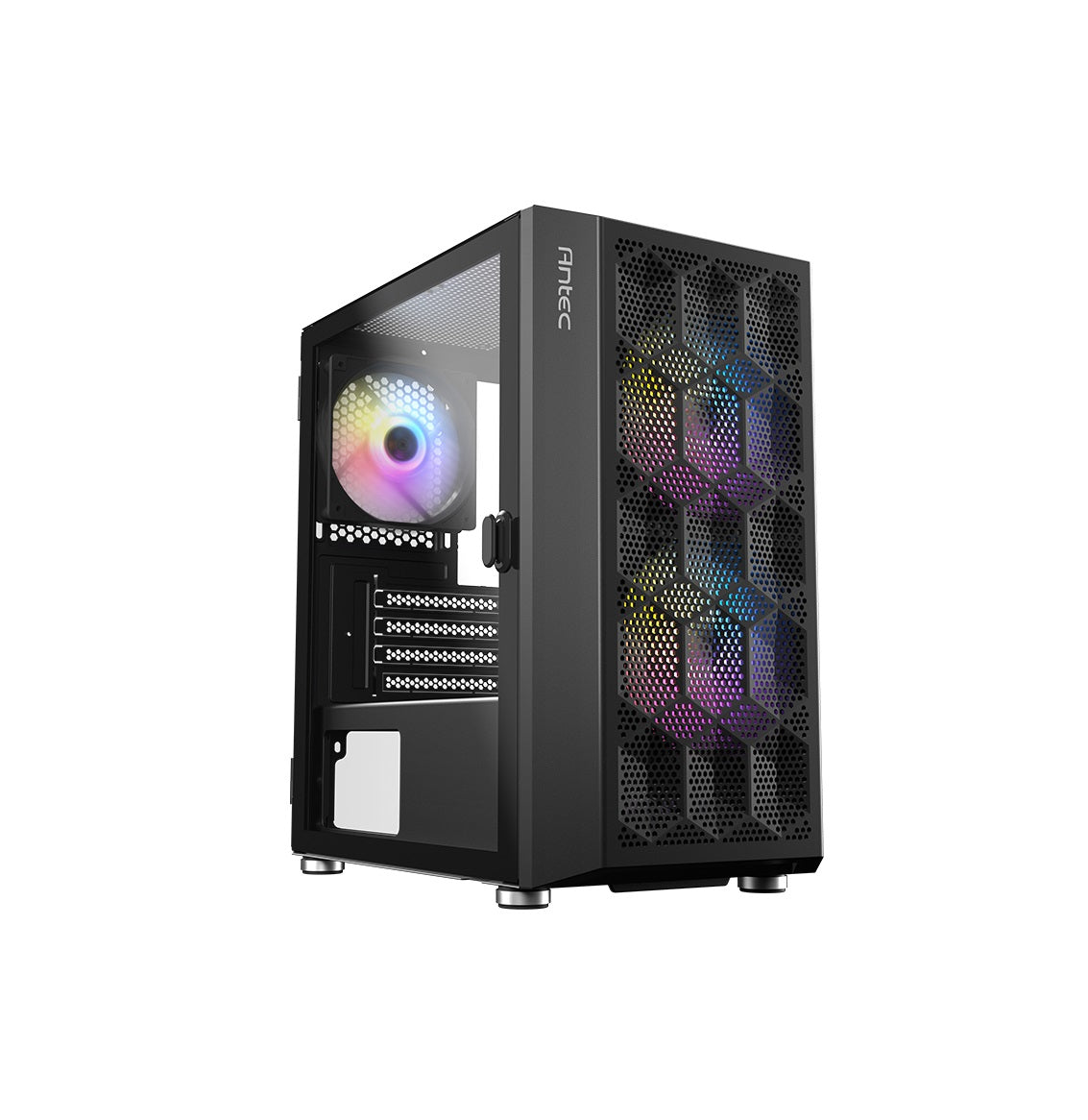

ANTEC NX200M RGB with 3x Fans mATX Mini Tower
ANTEC NX200M RGB with 3x Fans mATX Mini Tower
Couldn't load pickup availability
Built for Gaming - NX200M
NX Series-Micro-ATX mini tower gaming case
- NX200M RGB (Pre-installed 2 x 120mm RGB fixed mode fans in front & 1 x 120mm RGB fixed mode fan in rear)
Creation of Value & Function
The NX200M Micro-ATX Mini Tower gaming case effortlessly combines a bevy of in-demand features: USB 3.0 connectivity, ample storage drive bays, room for expansion, and includes one 120mm fan in the rear. With support for up to a 240 mm liquid cooling radiator in front, NX200M is easy to build with and easy to cool.
- Net Weight: 3.84 kgs
- Gross Weight: 4.45 kgs
I/O PORTS
Large Mesh Front Panel Design
The large mesh design in front panel delivers ample airflow to your gaming components and provides good heat dissipation.
Supports up to 5 fans
A - Motherboard support: Up to M-ATX
B - 2.5" SSD: 1
C - 3.5" HDD / 2.5" SSD (Convertible): 2/1
D - Graphics Card Support: Up to 275 mm
E - CPU Cooler Support: Up to 150 mm
F - PSU Support: Up to 150 mm
Large Mesh Front Panel Design: The large mesh design in front panel delivers ample airflow to your gaming components and provides good heat dissipation.
Case Specification
Dimensions
351 x 200 x 390mm (DxWxH)
364 x 212 x 396 (DxWxH) (With handle)
Form Factor
Mini Tower
Materials
Steel + Plastic
Mainboard Support
M-ATX, ITX
Front Access & Controls
Power, Reset, 1 x USB3.0, 2 x USB2.0 , MIC/HD-AUDIO
Side Panel

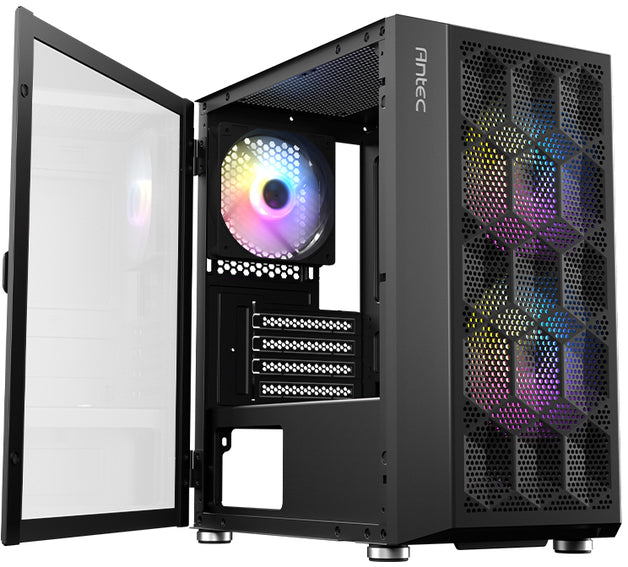

Tempered Glass Side Panel
Expansion & Drive Bays
Expansion Slots
4
3.5" /2.5"
2/1
2.5"
1
Fan Support
Front
2 x 120mm / 2 x 140mm
Top
2 x 120mm
Rear
120mm
Included Fan(s)
2 x 120mm RGB fixed mode fans in front & 1 x 120mm RGB fixed mode fan in rear (NX200M RGB)
Radiator Support
Front
120 / 140 / 240mm
Rear
120mm
Clearance
Max GPU Length
= 275mm
Max CPU Cooler Height
= 150mm
Max PSU Length
= 150mm
Miscellaneous
Dust Filter
Bottom
Net Weight
3.84 kg (NX200M RGB)
Gross Weight
4.45 kg (NX200M RGB)
