Antec
Regular price
$249.00
Regular price
Sale price
$249.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
3 Year Limited Warranty
Compatible with sockets:
AMD AM3/AM4/AM5/TR4
Intel LGA 115X/1200/1700/20XX

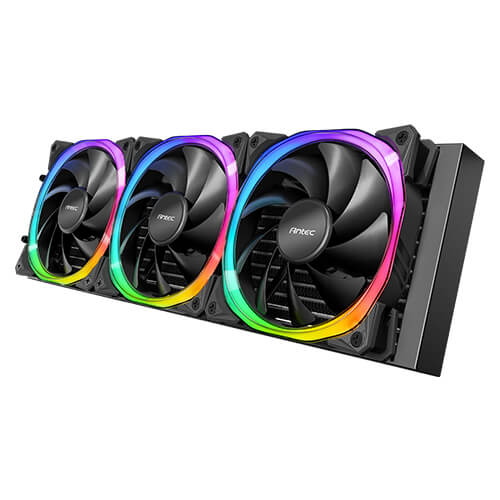

| Radiator |
| Radiator Dimensions |
397 x 120 x 27 mm |
| Radiator Material |
Aluminum |
|
| TDP Number |
|
|

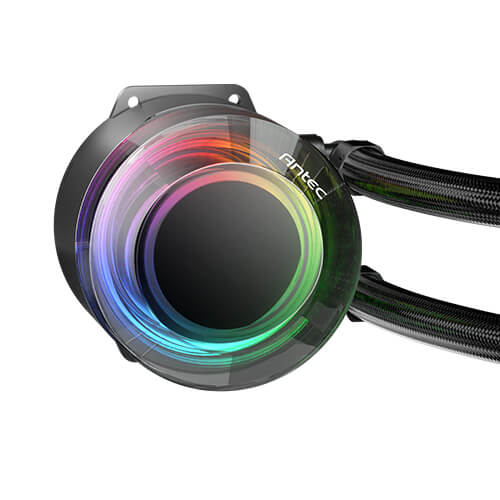

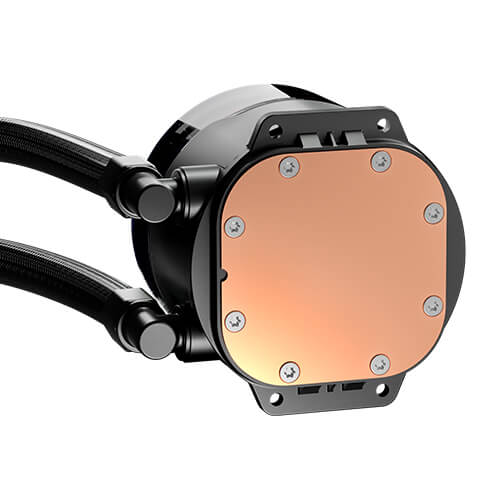

| Pump |
| Dimensions |
￠67 x 48.5 mm |
| Rating Voltage |
DC 12 V |
| Minimum Startup Voltage |
≥ 5.0 V |
| Fan Speed |
2800±10% RPM |
| Rated Current |
0.25±20% A |
| Consumed Power |
3.0 W |
| Flow rate |
≥ 1300 mL/min |
| Water Pressure |
1.4M |
| Operation Temperature |
-10°C ~ +60°C |
| Noise Level |
≤ 28 dB(A) |
| Lifespan |
40,000 hours |
| Connector |
PUMP: 3-pin | LED: 3-pin |
|

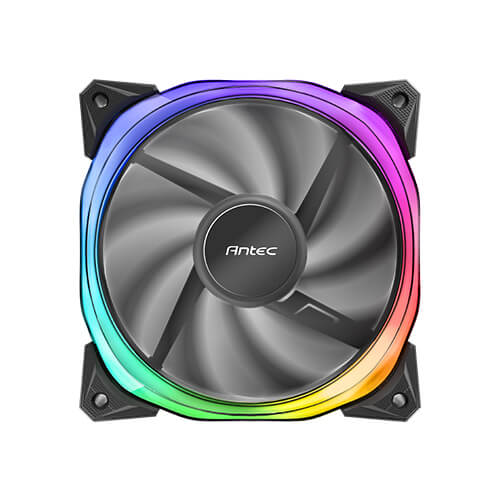

| Fan |
| Model Name |
Fusion 120 ARGB fan (AH12012FM1) |
| Fan Type |
PWM Fan |
| Dimensions |
120 x 120 x 25 mm |
| Bearing Type |
Hydraulic Bearing |
| LED Type |
Addressable RGB |
| Fan Speed |
600±200 ~ 2000±10% RPM |
| Airflow |
57.93 CFM (max.) |
| Air Pressure |
2.11 mmH₂O (max.) |
| Fan Noise Level |
31.24 dB(A) |
| Lifespan |
40,000 hours |
| Connector |
FAN: 4-pin PWM | LED: 3-pin |
| Rated Voltage |
FAN: DC 12 V | LED: DC 5 V |
| Operation Voltage |
FAN: DC 6.0-13.8 V | LED: DC 4.5-5.5 V |
| Rated Current |
FAN : ≤ 0.21 A | LED : ≤ 0.58 A |
| Socket Compatibility CPU |
Intel : LGA 115X / 1200 / 1700 / 20XX
AMD : AM3 / AM4 / AM5 / TR4 |
| Warranty |
3 years |
| UPC# |
0-761345-74047-0 |
|
