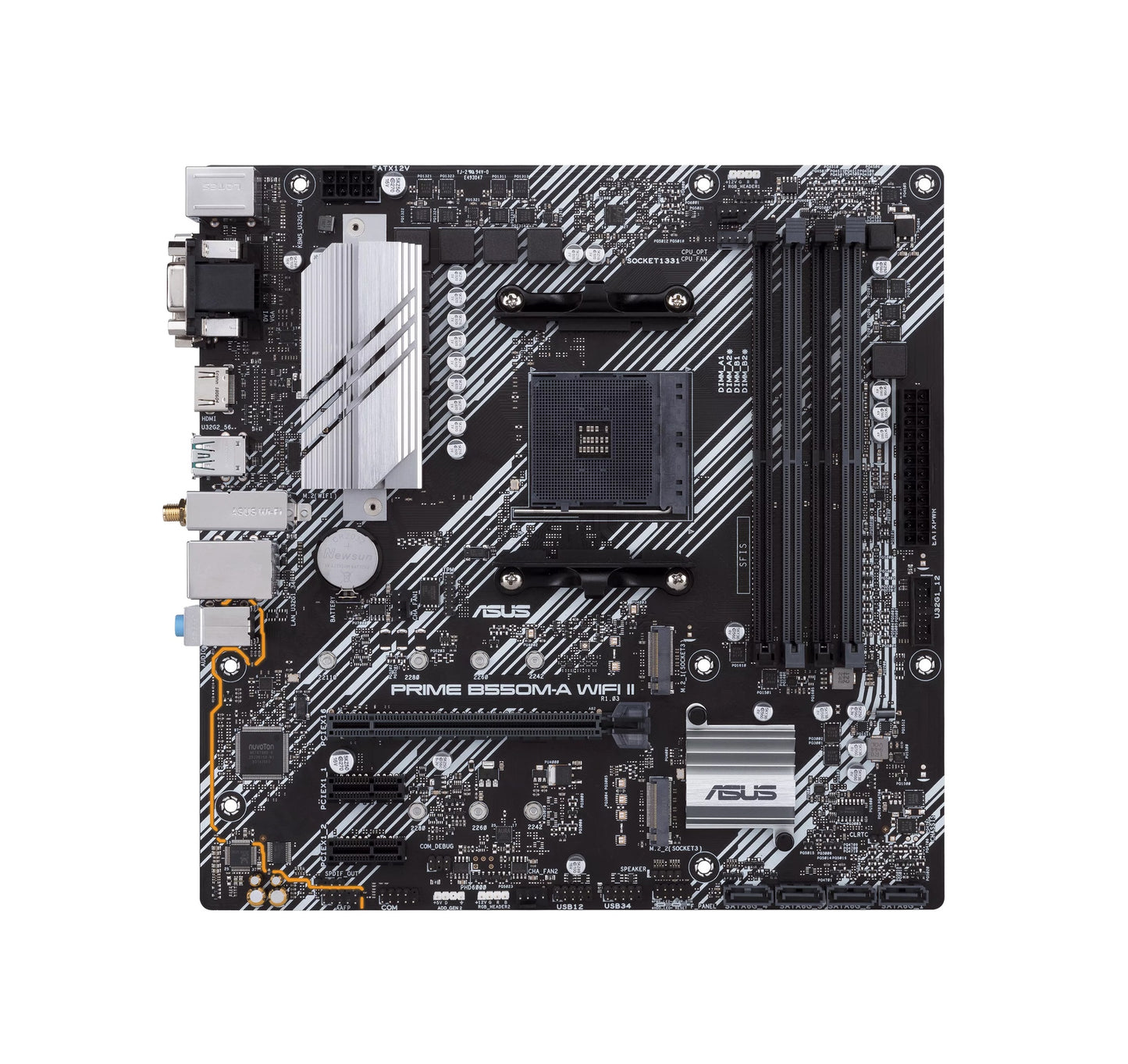

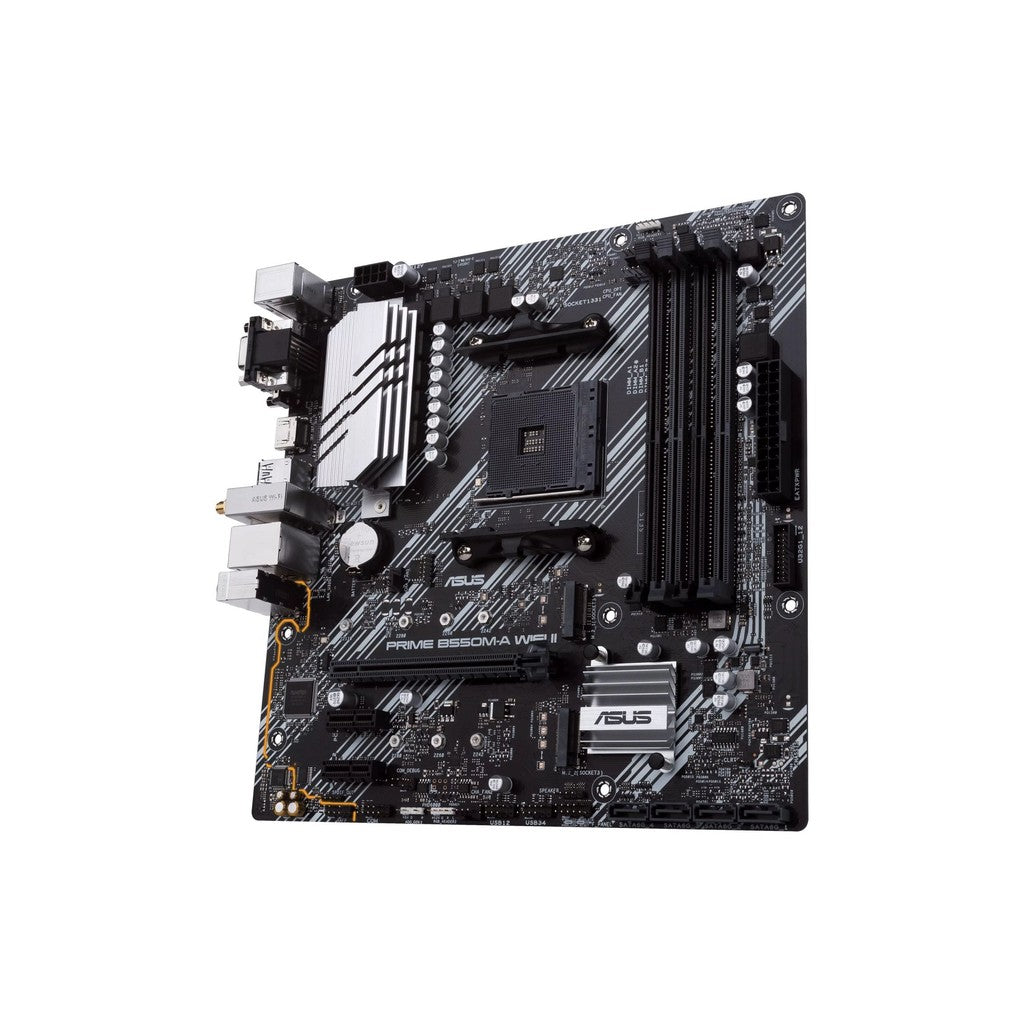

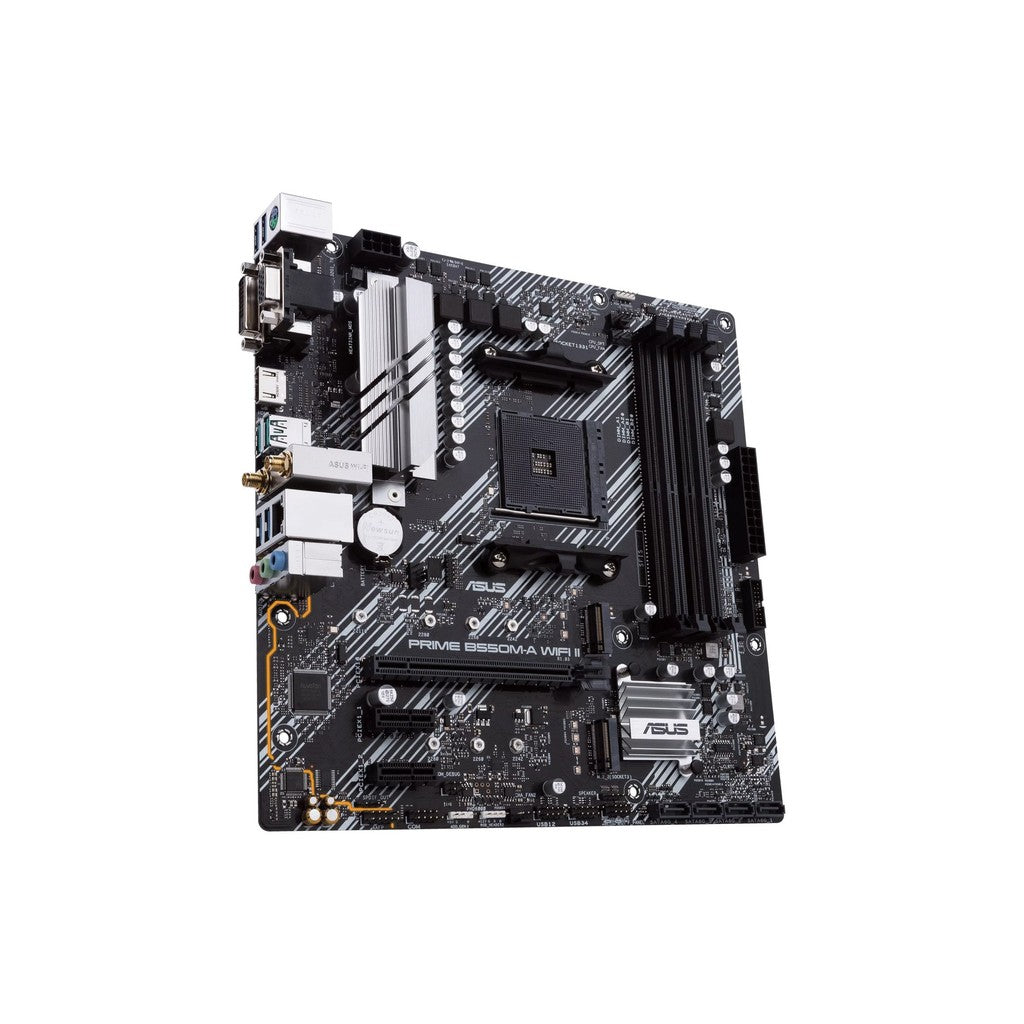

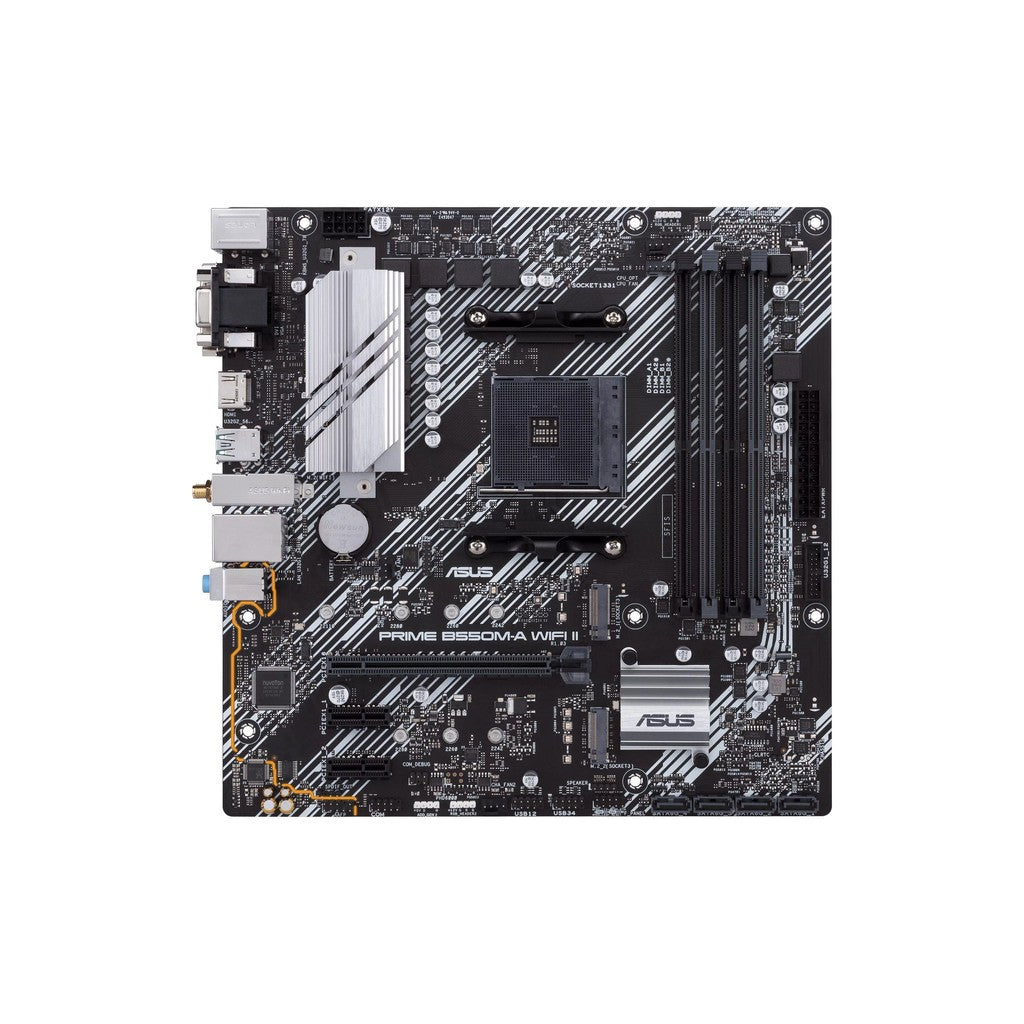

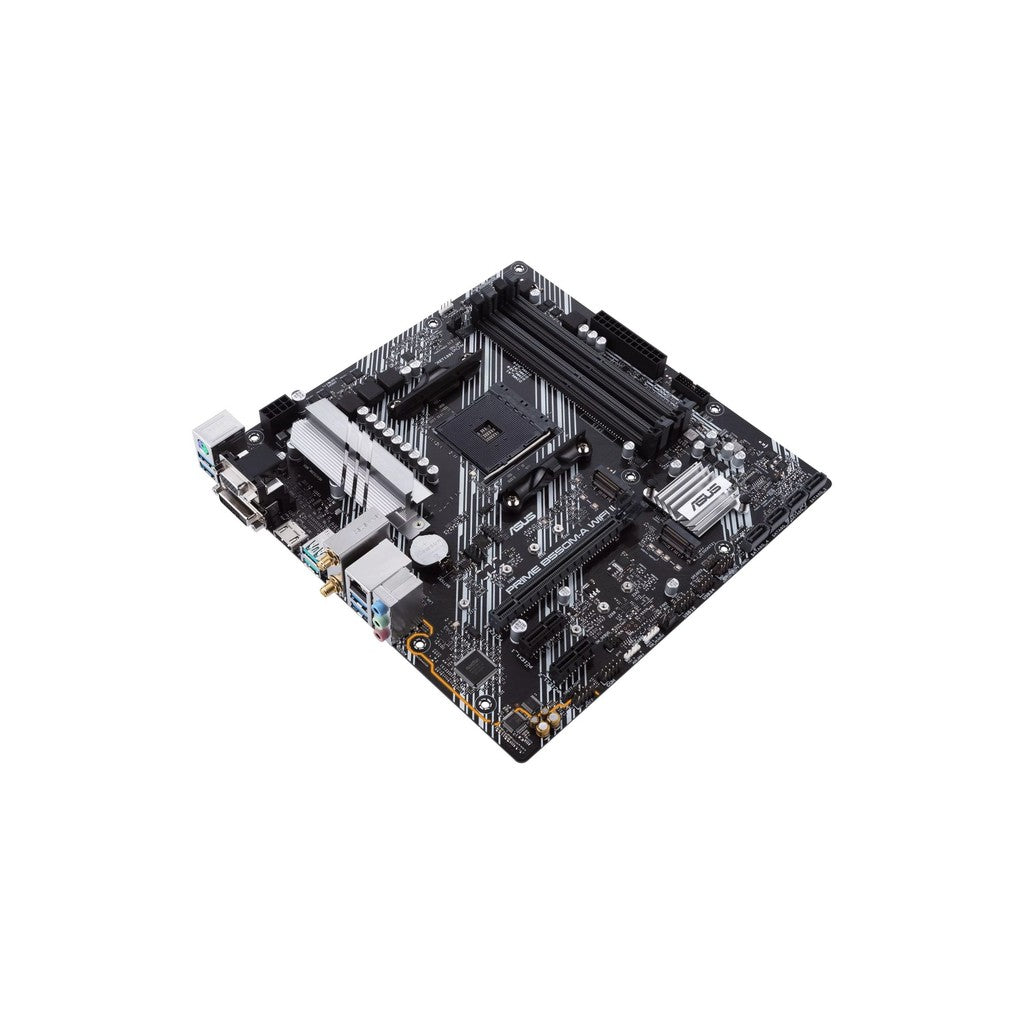

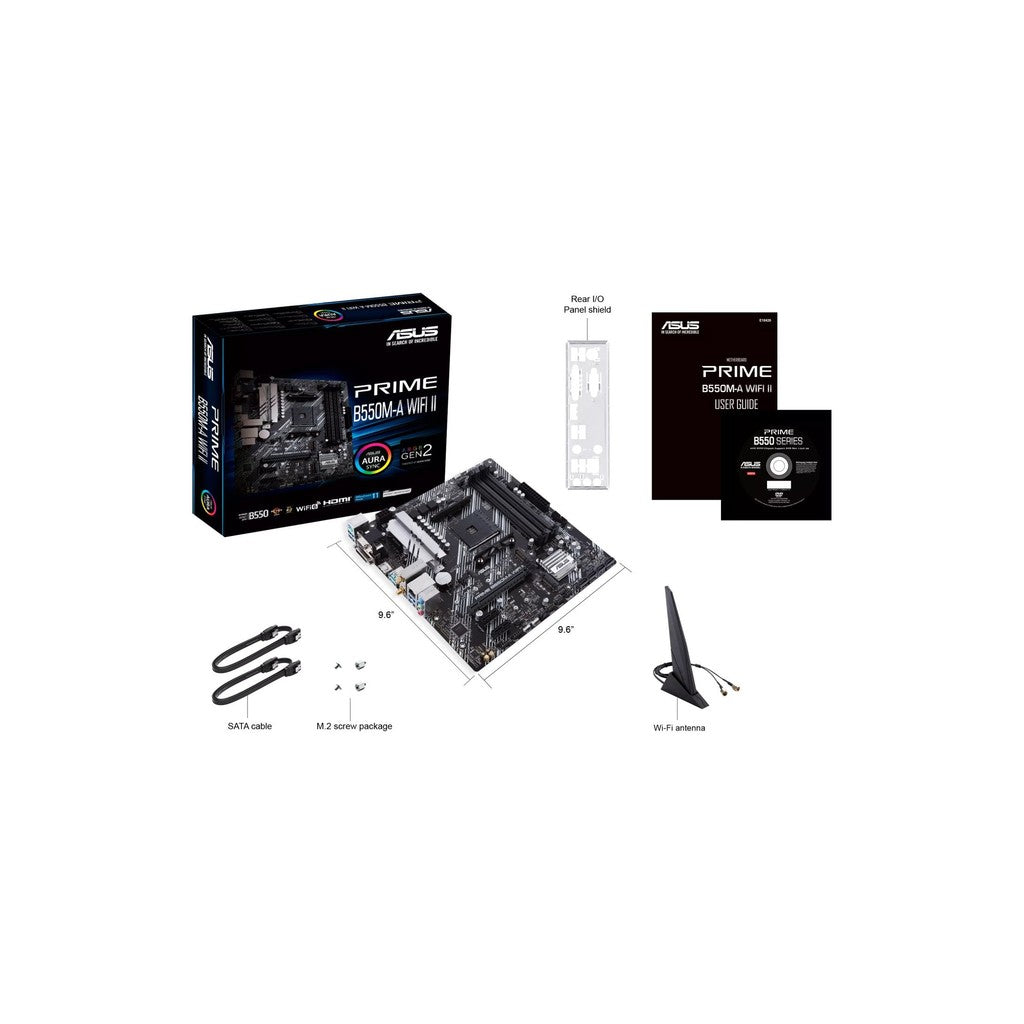

ASUS PRIME B550M-A WI-FI II AM4 mATX Motherboard

PRIME B550M-A WIFI II

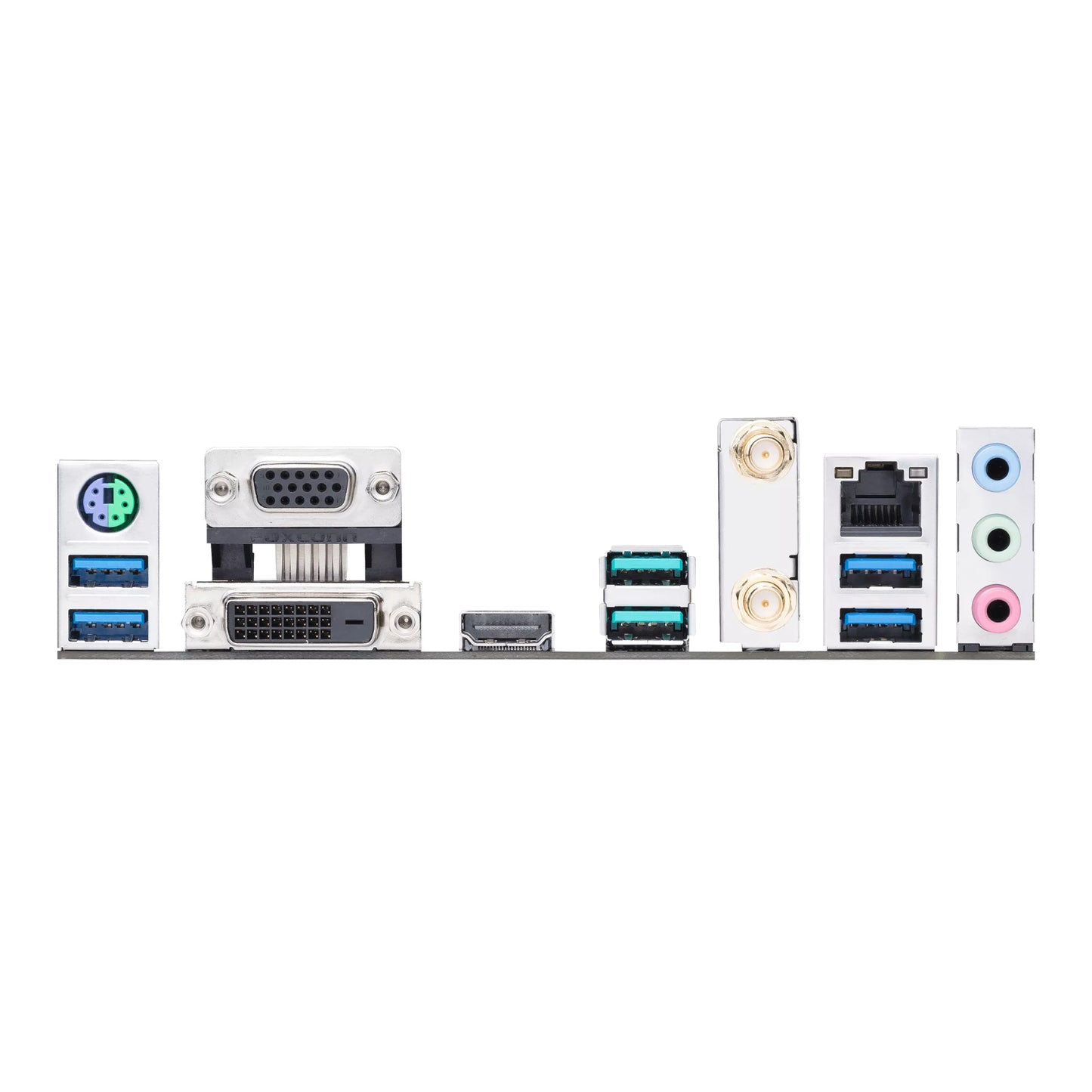

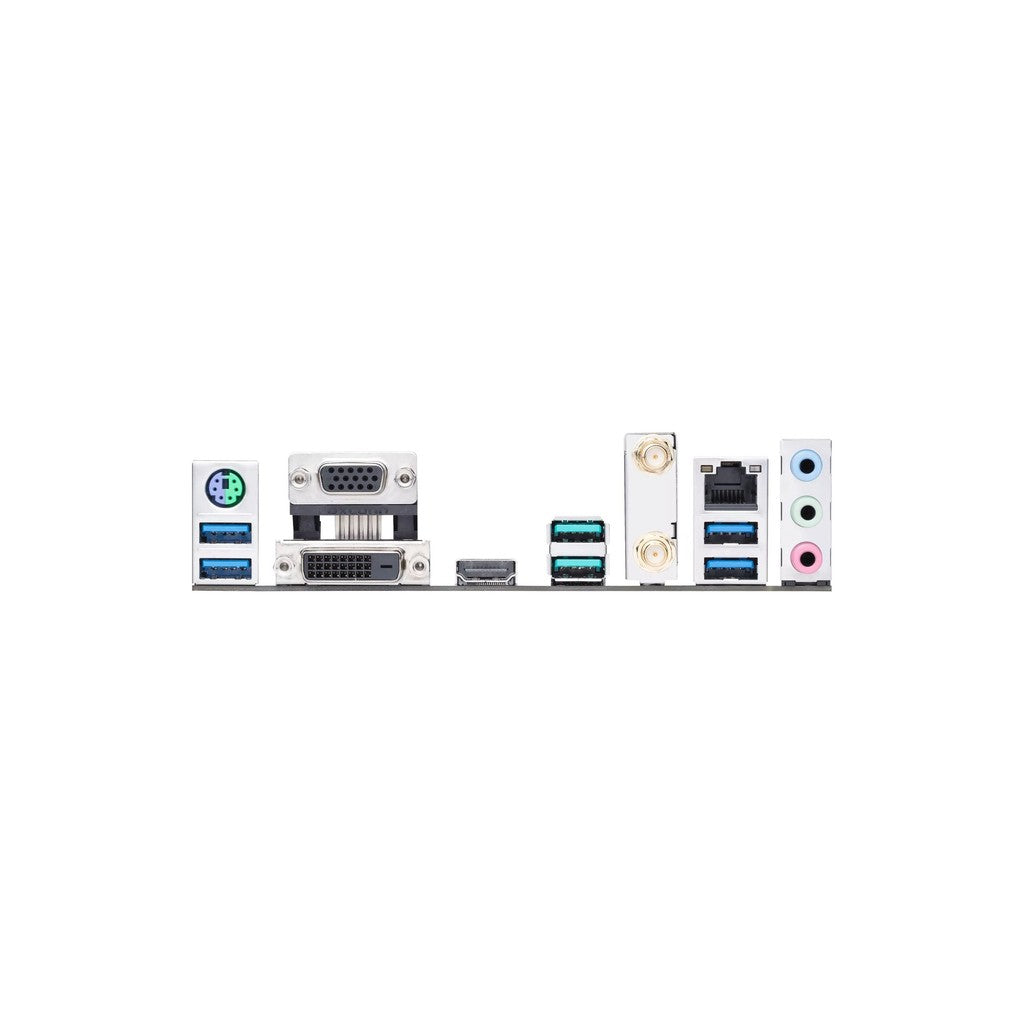

AMD B550 (Ryzen AM4) micro ATX motherboard with dual M.2, PCIe 4.0, Wi-Fi 6, 1 Gb Ethernet, HDMI, DVI-D, D-Sub, SATA 6 Gbps, USB 3.2 Gen 2 Type-A, and Aura Sync RGB lighting support

- AMD AM4 Socket: Ready for Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+ utility
- Ultrafast Connectivity: Dual M.2, PCIe 4.0, Wi-Fi 6, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A support
- Aura Sync RGB Lighting: Onboard addressable Gen 2 header and RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware



Prime

ASUS Prime series is expertly engineered to unleash the full potential of 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.



Tune It Your Way

Comprehensive controls form the foundation of the ASUS Prime series. The Prime B550 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work - maximizing your productivity.

Intelligent Control

EPU - All-around Energy Efficiency
With the Energy Processing Unit (EPU), you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode.



Fan Xpert 2+ - Flexible Cooling Controls
Fan Xpert 2+ software provides comprehensive control over system fans. Auto-Tuning mode intelligently ocnfigures all parameters with a single click. There's also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performning light tasks. Fans can also be controlled via the UEFI BIOS.



Digi+ VRM Control - Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

*Specifications and features vary by model, and all images are illustrative.



UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advance Mode - Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various Advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

- Search Function - Quickly and easily find the option or setting you need.
- ASUS User Profile - Port configuration settings between different BIOS versions or share them with friends.



EZ Mode - Quick and Simple Setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings - all to help you get your rig up and running in no time.

- Intuitive Graphical Fan Control - Fine-tune individual fan settings simply by dragging a curve with the mouse.
- EZ XMP - Improve DRAM performance with one click.
- Aura On/Off mode (Stealth) - Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.



Cool to the Core

Prime B550 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

VRM Heatsink and Thermal Pads

A VRM heatsink with underneath thermal pad improves heat transfer from the MOSFETs and chokes for better cooling performance.



Cooler by Design

Prime B550 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.

Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.



Smart Protection
A dedicated integrated circuit protects each fan header from overheating and overcurrent.



4-Pin PWM/DC Fan
Each onboard chassis fan header supports PWM and DC mode.



Build on a Solid Foundation

Prime B550 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

PCIe 4.0 M.2 (up to 64 Gbps)

Achieve speed with onboard M.2
PCIe 4.0 M.2 Slot supports up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to PCIe 4.0 storage device to enjoy the fastest data-transfer speeds on AMD Ryzen™ 5000 Series/ 3000 Series Processors.

Wi-Fi 6

Wi-Fi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.



USB 3.2 Gen 2 Type-A

Numerous USB ports support high-end rigs loaded with peripherals, including two rear-panel USB Type-A connectors with fast USB 3.2 Gen 2 connectivity for compatible cases.



Little Things Make a Big Difference

Prime B550 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Outstanding Audio

Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.

Audio Shielding
Separates analog/digital signal domains, significantly reducing multi-lateral interference.

Separate Layer for Left and Right Tracks
Ensures minimal crosstalk between audio paths.

Premium Audio Capacitors
Premium parts provide an immersive sound signature, with exceptional fidelity.

Aura Sync

Outshine the Competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for RGB LED strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.



Addressable Gen 2 Header

The addressable Gen 2 header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward-compatibility with existing Aura RGB gear.



Armoury Crate

Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and highlight to help you stay in touch with the ASUS community.



SafeSlot Core

Fortified PCIe slot prevents damage
SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, SafeSlot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.



ASUS Prime motherboards have strengthened solder points around both the PCIe and DIMM pins.



Overvoltage Protection

World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.



DRAM Overcurrent Protection

Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.



Stainless-Steel Back I/O

3X corrosion-resistance for greater durability
Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.



LANGuard

Pumped-up throughput 2.5X higher surge tolerance
ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.



1000+ Compatible devices and components

The Prime B550 series provides superior compatibility with thousands of components and our Qualified Vendor List (QVL) identifies memory compatibility, giving you more choices for worry-free PC-building experiences.

8000+ Validation hours

Every ASUS motherboard is subjected to more than 8,000 hours of stringent tests, including burn-in, environmental, compatibility, software and safety tests to confirm their durability. ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.

Temperature and humidity tests

Ensures components withstand extreme conditions.



Thermal measurement tests

Ensures that the system remains cool and stable under the heaviest loads.



Insertion tests

Every port and connector is put through repeated installation cycles.



Aging tests

Up to 48-hour aging test ensures reliability.



Power-consumption tests

Checked for world-class energy efficiency.



Temperature and DC margin tests

Ensures that the motherboard is capable of coping with voltages fluctuations caused by varying temperatures.



Thermal-shock tests

Ensures ability to survive temperature changes during transportation.



Non-operation shock tests

Built to withstand jolts that may occur during shipping.



Burn-in tests

Every component is checked to ensure flawless operation.



Installation tests

Connector placement is double-checked to ensure hassle-free installation.



Drop tests

Drop tests from various heights ensure durability.



Salt and spray tests

Tested for I/O reliability, prolonged lifespan and rust-resistance.
