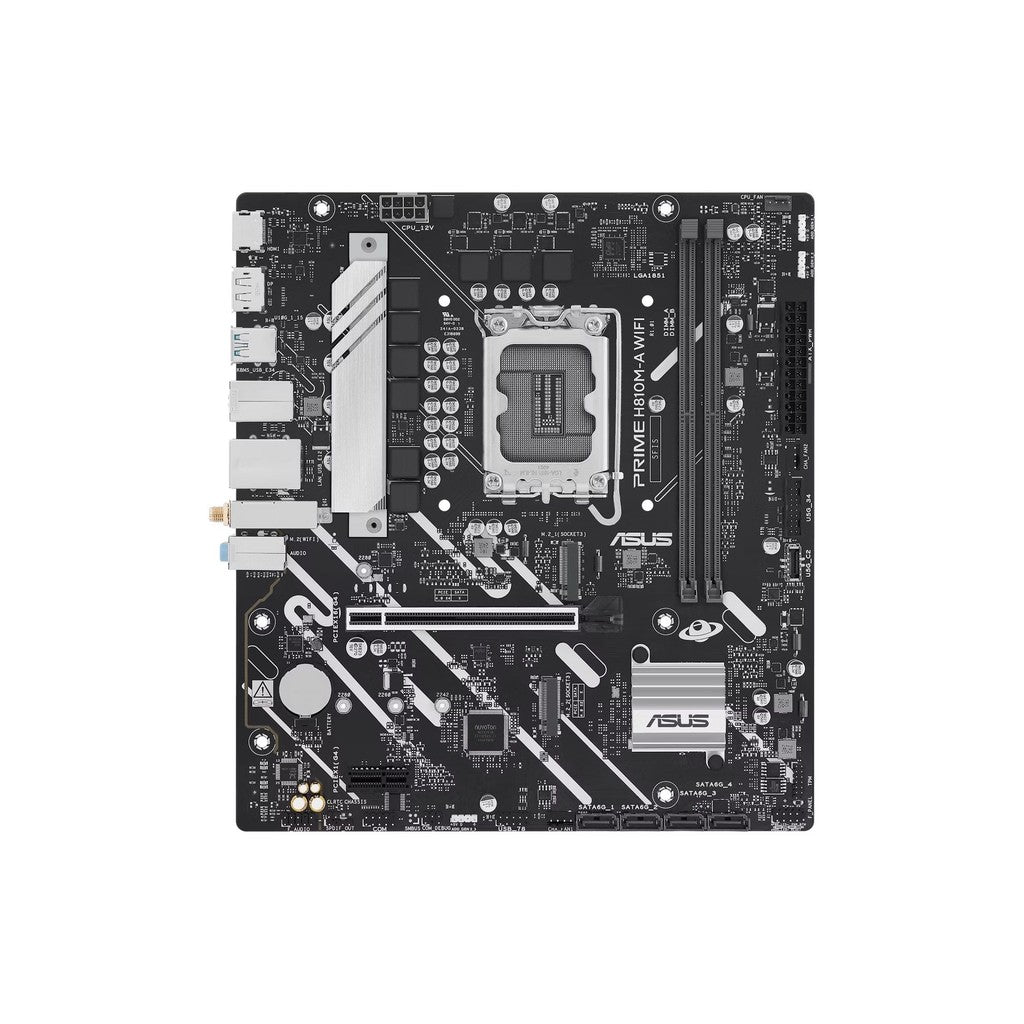

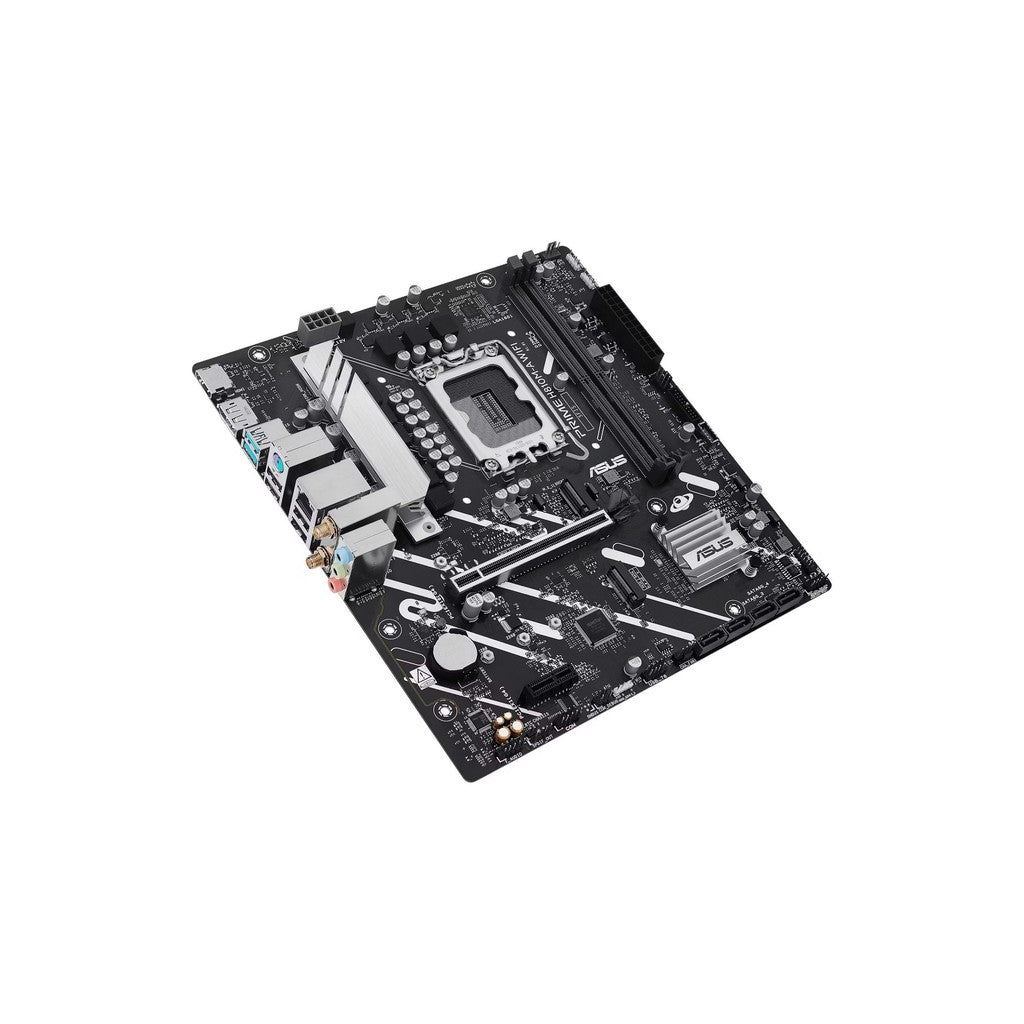

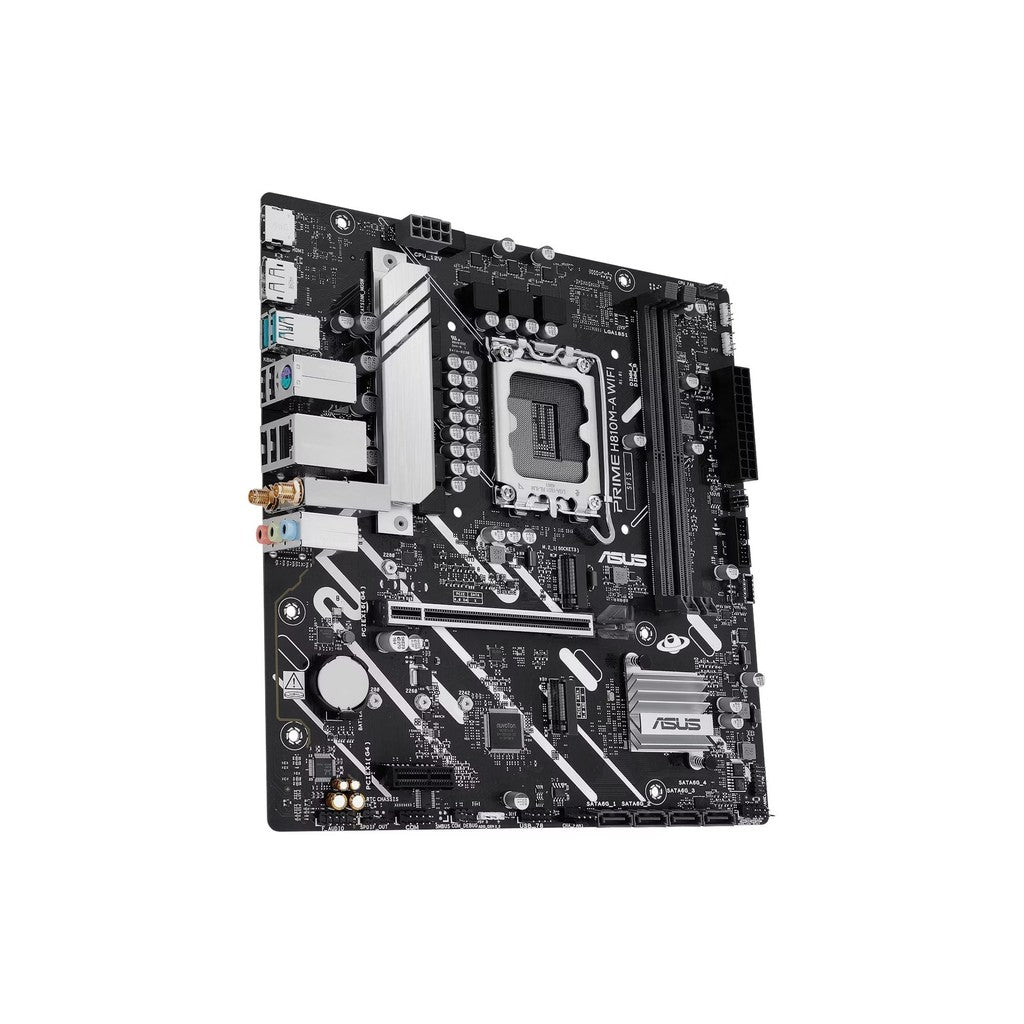

ASUS Prime H810M-A WIFI-CSM LGA1851 mATX Motherboard

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel^® Core^™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-A WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Model	ASUS PRIME H810M-A WIFI-CSM
CPU Support	Intel® Core™ Ultra Processors (Series 2), LGA1851 Intel® Turbo Boost Technology 2.0 Intel® Turbo Boost Max Technology 3.0 (CPU dependent)
Chipset	Intel® H810
Memory	2 × DIMM slots, up to 128GB DDR5 Up to 6400MT/s, Non-ECC, Unbuffered, CUDIMM Dual Channel Intel® XMP, ASUS AEMP II
Graphics Outputs	1 × DisplayPort (4K @ 60Hz) 1 × HDMI™ 2.1 (4K @ 60Hz)
Expansion Slots	1 × PCIe 4.0 x16 (CPU) 1 × PCIe 4.0 x1 (Chipset)
Storage	2 × M.2 slots • M.2_1: PCIe 4.0 x4 (2280) • M.2_2: PCIe 4.0 x2 (2242/2260/2280) 4 × SATA 6Gb/s
Ethernet	Intel® 1Gb LAN (I219V) ASUS LANGuard
Wireless	Wi-Fi 6 (802.11ax) 1×1, 2.4/5GHz Bluetooth® 5.3
USB (Rear)	2 × USB 10Gbps Type-A 4 × USB 2.0 Type-A
USB (Front)	1 × USB 5Gbps Type-C (5V/3A) 2 × USB 5Gbps via header 2 × USB 2.0 via header
Audio	Realtek 7.1-channel HD Audio 24-bit / 192kHz playback Audio Shielding, Premium Capacitors

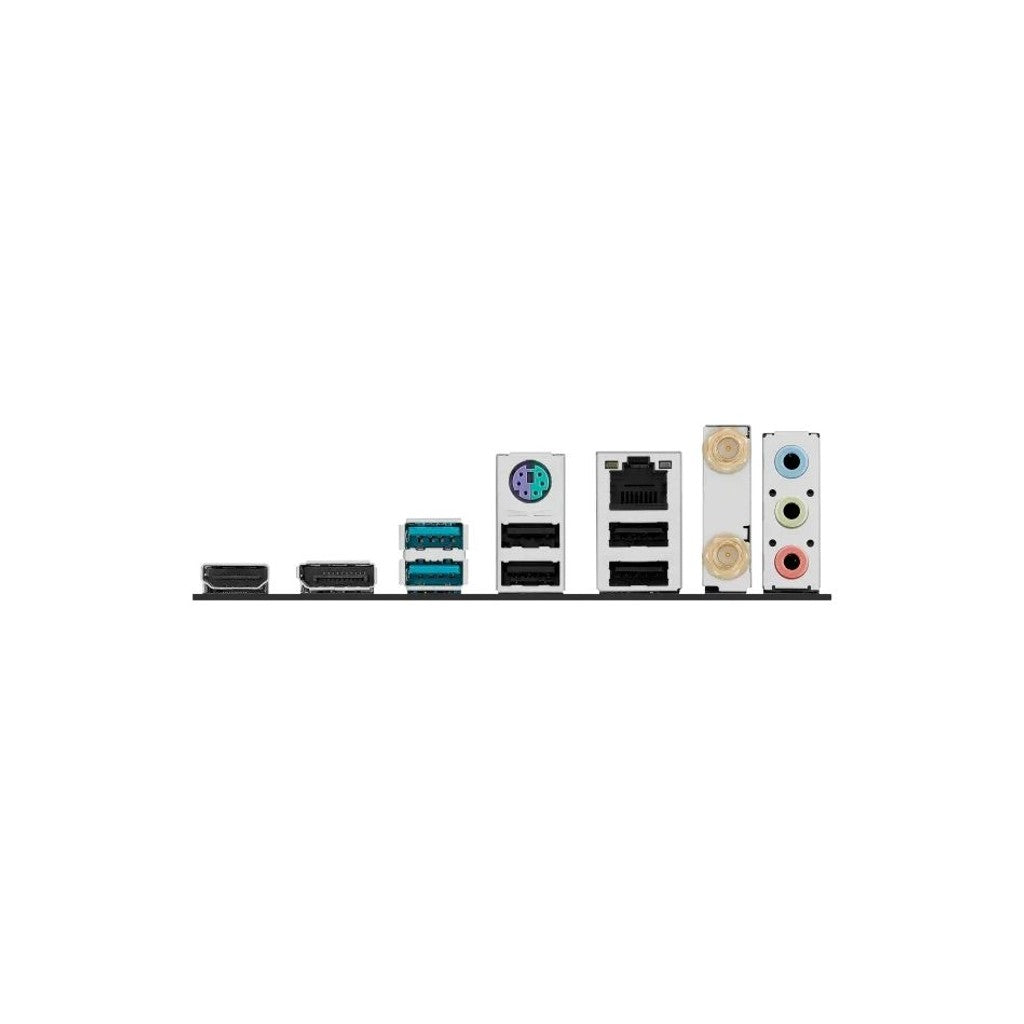

Back Panel I/O	DisplayPort, HDMI™ 2 × USB 10Gbps 4 × USB 2.0 Wi-Fi module 1 × LAN 3 × Audio jacks PS/2 combo port
Internal Connectors	CPU Fan ×1, Chassis Fan ×2 24-pin ATX, 8-pin CPU power 3 × ARGB Gen 2 headers Clear CMOS, COM, TPM, S/PDIF, Front Panel headers
Special Features	ASUS 5X Protection III Q-Design (Q-DIMM, Q-LED, Q-Slot) Aura Sync RGB
Software	Armoury Crate, Aura Sync, Fan Xpert 2+ ASUS DriverHub, GlideX Norton 360 (60 days), WinRAR (40 days)
BIOS	256Mb UEFI AMI BIOS EZ Flash, CrashFree BIOS 3
Manageability	Wake-on-LAN (PME), PXE

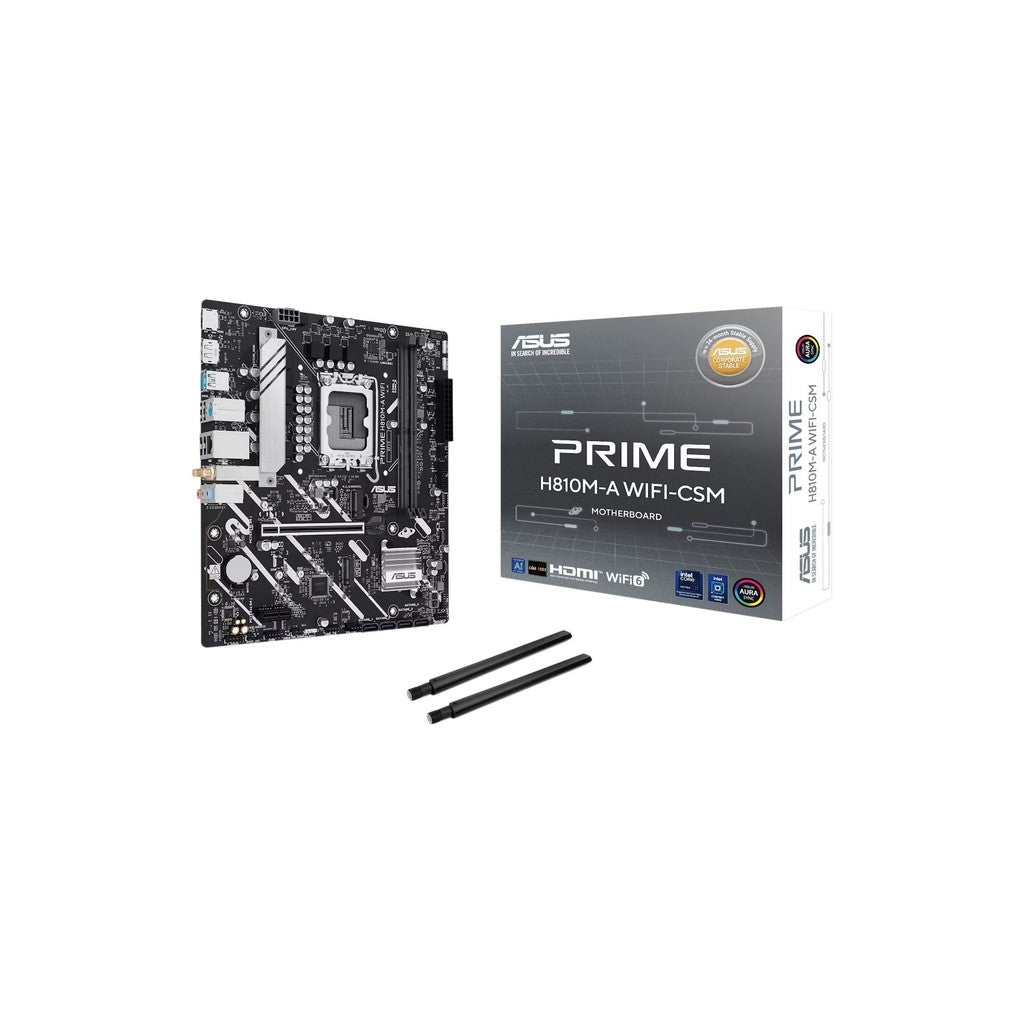

Included Accessories	2 × SATA cables Wi-Fi antenna I/O shield M.2 screw kit Quick start guide
Operating System	Windows 11 (22H2+) Windows 10 64-bit (21H2+)
Form Factor	micro-ATX 9.6 × 8.75 in (24.4 × 22.2 cm)
