AVS AHDSP4 Ultra Slim 1x4 HDMI Splitter with 4Kx2K and EDID Management

AVS AHDSP4
Ultra Slim 1x4 HDMI Splitter with 4Kx2K and EDID Management

The perfect solution for anyone who needs to send one source of digital high definition video to multiple displays.

Features:

- HDMI, HDCP 1.2 and DVI compliant
- Support full 3D pass-through
- Support 4k x 2k high resolution
- Super IR control system, IR transport channel can be forward or backward per your installation
- Support CEC bypass
- External and internal EDID settings

Specifications:

Input Port: 1x HDMI(Female connector), 1x USB
Output Port: 4x HDMI(Female connector), 1x IR Channel
Bandwidth: 10.2Gbps
Output resolution: 480i~1080P@50/60,1080P@24/50/60, VGA~UXGA
Operating Temperature: -15C~55C/5°F~131°F
Deep Colour: 36bit
Chassis: Metal Shell
Dimensions: 120mm(L)x60mm(W)x18mm(H)
Weight: 200g
Power Supply: DC 5V

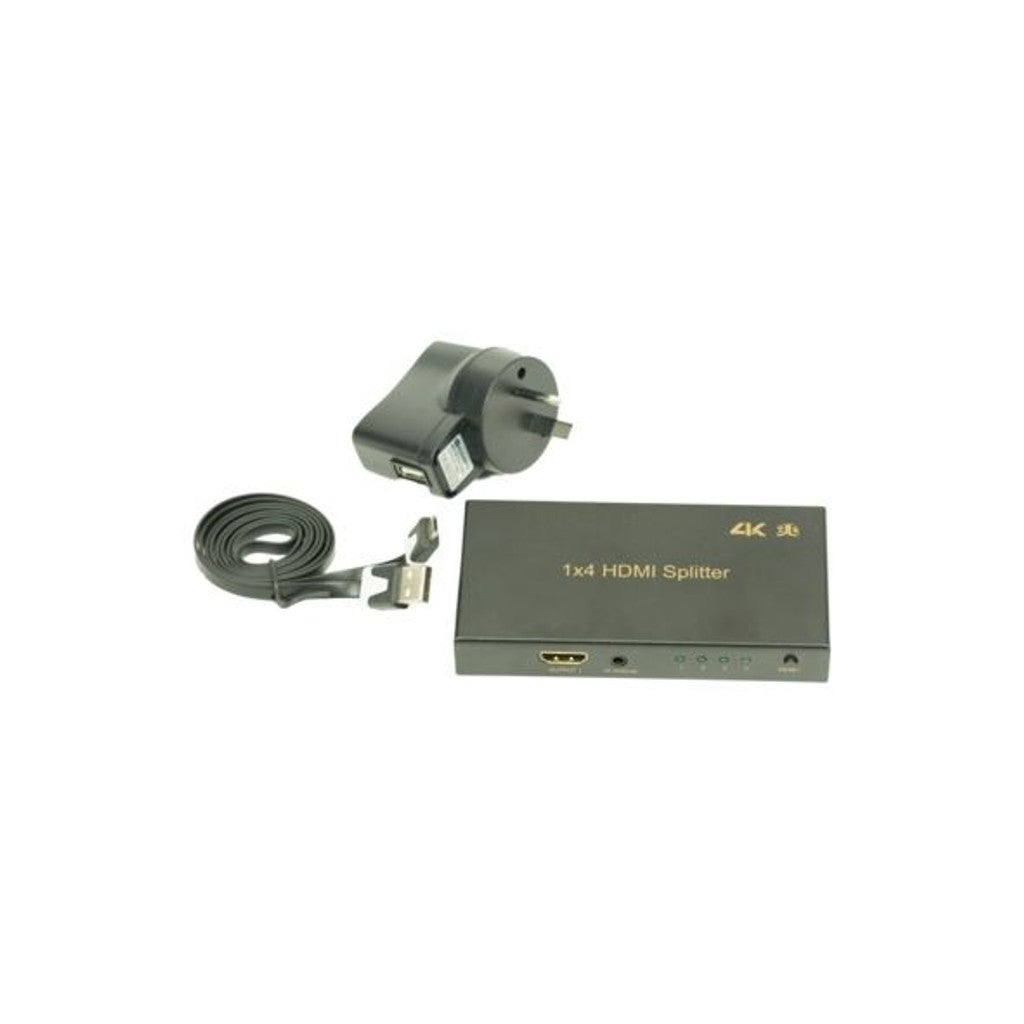

Package Contents:

1 x HDMI Splitter Unit
1 x 3ft USB A to micro B cable
1 x USB power adaptor
1 x User Manual
