Gigabyte B760M GAMING AC DDR4 GEN5 mATX Motherboard

3 Year Limited Warranty

B760M GAMING AC DDR4 GEN5

- PCIe Gen5 Performance : Perfect Sync to Win
- Supports Intel® Core™ 14th/ 13th /12th processors
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal.
- EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
- Ultra Durable™ SMD PCIe 5.0 Armor for enhanced graphics card support
- Unparalleled Performance : Hybrid 6+2+1 Phases VRM Solution
- Dual Channel DDR4 : 2*DIMMs XMP Memory Module Support
- Fast Networks : 2.5GbE LAN & Wi-Fi 802.11ac
- Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
- Extended Connectivity : Rear USB-C® 5Gb/s, DP, HDMI, D-Sub
- Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card



Performance



Thermal



Connectivity



DIY Friendly



Express to PCIE5 Performance

The new GIGABYTE B760 motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform.

PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement.



Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

PCIe UD Slot
GIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards.
- 1.7X stronger shearing test
- 3.2X stronger retention force test
- Reduced Signal Degradation with SMD Technology
* Photo for refrence only



UD Power Connector
Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.

Solid Pins
Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections



VRM Thermal
Durable VRM heatsinks keep your system cool and efficient.

* Photo for reference only



Hybrid VRM Design
The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability.

* Photo for reference only



Support for DDR4 XMP Up to 5333MHz and Beyond*
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.
- Up to 5333

* XMP Profile support may vary depending on memory module.
* Please see the complete validated memory support list. Product features may vary by model.
* Photos for reference only.



Smart Fan 6

Superior cooling performance and whisper-quiet operation for your gaming rig.

Note: Images are for illustrative purposes and may differ based on your model.

High Current Support
- Supports both PWM and DC fans, plus water cooling pumps
- Up to 24W (12V x 2A) capacity per fan header
- Built-in over-current protection

Precision Control
- Multiple temperature and fan speed points
- Customizable fan curves for optimal performance

Dual Curve Mode
- Choose between slope and stair modes
- Tailor cooling to your specific needs and preferences

Fan Stop Technology
- Fans can be completely turned off at low temperatures
- Ensures silent operation during light loads



Smart Fan 6 BIOS UI

Note: Images are for illustrative purposes and may differ based on your model.

Enhance Fan Curve UI
- 7 adjustable control points
- Expanded speed graph for precise adjustments

Slope/Stair Dual Graph Mode
- Slope mode: Smooth fan speed curve
- Stair mode: Steady speeds within temperature ranges
- Easy switching between modes

Manual Input
- Fine-tune fan speeds for optimal performance
- Precise control for enthusiasts

EZ Tuning
- Quick setup with 4 temperature and fan speed points
- Automatic optimization of fan curve

Fan Curve Profile
- Save personalized settings to BIOS ROM
- Maintain custom settings through BIOS updates



Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

802.11ac Wi-Fi
The onboard 802.11ac Wi-Fi module supports Dual Band and up to 1.73Gbps, 5x faster Wi-Fi speed than 802.11n and also supports BLUETOOTH 4.2 and above.
* Photo for reference only.



2.5G LAN
Design deliver blisteringly fast transfer speeds to ensure the most stable transmission environment when the system is performing cloud computing or providing external computing services.



Hi-Fi Audio
- High-End Audio Capacitors - These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.
- Audio Noise Guard - Essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.
* Photo for reference only.



Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.
* Photo for reference only.



WIFI Compass
Features auto detection to help users find the best antenna position for stronger Wi-Fi signal.



EZ-Latch Designs
User-friendly designs simplifying the assembly process.

PCIe EZ-Latch
Easy ejection with single click for graphics cards



UC BIOS
- Redesigned UI and UX an intuitive operation interface with an aesthetically pleasing design.
- Quick Access - 9 customizable option slots for effortless access in Easy Mode.
- PerfDrive exclusive BIOS settings that optimize the performance based on the cooling configuration.



Q-FLASH PLUS
Effortlessly upgrade your BIOS without the need to install CPU, RAM, or GPU.



GIGABYTE Control Center
A unified software platform encompassing multiple GIGABYTE product.

RGB Fusion
Personalize the RGB illumination on your motherboard and connected peripherals.

Category	Specification Details
CPU	• LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors • L3 cache varies with CPU
Chipset	• Intel® B760 Express Chipset
Memory	• 2 x DDR4 DIMM sockets, up to 64 GB (32 GB single DIMM) • Speeds from 2133MT/s up to 5333MT/s (O.C.) • Dual channel architecture • Supports ECC (in non-ECC mode) & non-ECC Un-buffered DIMMs • Supports XMP memory modules
Onboard Graphics	• 1 x D-Sub port (Max resolution 1920x1200@60Hz) • 1 x HDMI port (Supports HDMI 2.1 TMDS & HDCP 2.3, up to 4096x2160@60Hz) • 1 x DisplayPort (Supports DP 1.2 & HDCP 2.3, up to 4096x2304@60Hz) • Supports up to triple-display simultaneously
Audio	• Realtek® Audio CODEC (High Definition, 2/4/5.1/7.1-channel) • Support for S/PDIF Out
LAN	• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless	• Realtek® Wi-Fi RTL8821CE: WIFI 802.11 a/b/g/n/ac (2.4/5 GHz Dual-Band), BLUETOOTH 5.0
Expansion Slots	CPU: • 1 x PCIe 5.0 x16 slot Chipset: • 1 x PCIe 3.0 x1 slot
Storage	CPU: • 1 x M.2 (M2A_CPU, type 2280): PCIe 4.0 x4/x2 Chipset: • 1 x M.2 (M2P_SB, type 2280): PCIe 4.0 x4/x2 • 4 x SATA 6Gb/s connectors • RAID 0/1/5/10 support for SATA
USB	Chipset: 1 x USB-C® 3.2 Gen 1 (back panel), 5 x USB 3.2 Gen 1 (3 back panel, 2 internal header), 2 x USB 2.0/1.1 (back panel) Chipset+Hub: 4 x USB 2.0/1.1 (internal headers)
Internal I/O	• Power: 1 x 24-pin ATX, 1 x 8-pin ATX 12V • Cooling: 1 x CPU fan, 3 x sys fan • RGB: 2 x Addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header • Data: 2 x M.2, 4 x SATA • Headers: Front panel, front audio, S/PDIF Out, 1x USB 3.2 Gen 1, 2x USB 2.0/1.1, TPM (GC-TPM2.0 SPI series only), serial port • Misc: Q-Flash Plus button, reset jumper, Clear CMOS jumper

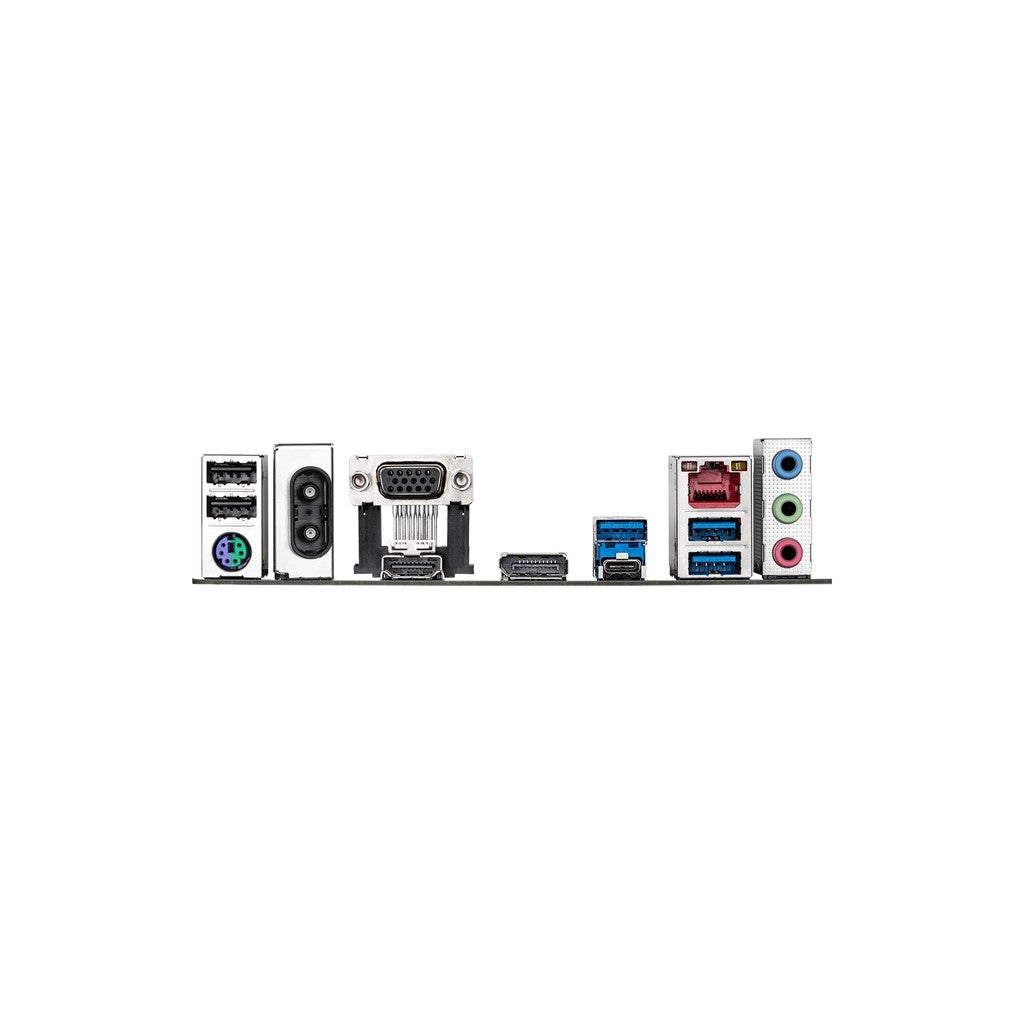

Back Panel	• 2 x USB 2.0/1.1 ports • 1 x PS/2 keyboard/mouse port • 2 x SMA antenna connectors (1T1R) • 1 x D-Sub port • 1 x HDMI port • 1 x DisplayPort • 3 x USB 3.2 Gen 1 ports • 1 x USB-C® 3.2 Gen 1 port • 1 x RJ-45 port • 3 x audio jacks
I/O Controller	• iTE® I/O Controller Chip
H/W Monitoring	• Voltage, temperature, fan speed, water cooling flow rate detection • Fan fail warning, fan speed control
BIOS	• 1 x 128 Mbit flash, AMI UEFI BIOS (PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0)
Unique Features	• GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup
Software/OS	• Norton® Internet Security (OEM) • Windows 11 64-bit, Windows 10 64-bit
Form Factor	• Micro ATX Form Factor (24.4cm x 22.5cm)
