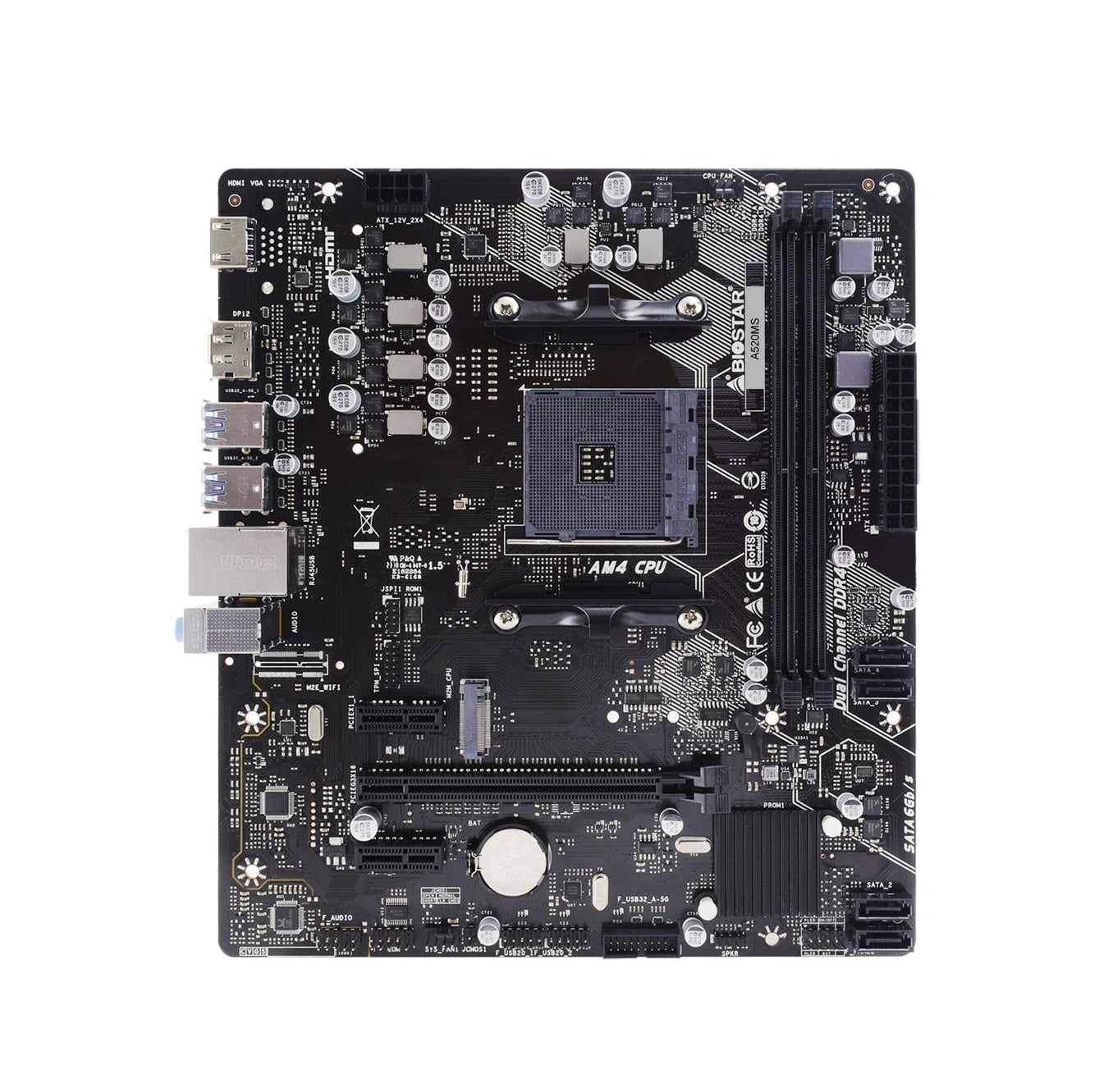

Biostar A520MS Motherboard

3 Year Limited Warranty

Socket AM4 support AMD Ryzen™ 3rd Gen (Matisse/ Renoir) and Ryzen™ 4th Gen (Vermeer/ Cezanne) processors
AMD A520 single chip architecture
Supports 2-DIMM DDR4 up to 64 GB Memory
Supports Realtek Gigabit LAN
Supports USB 3.2 Gen1
Supports M.2 (32Gb/s)
Supports HDMI 4K resolution

Chipset:
AMD A520

CPU SUPPORT:
Socket AM4 support AMD Ryzen™ 3rd Gen (Matisse/ Renoir) and Ryzen™ 4th Gen (Vermeer/ Cezanne) processors

MEMORY:
Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory

INTEGRATED VIDEO:
Supports DX12
Supports HDCP

STORAGE:
Total supports 1 x M.2 socket and 4 x SATA III (6Gb/s) ports
4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10
1 x M.2 (M Key) Socket:
Supports M.2 Type 2242/ 2260/ 2280 SSD module
Supports PCIe 3.0 x 4 (32Gb/s)
Supports SATA III (6.0Gb/s) SSD

LAN:
Realtek RTL8111H
10/ 100/ 1000 Mb/s

AUDIO CODEC:
ALC897
7.1 Channels, High Definition Audio, Hi-Fi (Front)

USB:
6 x USB 3.2 (Gen1) ports (4 on rear I/Os and 2 via internal headers)
6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)

EXPANSION SLOT:
1 x PCIe 3.0 x16 Slot
2 x PCIe 3.0 x1 Slot

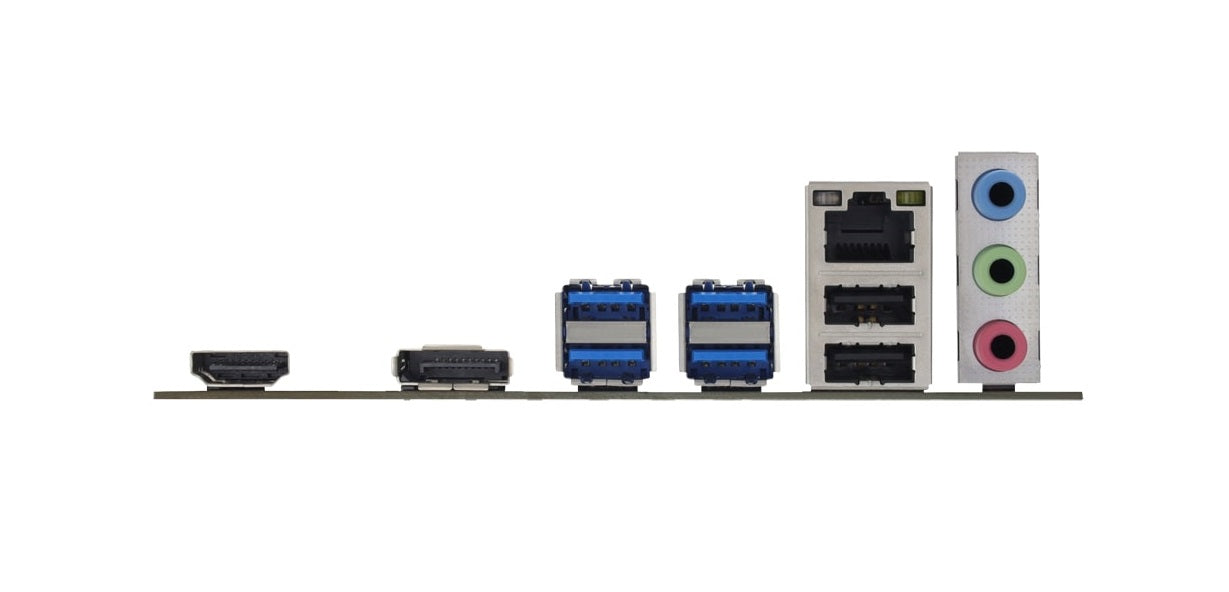

REAR I/O:
1 x DP Port
1 x HDMI Port
1 x LAN port
4 x USB 3.2 (Gen1) Ports
2 x USB 2.0 Ports
3 x Audio Jack
INTERNAL I/O 4 x SATA III (6.0Gb/s) Connectors
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
1 x TPM Header

DIMENSION:
Micro ATX Form Factor Dimension: 20.8cm x 23.5cm ( W x L )

ACCESSORIES:
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
1 x M.2 Anchor
