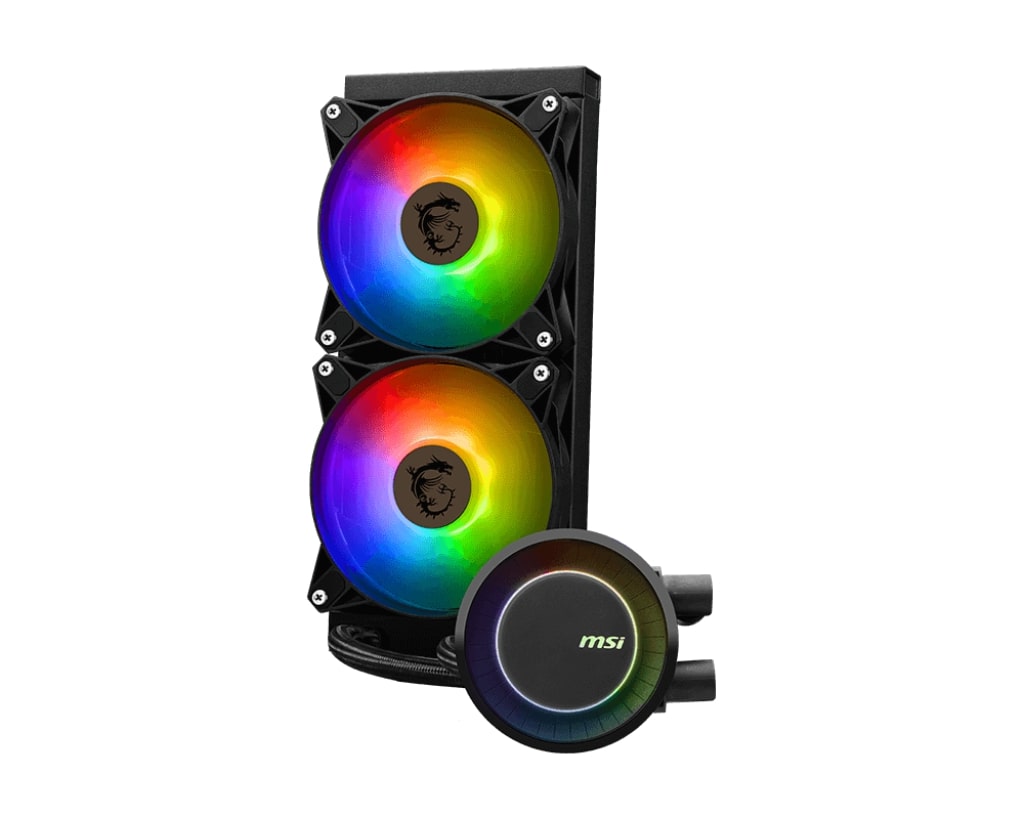

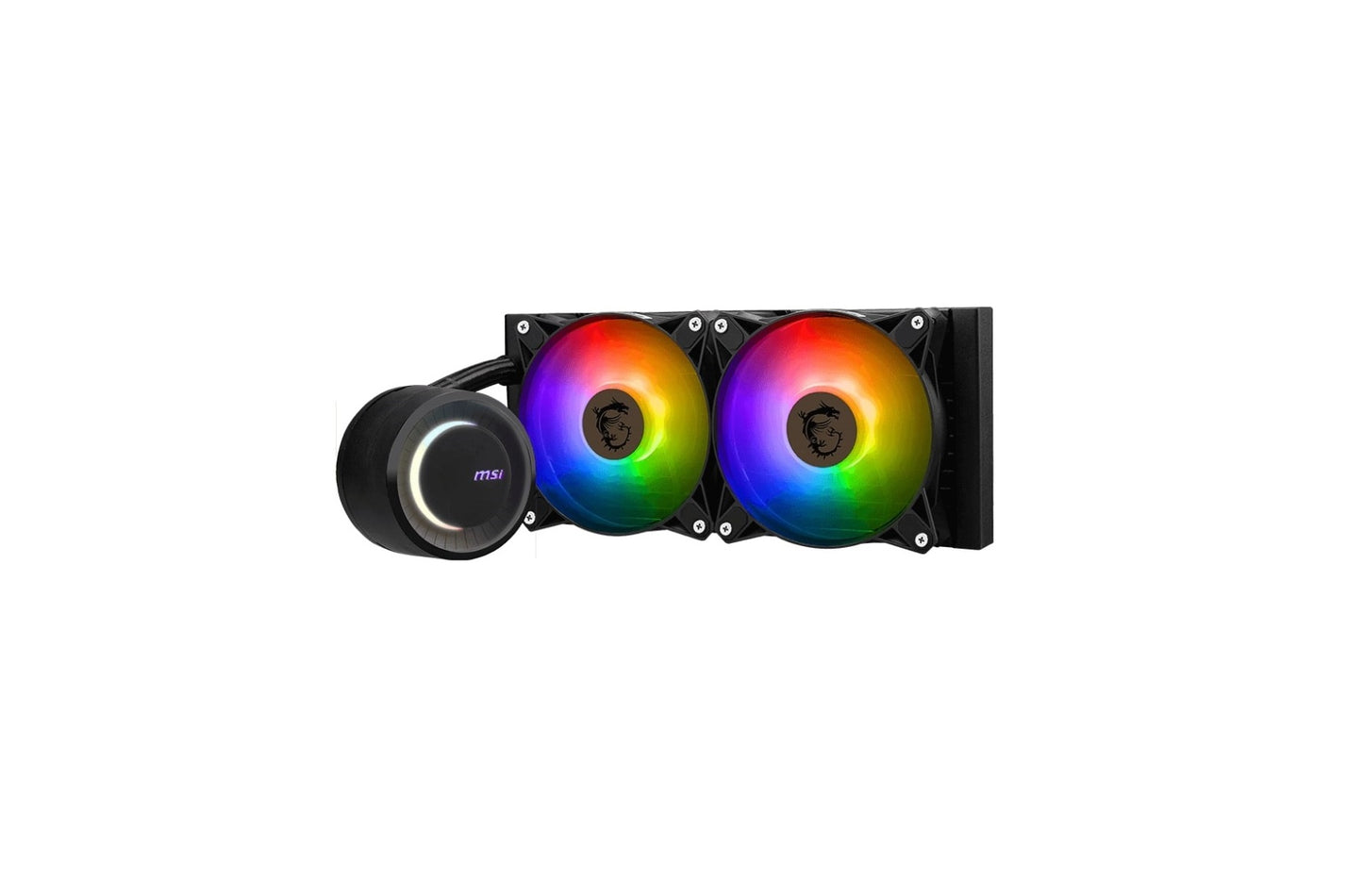

MSI MAG CORELIQUID E240 240mm AIO Water Cooler
MSI MAG CORELIQUID E240 240mm AIO Water Cooler
3 Year Limited Warranty

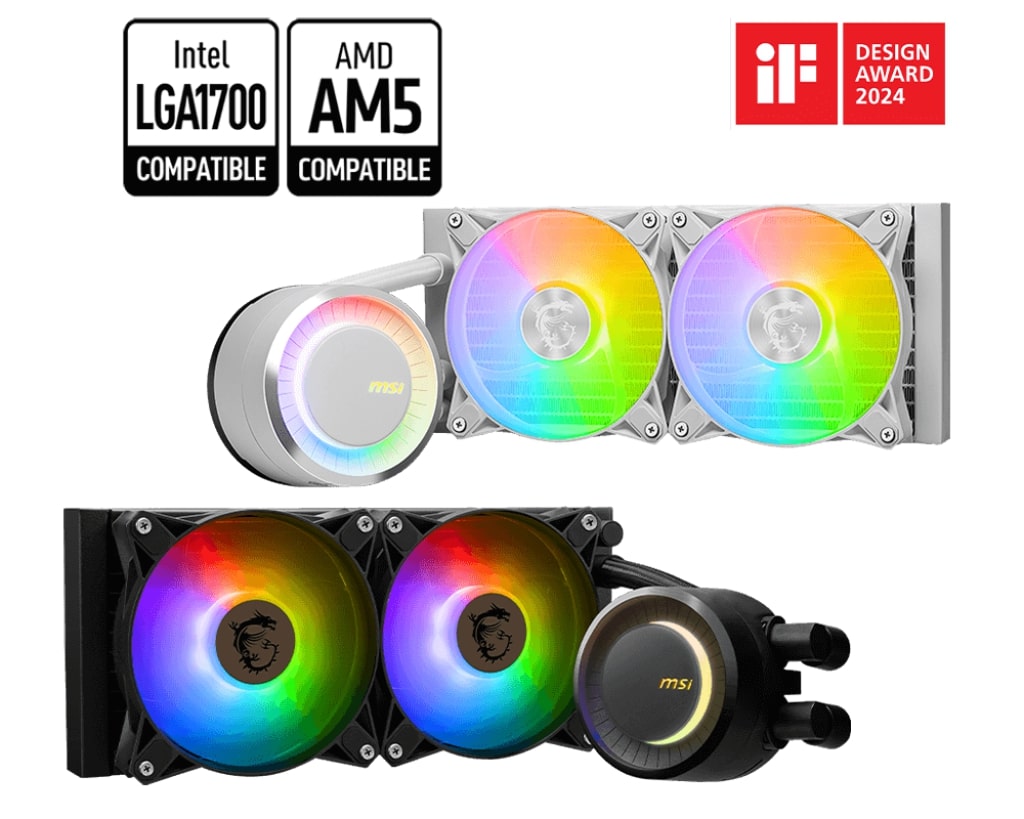

Compatible Intel Socket
LGA-1200
LGA-1700
H4 LGA-1151
H3 LGA-1150
H2 LGA-1155
H LGA-1156
Compatible AMD Socket
AM5
AM4
The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
The MAG CORELIQUID E Series, inspired by the passing of time and the shape of solar eclipse, is an innovative product that combines advanced cooling technology with a striking visual design. The MAG CORELIQUID E Series' circular shape represents the cyclical nature of time and the continuous flow of energy.
Features
The enlarged copper base surface area helps to achieve ultimate heat exchange with the latest CPU generation.
Maximize micro-channels to dissipate heat efficiently
Rotatable water block cap for 270 degree.
ARGB fan can change the lighting by MSI center.
Enhanced fan performance to dissipate heat quickly.
Durable three phase motor of the pump generates minimal vibrations for long-lasting operation.
Spilt pathway through the radiator rapidly dissipates heat.
The enlarged copper base surface area helps to achieve ultimate heat exchange with the latest CPU generation.
Maximize micro-channels to dissipate heat efficiently
Rotatable water block cap for 270 degree.
ARGB fan can change the lighting by MSI center.
Enhanced fan performance to dissipate heat quickly.
Durable three phase motor of the pump generates minimal vibrations for long-lasting operation.
Spilt pathway through the radiator rapidly dissipates heat.
Radiator Size | 240 mm |
Radiator Dimensions (WxDxH) |
277 x 119.2 x 27mm / 10.91 x 4.69 x 1.06 inches
|
Radiator Material | Aluminum |
Water Cooling Tube Material | Black Rubber |
Number of Fans | 2 |
Fan Dimensions (WxDxH) |
120 x 120 x 25mm / 4.7 x 4.7 x 0.98 inches
|
Fan Air Flow |
25.5~75.04 CFM
|
Fan Bearing |
Fluid Dynamic Bearing (FDB)
|
Fan Life Expectancy |
50,000 hrs@40℃
|
Fan Rated Current |
0.25A(Max:0.4A)
|
Fan Power Consumption | 3W(Max:4.8W) |
PWM Mode | YES |
Cable Length (PWM Cable) | 500 mm |
Fan Connector | 4-pin |
Fan Lighting | ARGB |
RGB Connector | 3-pin + Socket |
Pump Life Expectancy |
200,000 hours in typical use
|
Pump Noise Level | 20 dBA (avg.) |
Pump Rated Current |
0.25A (Max: 0.5A)
|
Pump Power Consumption | 3W (Max: 6W) |
Pump Speed |
3000 RPM ± 10%
|
Pump Connector | 4-pin |
Cold Plate Material | Copper |
Block Dimensions (WxDxH) |
41±0.2*47.6±0.2mm
|
Intel Socket Support |
LGA 1150/1151/1155/1156/1200/1700
|
AMD Socket Support | AM5/AM4 |
Accessories |
1 x 1 to 2 Fan PWM cable
|
1 x Molex 4-Pin to 4-Pin fan cable
|
|
1 x Thermal paste
|
