Deepcool

DEEPCOOL CH510 Mesh Digital ATX Mid Tower

DEEPCOOL CH510 Mesh Digital ATX Mid Tower

Regular price $149.00
Regular price Sale price $149.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
1 Year Limited Warranty

HIGH-AIRFLOW PANEL

The CH510 MESH DIGITAL is an ideal case for any level builder needing a spacious interior and robust features designed for the modern PC gamer. The large metal mesh front panel allows vast amounts of airflow for optimal system cooling.

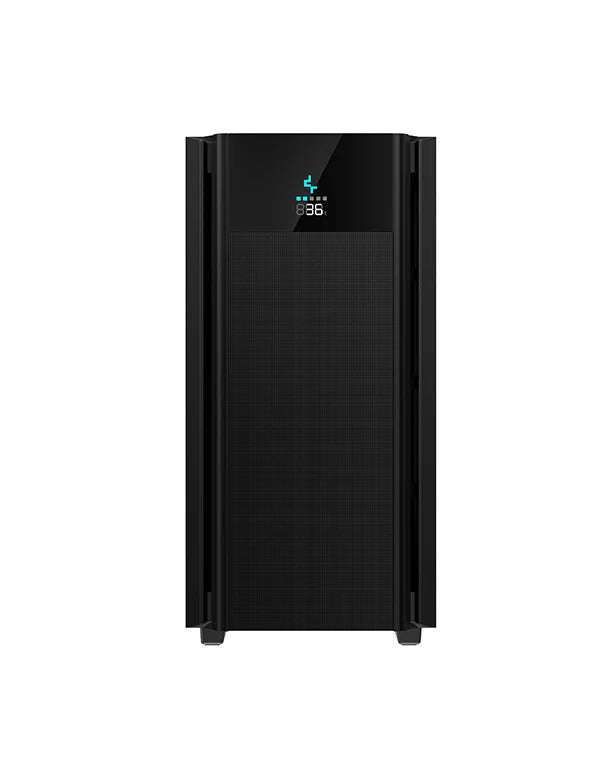

BUILT-IN DISPLAY

Monitor system information stats for critical CPU or GPU temperatures with a digital display built into the front panel for info access up close.

MORE CAPACITY, MORE POWER

Big power needs big cooling and the CH510 MESH DIGITAL provides ample amount of mounting locations to install plentiful cooling. Install large radiators up to 360mm either in front or on top, or fit up to 9x 120mm or 5x 140mm cooling fans for extreme airflow throughout.

MAGNETIC TEMPERED GLASS WINDOW

The clean tempered glass side panel offfers an immaculate view inside the chassis while being fastened with a magnetic mount for simplicity and ease. Additionally the glass window can be properly locked and secured with a dedicated screw mount for extra added safety.

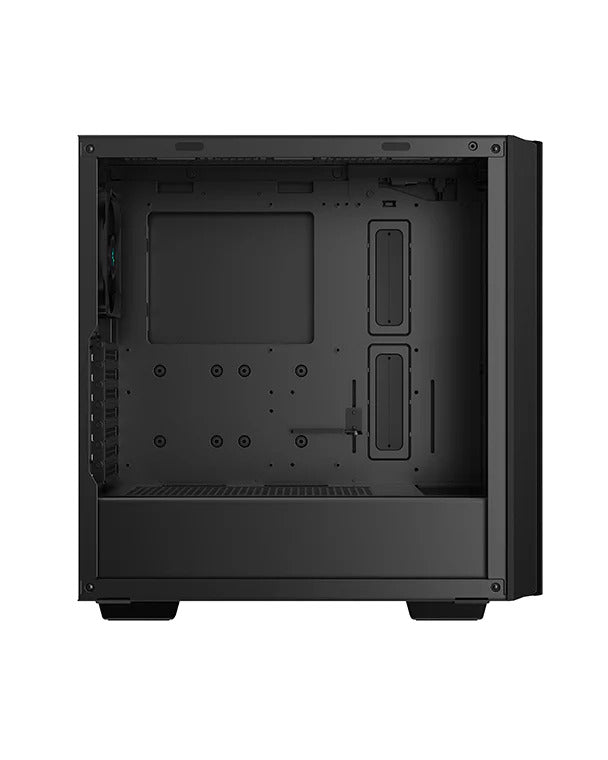

WIDE AND SPACIOUS INTERIOR

Maximize potential with flexible configurations that meet the needs of any system setup. With space for large GPUs up to 380mm and CPU coolers up to 175mm in height, the CH510 provides ample space without being too bulky.


Technical Spec
Product Dimensions 455×230×470mm(L×W×H)
Net Weight 7.5Kg
Materials ABS+SPCC+Tempered Glass
Motherboard Support Mini-ITX / Micro-ATX / ATX / E-ATX
Front I/O Ports USB3.0×1、Type-C×1、Audio×1
3.5" Drive Bays 2
2.5" Drive Bays 2+1
Expansion Slots 7 Slots
Pre-Installed Fans Rear: 1×120mm
Fan Support Front: 3×120 / 2×140mm
Top: 3×120 / 2×140mm
Rear: 1×120 / 1×140mm
PSU Shrouded: 2×120mm
Radiator Support Front: 120/140/240/280/360mm
Top: 120/140/240/280/360mm
Rear: 120/140mm
CPU Cooler Height Limit 175mm
GPU Length Limit 380mm
Power Supply Type ATX PS2 (maximum length: 170mm)
