Gigabyte

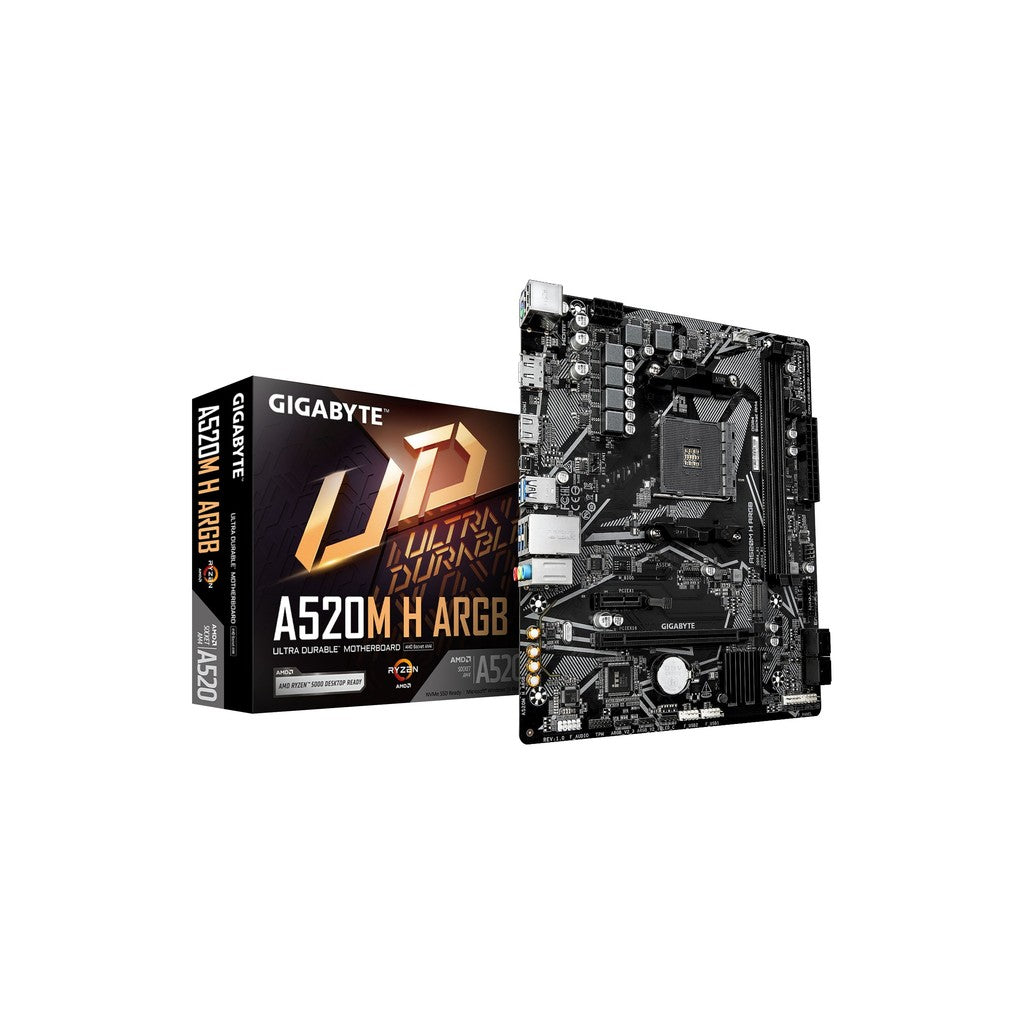

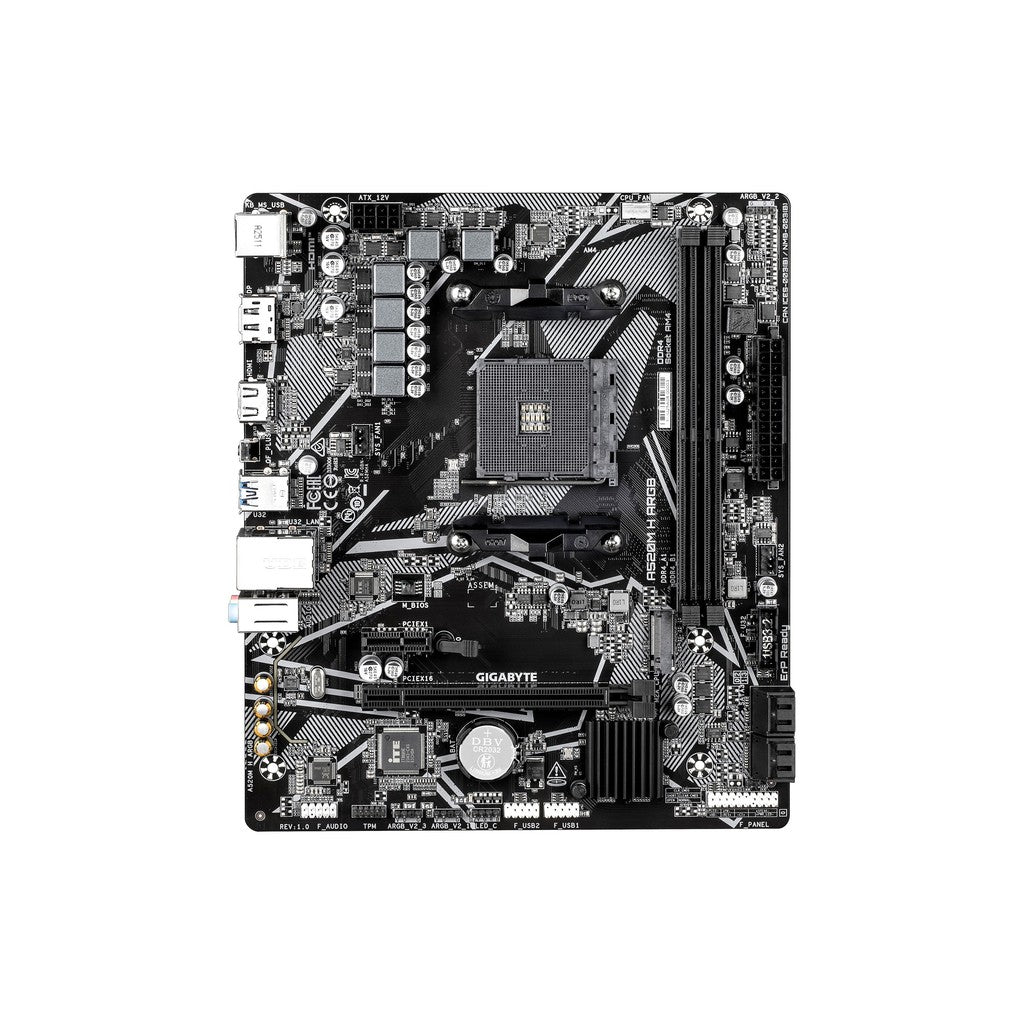

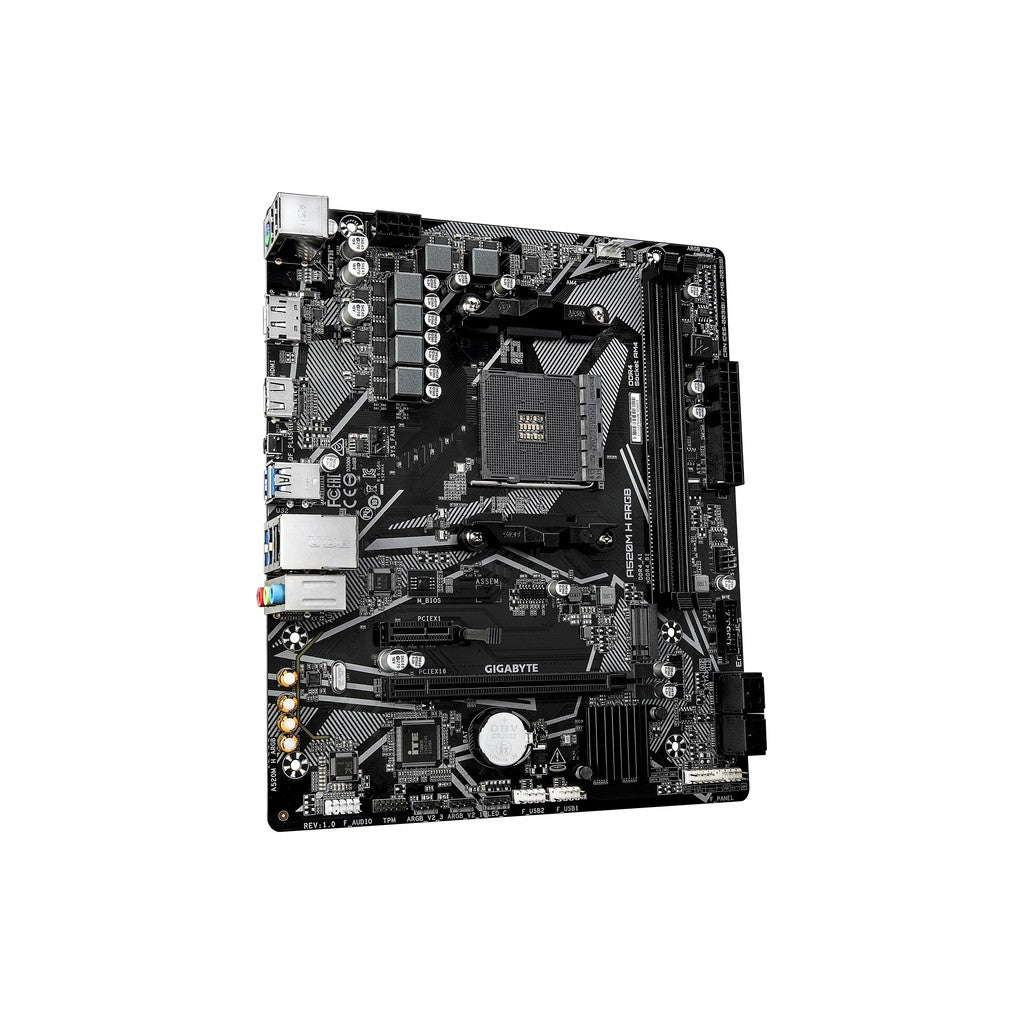

Gigabyte A520M H ARGB mATX AM4 Motherboard

Gigabyte A520M H ARGB mATX AM4 Motherboard

$120.00
$120.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

3 Year Limited Warranty

AMD A520 Ultra Durable Motherboard with GbE LAN, ARGB header, Q-Flash Plus, PCIe 3.0 x4 M.2, Smart Fan 6, Anti-Sulfur Resistors Design
  • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
  • Integrated ARGB header and Q-Flash Plus button
  • PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
  • Fast Network: GbE LAN
  • 8-Channel HD Audio with High Quality Audio Capacitors
  • Rear HDMI and DisplayPort for Multi-display Support
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • GIGABYTE CONTROL CENTER (GCC), Simple and Easy Use
Specification Details
CPU AMD Socket AM4; supports AMD Ryzen™ 5000 G-Series, Ryzen™ 5000 Series, Ryzen™ 4000 G-Series, Ryzen™ 3000 G-Series and Ryzen™ 3000 Series Processors
Chipset AMD A520
Memory 2 × DDR4 DIMM sockets, up to 64 GB (32 GB per DIMM); Dual-channel architecture; DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz; ECC Un-buffered DIMM and non-ECC Un-buffered DIMM support; XMP support
Onboard Graphics Integrated AMD Radeon™ Graphics; 1 × DisplayPort supporting up to 5120 × 2880 @ 60 Hz; 1 × HDMI supporting up to 4096 × 2160 @ 60 Hz; DisplayPort 1.4, HDCP 2.3 and HDR; HDMI 2.1, HDCP 2.3 and HDR; maximum shared memory 16 GB
Audio Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
LAN Realtek® GbE LAN chip (1 Gbps / 100 Mbps / 10 Mbps)
Expansion Slots CPU: 1 × PCI Express x16, PCIe 3.0, x16; Chipset: 1 × PCI Express x1, PCIe 3.0, x1
Storage Interface 1 × M.2 connector, Socket 3, M key, 2280 SATA and PCIe 3.0 x4/x2 SSD support; 4 × SATA 6Gb/s; RAID 0, RAID 1 and RAID 10 for NVMe SSD and SATA storage
USB CPU: 4 × USB 3.2 Gen 1 rear ports; Chipset: 2 × USB 3.2 Gen 1 via internal header; 6 × USB 2.0/1.1 (2 rear, 4 via internal headers)
Internal I/O Connectors 1 × 24-pin ATX; 1 × 8-pin ATX 12V; 1 × CPU fan header; 2 × system fan headers; 3 × Addressable RGB Gen2 LED headers; 1 × RGB LED header; 1 × M.2 Socket 3; 4 × SATA 6Gb/s; 1 × front panel header; 1 × front panel audio header; 1 × USB 3.2 Gen 1 header; 2 × USB 2.0/1.1 headers; 1 × TPM header; 1 × Clear CMOS jumper

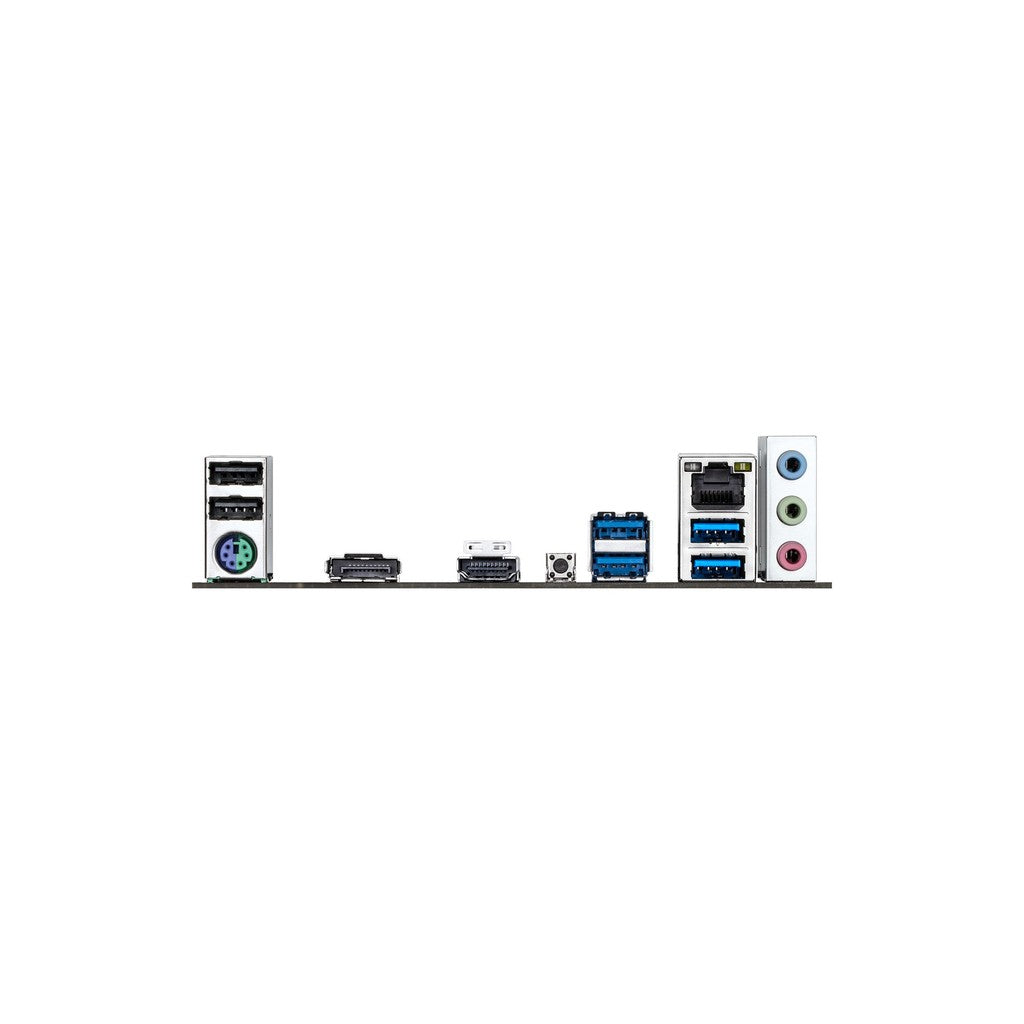

Back Panel Connectors 2 × USB 2.0/1.1; 1 × PS/2 keyboard/mouse; 1 × DisplayPort; 1 × HDMI; 1 × Q-Flash Plus button; 4 × USB 3.2 Gen 1; 1 × RJ-45; 3 × audio jacks
I/O Controller iTE® I/O Controller Chip
Hardware Monitoring Voltage detection; temperature detection; fan speed detection; overheating warning; fan fail warning; fan speed control
BIOS 1 × 128 Mbit flash; AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features GIGABYTE Control Center (GCC); Q-Flash; Q-Flash Plus; Smart Backup
Bundled Software Norton® Internet Security (OEM version)
Operating System Windows 11 64-bit; Windows 10 64-bit
Form Factor Micro ATX; 23.3 × 19.8 cm
