Gigabyte

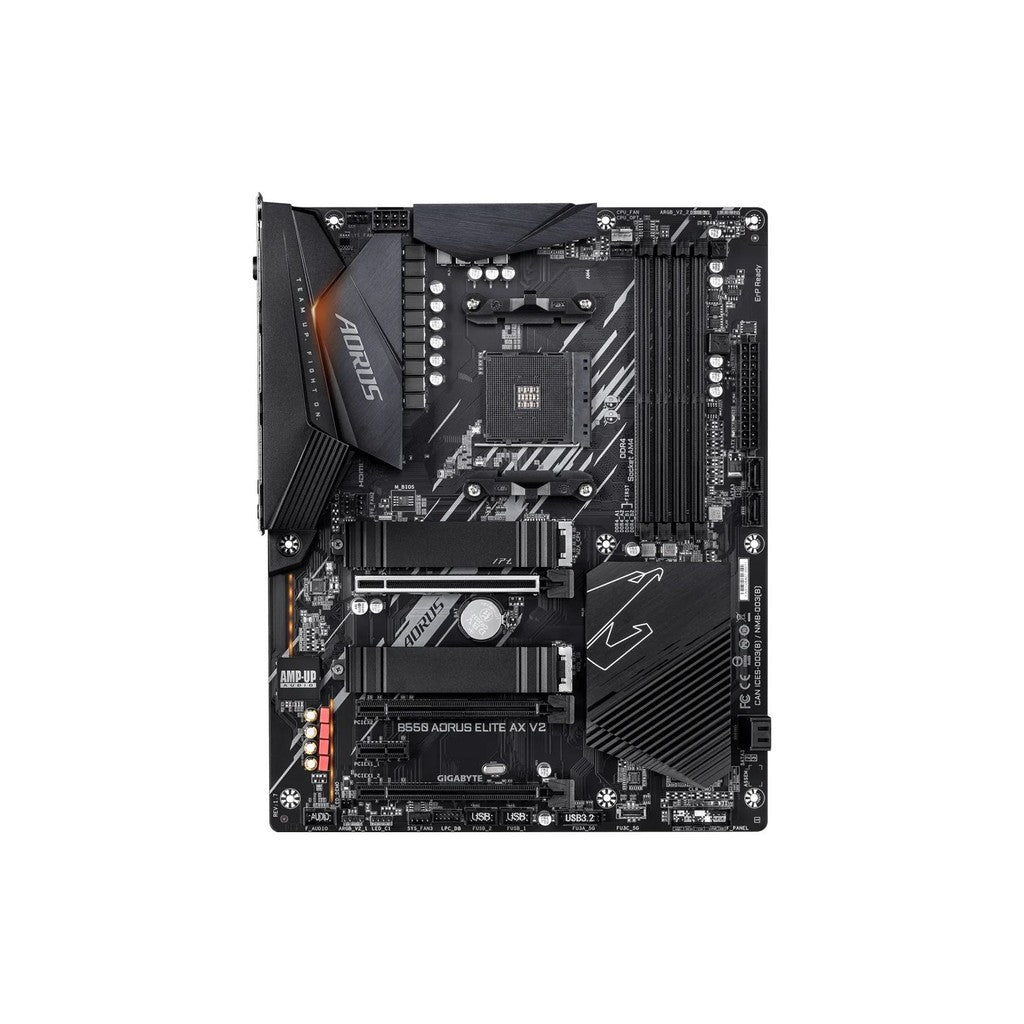

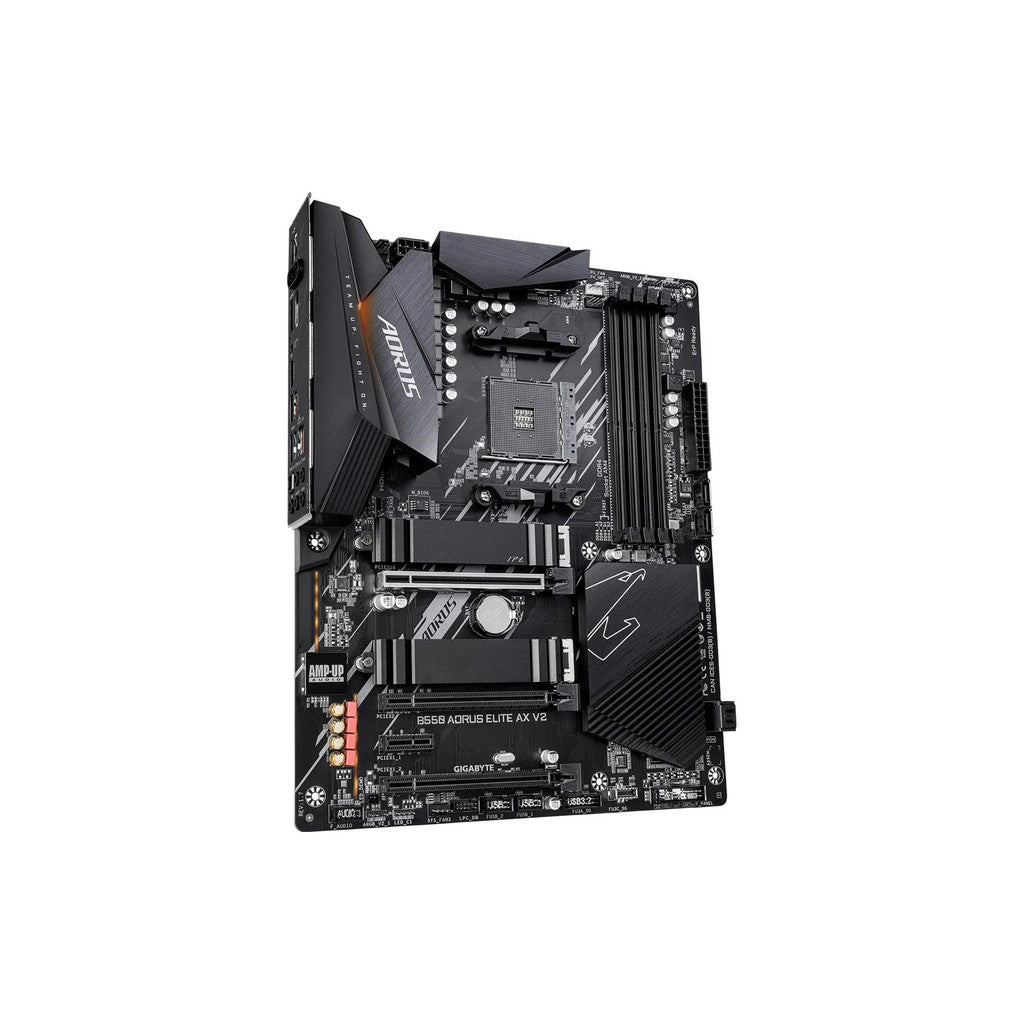

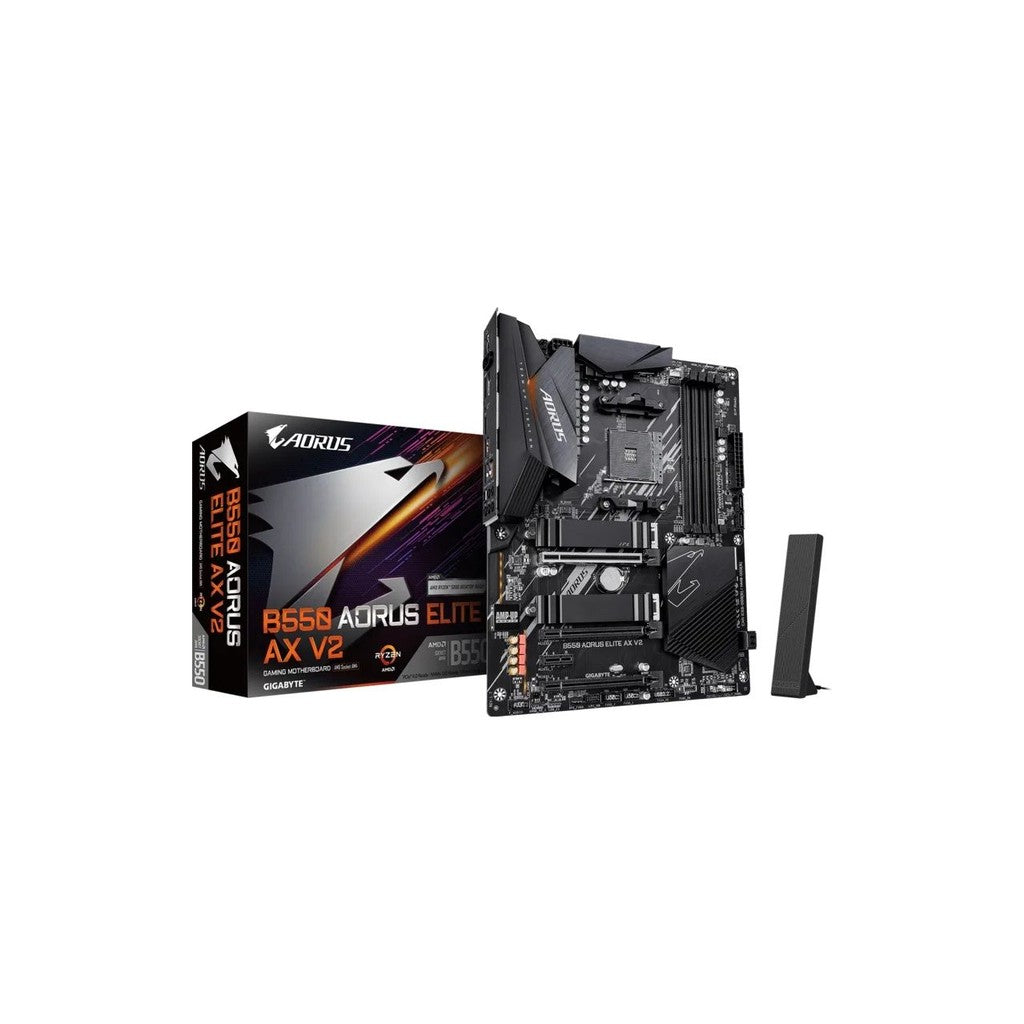

Gigabyte B550 AORUS ELITE AX V2 AM4 ATX Motherboard

Gigabyte B550 AORUS ELITE AX V2 AM4 ATX Motherboard

$339.00
$339.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

B550 AORUS ELITE AX V2

  • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 12+2 Phases Digital Twin Power Design with 50A DrMOS
  • Advanced Thermal Design with Enlarged Surface Heatsinks
  • Ultra Durable™ PCIe 4.0 x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards
  • Onboard WiFi 6E 802.11ax & BT 5.2
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • Blazing Fast 2.5GbE LAN with Bandwidth Management
  • Front USB 3.2 Gen1 Type-C™ and DisplayPort & HDMI for Multiple Display
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Pre-installed IO Shield for Easy and Quick Installation
Specification
CPU AMD Socket AM4; supports AMD Ryzen™ 5000 Series, Ryzen™ 5000 G-Series, Ryzen™ 4000 G-Series, Ryzen™ 3000 Series and Ryzen™ 3000 G-Series Processors
Chipset AMD B550
Memory 4 × DDR4 DIMM sockets, up to 128 GB (32 GB per DIMM); DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz; dual-channel architecture; ECC Un-buffered DIMM 1Rx8/2Rx8; non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16; XMP support
Onboard Graphics Integrated AMD Radeon™ Graphics; 1 × DisplayPort (up to 5120 × 2880 @ 60Hz), DisplayPort 1.4, HDCP 2.3 and HDR; 1 × HDMI (up to 4096 × 2160 @ 60Hz), HDMI 2.1, HDCP 2.3 and HDR; maximum shared memory 16 GB
Audio Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; S/PDIF Out support
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps)
Wireless Communication Realtek® Wi-Fi 6E RTL8852CE; 802.11a/b/g/n/ac/ax; 2.4/5/6 GHz; Bluetooth 5.3; 11ax 160MHz wireless standard
Expansion Slots 1 × PCIe x16 (CPU; PCIe 4.0 x16 with Ryzen 5000/3000 Series, PCIe 3.0 x16 with Ryzen 5000 G/4000 G/3000 G Series); 1 × PCIe x16 (chipset, PCIe 3.0 x2); 1 × PCIe x16 (chipset, PCIe 3.0 x1); 1 × PCIe x1 (chipset, PCIe 3.0 x1)
M.2 Storage 2 × M.2 Socket 3, M key, 2242/2260/2280/22110; CPU-connected M2A_CPU supports SATA and PCIe 4.0 x4/x2 with Ryzen 5000/3000 Series and PCIe 3.0 x4/x2 with Ryzen 5000 G/4000 G/3000 G Series; chipset-connected M2B_SB supports SATA and PCIe 3.0 x4/x2
SATA 4 × SATA 6Gb/s; RAID 0, RAID 1 and RAID 10 support
USB CPU: 2 × USB 3.2 Gen 2 Type-A or USB 3.2 Gen 1 Type-A on rear depending on CPU, plus 2 × USB 3.2 Gen 1 rear ports; Chipset: 1 × USB Type-C USB 3.2 Gen 1 via internal header, 1 × USB 3.2 Gen 1 rear port, 2 × USB 3.2 Gen 1 via internal header, 2 × USB 2.0/1.1 rear ports; Chipset + USB 2.0 Hub: 4 × USB 2.0/1.1 via internal headers
Internal I/O Connectors 1 × 24-pin ATX; 1 × 8-pin ATX 12V; 2 × M.2 Socket 3; 4 × SATA 6Gb/s; 1 × CPU fan header; 1 × CPU fan/water cooling pump header; 3 × system fan headers; 1 × CPU cooler LED/RGB header; 2 × addressable RGB Gen2 headers; 2 × RGB LED headers; 1 × front panel header; 1 × front panel audio header; 1 × USB Type-C USB 3.2 Gen 1 header; 1 × USB 3.2 Gen 1 header; 2 × USB 2.0/1.1 headers; 1 × Clear CMOS jumper

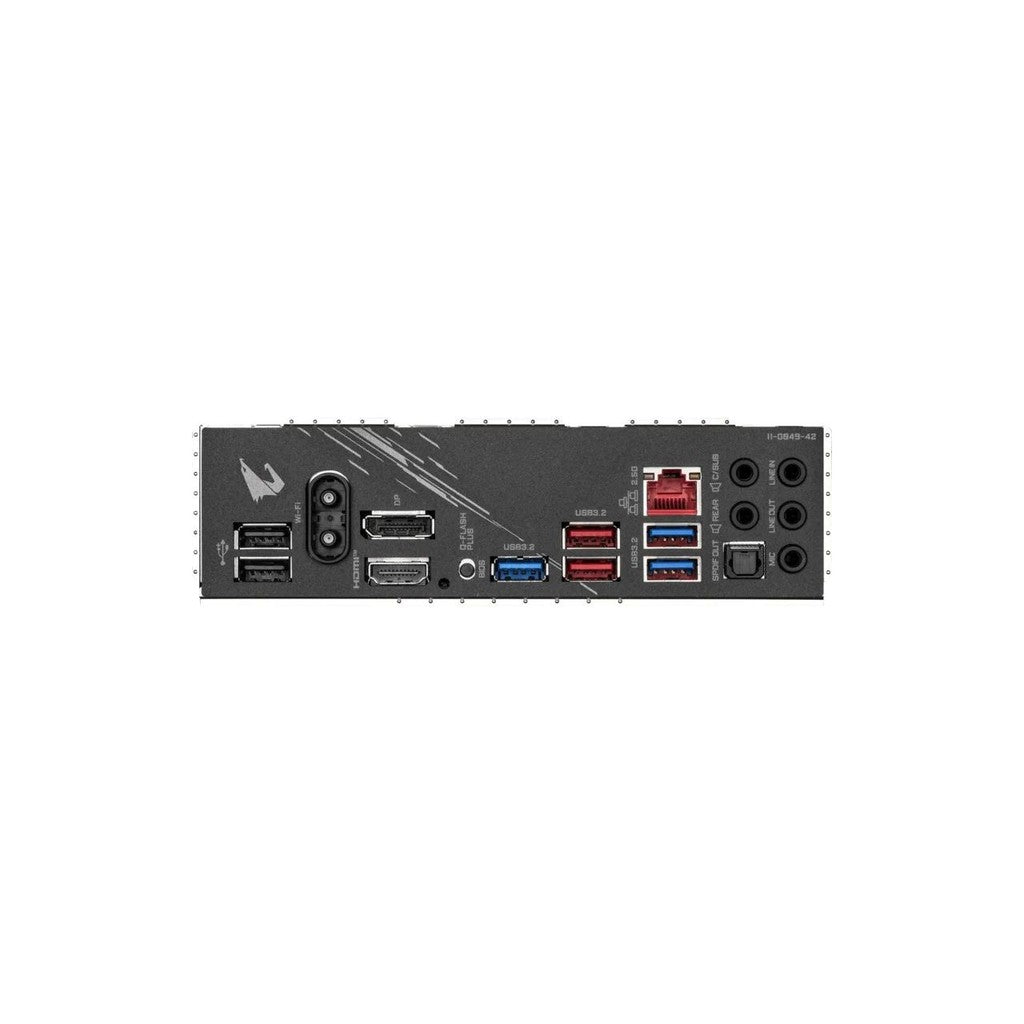

Back Panel Connectors 1 × DisplayPort; 1 × HDMI; 2 × SMA antenna connectors (2T2R); 2 × USB 3.2 Gen 2 Type-A / USB 3.2 Gen 1 ports (red); 3 × USB 3.2 Gen 1; 2 × USB 2.0/1.1; 1 × Q-Flash Plus button; 1 × RJ-45; 1 × optical S/PDIF Out; 5 × audio jacks
I/O Controller iTE® I/O Controller Chip
Hardware Monitoring Voltage, temperature and fan speed detection; water cooling flow rate detection; overheating and fan-fail warnings; fan speed control*
BIOS 1 × 128 Mbit flash; licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0
Unique Features GIGABYTE Control Center (GCC); Q-Flash; Q-Flash Plus; Smart Backup
Bundled Software Norton® Internet Security (OEM version)
Operating System Windows 11 64-bit; Windows 10 64-bit
Form Factor ATX; 30.5 × 24.4 cm
Notes *Actual graphics, USB and other CPU-dependent support may vary by processor. **USB 3.2 Gen 2 Type-A support is available with AMD Ryzen™ 5000/3000 Series Processors only. Fan speed control support depends on the installed fan.
