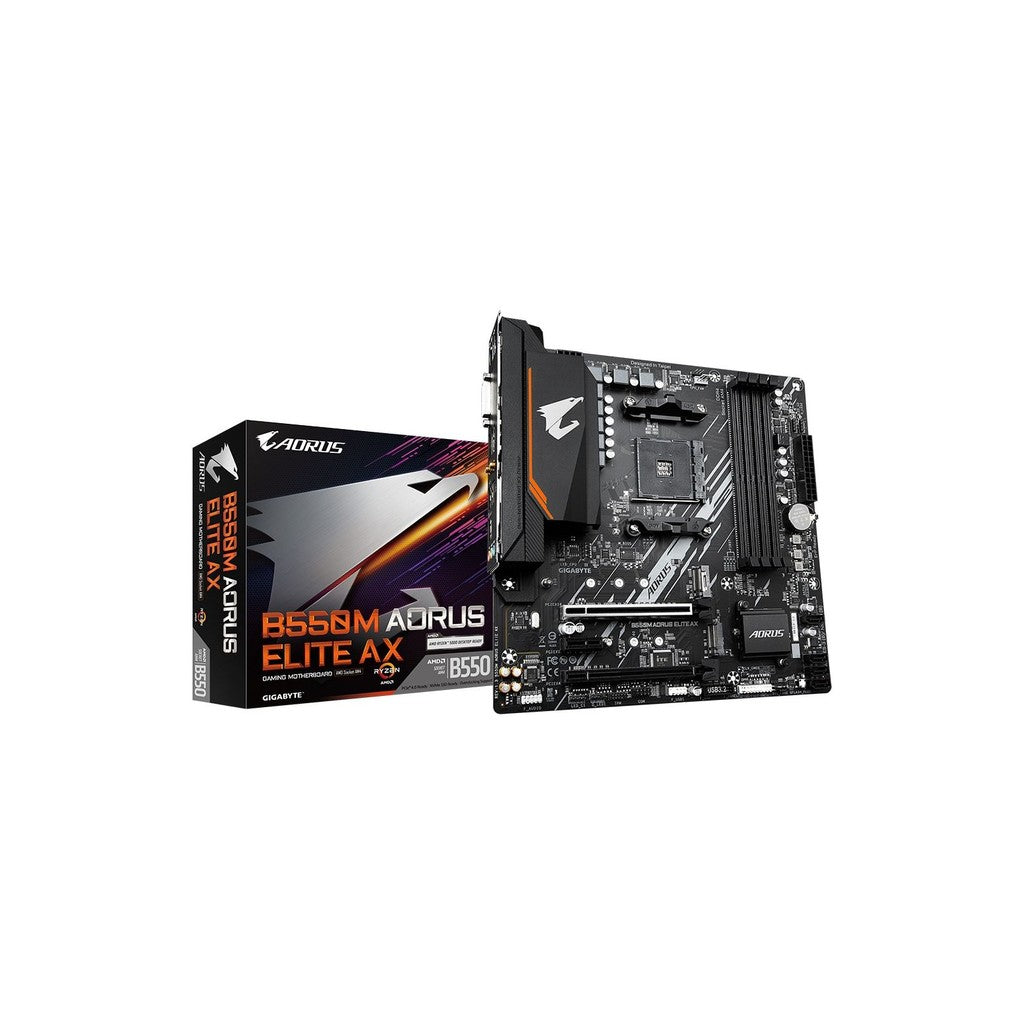

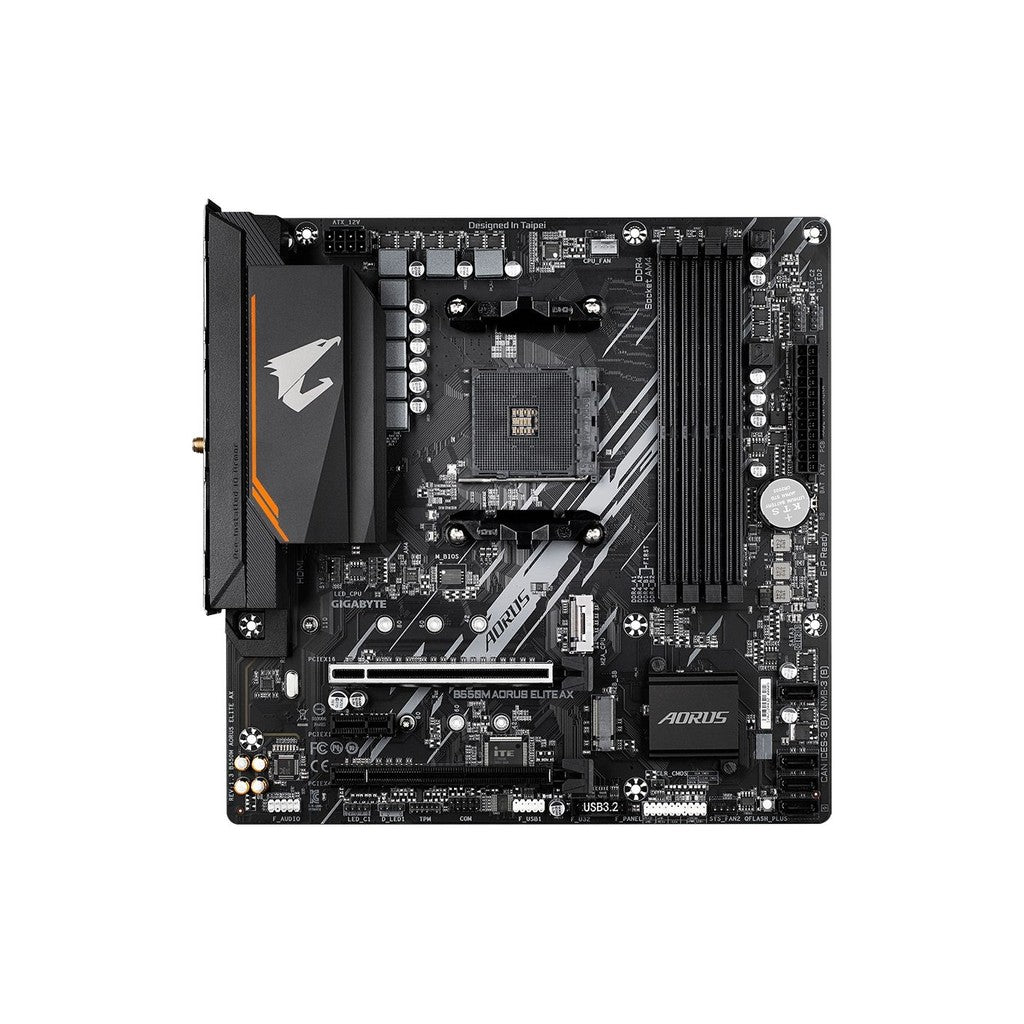

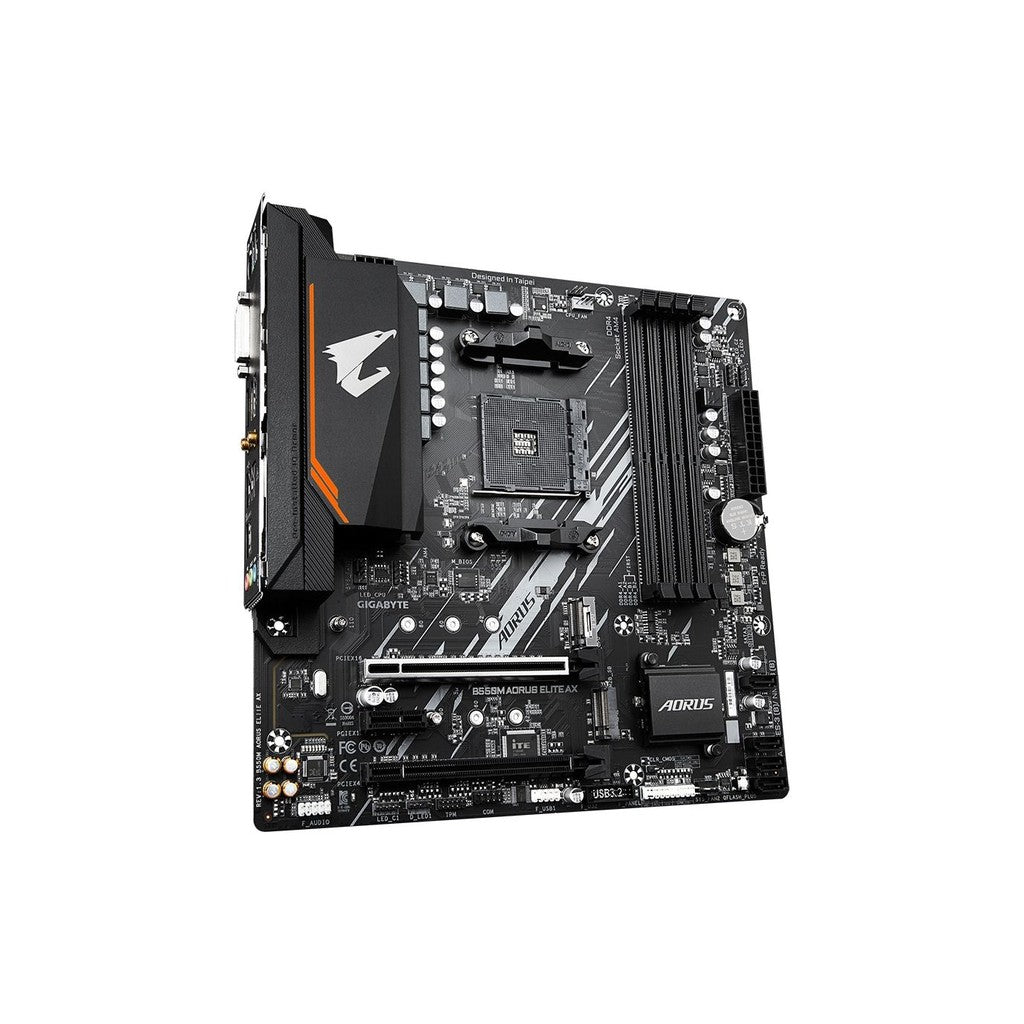

Gigabyte B550M AORUS ELITE AX AM4 mATX Motherboard

Gigabyte B550M AORUS ELITE AX AM4 mATX Motherboard

$249.00
$249.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

B550M AORUS ELITE AX

  • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
  • Ultra Durable™ PCIe 4.0 Ready x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
  • Onboard Wi-Fi 6E 802.11ax & BT 5.4
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • Realtek GbE LAN with Bandwidth Management
  • Rear HDMI & DVI Support
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Anti-Sulfur Resistors Design
Specification
CPU AMD Socket AM4; supports AMD Ryzen™ 5000 Series, Ryzen™ 5000 G-Series, Ryzen™ 4000 G-Series, Ryzen™ 3000 G-Series and Ryzen™ 3000 Series Processors
Chipset AMD B550
Memory 4 × DDR4 DIMM sockets, up to 128 GB (32 GB per DIMM); DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz; dual-channel architecture; ECC Un-buffered DIMM 1Rx8/2Rx8*; non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16; XMP support
Onboard Graphics Integrated AMD Radeon™ Graphics support; 1 × DVI-D (up to 1920 × 1200 @ 60Hz); 1 × HDMI (up to 4096 × 2160 @ 60Hz), HDMI 2.1, HDCP 2.3 and HDR; maximum shared memory 16 GB
Audio Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
LAN Realtek® GbE LAN chip (1 Gbps / 100 Mbps / 10 Mbps)
Wireless Communication Realtek® Wi-Fi 6E RTL8852CE; 802.11a/b/g/n/ac/ax; 2.4/5/6 GHz; Bluetooth 5.4; 11ax 160MHz wireless standard
Expansion Slots 1 × PCIe x16 (CPU, PCIe 4.0 x16 with Ryzen 5000/3000 Series; PCIe 3.0 x16 with Ryzen 5000 G-Series/4000 G-Series/3000 G-Series); 1 × PCIe x16 (chipset, PCIe 3.0 x4); 1 × PCIe x1 (chipset, PCIe 3.0 x1)
M.2 Storage 1 × M.2 Socket 3, M key, 2242/2260/2280/22110; CPU-connected, supports SATA and PCIe 4.0 x4/x2 with Ryzen 5000/3000 Series, SATA and PCIe 3.0 x4/x2 with Ryzen 5000 G-Series/4000 G-Series/3000 G-Series; 1 × M.2 Socket 3, M key, 2242/2260/2280, chipset-connected, supports SATA and PCIe 3.0 x2
SATA 4 × SATA 6Gb/s; RAID 0, RAID 1 and RAID 10 support

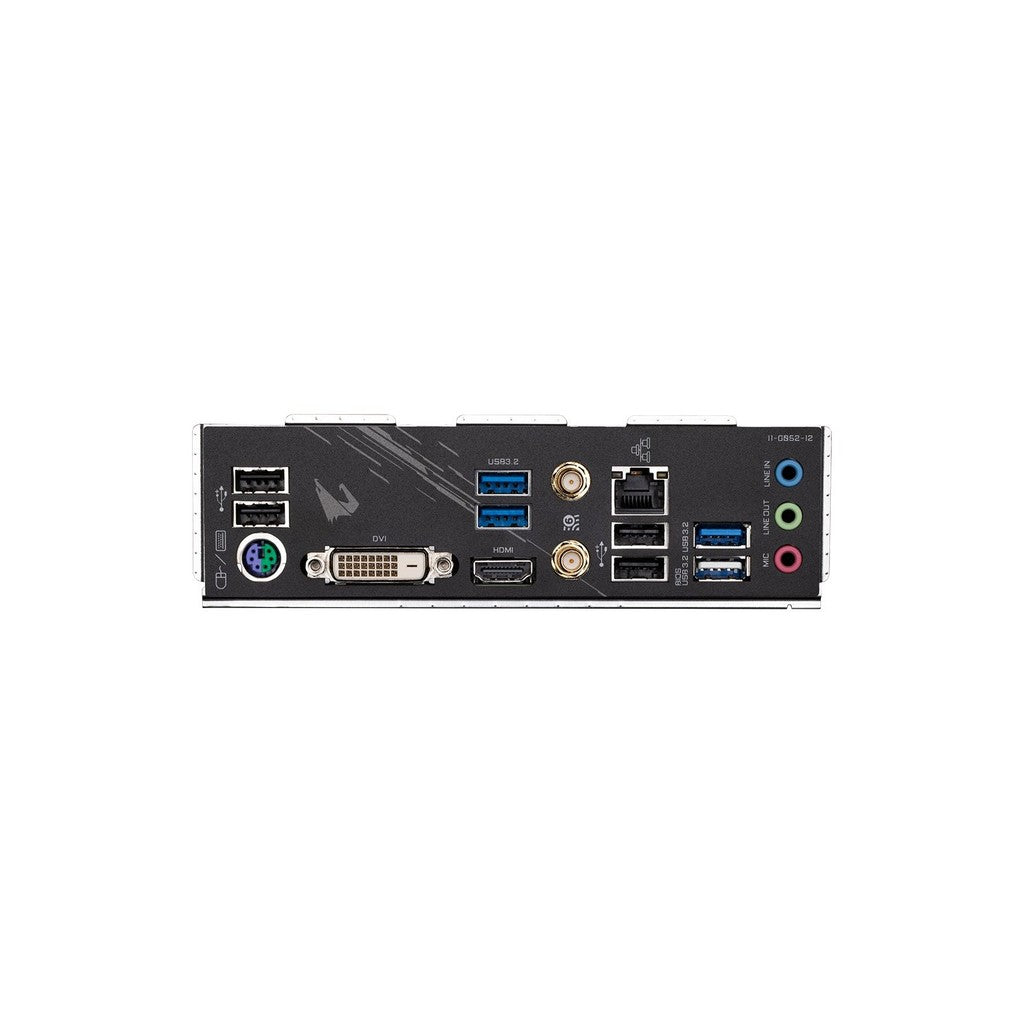

USB CPU: 4 × USB 3.2 Gen 1 rear ports; Chipset: 2 × USB 3.2 Gen 1 via internal header; 6 × USB 2.0/1.1 (4 rear, 2 via internal header)
Internal I/O Connectors 1 × 24-pin ATX; 1 × 8-pin ATX 12V; 1 × CPU fan header; 2 × system fan headers; 2 × addressable LED headers; 2 × RGB LED headers; 1 × CPU cooler LED/RGB header; 2 × M.2 connectors; 4 × SATA 6Gb/s; 1 × front pan
