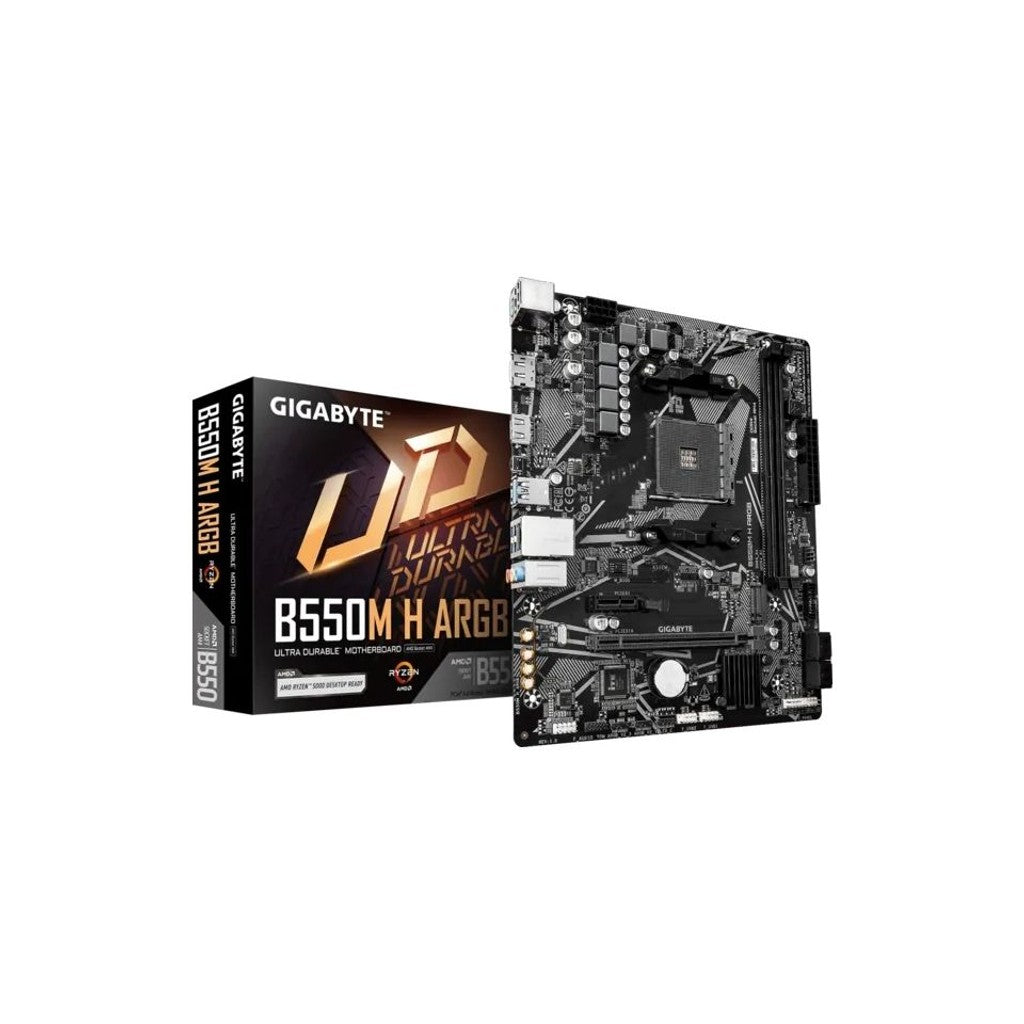

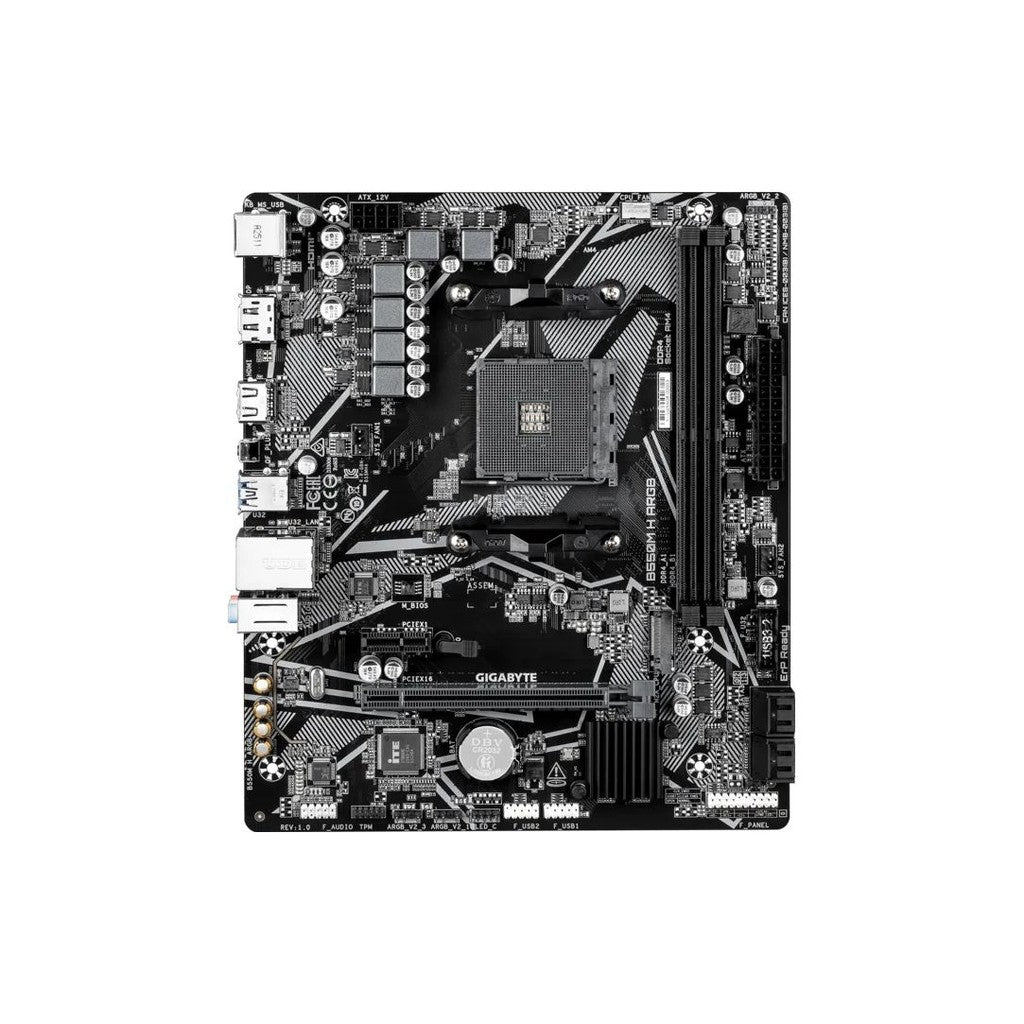

Gigabyte B550M H ARGB mATX Motherboard
Gigabyte B550M H ARGB mATX Motherboard
Couldn't load pickup availability
3 Year Limited Warranty
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
- Integrated ARGB header and Q-Flash Plus button
- PCIe Gen4.0 x4 M.2 with PCIe NVMe & SATA mode support
- Fast Network: GbE LAN
- 8-Channel HD Audio with High Quality Audio Capacitors
- Rear HDMI and DisplayPort for Multi-display Support
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- GIGABYTE CONTROL CENTER (GCC), Simple and Easy Use
| Specification | |
| CPU |
• AMD Socket AM4 • Supports AMD Ryzen™ 5000 G-Series / 5000 Series / 4000 G-Series / 3000 G-Series / 3000 Series Processors |
| Chipset | • AMD B550 |
| Memory |
• 2 x DDR4 DIMM sockets, up to 64 GB (32 GB single DIMM) • Speeds from 2133 MHz up to 5100 MHz (O.C.) • Dual channel architecture • Supports ECC (in non-ECC mode) & non-ECC Un-buffered DIMMs (1Rx8/2Rx8/1Rx16) • Supports XMP memory modules |
| Onboard Graphics |
• 1 x DisplayPort (Supports DP 1.4, HDCP 2.3, HDR, up to 5120x2880@60Hz) • 1 x HDMI port (Supports HDMI 2.1 TMDS, HDCP 2.3, HDR, up to 4096x2160@60Hz) • Maximum shared memory of 16 GB |
| Audio | • Realtek® Audio CODEC (High Definition, 2/4/5.1/7.1-channel) |
| LAN | • Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots |
CPU: • 1 x PCIe x16 slot: PCIe 4.0 x16 (Ryzen 5000/3000 Series) or PCIe 3.0 x16 (Ryzen 5000 G/4000 G/3000 G Series) Chipset: • 1 x PCIe 3.0 x1 slot |
| Storage |
CPU: • 1 x M.2 (Socket 3, M key, type 2280): SATA & PCIe 4.0 x4/x2 (Ryzen 5000/3000 Series) or SATA & PCIe 3.0 x4/x2 (G-Series) Chipset: • 4 x SATA 6Gb/s connectors • RAID 0/1/10 support for NVMe and SATA |
| USB |
CPU: 4 x USB 3.2 Gen 1 (back panel) Chipset: 2 x USB 3.2 Gen 1 (internal header), 6 x USB 2.0/1.1 (2 back panel, 4 internal headers) |
| Internal I/O |
• Power: 1 x 24-pin ATX, 1 x 8-pin ATX 12V • Cooling: 1 x CPU fan, 2 x sys fan • RGB: 3 x Addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header • Data: 1 x M.2, 4 x SATA • Headers: Front panel, front audio, 1x USB 3.2 Gen 1, 2x USB 2.0/1.1, TPM (GC-TPM2.0_S module only), Clear CMOS jumper |

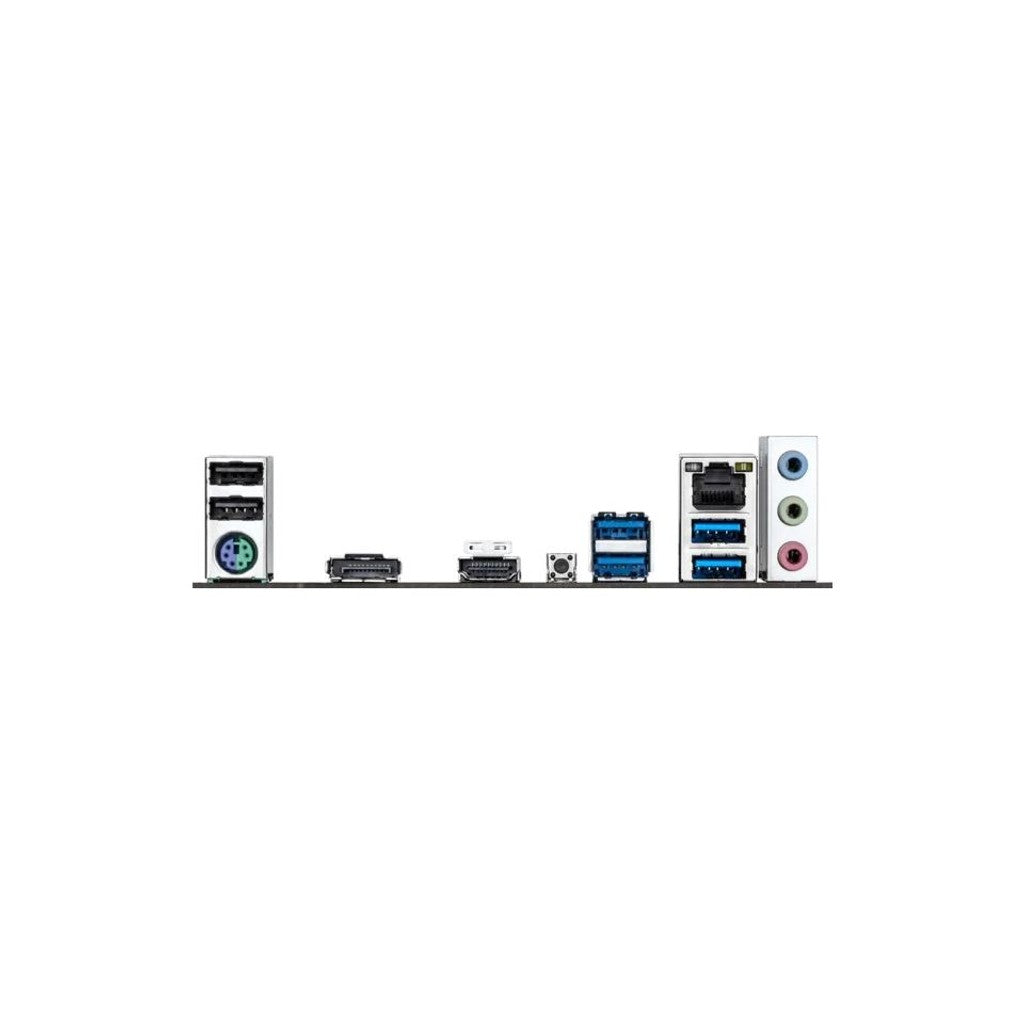

| Back Panel |
• 2 x USB 2.0/1.1 ports • 1 x PS/2 keyboard/mouse port • 1 x DisplayPort • 1 x HDMI port • 1 x Q-Flash Plus button • 4 x USB 3.2 Gen 1 ports • 1 x RJ-45 port • 3 x audio jacks |
| I/O Controller | • iTE® I/O Controller Chip |
| H/W Monitoring |
• Voltage, temperature, fan speed detection • Overheating warning, fan fail warning, fan speed control |
| BIOS | • 1 x 128 Mbit flash, AMI UEFI BIOS (PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0) |
| Unique Features | • GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Software |
• Norton® Internet Security (OEM) |
| Form Factor | • Micro ATX Form Factor (23.3cm x 19.8cm) |
