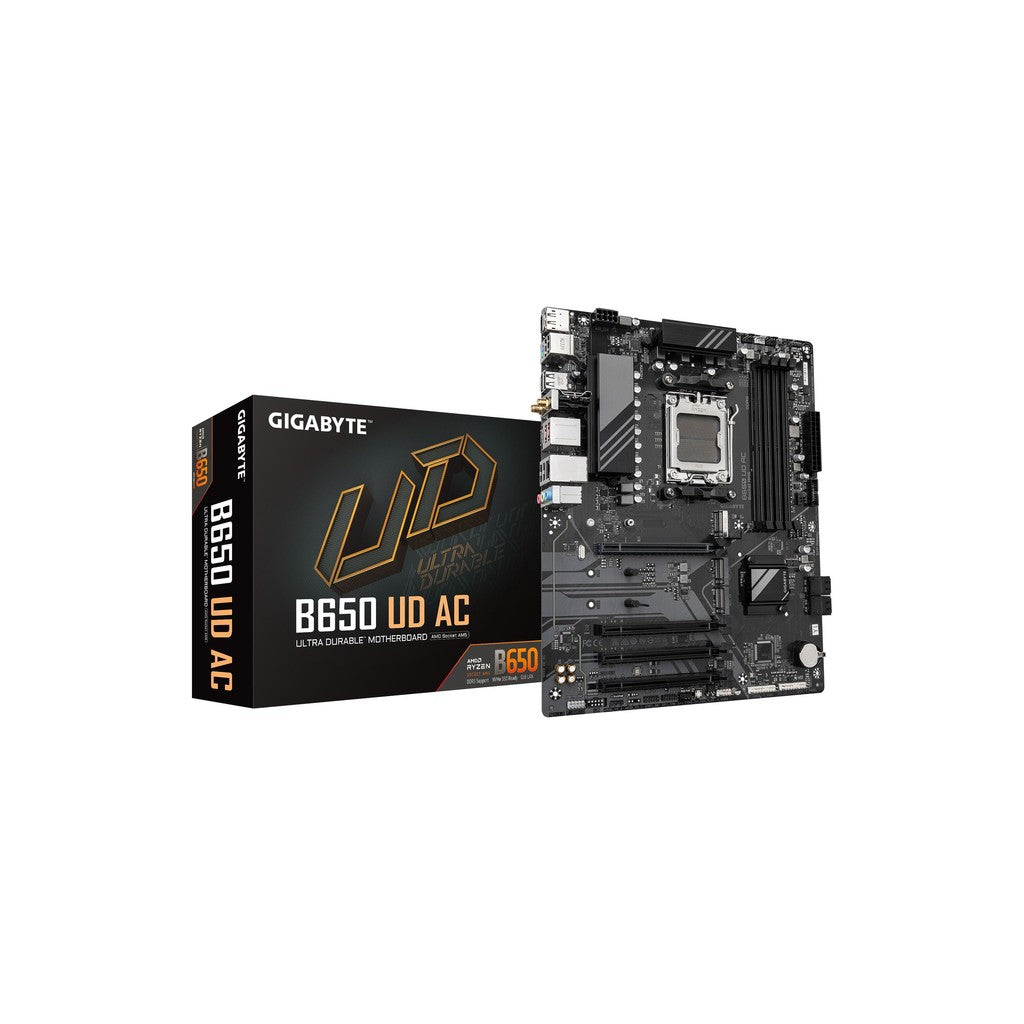

Gigabyte B650 UD AC AM5 ATX Motherboard
Gigabyte B650 UD AC AM5 ATX Motherboard
Couldn't load pickup availability
- AMD Socket AM5：Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
- Unparalleled Performance：6+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage：1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：Wi-Fi 802.11ac & GbE LAN
- Extended Connectivity：DP, HDMI, Rear USB® 10Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
| Specification | |
| CPU |
• AMD Socket AM5 • Supports AMD Ryzen™ 7000 / 8000 / 9000 Series Processors |
| Chipset | • AMD B650 |
| Memory |
• 4 x DDR5 DIMM sockets, up to 256 GB (64 GB single DIMM) • Speeds from 4800MT/s up to 8000MT/s (O.C.) • Dual channel architecture • Supports non-ECC Un-buffered DIMMs (1Rx8/2Rx8/1Rx16) • Supports AMD EXPO™ and XMP memory modules |
| Onboard Graphics |
• 1 x DisplayPort (Supports DP 1.4, up to 3840x2160@144Hz) • 1 x HDMI port (Supports HDMI 2.1 & HDCP 2.3, up to 4096x2160@60Hz) |
| Audio | • Realtek® Audio CODEC (High Definition, 2/4/5.1/7.1-channel) |
| LAN | • Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Wireless | • AzureWave Wi-Fi AW-CB304NF/AW-CB515NF (Realtek® RTL8821CE): WIFI 802.11a/b/g/n/ac (2.4/5 GHz Dual-Band), BLUETOOTH 5.0 |
| Expansion Slots |
CPU: • 1 x PCIe x16 slot (PCIEX16): PCIe 4.0 x16 (Ryzen 7000/9000), PCIe 4.0 x8 (Ryzen 8000-Phoenix 1), PCIe 4.0 x4 (Ryzen 8000-Phoenix 2) • 2 x PCIe x16 slots (PCIEX1_1/PCIEX1_2): PCIe 3.0 x1 (Unavailable with Ryzen 8000-Phoenix 2) Chipset: • 1 x PCIe x16 slot (PCIEX1_3): PCIe 3.0 x1 |
| Storage |
CPU: • 1 x M.2 (M2A_CPU): PCIe 5.0 x4/x2 (Ryzen 7000/9000) or PCIe 4.0 x4/x2 (Ryzen 8000) • 1 x M.2 (M2P_CPU): PCIe 4.0 x2 Chipset: • 1 x M.2 (M2C_SB): PCIe 4.0 x4/x2 • 4 x SATA 6Gb/s • RAID 0/1/10 support for NVMe and SATA |
| USB |
CPU: 2 x USB 3.2 Gen 2 Type-A (red, back), 1 x USB-C® 3.2 Gen 1 (back) CPU+Hub: 4 x USB 2.0/1.1 (back) Chipset: 2 x USB 3.2 Gen 1 (internal), 1 x USB-C® 3.2 Gen 1 (internal), 4 x USB 2.0/1.1 (2 back, 2 internal) Chipset+Hub: 4 x USB 2.0/1.1 (internal) |
| Internal I/O |
• Power: 1 x 24-pin ATX, 1 x 8-pin ATX 12V • Cooling: 1 x CPU fan, 1 x CPU fan/pump, 2 x sys fan, 1 x sys fan/pump • RGB: 3 x ARGB Gen2, 1 x RGB • Data: 3 x M.2, 4 x SATA • Headers: Front panel, front audio, 1x USB-C® 3.2 Gen 1, 1x USB 3.2 Gen 1, 3x USB 2.0/1.1, TPM, serial port • Misc: Q-Flash Plus button, Clear CMOS jumper |

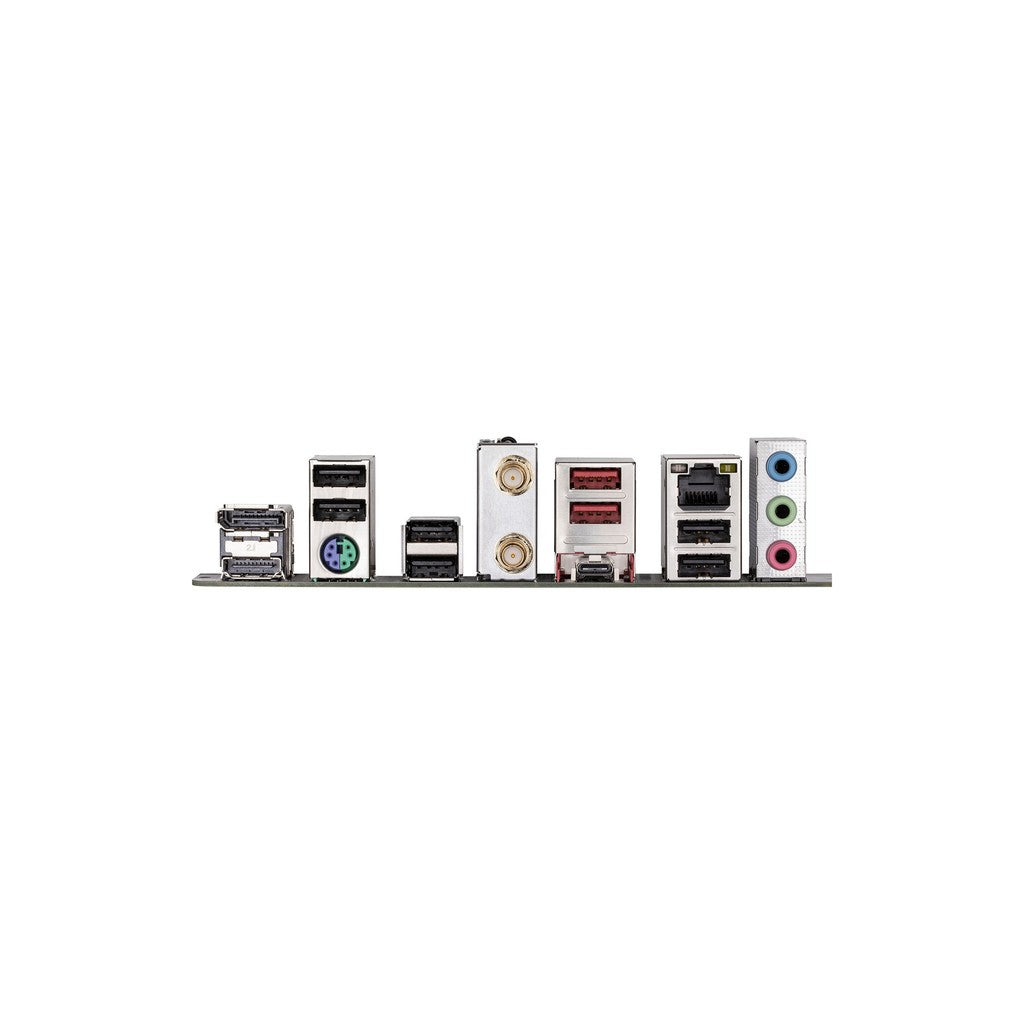

| Back Panel |
• 1 x DisplayPort • 1 x HDMI port • 1 x PS/2 keyboard/mouse port • 2 x SMA antenna connectors (2T2R) • 1 x USB-C® 3.2 Gen 1 port • 2 x USB 3.2 Gen 2 Type-A ports (red) • 6 x USB 2.0/1.1 ports • 1 x RJ-45 port • 3 x audio jacks |
| I/O Controller | • iTE® I/O Controller Chip |
| H/W Monitoring |
• Voltage, temperature, fan speed, water flow detection • Fan fail warning, fan speed control |
| BIOS | • 1 x 256 Mbit flash, AMI UEFI BIOS (PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0) |
| Unique Features | • GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus |
| Software/OS |
• Norton® Internet Security (OEM), LAN bandwidth management • Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | • ATX Form Factor (30.5cm x 24.4cm) |
