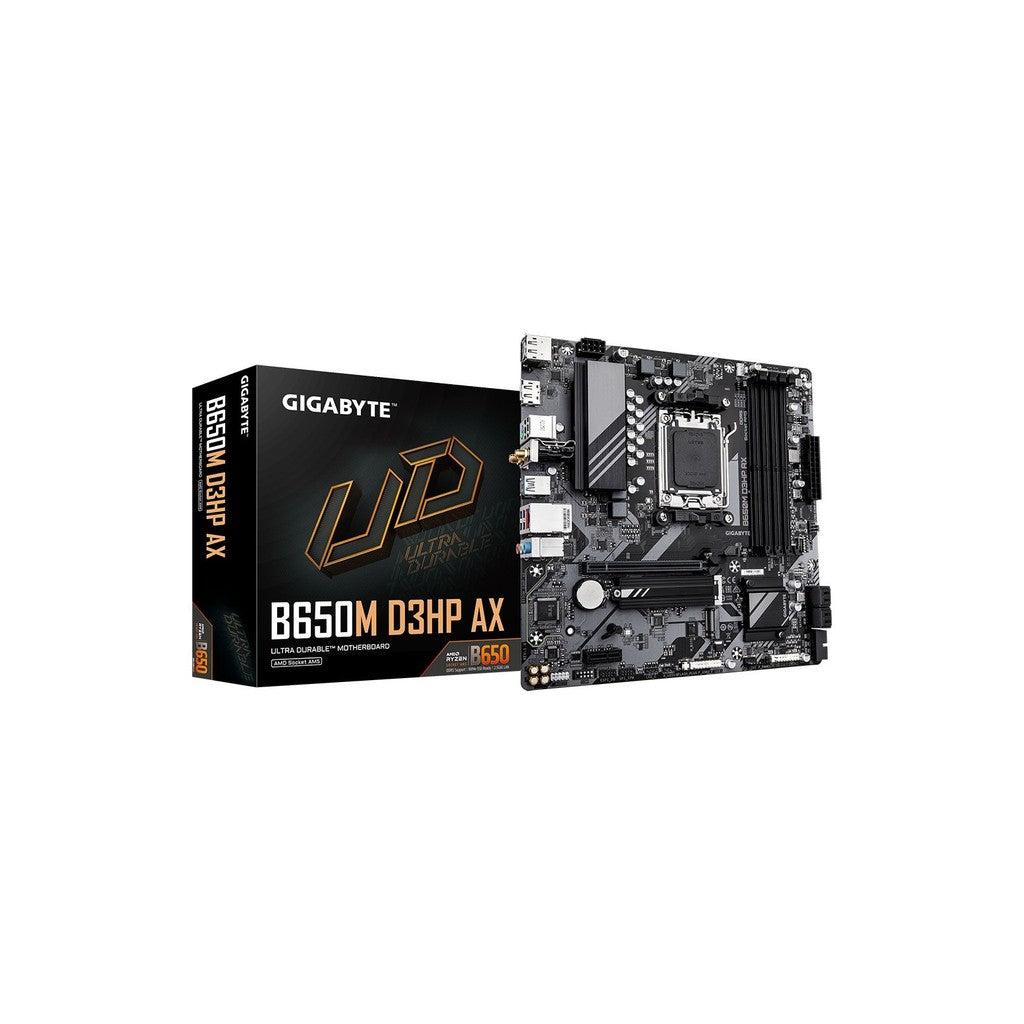

Gigabyte B650M D3HP AX 1.2 AM5 mATX Motherboard

Name: Gigabyte B650M D3HP AX 1.2 AM5 mATX Motherboard
Brand: Gigabyte
SKU: MGA174B
Price: 265.00 NZD
Availability: InStock

$265.00

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

3 Year Limited Warranty

AMD Socket AM5：Supports AMD Ryzen™ 7000/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors
Unparalleled Performance：5+2+2 Phases Digital VRM Solution
Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
EZ-Latch：PCIe x16 Slot with Quick Release Design
Fast Networks：Wi-Fi 6E 802.11ax & 2.5GbE LAN
Extended Connectivity：2*DP, HDMI
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Feature	Specification
CPU Support	AMD Socket AM5: Supports Ryzen™ 9000 / 8000 / 7000 Series
Chipset	AMD B650
Memory	4 x DDR5 DIMM (Up to 256GB); Supports up to DDR5 8000(OC); AMD EXPO™ & Intel® XMP Support
Onboard Graphics	2 x DisplayPort 1.4 (4K/144Hz); 1 x HDMI 2.1 (4K/60Hz). Supports Triple-Display
Audio	Realtek® High Definition Audio; 2/4/5.1/7.1-channel support
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless / BT	Wi-Fi 6E RTL8852CE (2.4/5/6 GHz); Bluetooth 5.3; 160MHz support
Expansion Slots	1 x PCIe 4.0 x16 (Supports x16, x8, or x4 depending on CPU); 1 x PCIe 3.0 x1
Storage	2 x M.2 Connectors (PCIe 4.0 x4/x2); 4 x SATA 6Gb/s; RAID 0, 1, 10 support
Rear USB	1 x USB-C® (3.2 Gen 1); 3 x USB 3.2 Gen 1; 2 x USB 2.0/1.1
Internal USB	1 x USB-C® (3.2 Gen 1); 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers
Special Features	Q-Flash Plus (Update BIOS without CPU); RGB Fusion (Addressable & RGB LED Headers)
Form Factor	Micro ATX Form Factor (24.4cm x 24.4cm)
