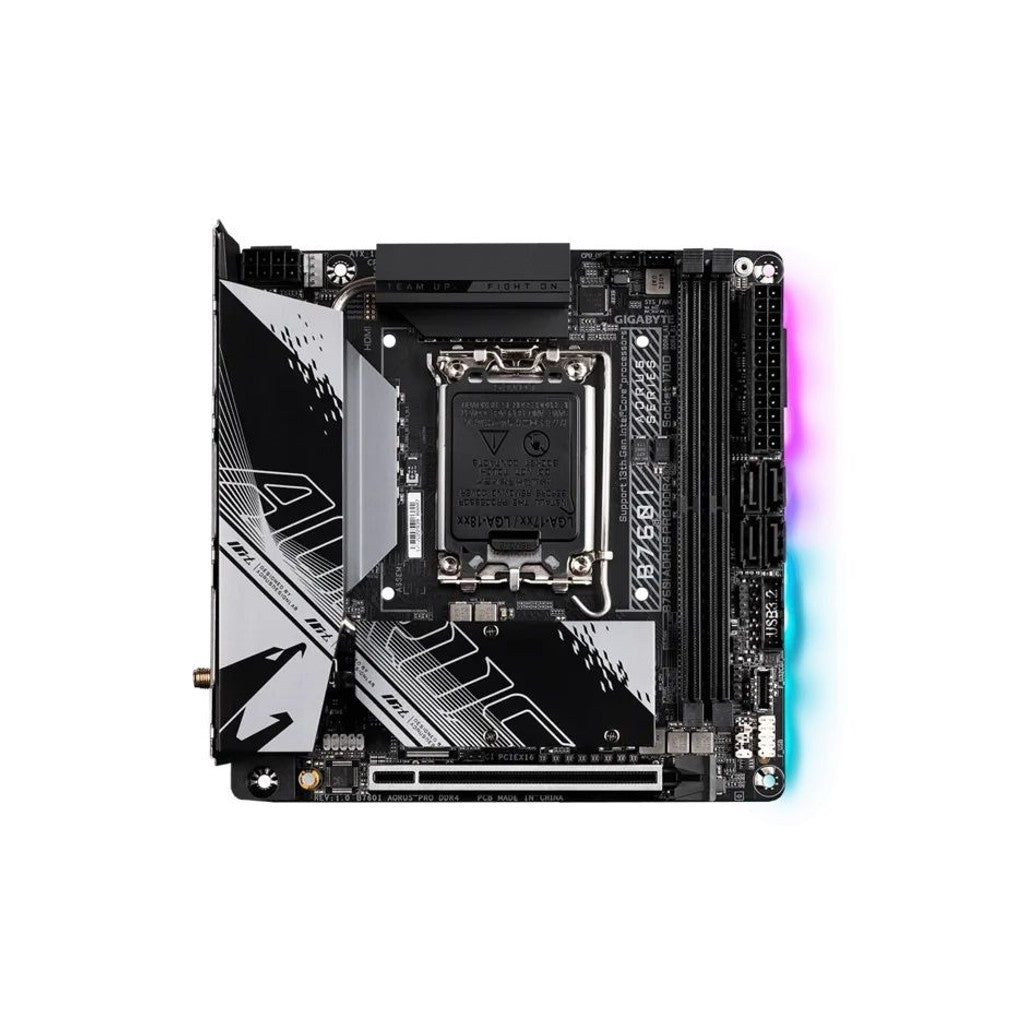

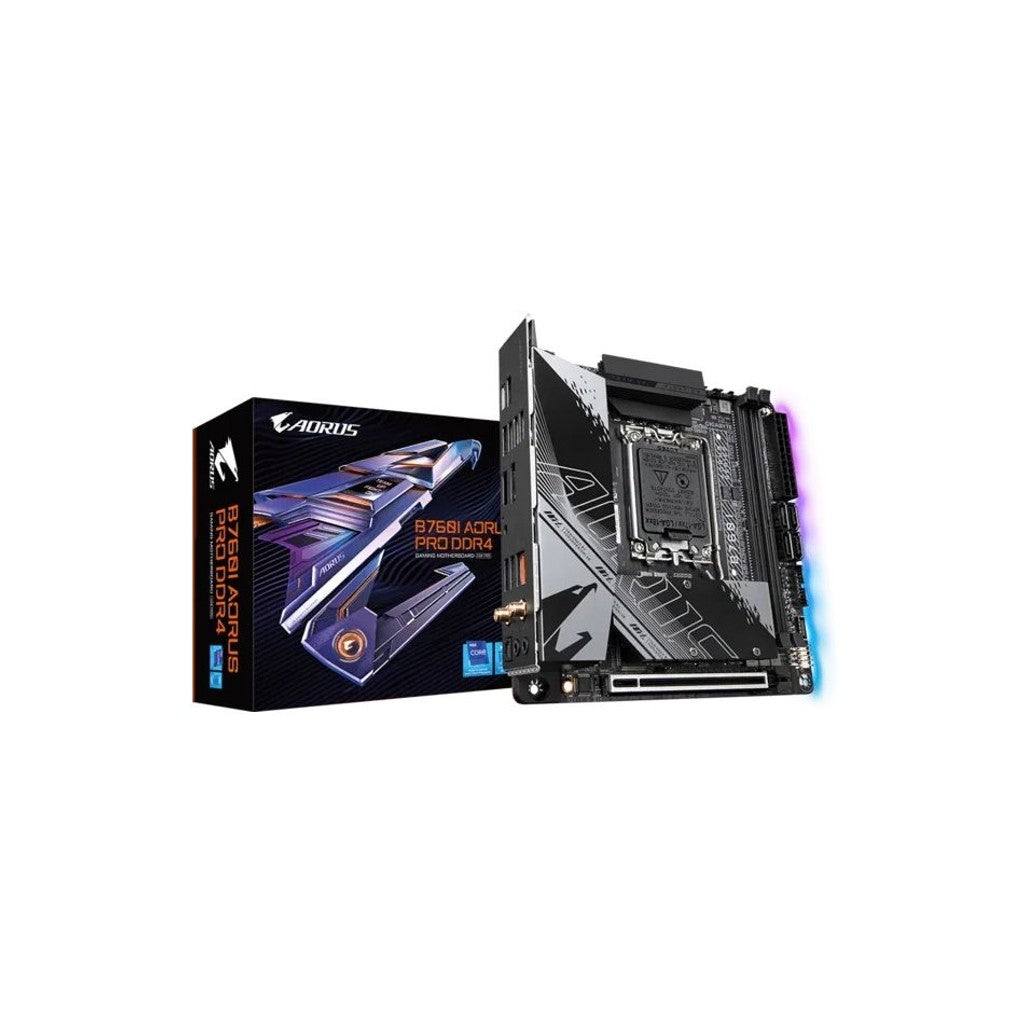

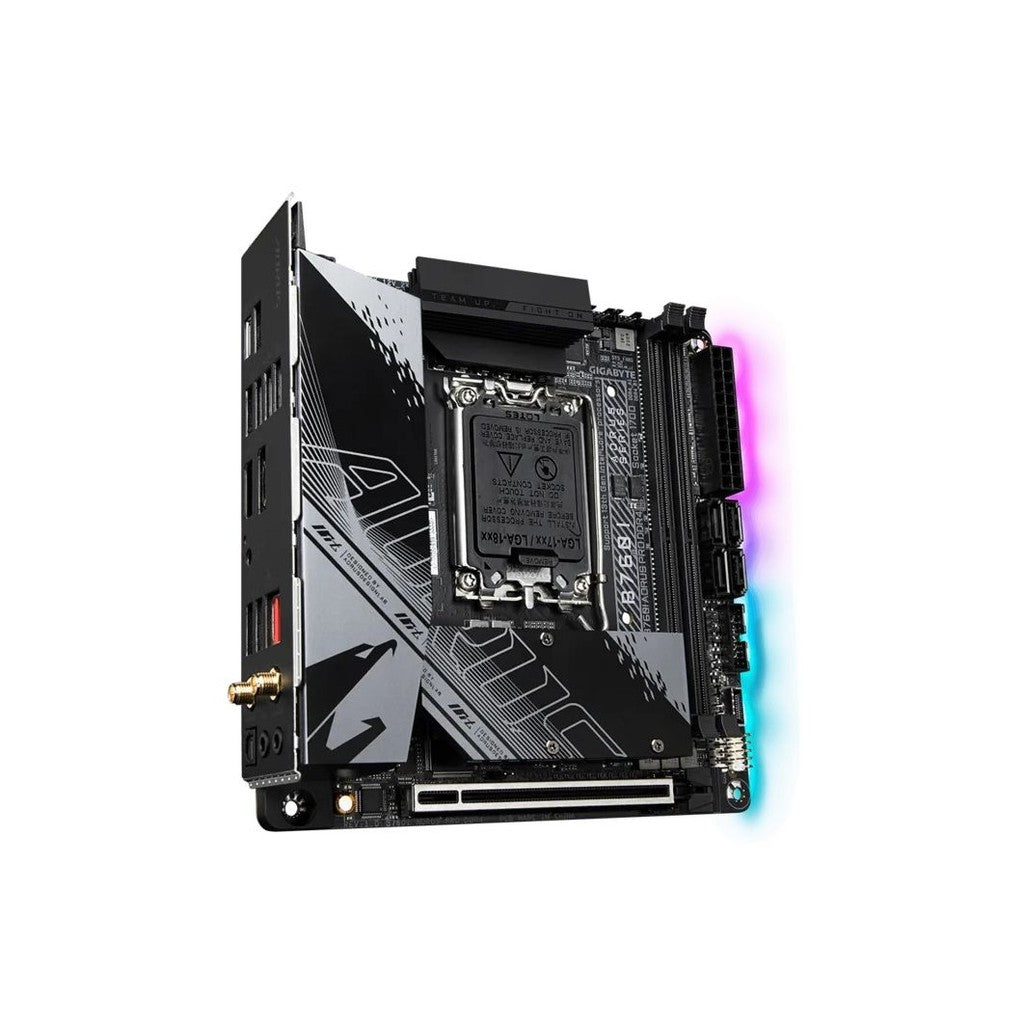

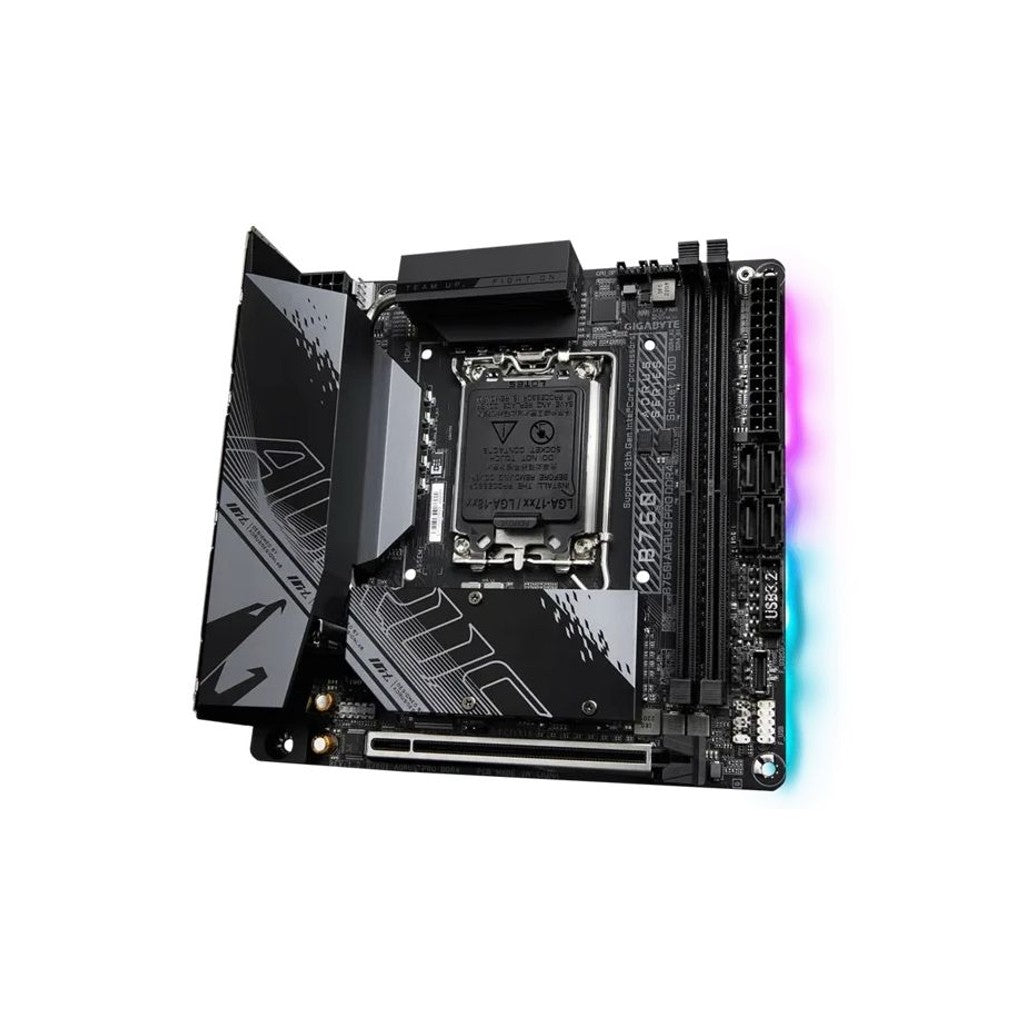

Gigabyte B760I AORUS PRO DDR4 ITX LGA1700 Motherboard
Gigabyte B760I AORUS PRO DDR4 ITX LGA1700 Motherboard
Couldn't load pickup availability
B760I AORUS PRO DDR4
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Direct 8+1+1 Phases Digital VRM Solution
- Dual Channel DDR4：2*DIMMs with XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design：Extended MOSFET Heatsink and Multi-Layered PCH M.2 Heatsink, Aluminum Baseplate
- Fast Networks：Intel® 2.5GbE LAN & Wi-Fi 6 802.11ax
- Extended Connectivity：Front USB3.2 Gen 1 USB-C®, Rear USB-C® 10Gb/s, DP, HDMI
- RGB FUSION：Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
| Specification | |
| CPU |
• LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors • L3 cache varies with CPU |
| Chipset | • Intel® B760 Express Chipset |
| Memory |
• 2 x DDR4 DIMM sockets, up to 64 GB (32 GB single DIMM) • Speeds from 2133MT/s up to 5333MT/s (O.C.) • Dual channel architecture • Supports ECC (in non-ECC mode) & non-ECC Un-buffered DIMMs • Supports XMP memory modules |
| Onboard Graphics |
• 1 x DisplayPort (Supports DP 1.2 & HDCP 2.3, up to 4096x2304@60Hz) • 1 x HDMI port (Supports HDMI 2.1 TMDS & HDCP 2.3, up to 4096x2160@60Hz) |
| Audio |
• Realtek® Audio CODEC (High Definition, 2/4/5.1/7.1-channel) • Support for S/PDIF Out |
| LAN | • Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless |
• Intel® Killer™ Wi-Fi 6 AX1650 (PCB rev. 1.0): WIFI a/b/g/n/ac/ax (2.4/5 GHz), BLUETOOTH 5.2, 11ax 160MHz • Intel® Wi-Fi 6E AX211 (PCB rev. 1.1): WIFI a/b/g/n/ac/ax (2.4/5/6 GHz), BLUETOOTH 5.3, 11ax 160MHz |
| Expansion Slots |
CPU: • 1 x PCIe 4.0 x16 slot |
| Storage |
CPU: • 1 x M.2 (M2A_CPU, type 2280): PCIe 4.0 x4/x2 Chipset: • 1 x M.2 on motherboard back (M2P_SB, type 2280): PCIe 4.0 x4/x2 • 4 x SATA 6Gb/s connectors • RAID 0/1/5/10 support for SATA |
| USB |
Chipset: 1 x USB-C® 3.2 Gen 2 (back panel), 1 x USB-C® 3.2 Gen 1 (internal header), 1 x USB 3.2 Gen 2 Type-A (red, back panel), 2 x USB 3.2 Gen 1 (internal header), 4 x USB 2.0/1.1 (2 back panel, 2 internal header) Chipset+Hub: 4 x USB 3.2 Gen 1 (back panel) |
| Internal I/O |
• Power: 1 x 24-pin ATX, 1 x 8-pin ATX 12V • Cooling: 1 x CPU fan, 1 x CPU fan/pump, 1 x sys fan • RGB: 1 x Addressable LED strip header, 1 x RGB LED strip header • Data: 2 x M.2, 4 x SATA • Headers: Front panel, front audio, speaker, 1x USB-C® 3.2 Gen 1, 1x USB 3.2 Gen 1, 1x USB 2.0/1.1, reset jumper, clear CMOS, chassis intrusion |

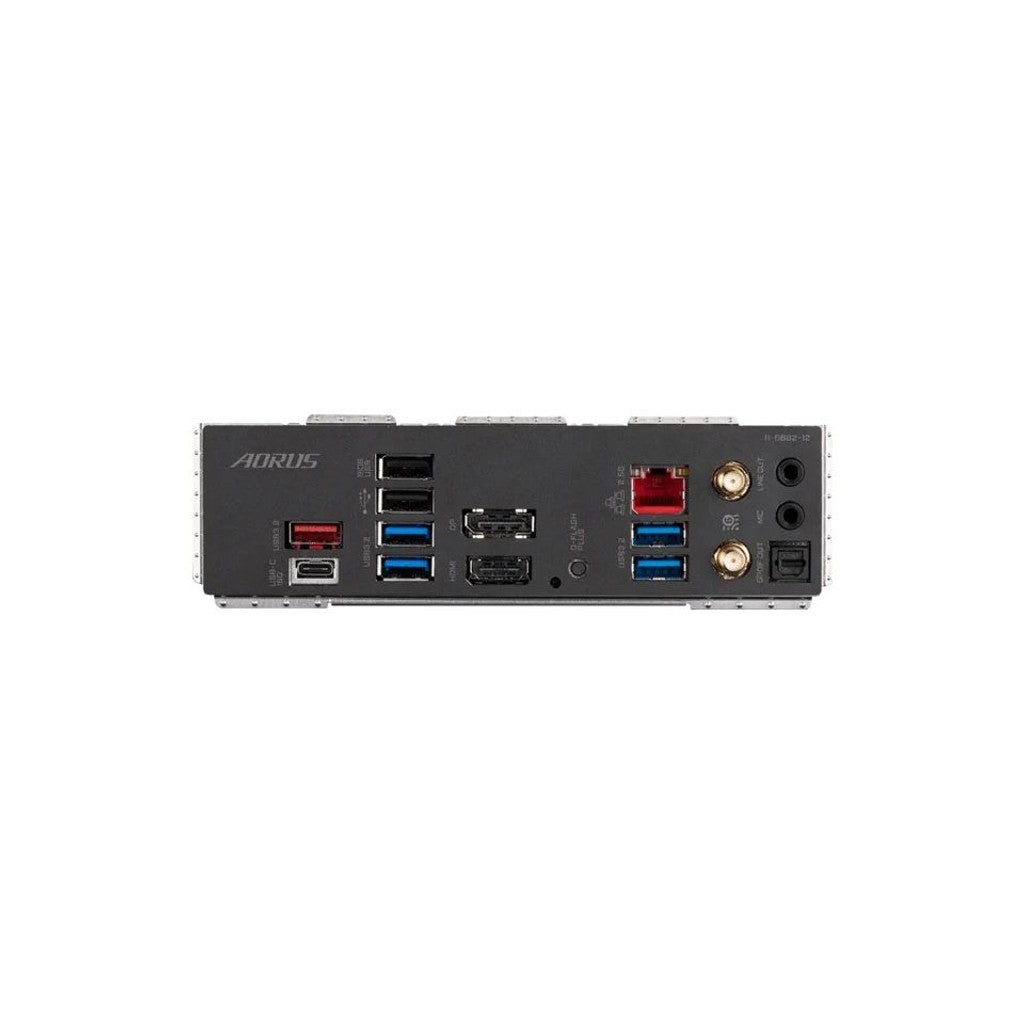

| Back Panel |
• 1 x USB-C® 3.2 Gen 2 port • 1 x USB 3.2 Gen 2 Type-A port (red) • 4 x USB 3.2 Gen 1 ports • 2 x USB 2.0/1.1 ports • 1 x DisplayPort • 1 x HDMI port • 1 x Q-Flash Plus button • 1 x RJ-45 port • 2 x SMA antenna connectors (2T2R) • 1 x optical S/PDIF Out connector • 2 x audio jacks |
| I/O Controller | • iTE® I/O Controller Chip |
| H/W Monitoring |
• Voltage, temperature, fan speed, water cooling flow rate detection • Fan fail warning, fan speed control |
| BIOS | • 1 x 256 Mbit flash, AMI UEFI BIOS (PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0) |
| Unique Features | • GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus |
| Software/OS |
• Norton® Internet Security (OEM), LAN bandwidth management • Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | • Mini-ITX Form Factor (17.0cm x 17.0cm) |
