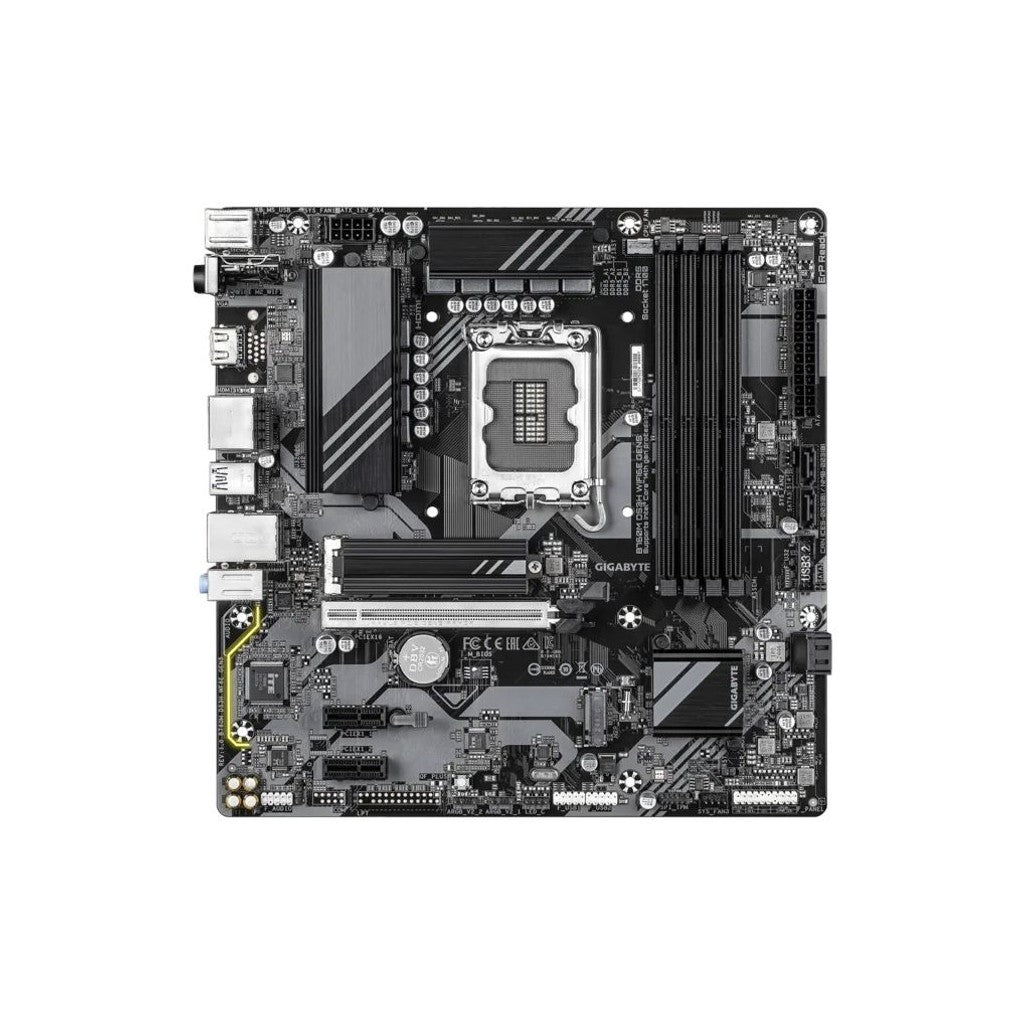

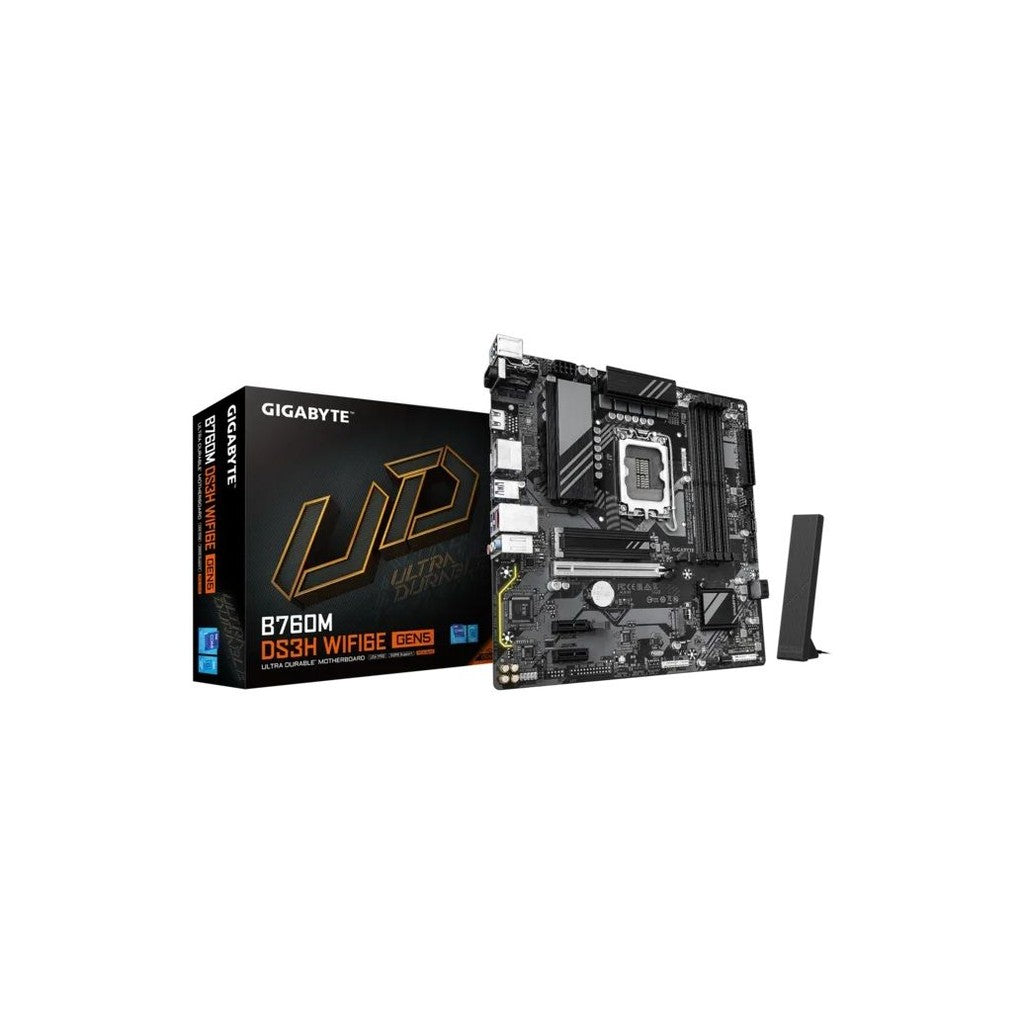

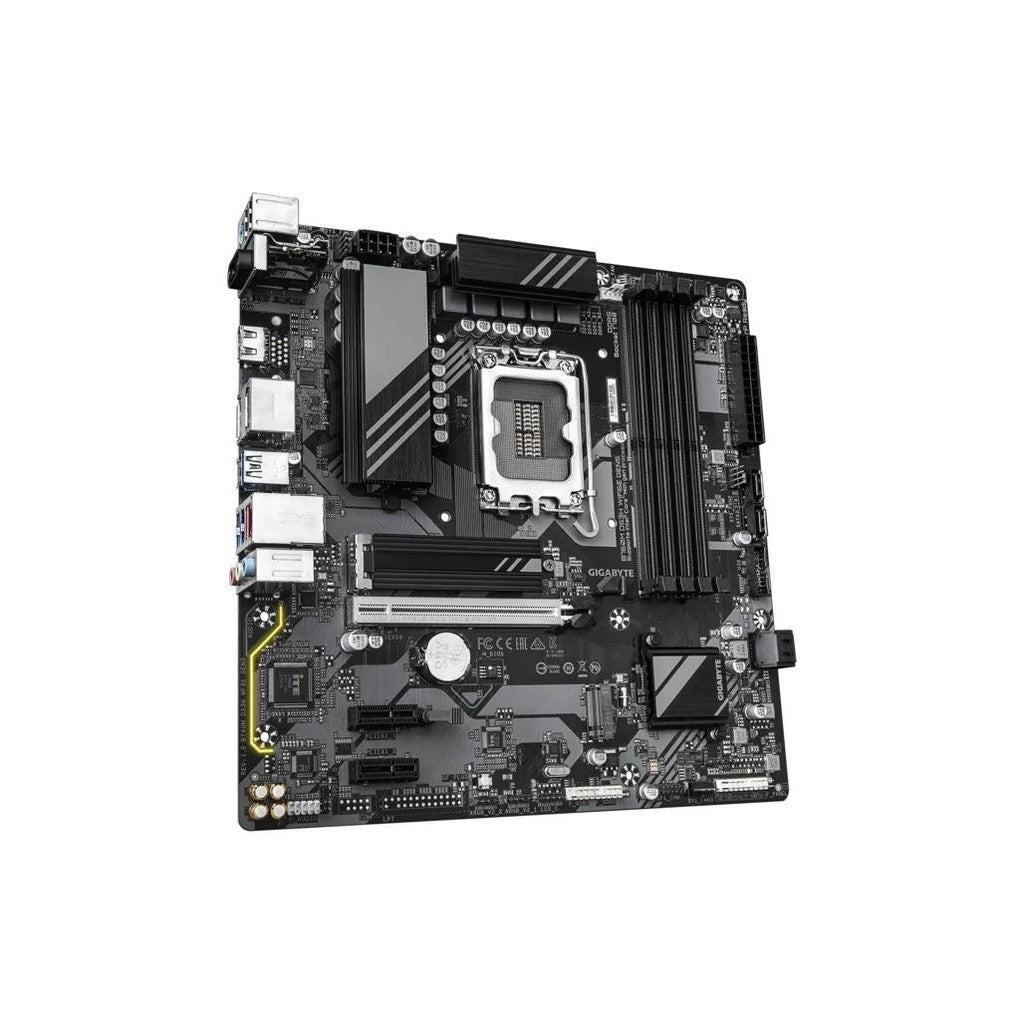

Gigabyte B760M DS3H WIFI6E GEN5 mATX LGA1700 Motherboard

• LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

• L3 cache varies with CPU

• 4 x DDR5 DIMM sockets, up to 256 GB (64 GB single DIMM)

• 14th/13th Gen i9/i7: Speeds up to 7600MT/s (O.C.)

• 13th Gen i5/i3 & 12th Gen: Speeds up to 4800MT/s

• Dual channel architecture

• Supports ECC (in non-ECC mode) & non-ECC Un-buffered DIMMs

• Supports XMP memory modules

• 1 x HDMI port (Supports HDMI 2.1 TMDS & HDCP 2.3, up to 4096x2160@60Hz)

• 1 x DisplayPort (Supports DP 1.2 & HDCP 2.3, up to 4096x2304@60Hz)

• 1 x DisplayPort (Supports DP 1.2, up to 4096x2304@60Hz)

• Supports up to triple-display simultaneously

• Realtek® Audio CODEC (High Definition, 2/4/5.1/7.1-channel)

• Support for S/PDIF Out

CPU:

• 1 x PCIe 5.0 x16 slot

Chipset:

• 2 x PCIe 3.0 x1 slots

CPU:

• 1 x M.2 (M2A_CPU, type 2280): PCIe 4.0 x4/x2

Chipset:

• 1 x M.2 (M2P_SB, type 2280): PCIe 4.0 x4/x2

• 4 x SATA 6Gb/s connectors

• RAID 0/1/5/10 support for SATA

Chipset: 1 x USB-C® 3.2 Gen 2 (back panel), 5 x USB 3.2 Gen 1 (3 back panel, 2 internal header), 2 x USB 2.0/1.1 (back panel)

Chipset+Hub: 4 x USB 2.0/1.1 (internal headers)

• Power: 1 x 24-pin ATX, 1 x 8-pin ATX 12V

• Cooling: 1 x CPU fan, 3 x sys fan

• RGB: 2 x Addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header

• Data: 2 x M.2, 4 x SATA

• Headers: Front panel, front audio, S/PDIF Out, 1x USB 3.2 Gen 1, 2x USB 2.0/1.1, TPM (GC-TPM2.0 SPI series only)

• Misc: Q-Flash Plus button, reset jumper, Clear CMOS jumper

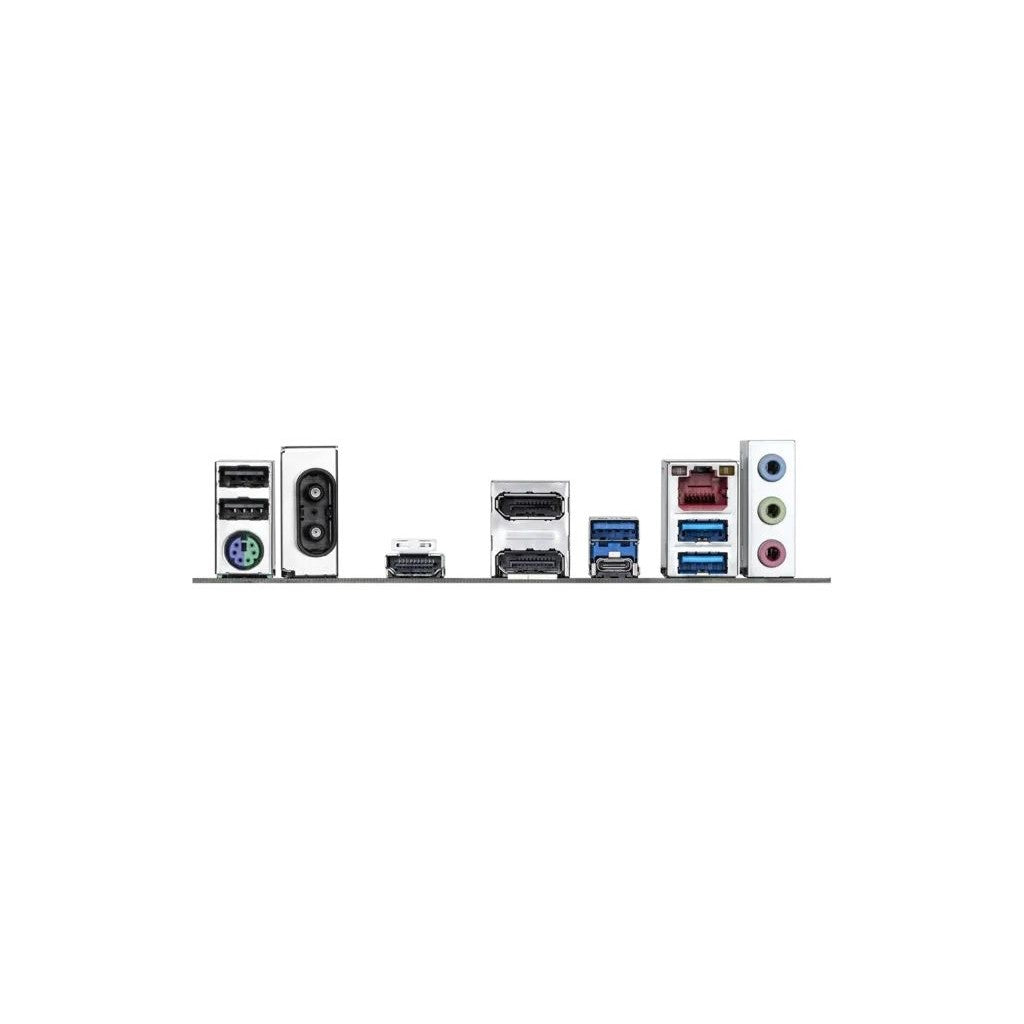

• 2 x USB 2.0/1.1 ports

• 1 x PS/2 keyboard/mouse port

• 2 x SMA antenna connectors (2T2R)

• 1 x HDMI port

• 2 x DisplayPorts

• 3 x USB 3.2 Gen 1 ports

• 1 x USB-C® 3.2 Gen 2 port

• 1 x RJ-45 port

• 3 x audio jacks

• Voltage, temperature, fan speed, water cooling flow rate detection

• Fan fail warning, fan speed control

• Norton® Internet Security (OEM)

• Windows 11 64-bit, Windows 10 64-bit
