Gigabyte B840M EAGLE WIFI6 AM5 mATX Motherboard

• AMD Socket AM5

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors

• 2 x DDR5 DIMM sockets, up to 128 GB (64 GB single DIMM)

• Speeds from 4400MT/s up to 7600MT/s (O.C.)

• Dual channel architecture

• Supports non-ECC Un-buffered DIMMs (1Rx8/2Rx8/1Rx16)

• Supports AMD EXPO™ and XMP memory modules

• 1 x DisplayPort (Supports DP 1.4 & HDR, up to 3840x2160@144Hz)

• 1 x HDMI port (Supports HDMI 2.1 TMDS, HDCP 2.3 & HDR, up to 4096x2160@60Hz)

CPU:

• 1 x PCIe 4.0 x16 slot (PCIEX16: runs at x16 for Ryzen 9000/7000, x8 for Ryzen 8000-Phoenix 1, x4 for Ryzen 8000-Phoenix 2)

Chipset:

• 1 x PCIe 3.0 x16 slot (running at x4)

CPU:

• 1 x M.2 (M2A_CPU, type 2580/2280): PCIe 4.0 x4/x2

Chipset:

• 1 x M.2 (M2C_SB, type 2280): PCIe 3.0 x2

• 4 x SATA 6Gb/s connectors

• RAID 0/1/10 support for NVMe (RAID 5 supported on Ryzen 9000 only) and SATA

CPU & Hubs: 2 x USB 3.2 Gen 1 (back panel), 4 x USB 2.0/1.1 (back panel)

Chipset: 1 x USB-C® 3.2 Gen 1 (internal header), 2 x USB 3.2 Gen 1 (internal header), 4 x USB 2.0/1.1 (internal headers)

• Power: 1 x 24-pin ATX, 1 x 8-pin ATX 12V

• Cooling: 1 x CPU fan, 1 x CPU fan/pump, 1 x sys fan, 1 x sys fan/pump

• RGB: 2 x Addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header

• Data: 2 x M.2, 4 x SATA

• Headers: Front panel, front audio, 1x USB-C® 3.2 Gen 1, 1x USB 3.2 Gen 1, 2x USB 2.0/1.1, TPM (GC-TPM2.0 SPI/SPI 2.0/SPI V2), reset jumper, clear CMOS jumper

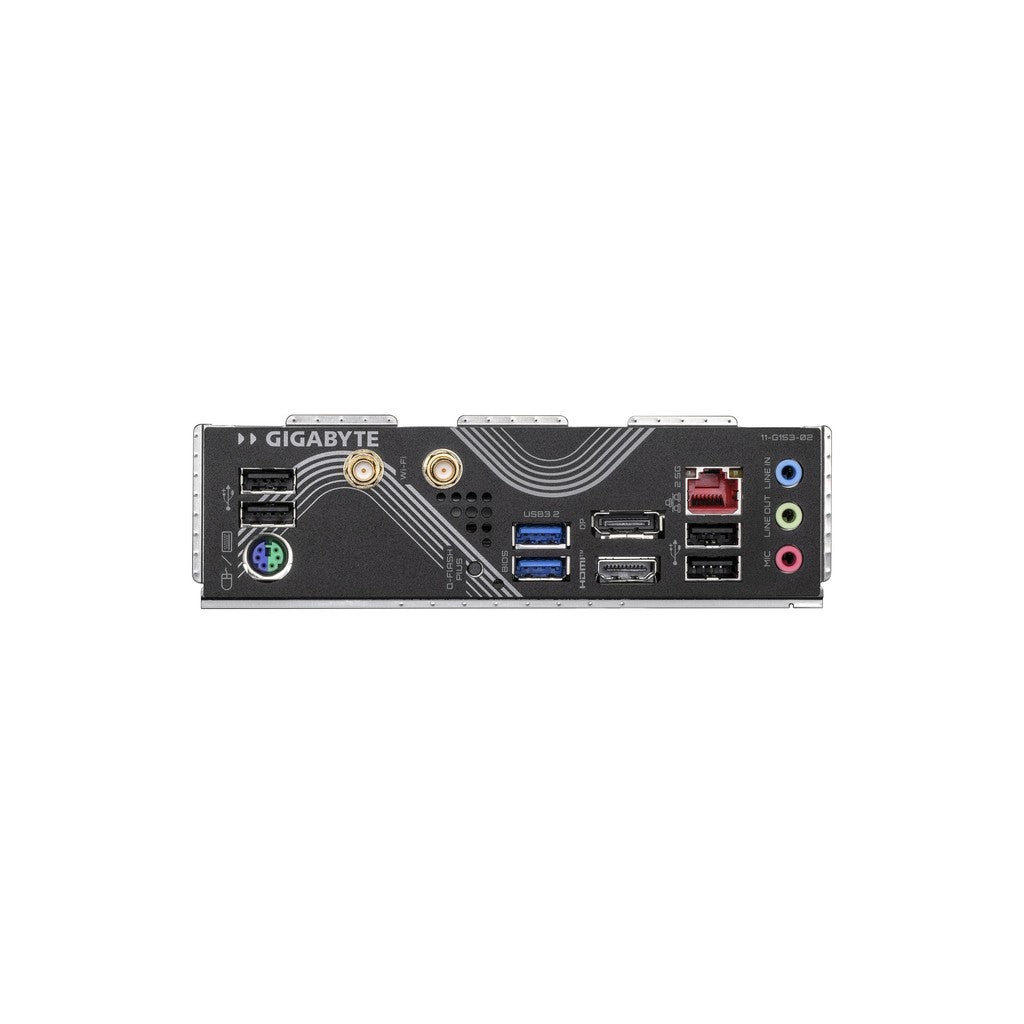

• 1 x PS/2 keyboard/mouse port

• 4 x USB 2.0/1.1 ports

• 1 x DisplayPort

• 1 x HDMI port

• 1 x Q-Flash Plus button

• 2 x USB 3.2 Gen 1 ports

• 1 x RJ-45 port

• 2 x SMA antenna connectors (2T2R)

• 3 x audio jacks

• Voltage, temperature, fan speed, water cooling flow rate detection

• Fan fail warning, fan speed control

• Norton® Internet Security (OEM), LAN bandwidth management

• Windows 11 64-bit, Windows 10 64-bit
