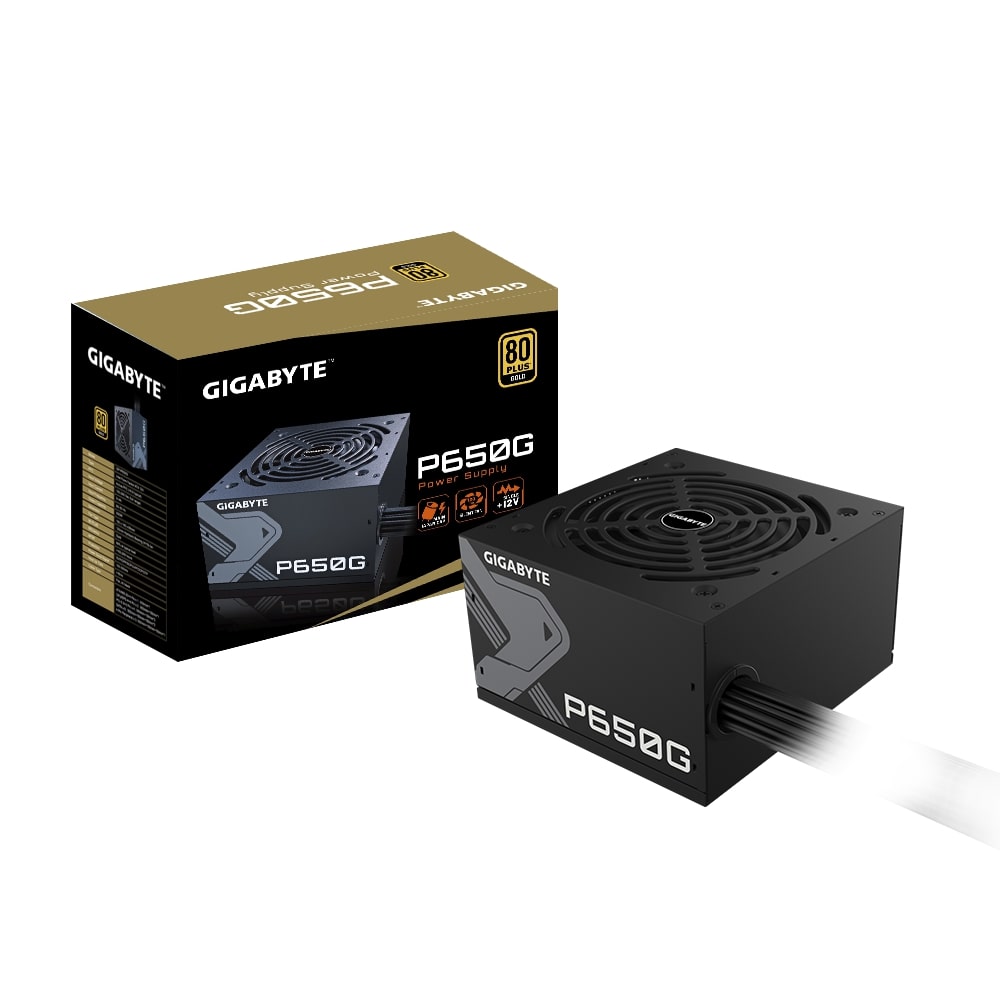

Gigabyte GP-P650G 650W 80Plus Gold ATX PSU 5 Year Warranty

Gigabyte GP-P650G 650W 80Plus Gold ATX PSU 5 Year Warranty

$119.00
$119.00
Sale Sold out
Tax included. Shipping calculated at checkout.

  • KEY FEATURES

    • 80 PLUS Gold certified
    • Main Japanese capacitors
    • 120mm Silent Hydraulic Bearing (HYB) Fan
    • Powerful single +12V rail
    • OVP/OPP/SCP/UVP/OCP/OTP protection
    • Compact design
    • 5 years warranty (Adjusted according to different regions)
  • Model
    GP-P650G
  • Type
    Intel Form Factor ATX 12V
  • PFC
    Active PFC(>0.9 typical)
  • Input Voltage
    100-240 Vac(full range)
  • Input Current
    9-4A
  • Input Frequency
    60-50 Hz
  • Output Capacity
    650W
  • Dimension
    150 x 140 x 86 mm
  • Fan Type
    120mm Hydraulic Bearing (HYB) Fan
  • 80 PLUS
    Gold
  • Efficiency
    90% at typical load
  • MTBF
    >100,000 hours
  • Protection
    OVP/OPP/SCP/UVP/OCP/OTP
  • Power Good Signal
    100-500ms
  • Hold Up Time
    >16ms
  • Cable Type
    Flat, All black
  • Connectors
    ATX/MB 20+4 Pin x 1 : 600mm*1
    CPU/EPS 4+4 Pin x 2 : 600mm+150mm*1
    PCI-e 6+2 Pin x 4 : 500mm+150mm*2
    SATA x 6 : 500mm+150mm+150mm*2
    4 Pin Peripheral x 3: 500mm+150mm+150mm*1

    HIGH QUALITY
    JAPANESE CAPACITORS

    The primary capacitors are sourced from top-tier Japanese manufacturers, delivering a premium and stable power supply that effectively extends the product's lifespan.

    The life of the main capacitor is over 20 years (Environment 25°C)

    FAN


    ACOUSTIC


    120MM SILENT HYDRAULIC
    BEARING (HYB) FAN

    The 120mm fan detects the current power utilization and temperature, automatically adjusting its rotational speed to minimize noise.The Hydraulic Bearing fan offers a longer and more stable lifespan in comparison to traditional sleeve fan.

    PROTECTION

    To guarantee the stable operation of your entire computer system under any circumstances, we have incorporated a range of protective features including OCP, OTP, OVP, OPP, UVP, and SCP. Moreover, we have obtained safety certifications from various countries to ensure the consistent and secure functioning of your system.


    RELIABLE BLACK FLAT CABLE

    The utilization of black flat cables minimizes clutter while enhancing the thermal performance of the chassis.

    80 PLUS GOLD CERTIFIED

    The 80 Plus Gold certification guarantees a 90% efficiency rate at a 50% load, resulting in reduced power wastage, diminished heat generation, and minimized fan noise.

    SINGLE +12V RAIL

    The single +12V rail delivers optimal power output, stability, and hardware compatibility. This design not only simplifies power cable installation but also stands as the most effective choice for overclocking purposes.

    COMPACT DESIGN

    Through GIGABYTE's exceptional design capabilities and the use of high-quality materials, we have successfully reduced the size of the power supply unit. This compact power supply not only facilitates easier installation into various chassis but also enhances the thermal efficiency within the case.
