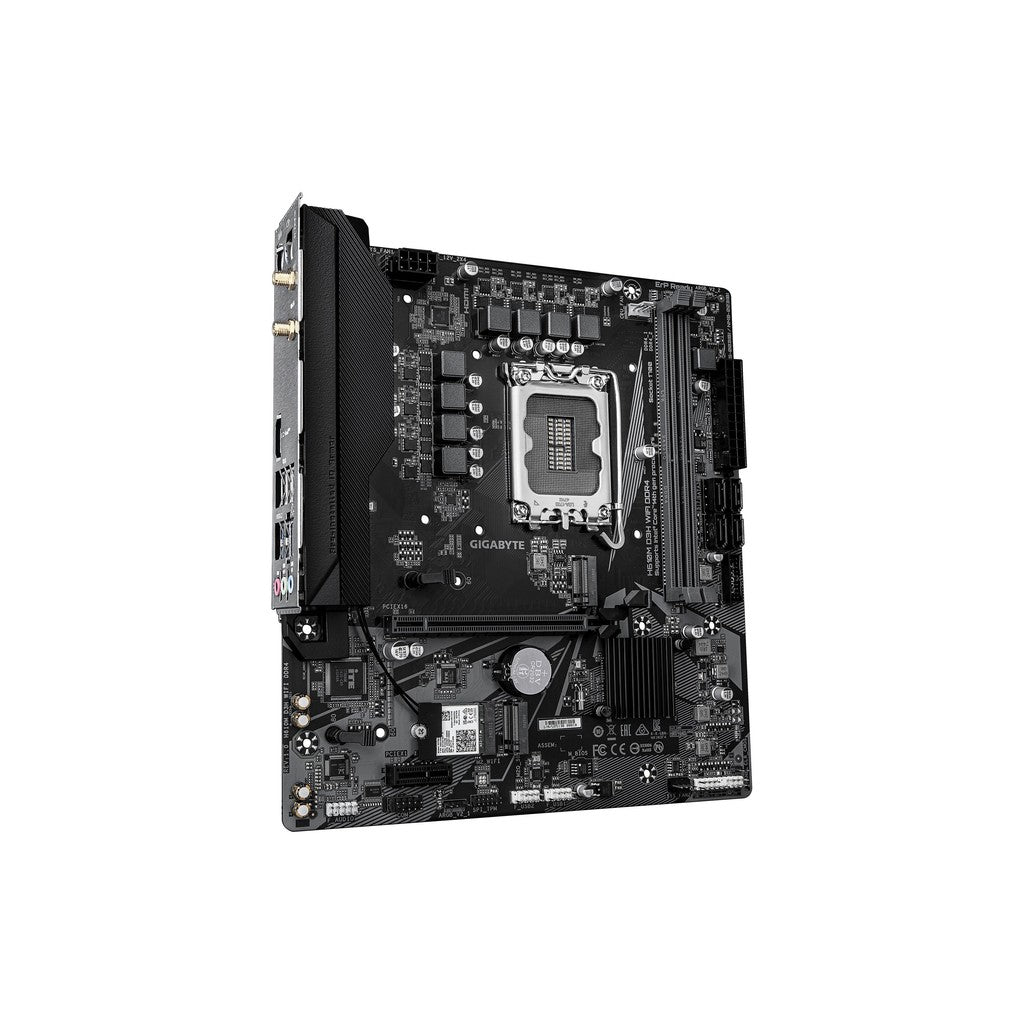

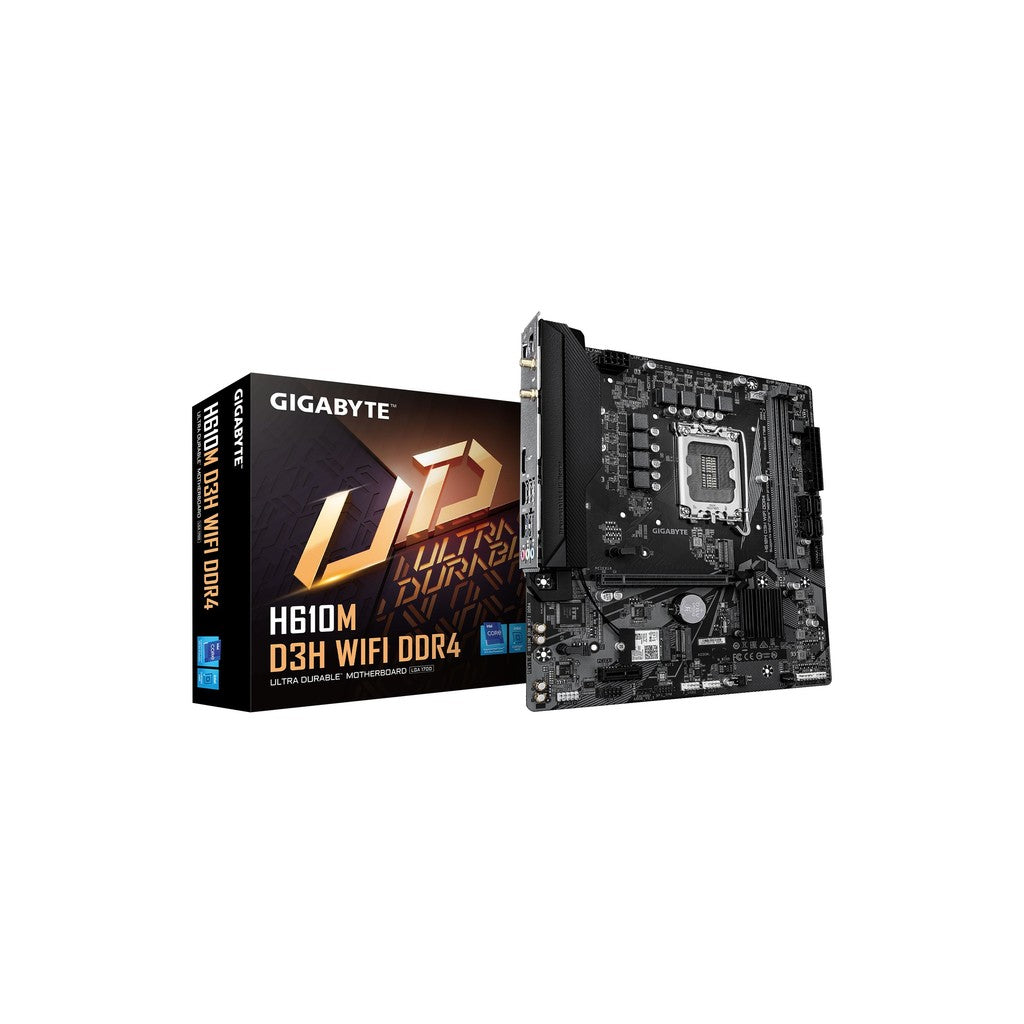

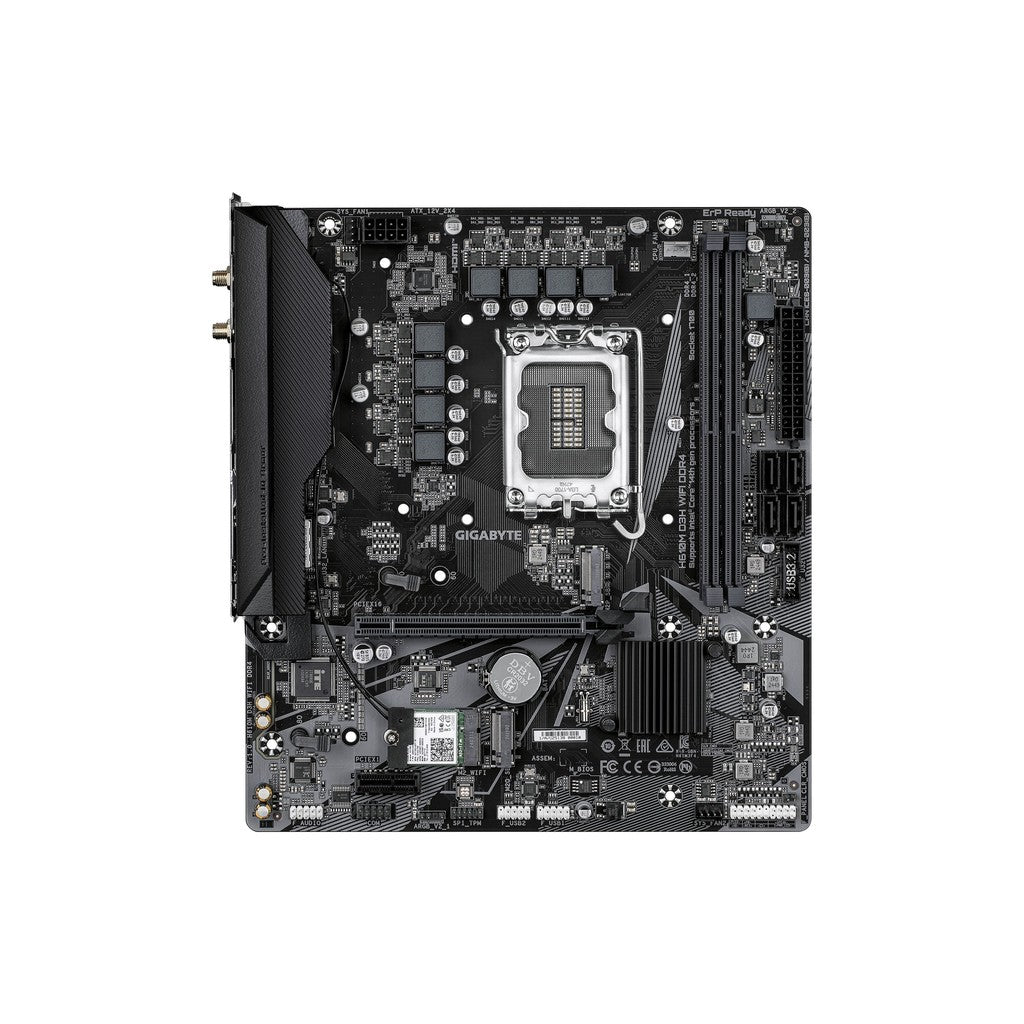

Gigabyte H610M D3H WIFI DDR4 mATX LGA1700 Motherboard
Gigabyte H610M D3H WIFI DDR4 mATX LGA1700 Motherboard
Couldn't load pickup availability
3 Year Limited Warranty
- Supports Intel® Core™ 14th/ 13th /12th processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 6+1+1 Hybrid Digital VRM Design
- Fast Networks：Wi-Fi 802.11ac & GbE LAN
- NVMe PCIe 3.0 x4 M.2
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
| CPU |
• LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors • L3 cache varies with CPU |
| Chipset | • Intel® H610 Express Chipset |
| Memory |
• 2 x DDR4 DIMM sockets, up to 64 GB (32 GB single DIMM) • Speeds from 2133MT/s up to 3200MT/s • Dual channel architecture • Supports ECC (in non-ECC mode) & non-ECC Un-buffered DIMMs • Supports XMP memory modules |
| Onboard Graphics | • 1 x HDMI port (Supports HDMI 2.1 TMDS & HDCP 2.3, up to 4096x2160@60Hz) |
| Audio | • Realtek® Audio CODEC (High Definition, 2/4/5.1/7.1-channel) |
| LAN | • Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Wireless | • Intel® Wireless-AC 9560: WIFI 802.11a/b/g/n/ac (2.4/5 GHz Dual-Band), BLUETOOTH 5.1, 11ac 160MHz |
| Expansion Slots |
CPU: • 1 x PCIe 4.0 x16 slot Chipset: • 1 x PCIe 3.0 x1 slot |
| Storage |
Chipset: • 1 x M.2 (M2P_SB, type 2280/2260): PCIe 3.0 x4/x2 • 1 x M.2 (M2Q_SB, type 2280/2260): PCIe 3.0 x2 • 4 x SATA 6Gb/s connectors |
| USB |
Chipset: 4 x USB 3.2 Gen 1 (2 back panel, 2 internal header), 2 x USB 2.0/1.1 (internal header) Chipset+Hubs: 6 x USB 2.0/1.1 (4 back panel, 2 internal headers) |
| Internal I/O |
• Power: 1 x 24-pin ATX, 1 x 8-pin ATX 12V • Cooling: 1 x CPU fan, 2 x sys fan • RGB: 2 x Addressable RGB Gen2 LED strip headers • Data: 2 x M.2, 4 x SATA • Headers: Front panel, front audio, 1x USB 3.2 Gen 1, 2x USB 2.0/1.1, TPM (GC-TPM2.0 SPI series only), serial port • Misc: Clear CMOS jumper |

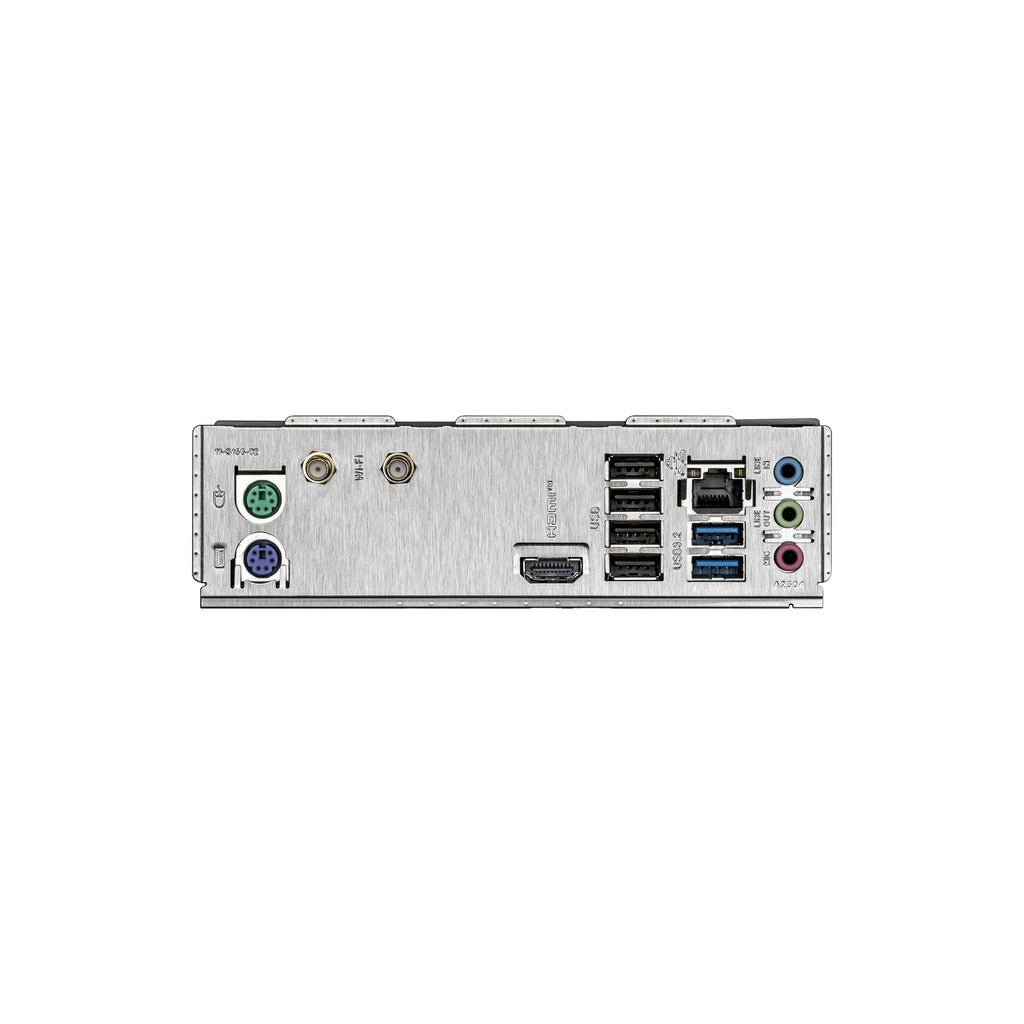

| Back Panel |
• 1 x PS/2 keyboard port • 1 x PS/2 mouse port • 2 x SMA antenna connectors (2T2R) • 1 x HDMI port • 2 x USB 3.2 Gen 1 ports • 4 x USB 2.0/1.1 ports • 1 x RJ-45 port • 3 x audio jacks |
| I/O Controller | • iTE® I/O Controller Chip |
| H/W Monitoring |
• Voltage, temperature, fan speed, water cooling flow rate detection • Fan fail warning, fan speed control |
| BIOS | • 1 x 128 Mbit flash, AMI UEFI BIOS (PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0) |
| Unique Features | • GIGABYTE Control Center (GCC), Q-Flash |
| Software/OS |
• Norton® Internet Security (OEM), LAN bandwidth management software • Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | • Micro ATX Form Factor (24.4cm x 22.0cm) |
