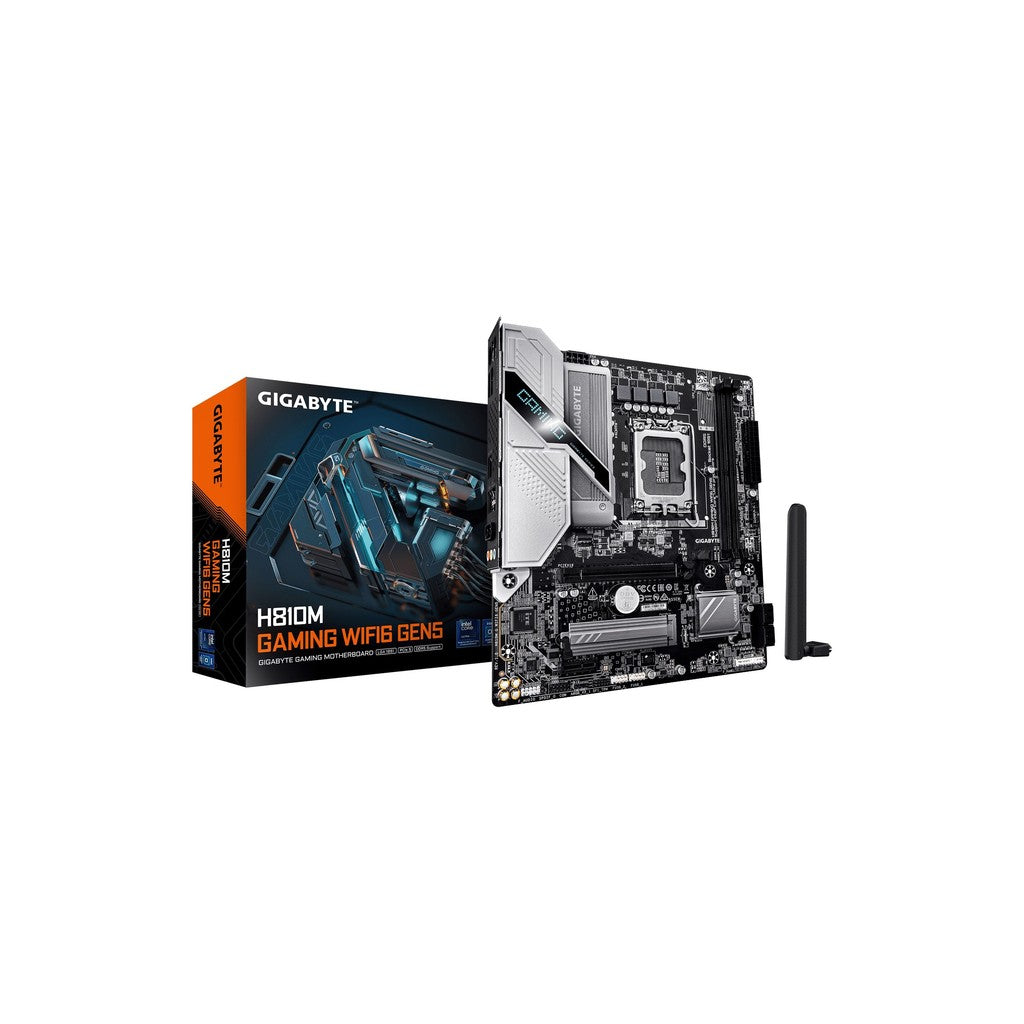

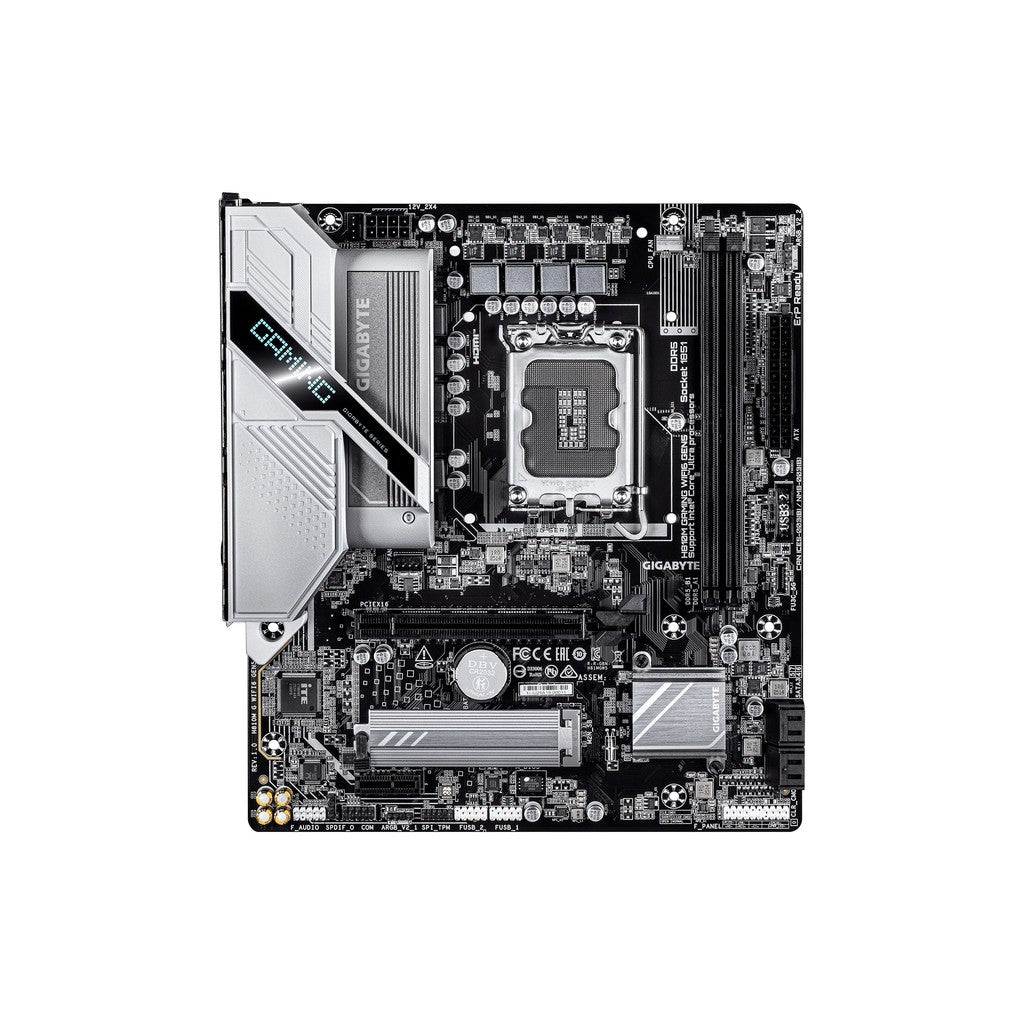

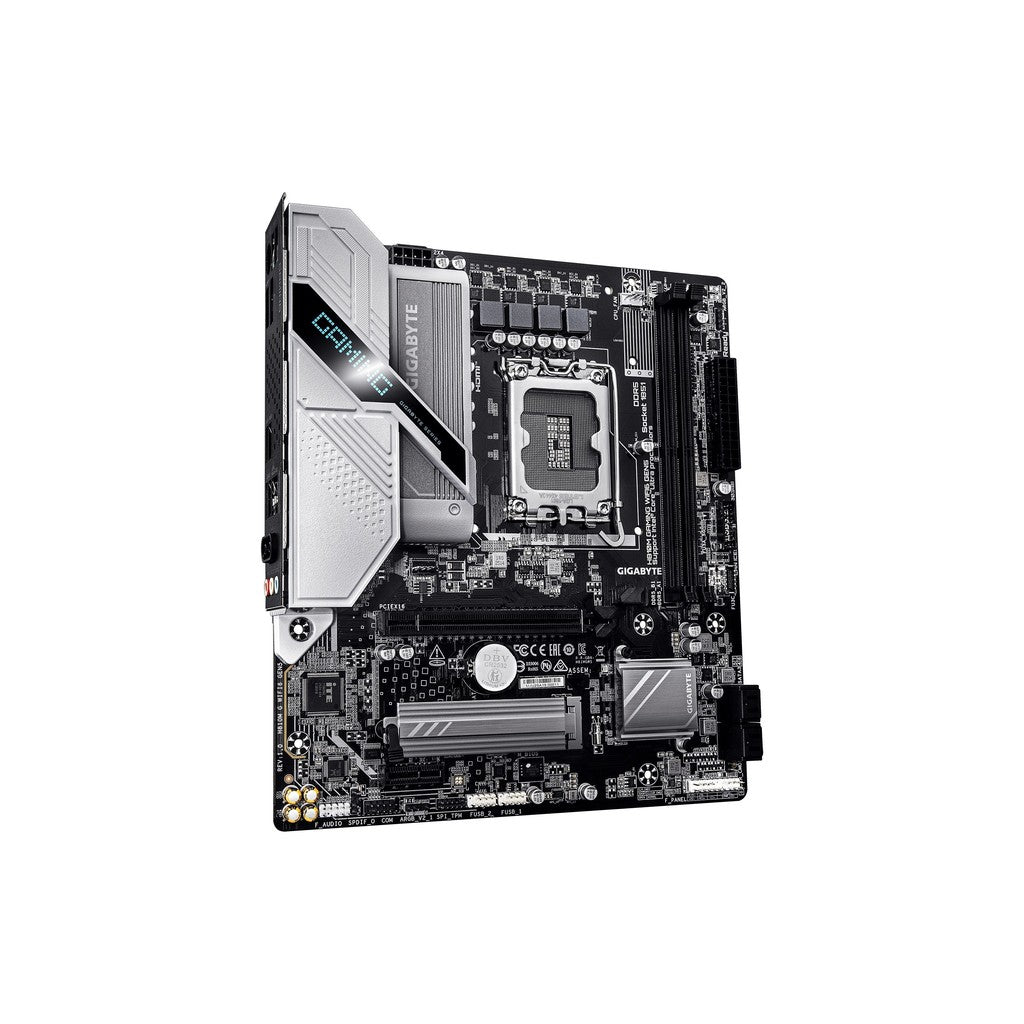

Gigabyte H810M Gaming WiFi6 Gen5 mATX LGA 1851 Motherboard

• LGA1851 socket: Supports Intel® Core™ Ultra Processors

• L3 cache varies with CPU

• 2 x DDR5 DIMM sockets, up to 128 GB (64 GB single DIMM)

• Speeds of 6400/5600 MT/s

• Dual channel architecture

• Supports ECC (in non-ECC mode) & non-ECC Un-buffered DIMMs

• Supports XMP memory modules

• 1 x HDMI port (Supports HDMI 2.1 & HDCP 2.3, up to 4096x2160@60Hz)

• 1 x DisplayPort (Supports DP 2.1, up to 3840x2160@60Hz)

• Realtek® Audio CODEC (High Definition, 2/4/5.1/7.1-channel)

• Support for S/PDIF Out

CPU:

• 1 x PCIe 5.0 x16 slot

Chipset:

• 1 x PCIe 3.0 x1 slot

Chipset:

• 1 x M.2 (Socket 3, type 2280): PCIe 4.0 x4/x2

• 4 x SATA 6Gb/s connectors

Chipset: 1 x USB-C® 3.2 Gen 1 (internal header), 3 x USB 3.2 Gen 1 (1 back panel, 2 internal header), 2 x USB 2.0/1.1 (back panel)

Chipset+Hubs: 7 x USB 2.0/1.1 (3 back panel, 4 internal headers)

• Power: 1 x 24-pin ATX, 1 x 8-pin ATX 12V

• Cooling: 1 x CPU fan, 2 x sys fan

• RGB: 2 x Addressable RGB Gen2 LED strip headers

• Data: 1 x M.2, 4 x SATA

• Headers: Front panel, front audio, S/PDIF Out, 1x USB-C® 3.2 Gen 1, 1x USB 3.2 Gen 1, 2x USB 2.0/1.1, TPM (GC-TPM2.0 SPI V2 only), serial port, Clear CMOS jumper

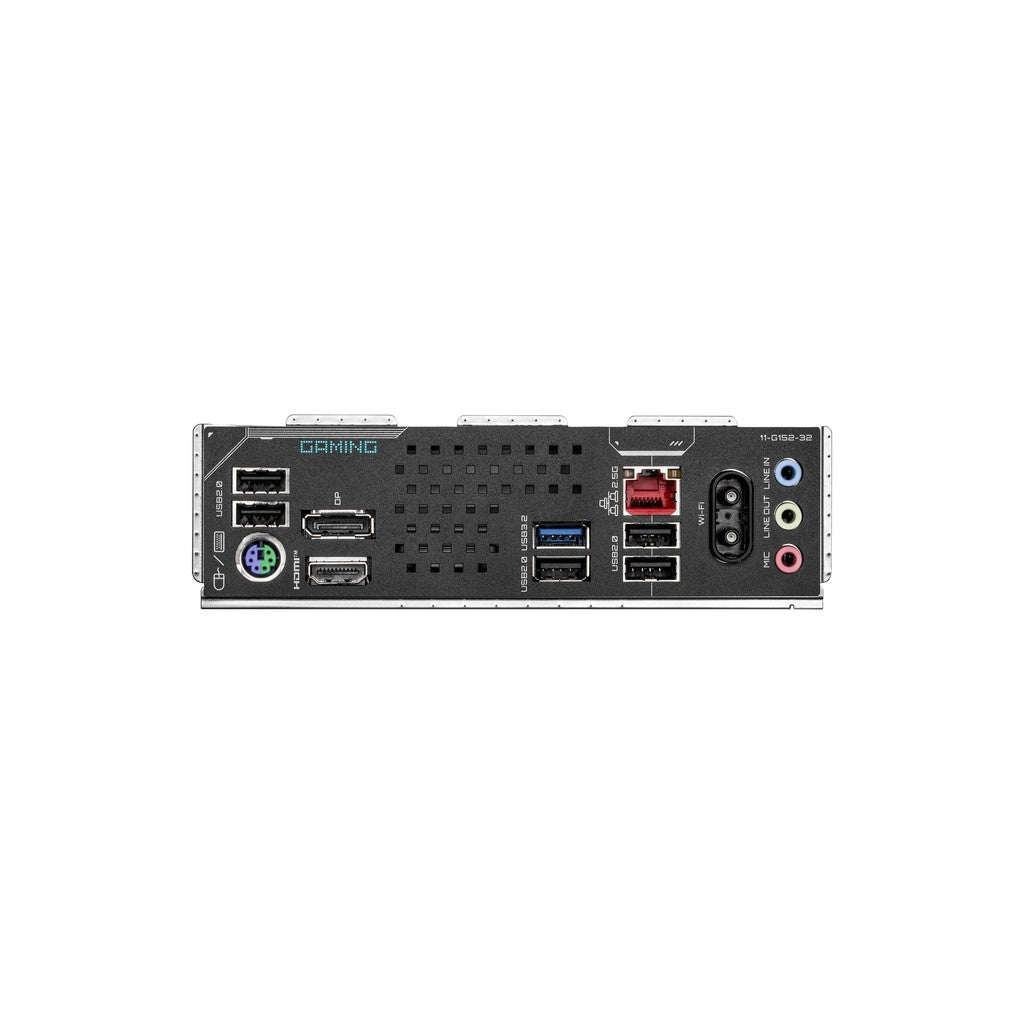

• 1 x PS/2 keyboard/mouse port

• 1 x HDMI port

• 1 x DisplayPort

• 1 x USB 3.2 Gen 1 port

• 5 x USB 2.0/1.1 ports

• 1 x RJ-45 port

• 2 x SMA antenna connectors (1T1R)

• 3 x audio jacks

• Voltage, temperature, fan speed, water cooling flow rate detection

• Fan fail warning, fan speed control

• Norton® Internet Security (OEM)

• Windows 11 64-bit, Windows 10 64-bit
