Gigabyte P550SS 550W 80 Plus Silver 3 Year Warranty ATX 3.0 PSU

3 Year Limited Warranty

KEY FEATURES

• 80 PLUS Silver certified (230V EU)
• Support Intel ATX 3.0 standard

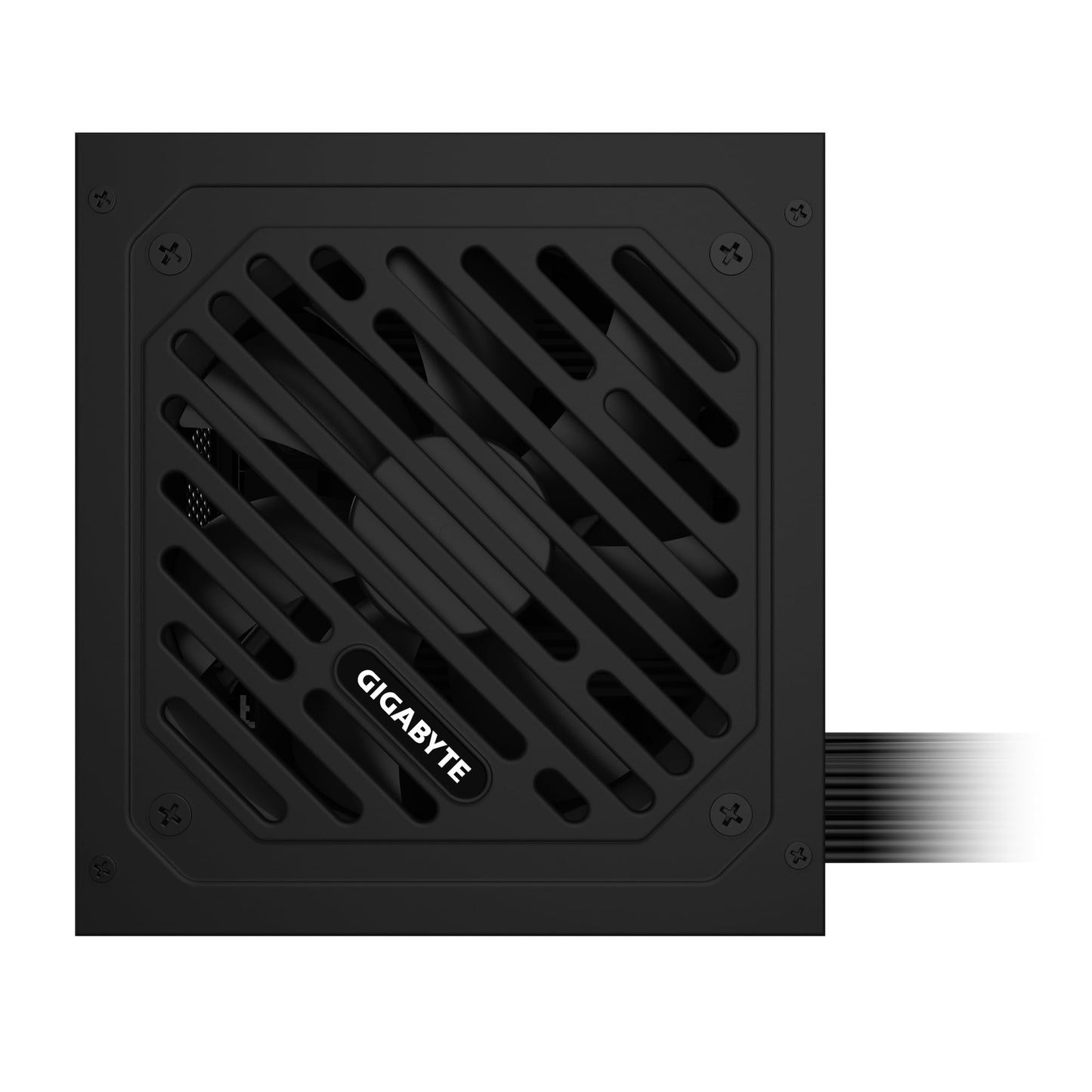

• 120mm Fluid Dynamic Bearing (FDB) Fan
• Flat cable design
• Powerful single +12V rail
• OVP/OPP/SCP/UVP/OCP/OTP protection
• 3 years warranty (Adjusted according to different regions)

• Model
  GP-P550SS
• Type
  Intel Form Factor ATX 12V v3.0
• PFC
  Active PFC (>0.9 typical)
• Input Voltage
  155-240 Vac
• Input Current
  6.3A
• Input Frequency
  50-60 Hz
• Output Capacity
  550W
• Dimension
  150 x 140 x 86 mm
• Fan Type
  120mm Fluid Dynamic Bearing (FDB) fan
• 80 PLUS
  Silver
• Efficiency
  90% at typical load (230V EU)
• MTBF
  >100,000 hours
• Protection
  OVP/OPP/SCP/UVP/OCP/OTP
• Power Good Signal
  100-150ms
• Hold Up Time
  >16ms
• Cable Type
  Flat, All black
• Connectors
  ATX/MB 20+4 Pin x 1 : 600mm*1
  CPU/EPS 4+4 Pin x 1 : 650mm*1
  PCI-e 6+2 Pin x 2 : 600mm+120mm*1
  SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1
  SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1
