Support Intel ATX 3.0 standard (compatible with ATX 3.1)
120mm Fluid Dynamic Bearing (FDB) Fan
Flat cable design
Powerful single +12V rail
OVP/OPP/SCP/UVP/OCP/OTP protection
3 years warranty

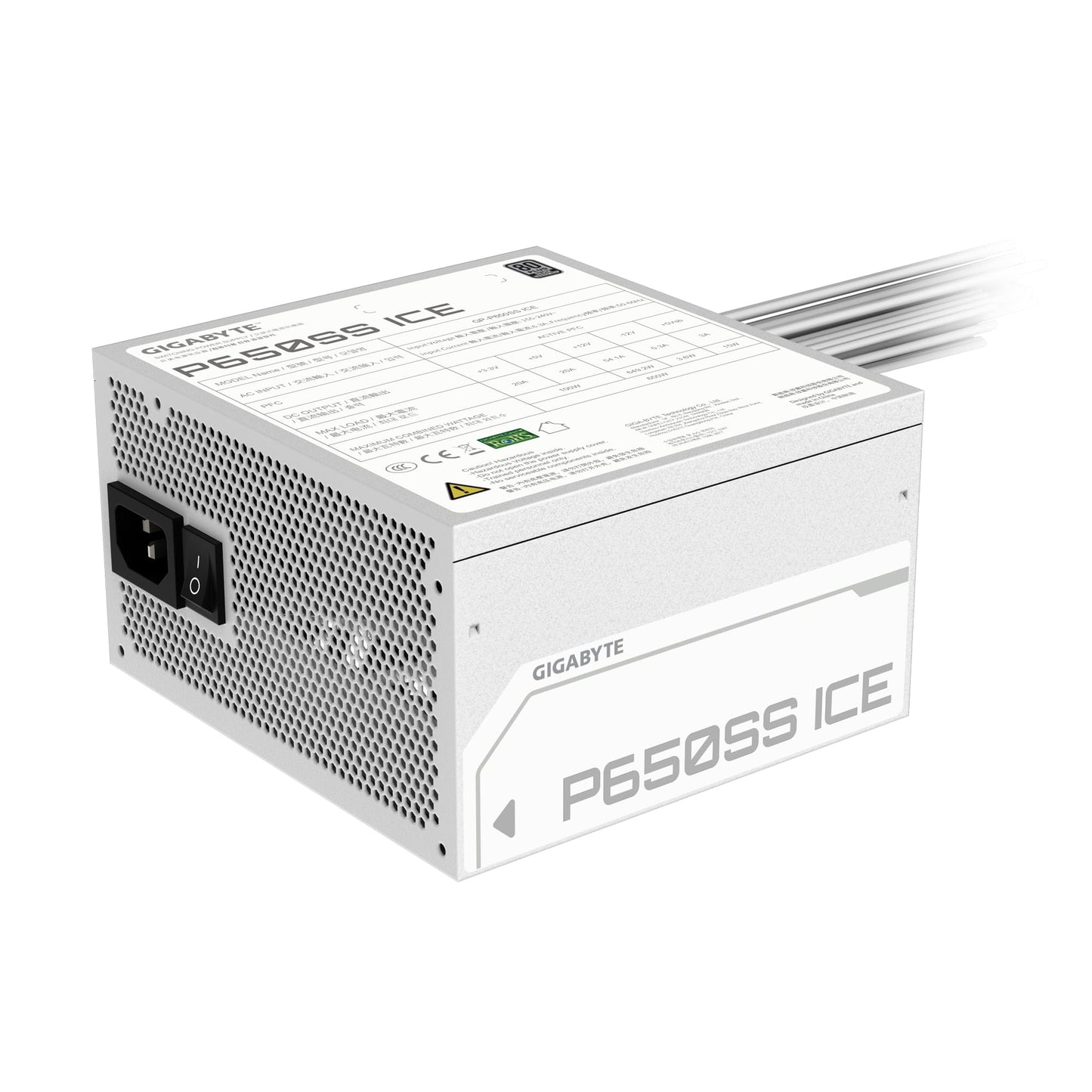

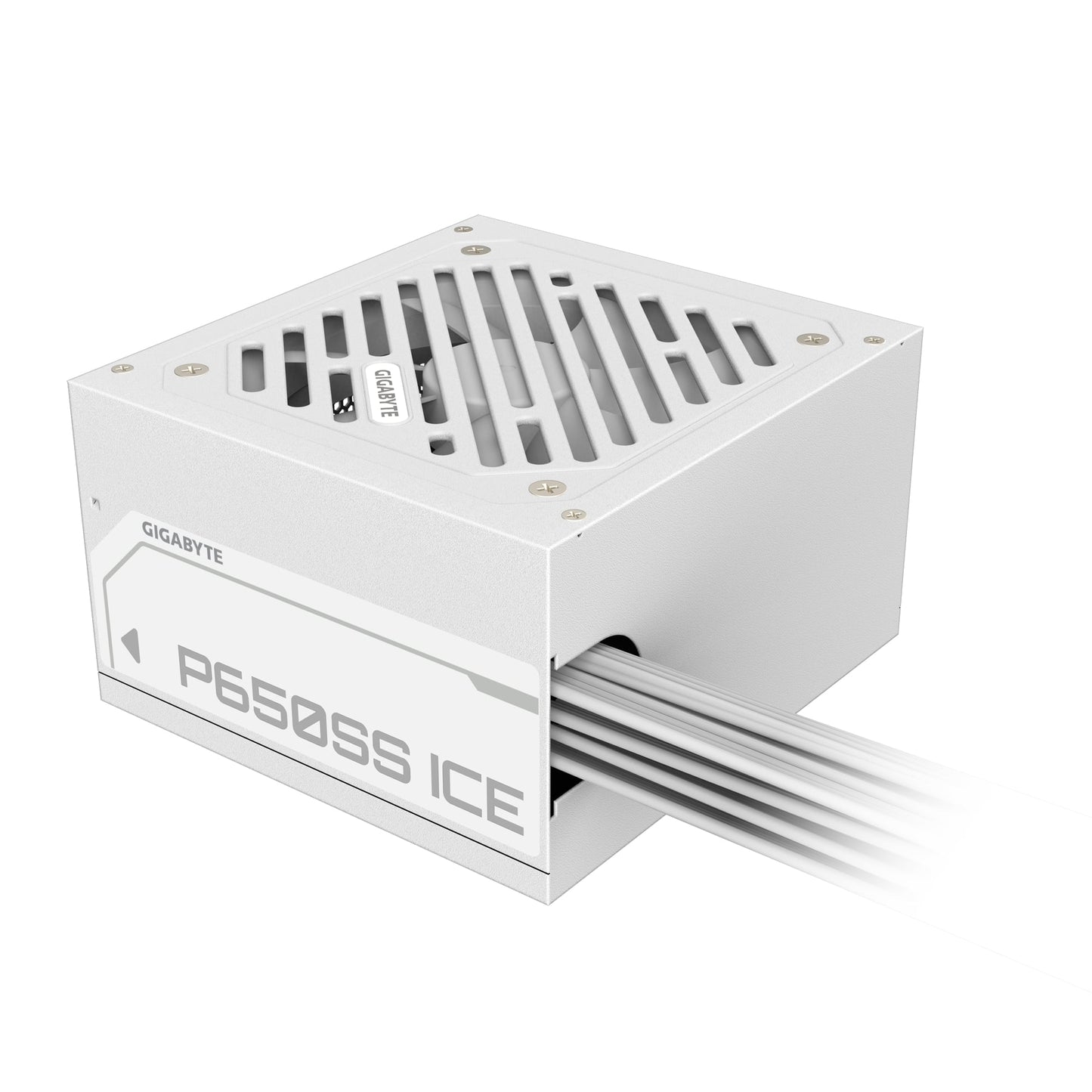

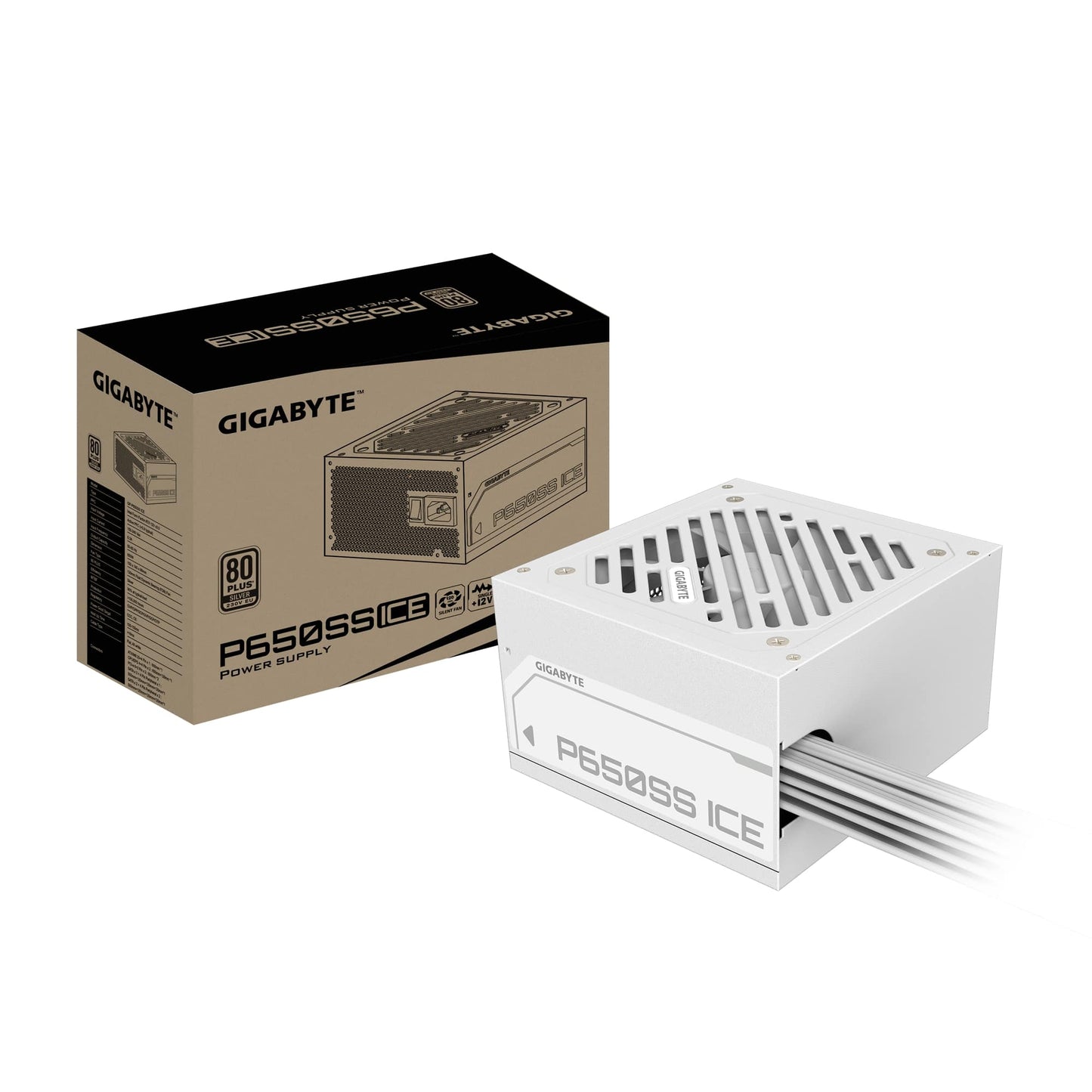

Model GP-P650SS ICE
Type Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)
PFC Active PFC (>0.9 typical)
Input Voltage 155-240 Vac
Input Current 6.3A
Input Frequency 60-50 Hz
Output Capacity 650W
Dimension 150 x 140 x 86 mm

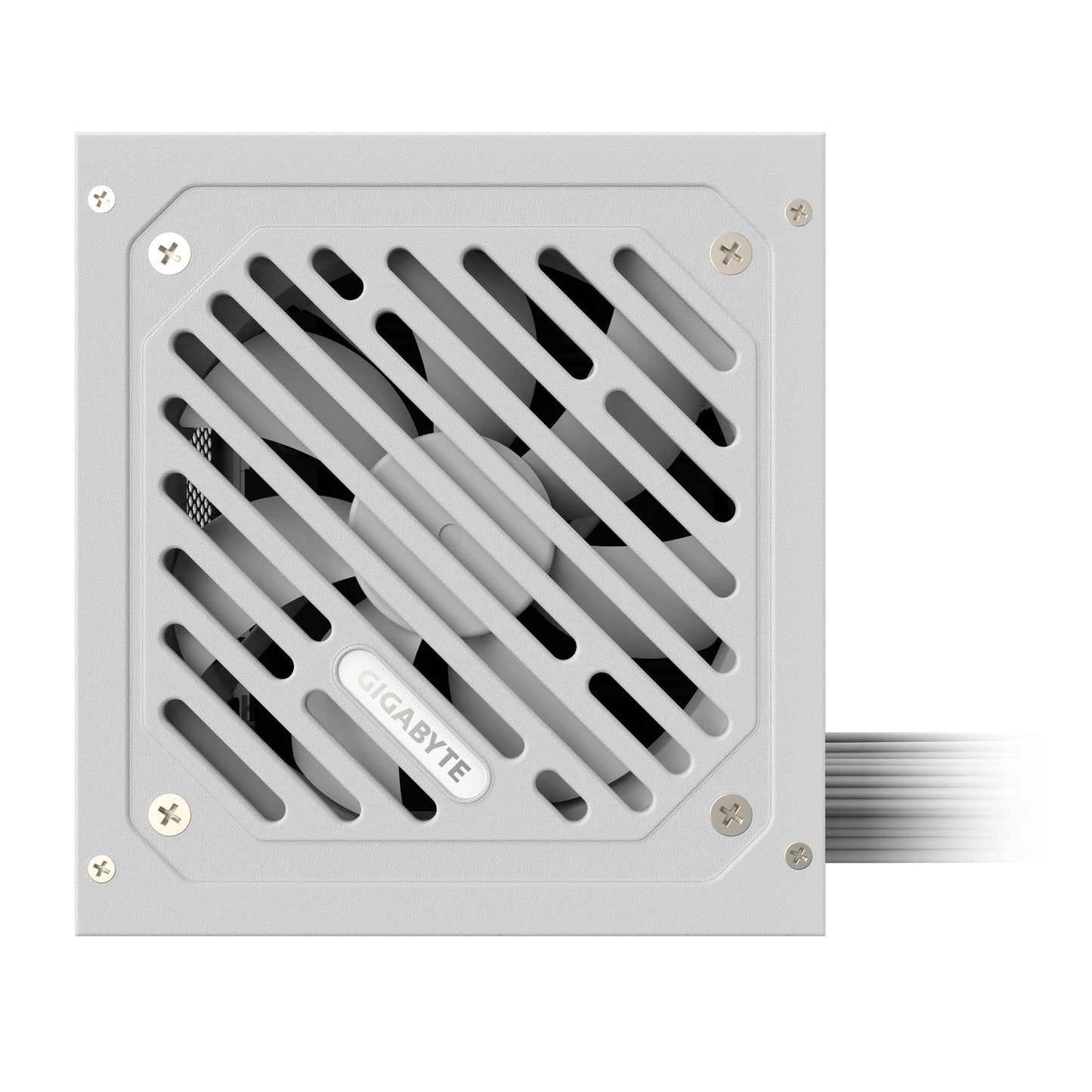

Fan Type 120mm Fluid Dynamic Bearing (FDB) fan
80 PLUS Silver
Efficiency 90% at typical load (230V EU)
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal 100-150ms
Hold Up Time >16ms
Cable Type Flat, All white
Connectors ATX/MB 20+4 Pin x 1 : 600mm*1 CPU/EPS 4+4 Pin x 2 : 650mm+120mm*1 PCI-e 6+2 Pin x 2 : 600mm*2 SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1 SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1
