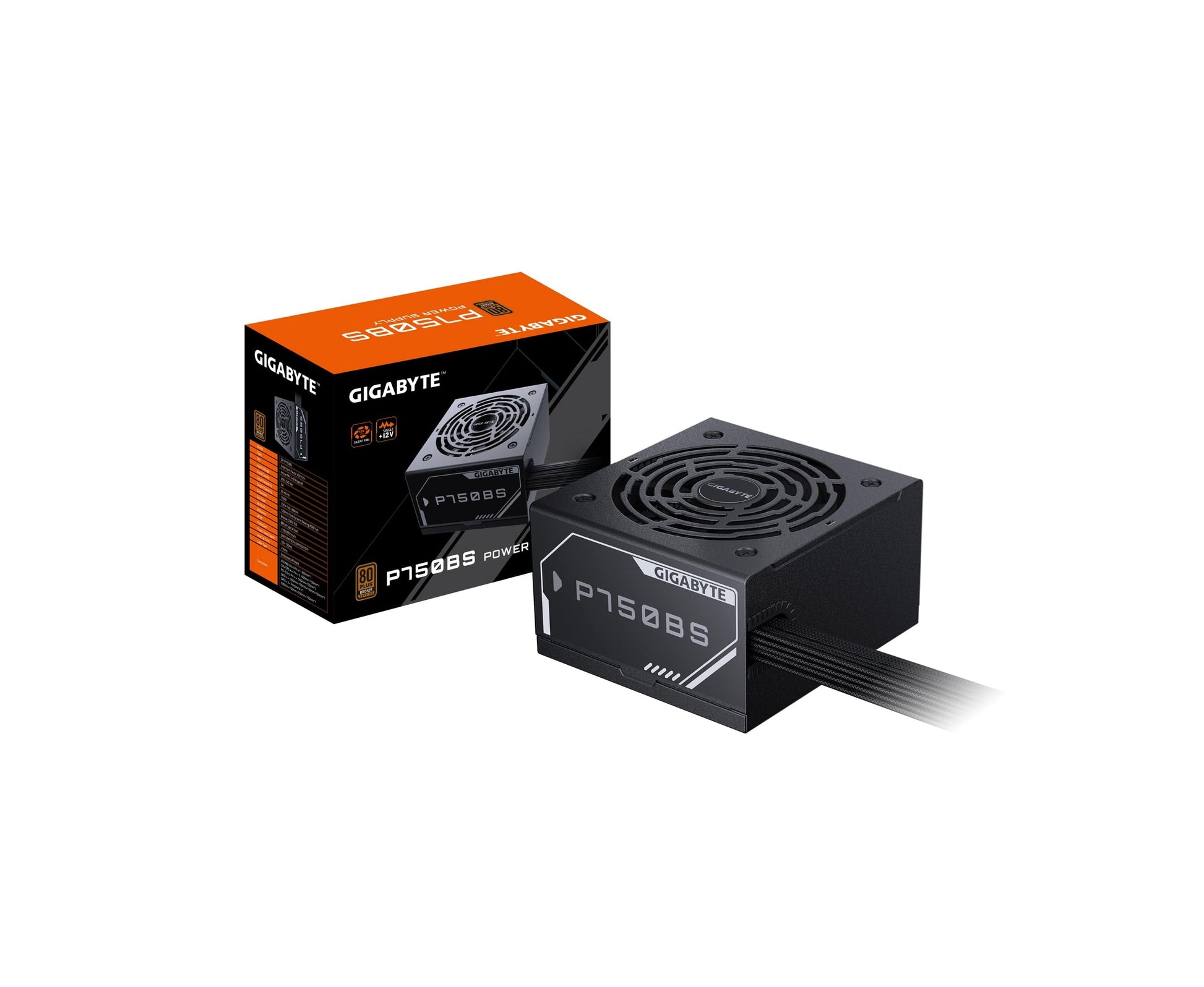

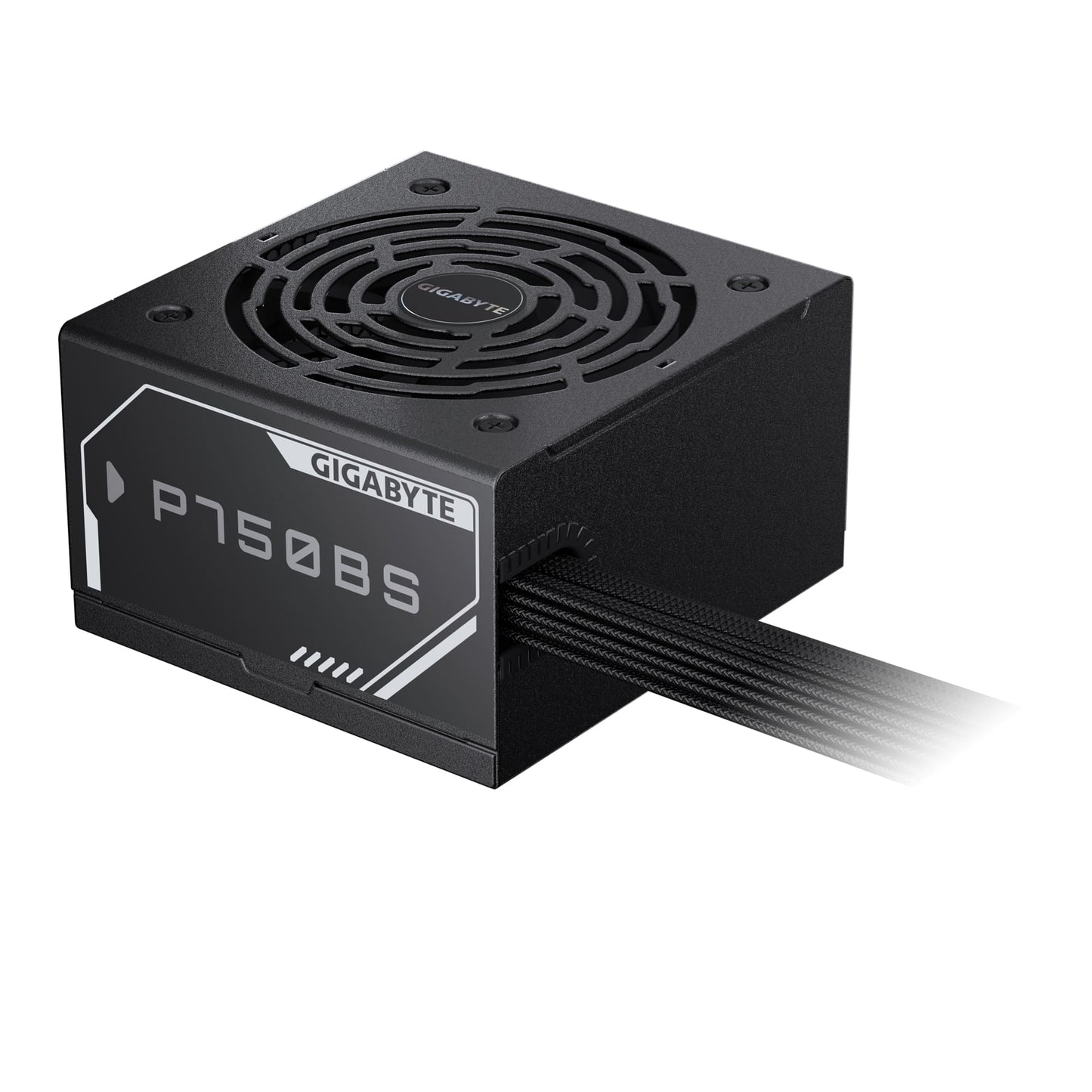

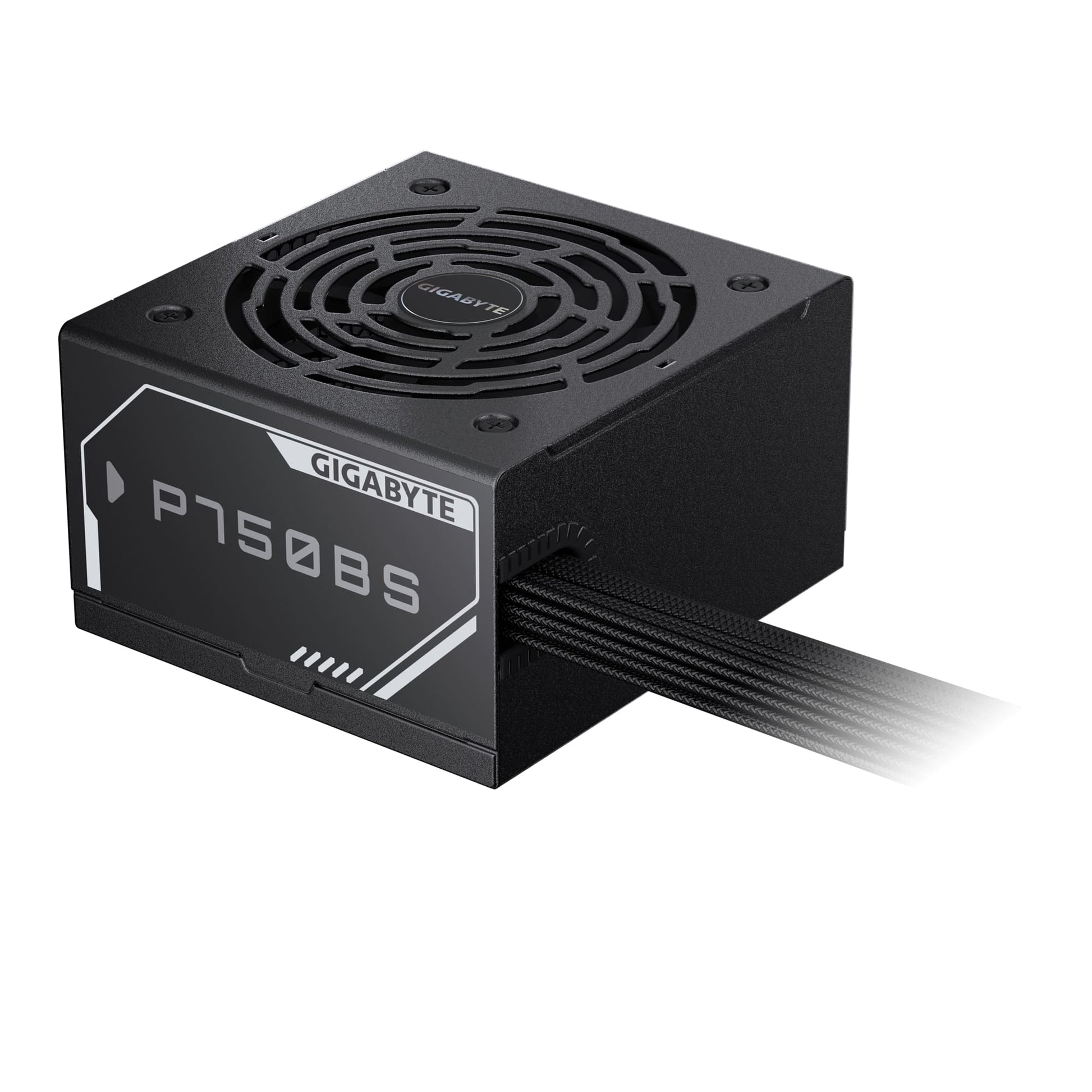

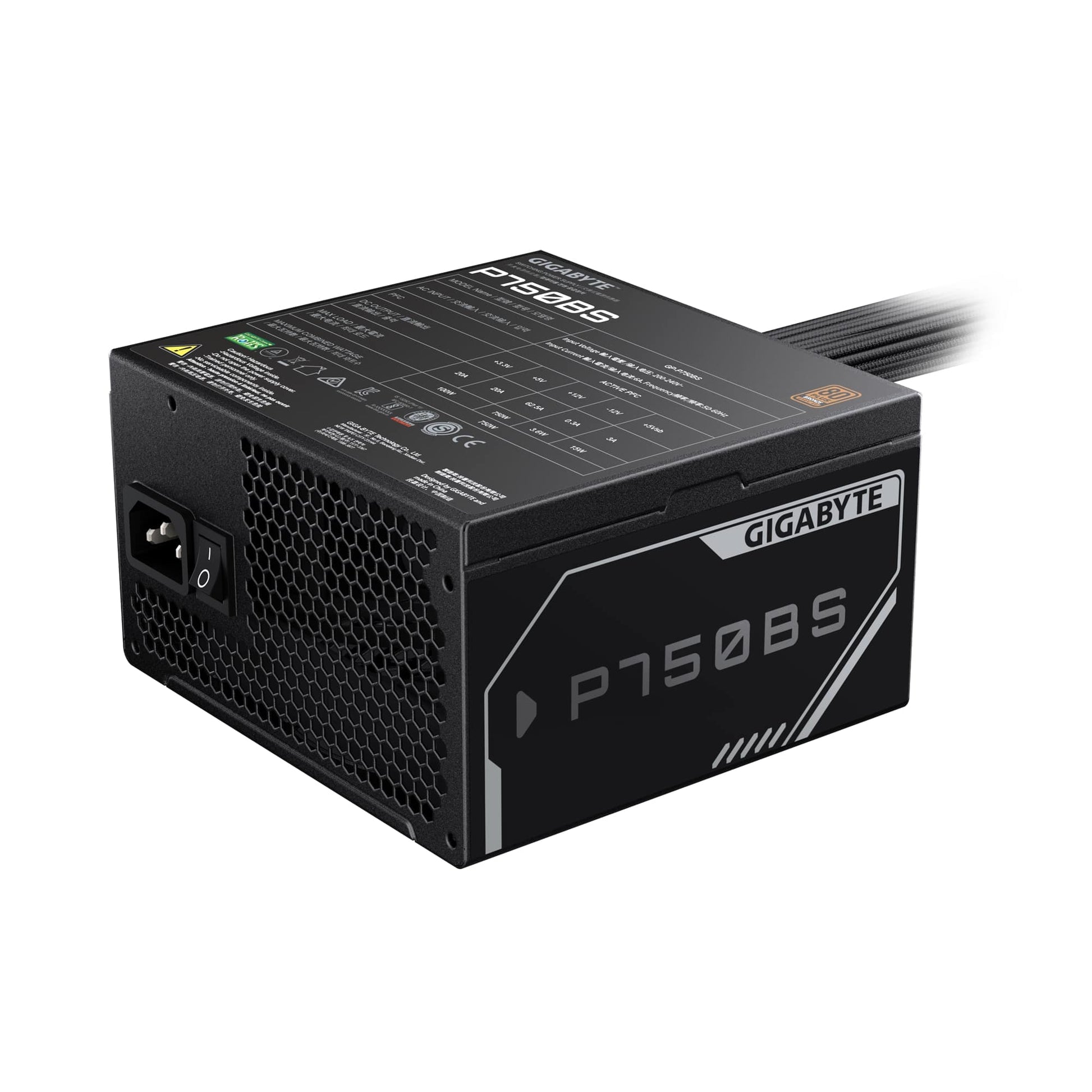

Gigabyte P750BS 750W 80 Plus Bronze ATX PSU

KEY FEATURE

• 80 PLUS Bronze certified (230V EU)
• 120mm Silent Fluid Dynamic Bearing (FDB) fan
• Soft-textured embossed cables
• Single +12V rail
• OVP/OPP/SCP/UVP/OCP/OTP protection
• 3 years warranty

80 PLUS
BRONZE CERTIFIED

The 80 Plus Bronze certification (230V EU) guarantees a 88% efficiency rate at a 50% load, resulting in reduced power wastage, diminished heat generation, and minimized fan noise.

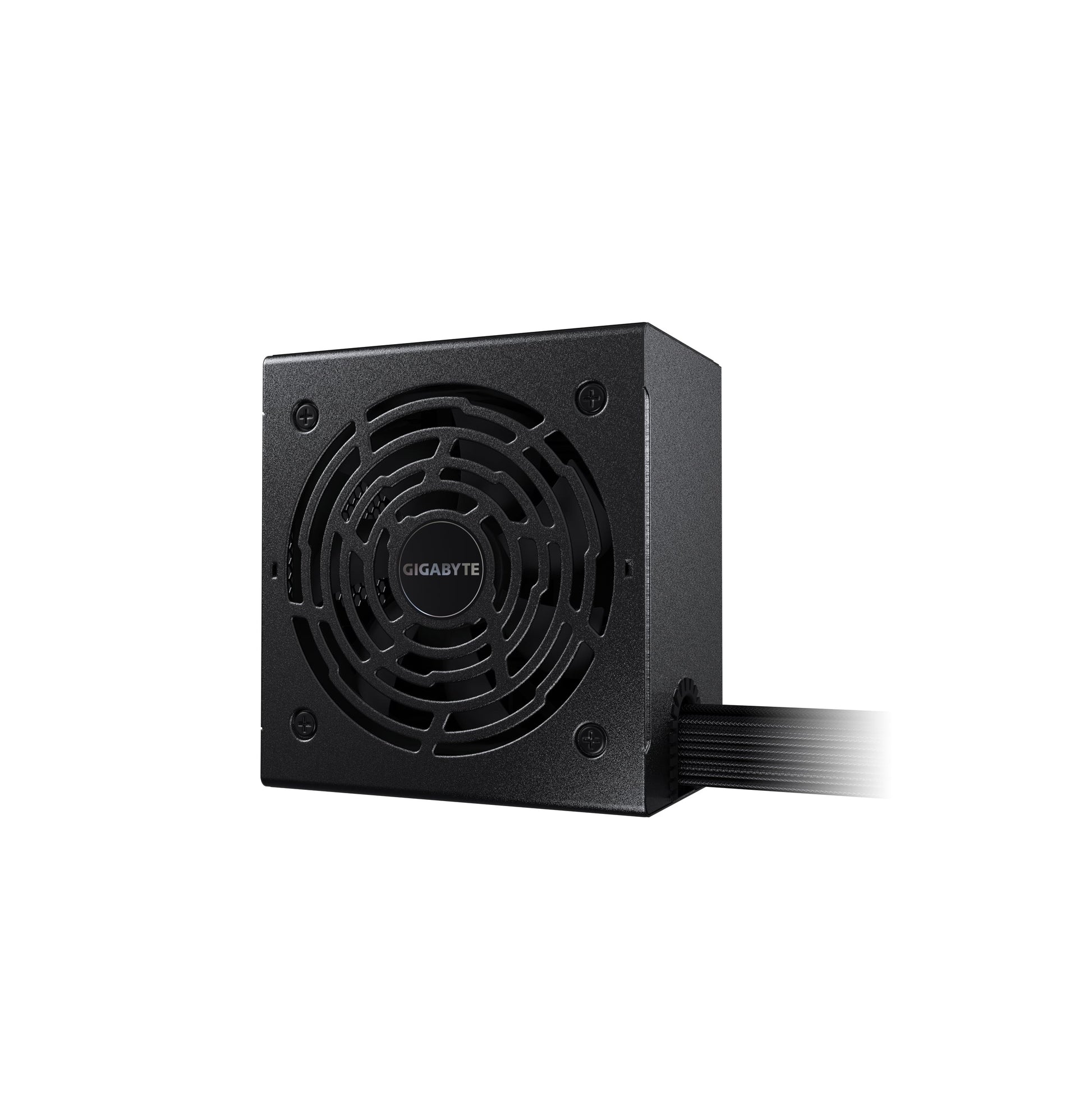

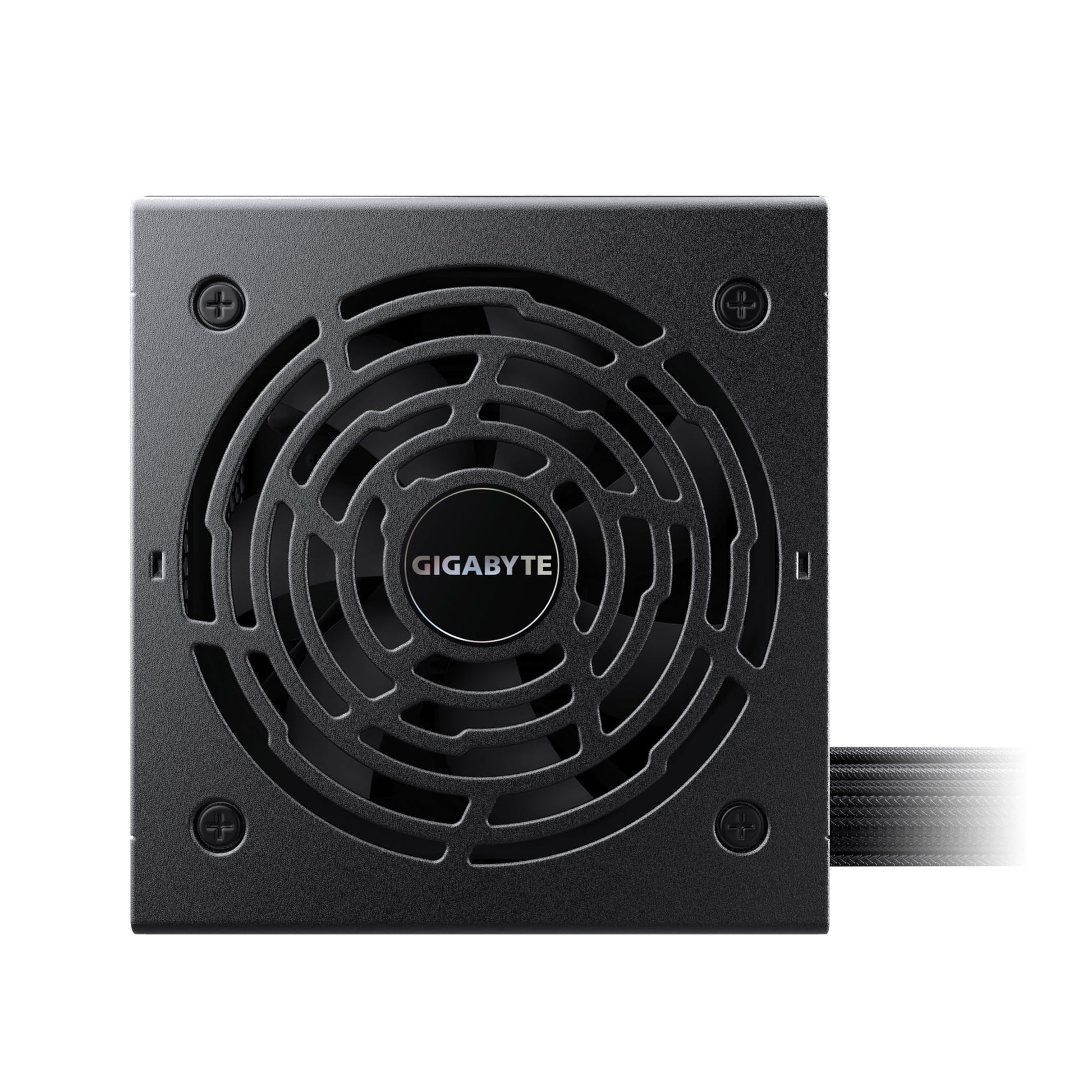

120MM FLUID DYNAMIC
BEARING(FDB) FAN

High-performance Fluid Dynamic Bearing fan uses oil film shock absorption technology to effectively reduce noise, making it quieter than conventional sleeve fan and providing more than twice the lifespan. In addition, the fan will detect the current power usage and temperature, automatically adjust the fan speed to minimize the noise.

SOFT-TEXTURED EMBOSSED CABLES

The embossed design of soft-textured cables enhances friction between the cable and surfaces, reducing wear and tear for a longer lifespan. It also effectively prevents tangling and knotting, keeping cables neat and tidy. The soft material provides a comfortable touch, while the variety of embossed patterns adds a touch of aesthetics to the product.

SINGLE +12V RAIL

The single +12V rail delivers optimal power output, stability, and hardware compatibility. This design not only simplifies power cable installation but also stands as the most effective choice for overclocking purposes.

PROTECTION

To guarantee the stable operation of your entire computer system under any circumstances, we have incorporated a range of protective features including OCP, OTP, OVP, OPP, UVP, and SCP. Moreover, we have obtained safety certifications from various countries to ensure the consistent and secure functioning of your system.

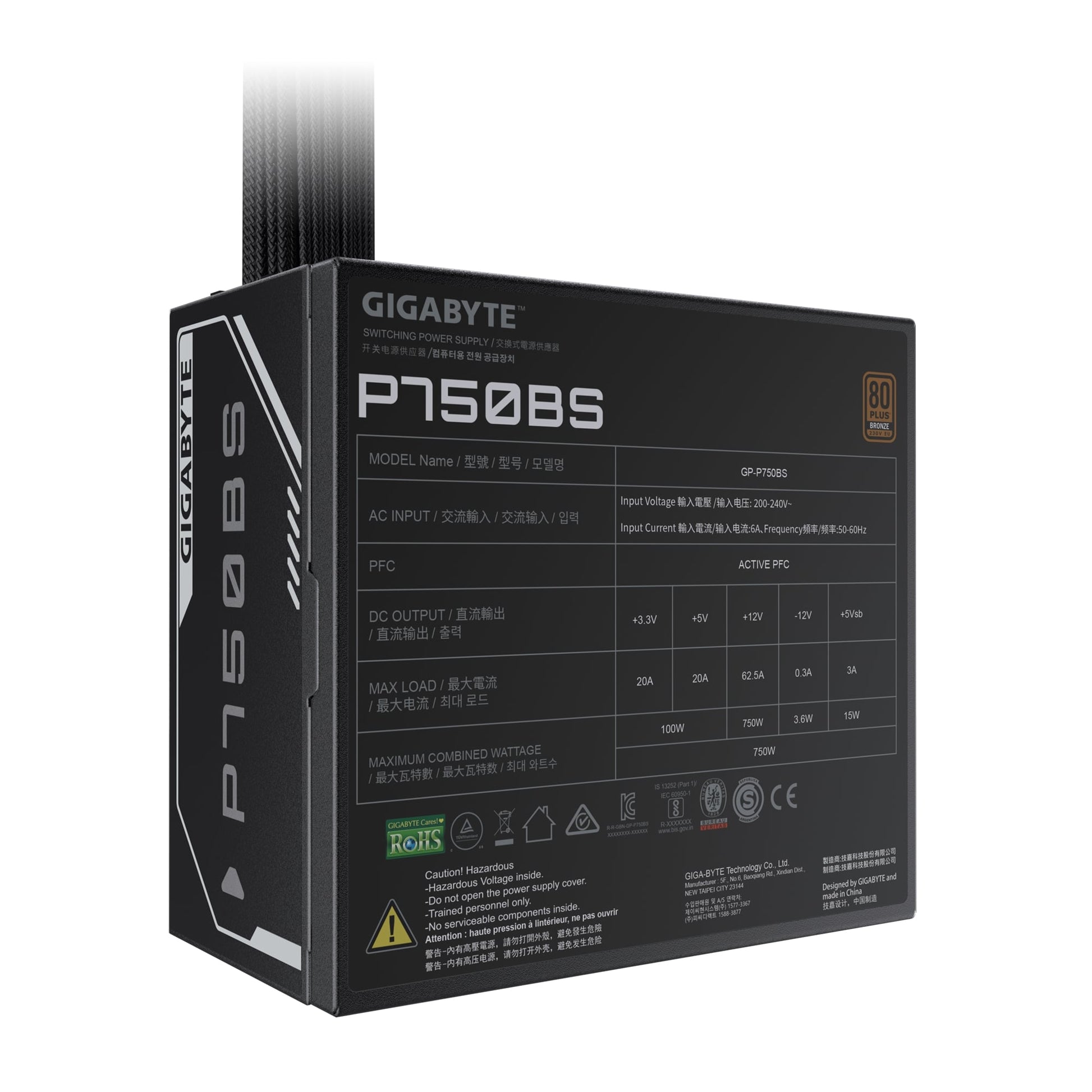

• Model
  GP-P750BS
• Type
  Intel Form Factor ATX 12V
• PFC
  Active PFC (>0.9 typical)
• Input Voltage
  200-240 Vac
• Input Current
  6 A
• Input Frequency
  60-50 Hz
• Output Capacity
  750W
• Dimension
  150 x 140 x 86 mm
• Fan Type
  120mm Fluid Dynamic Bearing (FDB) Fan
• 80 PLUS
  Bronze (230V EU)
• Efficiency
  88% at typical load
• MTBF
  >100,000 hours
• Protection
  OVP/OPP/SCP/UVP/OCP/OTP
• Power Good Signal
  100-150ms
• Hold Up Time
  >16ms
• Cable Type
  Embossed, All black
• Connectors
  ATX/MB 20+4 Pin x 1 : 600mm*1
  CPU/EPS 4+4 Pin x 2 : 600mm+150mm*1
  PCI-E 6+2 Pin x 4 : 500mm+150mm*2
  SATA x 4 : 500mm+150mm+150mm+150mm*1
  SATA x 3 + Peripheral x1 : 500mm+150mm+150mm+150mm*1
