ATX 3.1 and PCIe GEN 5.1 READY
Ready for next-gen power demands, this ATX 3.1 compliant PSU handles up to 3× GPU and 2× system power excursions with 70% efficiency at low loads. The high-performance native 16-pin cable delivers up to 600W for PCIe Gen 5.1 graphics cards, such as the GeForce RTX™ 50 Series and beyond.
ULTRA DURABLE
Carrying the Ultra Durable design DNA, this power supply packs high-quality components and smart design features for rock-solid stability and lasting performance.
FULLY MODULAR DESIGN
Connect only the cables you need using the sleek black embossed cables with a fully modular design, reducing clutter, improving airflow, and enhancing chassis thermal performance.
80 PLUS GOLD CERTIFIED
80 Plus Platinum certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.
SINGLE +12V RAIL
The single +12V rail delivers optimal power output, stability, and compatibility for hardware, offering the easiest installation of power cables and the ideal design for overclocking.
COMPACT DESIGN
Leveraging our expertise in heat dissipation and material selection, the power supply is slimmed down to just 140mm, maximizing performance while ensuring compatibility with even the most space-constrained chassis.
-

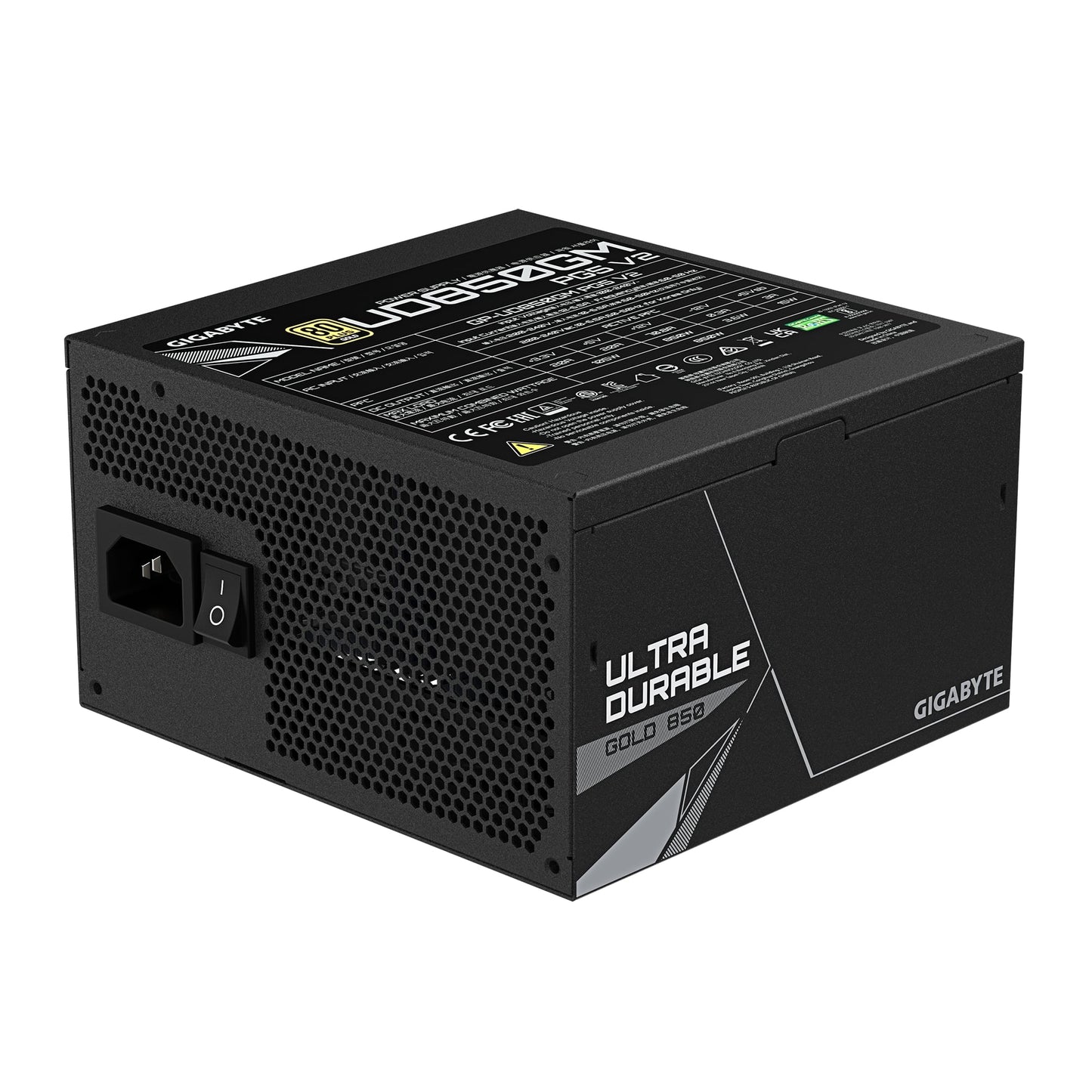

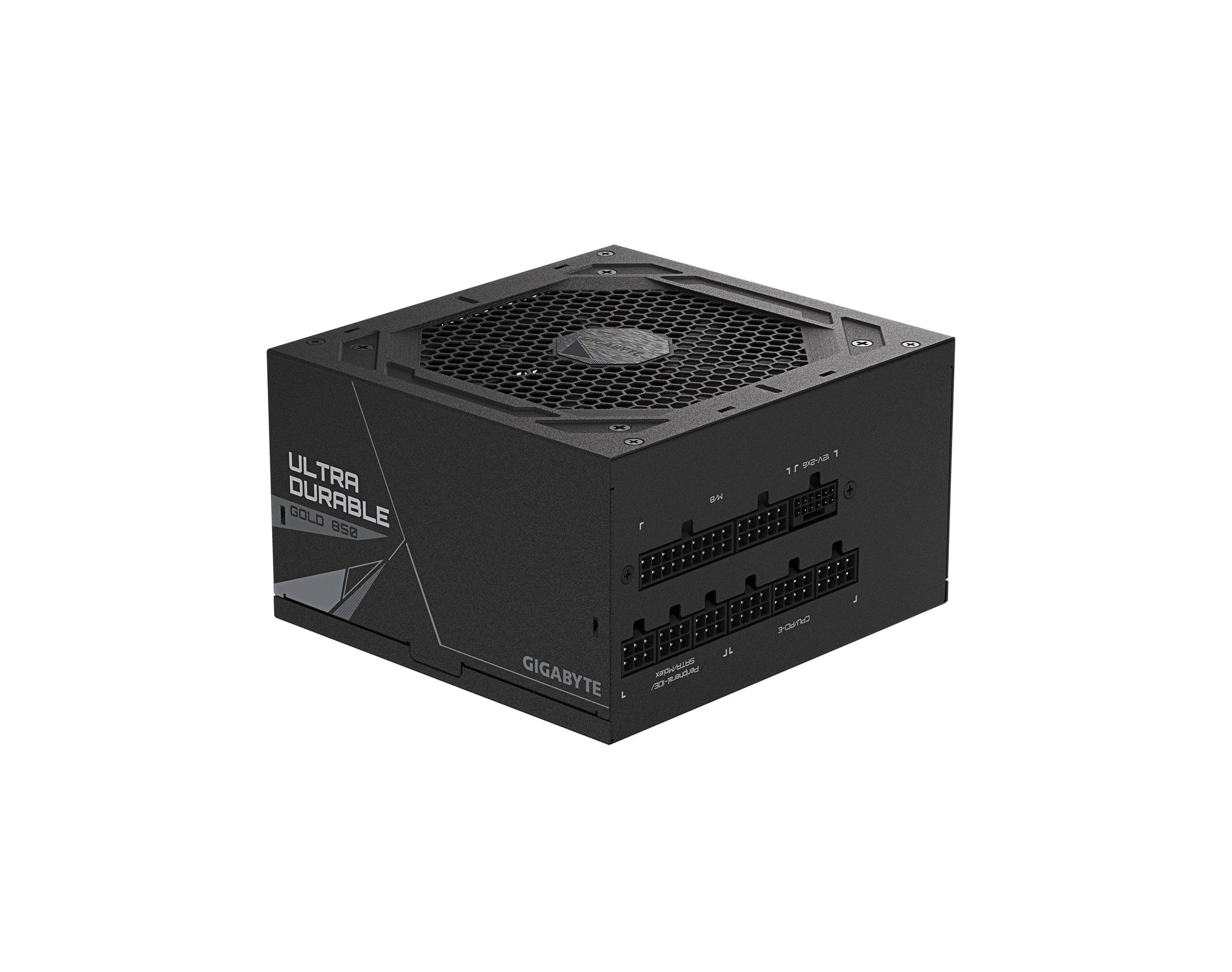

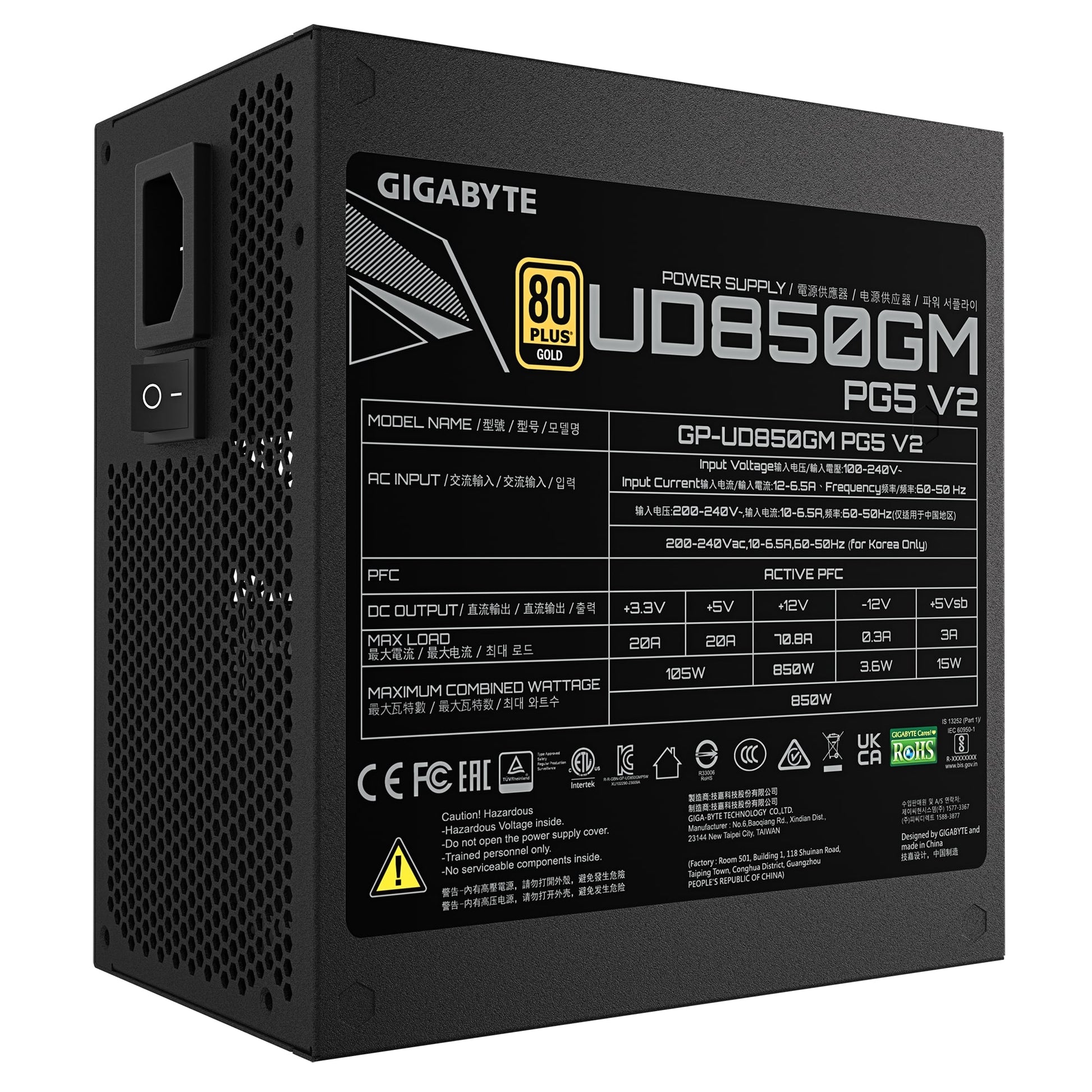

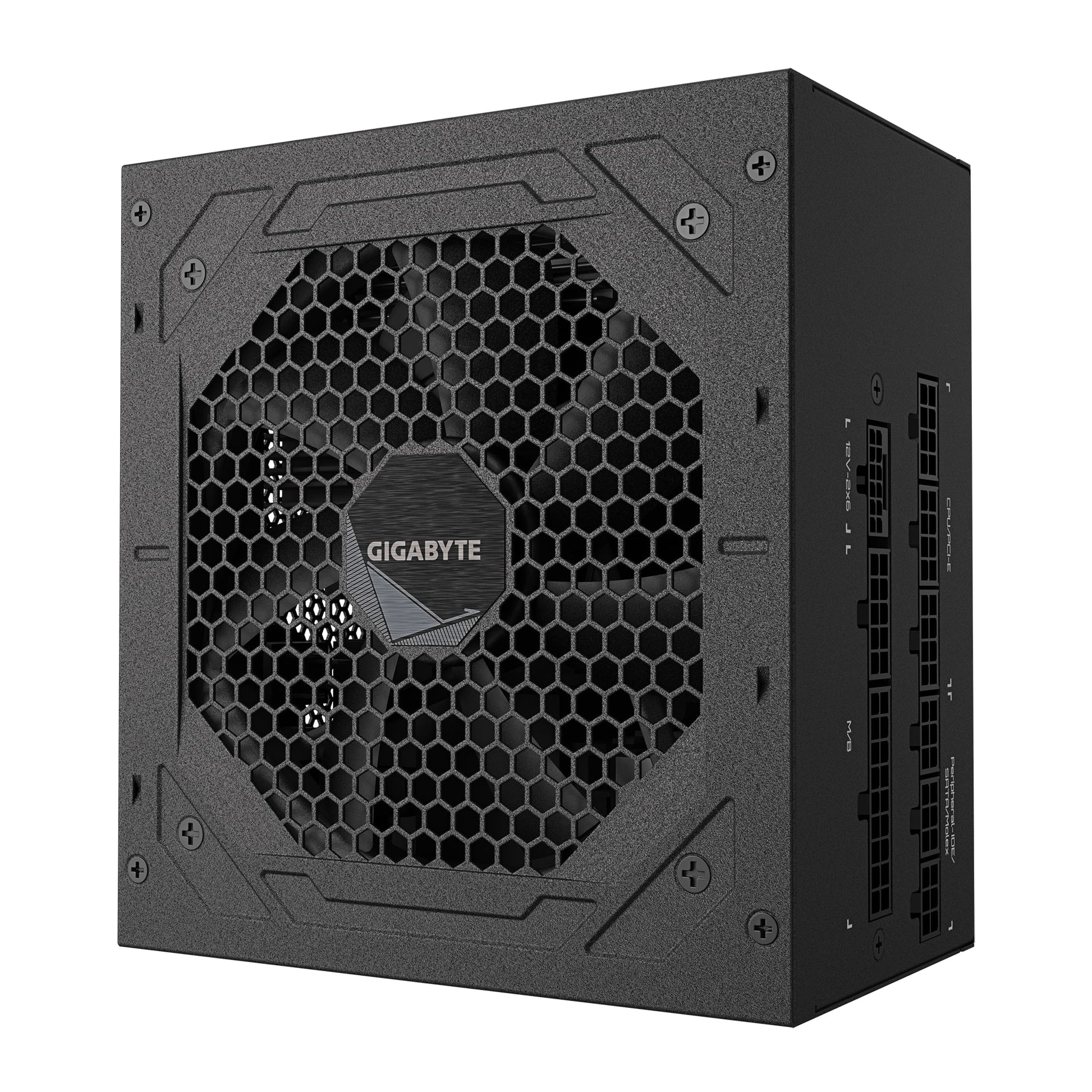

ModelGP-UD850GM PG5 V2
-
TypeIntel Form Factor ATX 12V v3.1
-
PFCActive PFC (>0.9 typical)
-
Input Voltage100-240 Vac (full range)
-
Input Current15-6.5A
-
Input Frequency60-50 Hz
-
Output Capacity850W
-
Dimensions150 x 140 x 86 mm
-

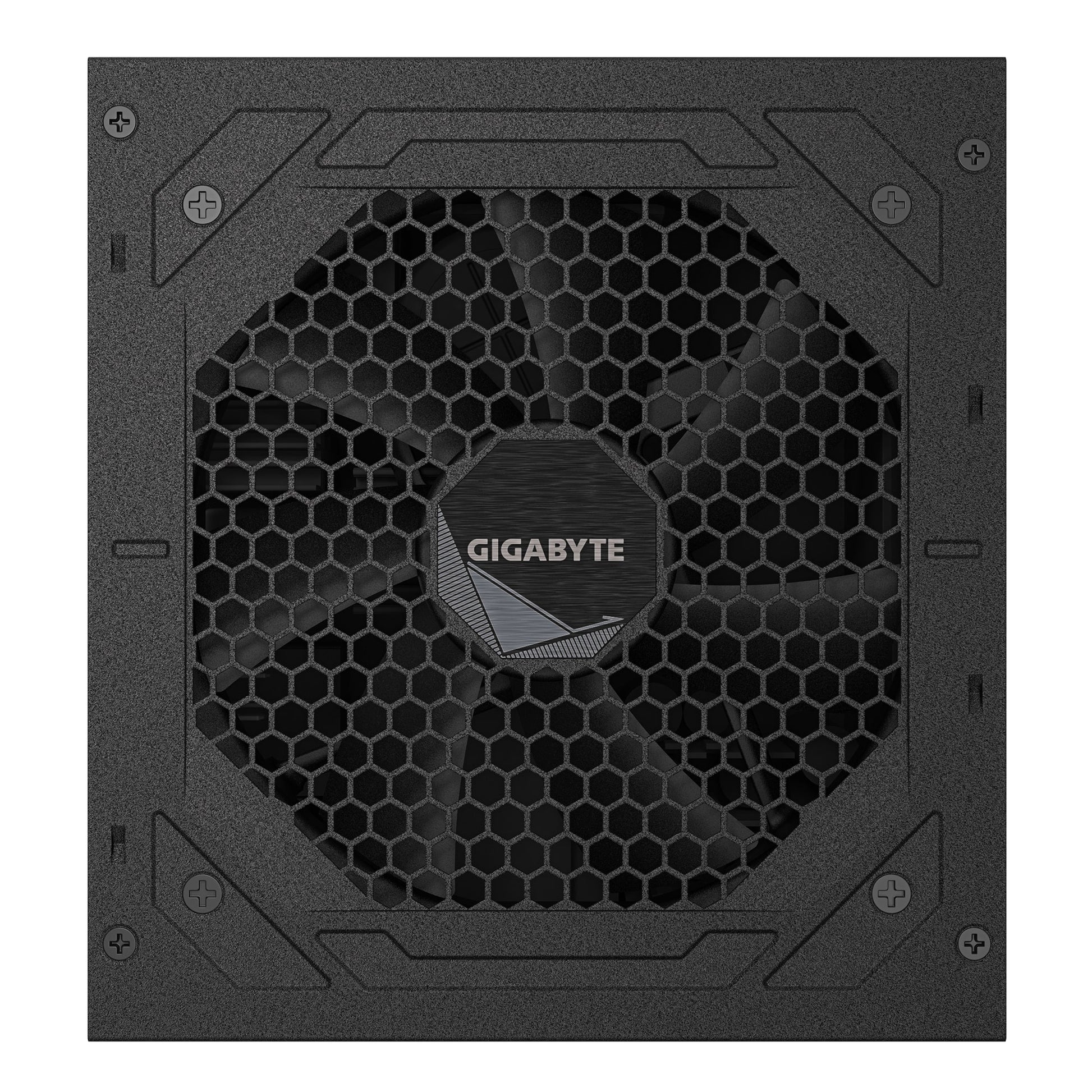

Fan Type120mm Hydraulic Bearing(HYB) Fan
-
80 PLUSGold
-
Efficiency90% at typical load
-
MTBF>100,000 hours
-
ProtectionsOVP/OPP/SCP/UVP/OCP/OTP
-
Power Good Signal100-150ms
-
Hold Up Time>16ms
-
Cable TypeEmbossed, All black
-

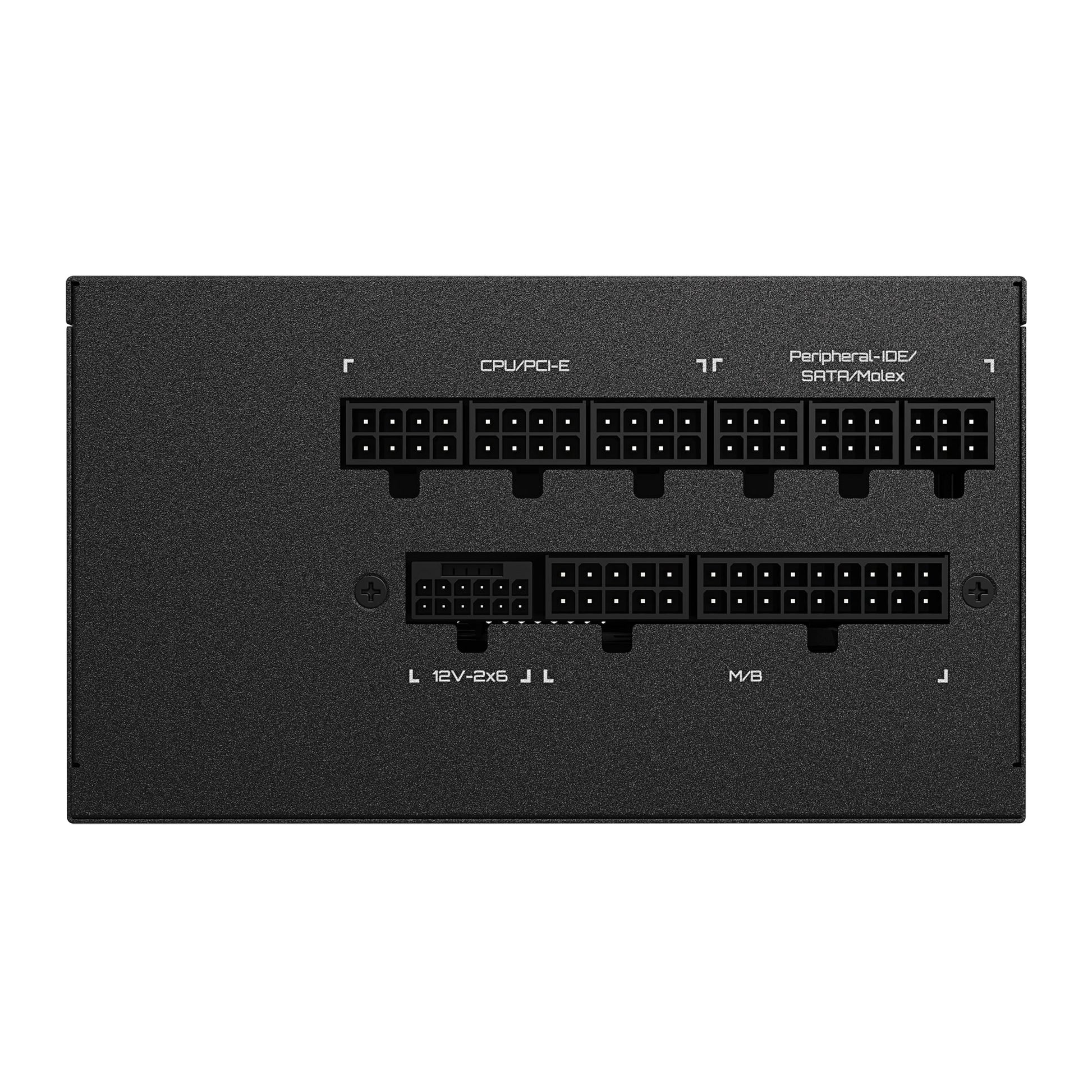

ConnectorsATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 650mm+200mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
PCI-e 12+4 Pin x 1:700mm*1
SATA x 8 : 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm*1
