Gigabyte UD750GM PG5 V2 ICE 750W 80+ Gold Fully Modular ATX 3.1 Power Supply

Gigabyte UD750GM PG5 V2 ICE 750W 80+ Gold Fully Modular ATX 3.1 Power Supply

$159.00
$159.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

FEATURES

  • Ultra Durable
    •  100% Japanese capacitors
    •  120mm smart hydraulic bearing (HYB) fan
    •  Optimized thermal solution
    •  OVP/OPP/SCP/UVP/OCP/OTP/NLO/SIP protection
  • Intel ATX 3.1 and PCIe Gen 5.1 ready
  • 80 PLUS Gold certified
  • Cybenetics Platinum efficiency
  • Fully modular design
  • Powerful single +12V rail
  • Compact size
Specification
Model GP-UD750GM PG5 V2
Type Intel Form Factor ATX 12V v3.1
Output Capacity 750W
80 PLUS Certification Gold
Efficiency 90% at typical load
Dimensions 150 x 140 x 86mm
Fan Type 120mm Hydraulic Bearing (HYB) Fan
PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current 15-6.5A
Input Frequency 60-50 Hz
MTBF >100,000 hours
Protections OVP / OPP / SCP / UVP / OCP / OTP
Power Good Signal 100-150ms
Hold Up Time >16ms
Cable Type Embossed, All black

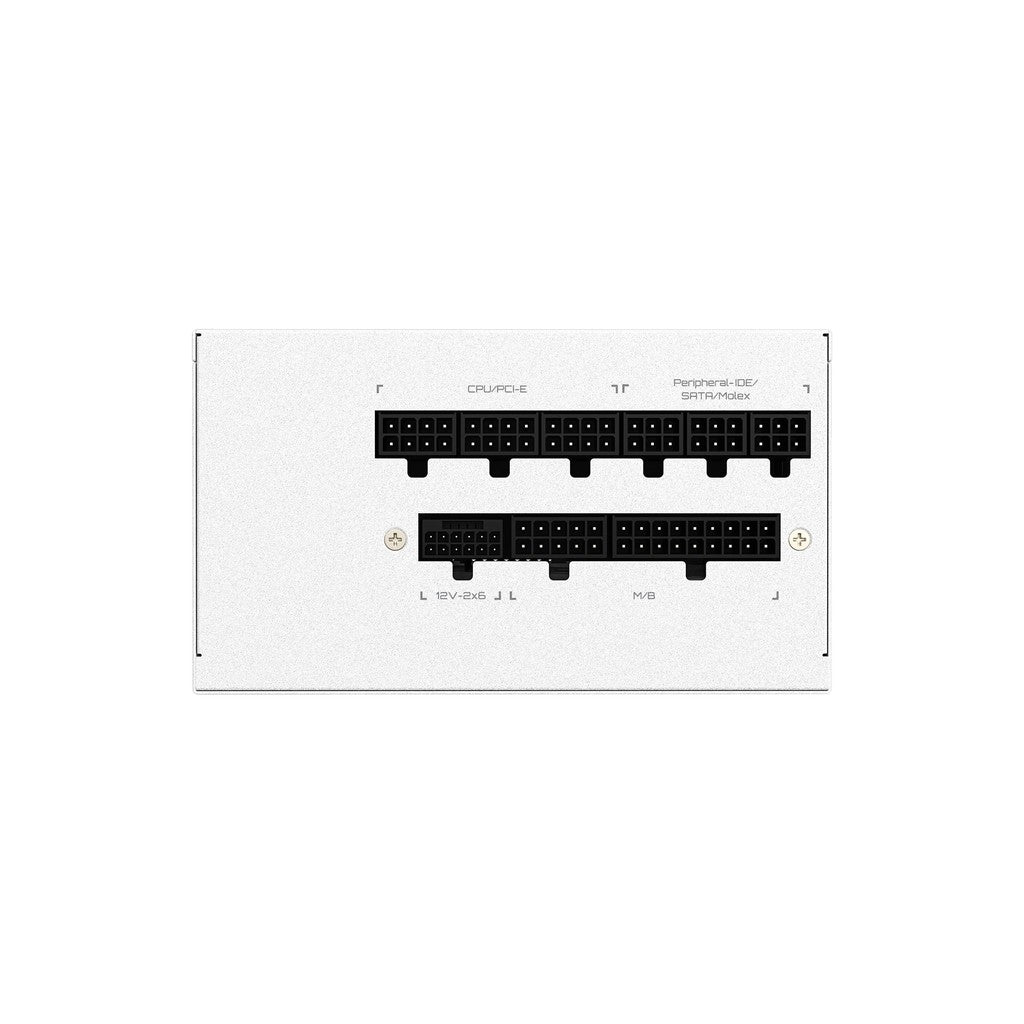

Connectors

1 x ATX/MB 20+4 Pin: 610mm


2 x CPU/EPS 4+4 Pin: 650mm+200mm


4 x PCI-e 6+2 Pin: 600mm+150mm


1 x PCI-e 12+4 Pin: 700mm


8 x SATA: 600mm+150mm+150mm+150mm


3 x 4-Pin Peripheral + 1 x 4-Pin Floppy: 500mm+150mm+150mm+150mm
