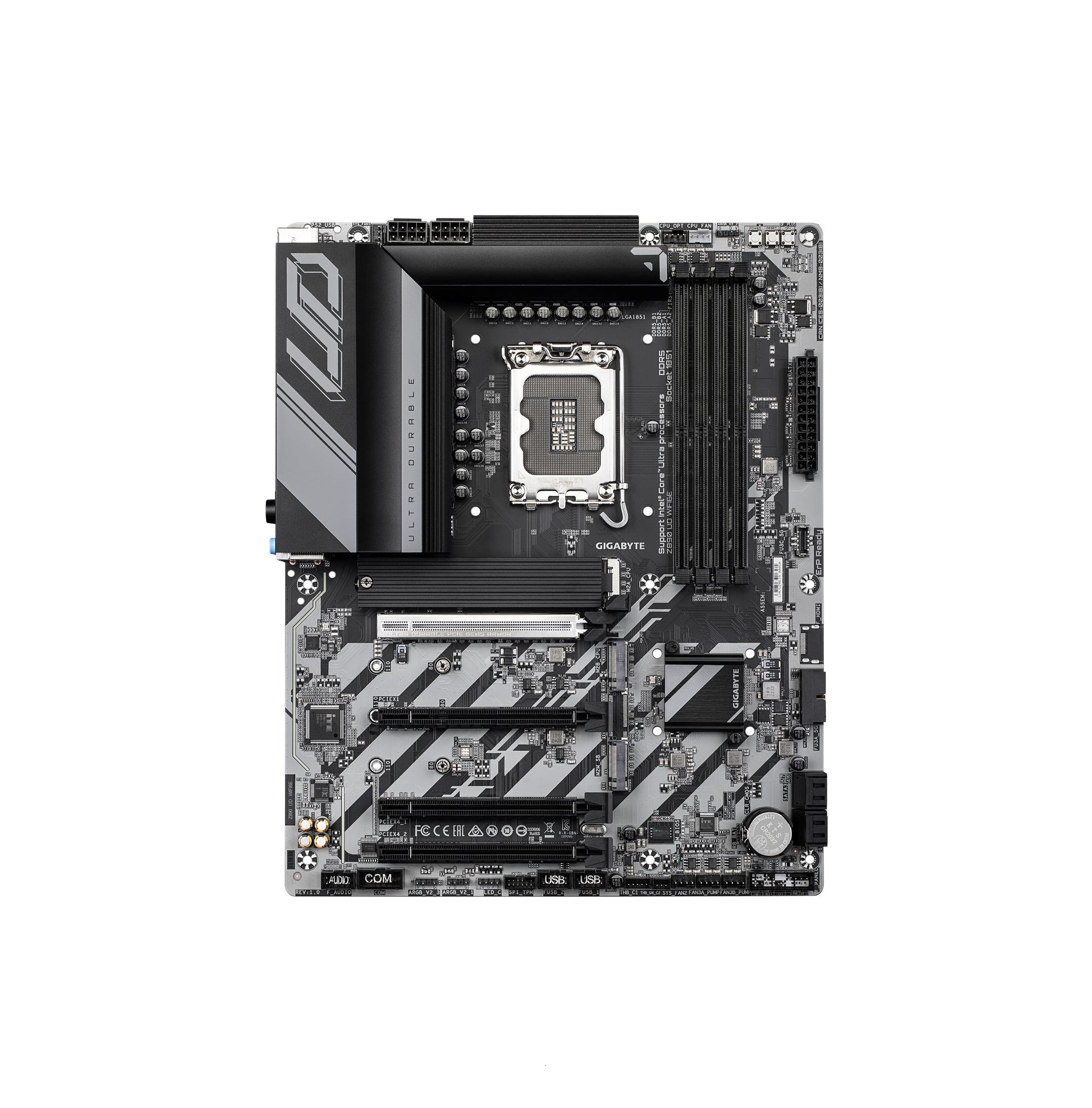

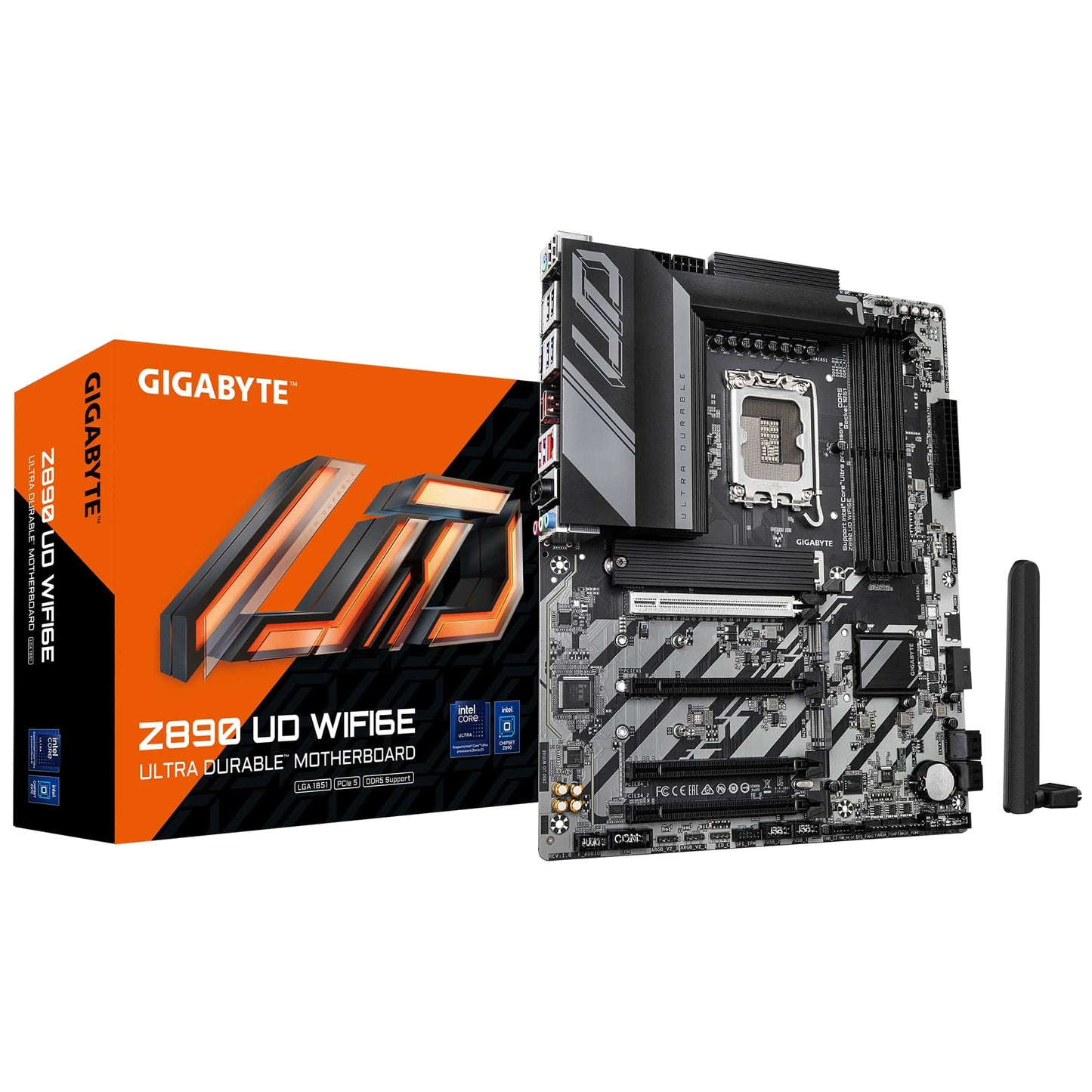

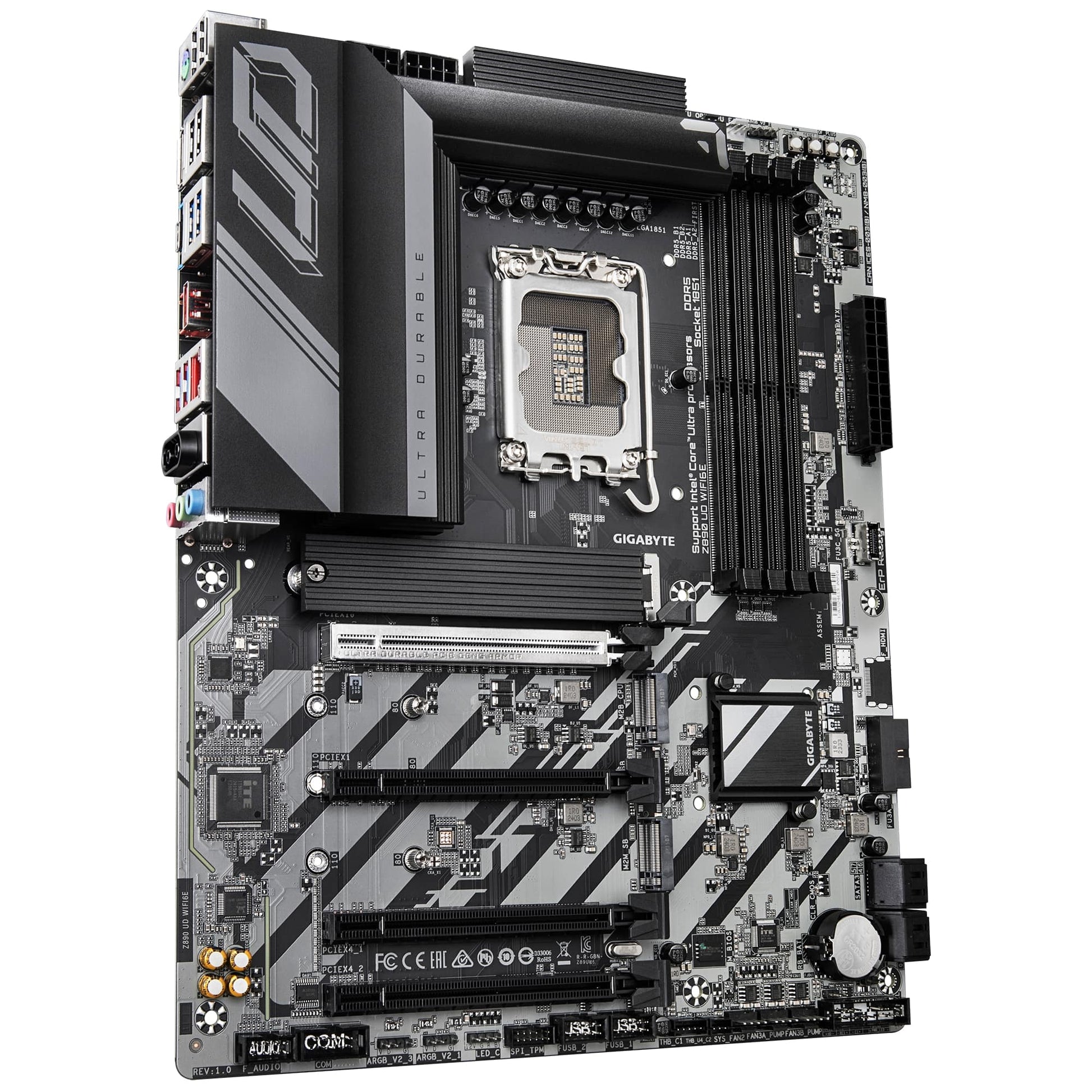

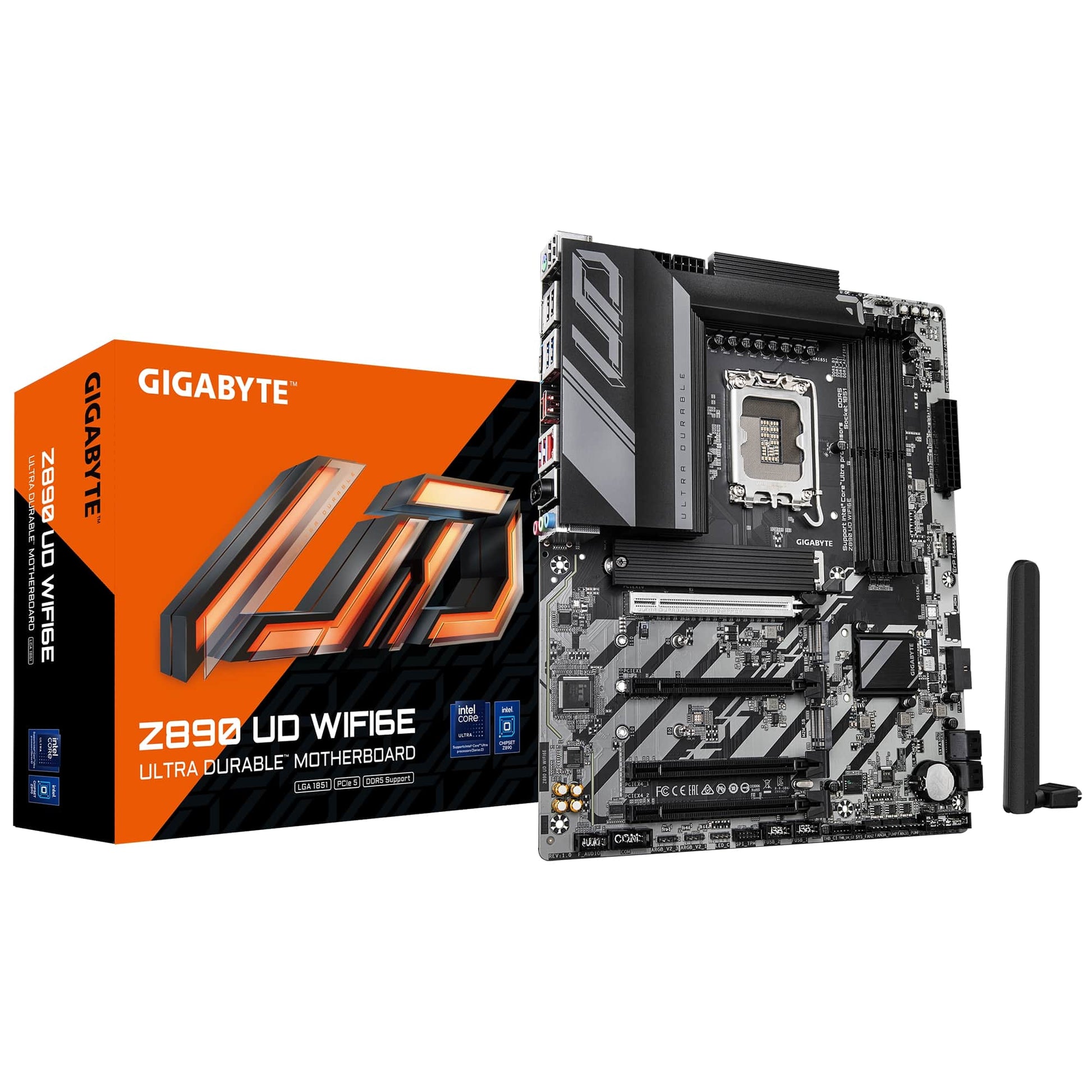

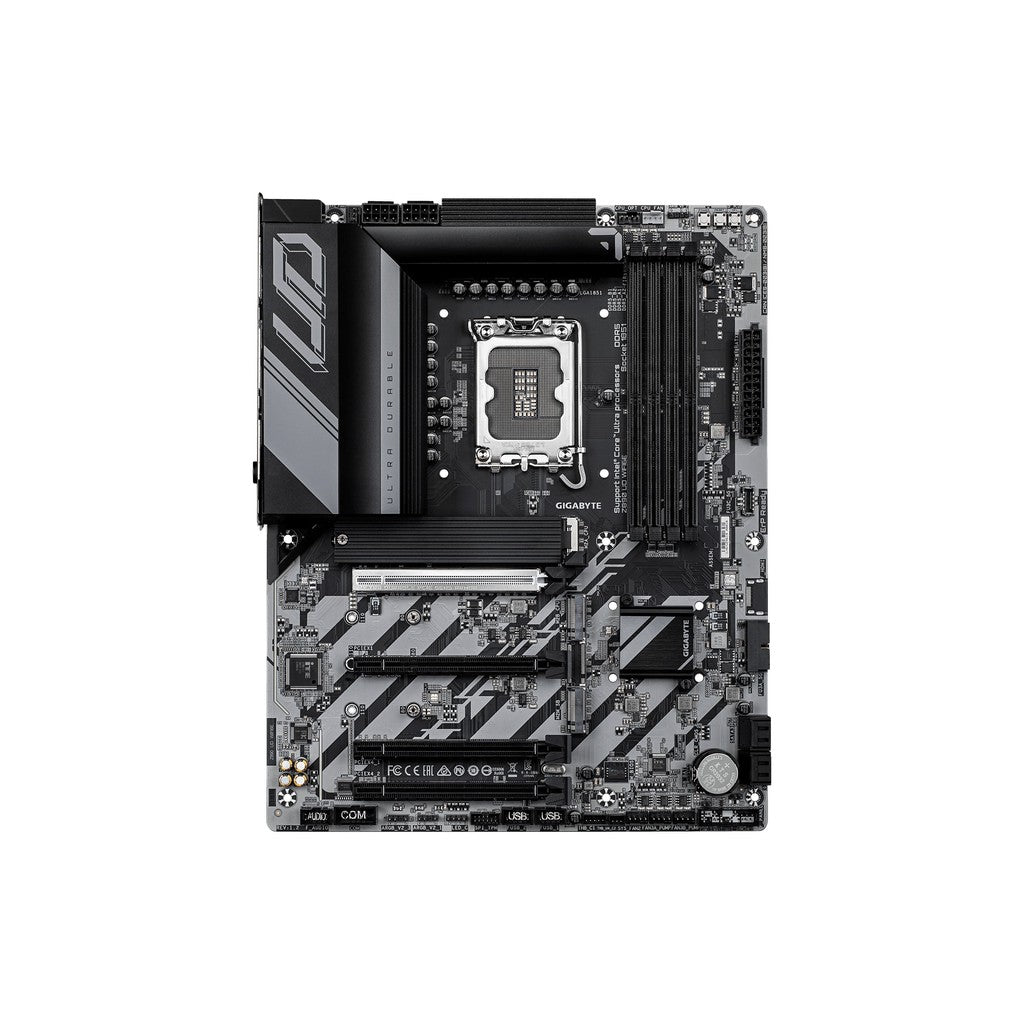

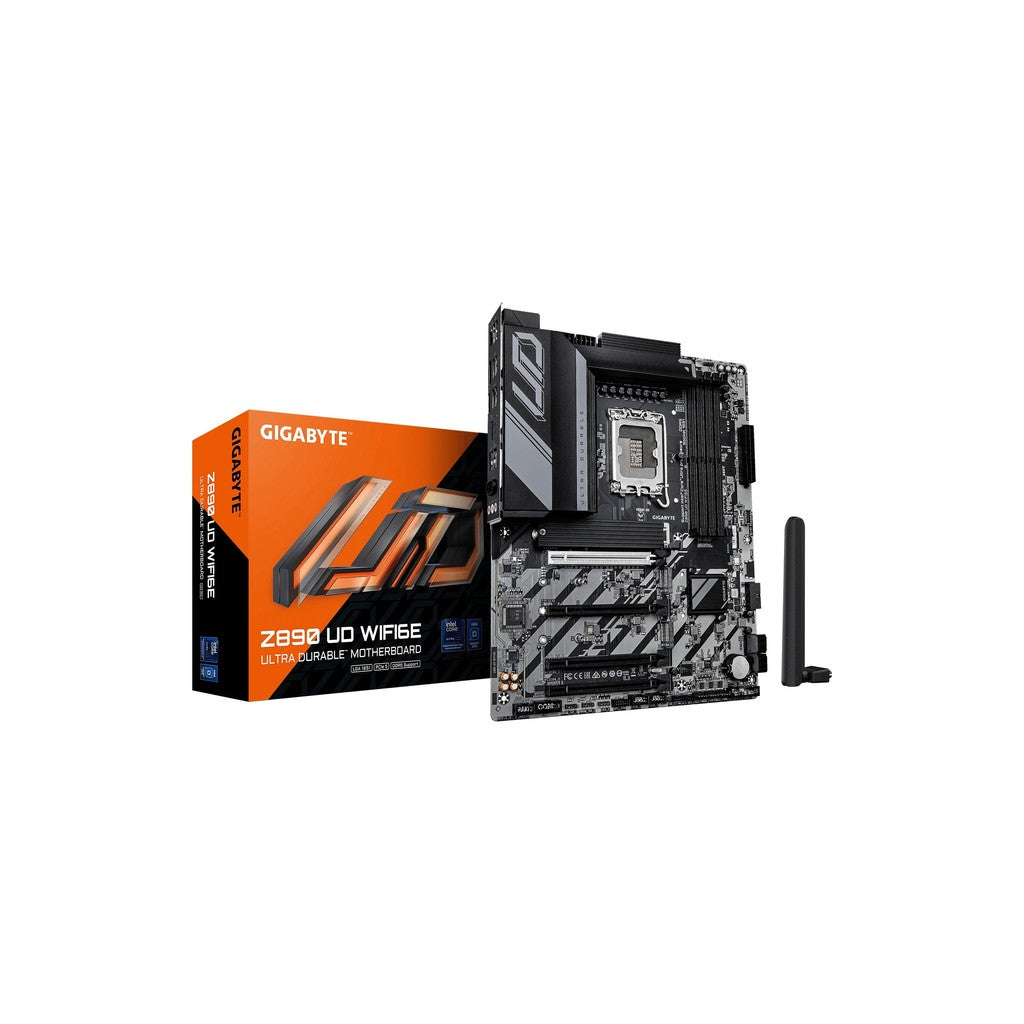

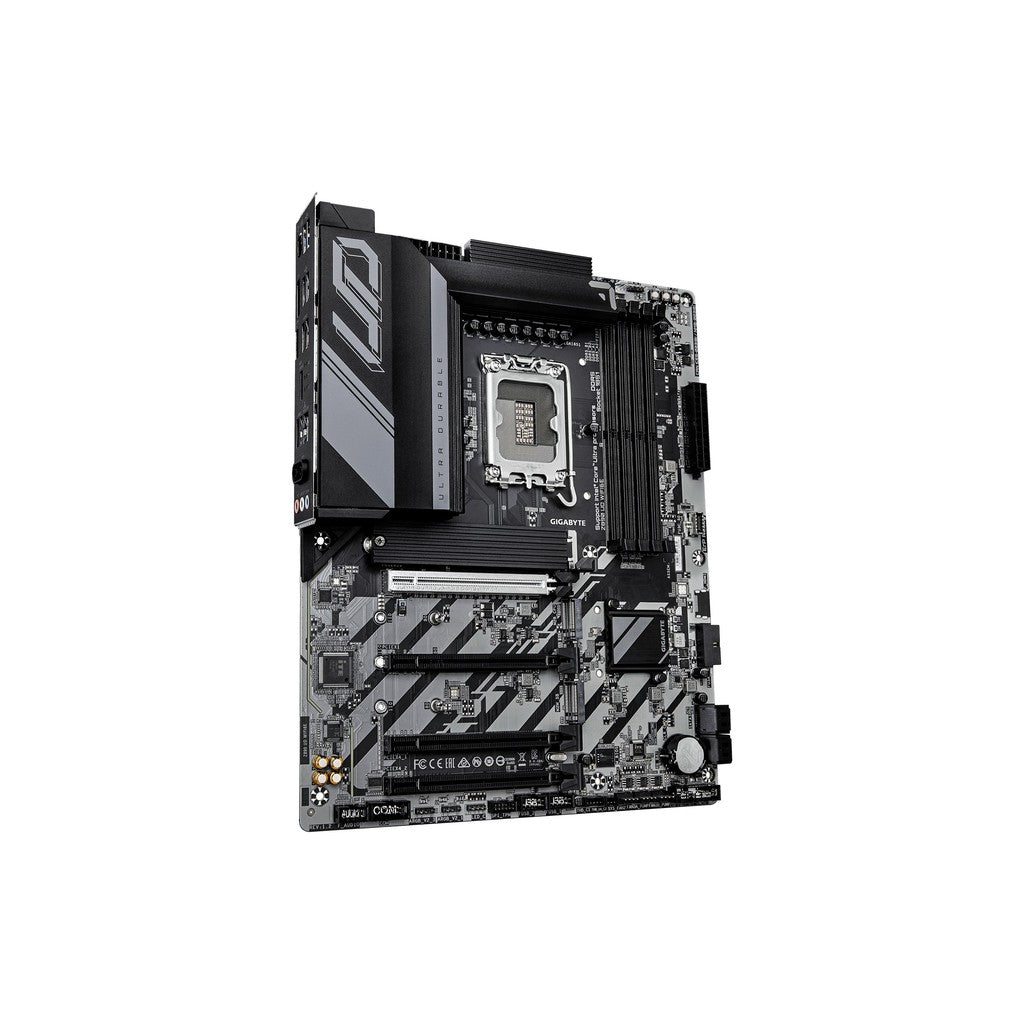

Gigabyte Z890 UD WIFI6E ATX Motherboard
Gigabyte Z890 UD WIFI6E ATX Motherboard
Couldn't load pickup availability
3 Year Limited Warranty
Key Features
- Supports Intel® Core™ Ultra processors (Series 2)
- Digital twin 12+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- Premium Compatibility : 4*DDR5 with XMP Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch : PCIe x16 Slot with Quick Release Design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking : 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort
| Specification Details | |
| CPU |
• LGA1851 socket: Supports Intel® Core™ Ultra Processors • L3 cache varies with CPU |
| Chipset | • Intel® Z890 Express Chipset |
| Memory |
• 4 x DDR5 DIMM sockets, up to 256 GB (64 GB single DIMM) • Speeds from 5600MT/s up to 9200MT/s (O.C.) • Dual channel architecture • Supports ECC (in non-ECC mode) & non-ECC Un-buffered DIMMs • Supports XMP and CUDIMM memory modules |
| Onboard Graphics |
• 1 x USB4® Type-C® (Supports DisplayPort 2.1, up to 3840x2160@144Hz) • 1 x DisplayPort (Supports DisplayPort 2.1, up to 3840x2160@144Hz) |
| Audio | • Realtek® Audio CODEC (High Definition, 2/4/5.1/7.1-channel) |
| LAN | • Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless |
• Intel® Wi-Fi 6E AX211 (PCB rev. 1.2): WIFI a/b/g/n/ac/ax (2.4/5/6 GHz), BLUETOOTH 5.3, 11ax 160MHz • Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.3): WIFI a/b/g/n/ac/ax (2.4/5/6 GHz), BLUETOOTH 5.4, 11ax 160MHz |
| Expansion Slots |
CPU: • 1 x PCIe 5.0 x16 slot Chipset: • 2 x PCIe 4.0 x16 slots (running at x4) • 1 x PCIe 4.0 x16 slot (running at x1) |
| Storage |
CPU: • 1 x M.2 PCIe 5.0 x4/x2 • 1 x M.2 PCIe 4.0 x4/x2 Chipset: • 1 x M.2 SATA/PCIe 4.0 x4/x2 • 4 x SATA 6Gb/s • RAID 0/1/5/10 support for NVMe and SATA |
| USB |
CPU: 1 x USB4® Type-C® (back panel) Chipset: 1 x USB-C® 3.2 Gen 1 (internal), 1 x USB 3.2 Gen 2 Type-A (back), 6 x USB 3.2 Gen 1 (4 back, 2 internal) Chipset+Hubs: 8 x USB 2.0/1.1 (4 back, 4 internal) |
| Internal I/O |
• Power: 1 x 24-pin ATX, 2 x 8-pin ATX 12V • Cooling: 1 x CPU fan, 1 x CPU fan/pump, 2 x sys fan, 2 x sys fan/pump • RGB: 3 x ARGB Gen2, 1 x RGB • Data: 3 x M.2, 4 x SATA, 2 x Thunderbolt™ add-in card connectors • Headers: Front panel, front audio, 1x USB-C® 3.2 Gen 1, 1x USB 3.2 Gen 1, 2x USB 2.0/1.1, TPM (GC-TPM2.0 SPI V2 module only), serial port • Buttons/Jumpers: Power, reset, Q-Flash Plus, reset jumper, Clear CMOS |

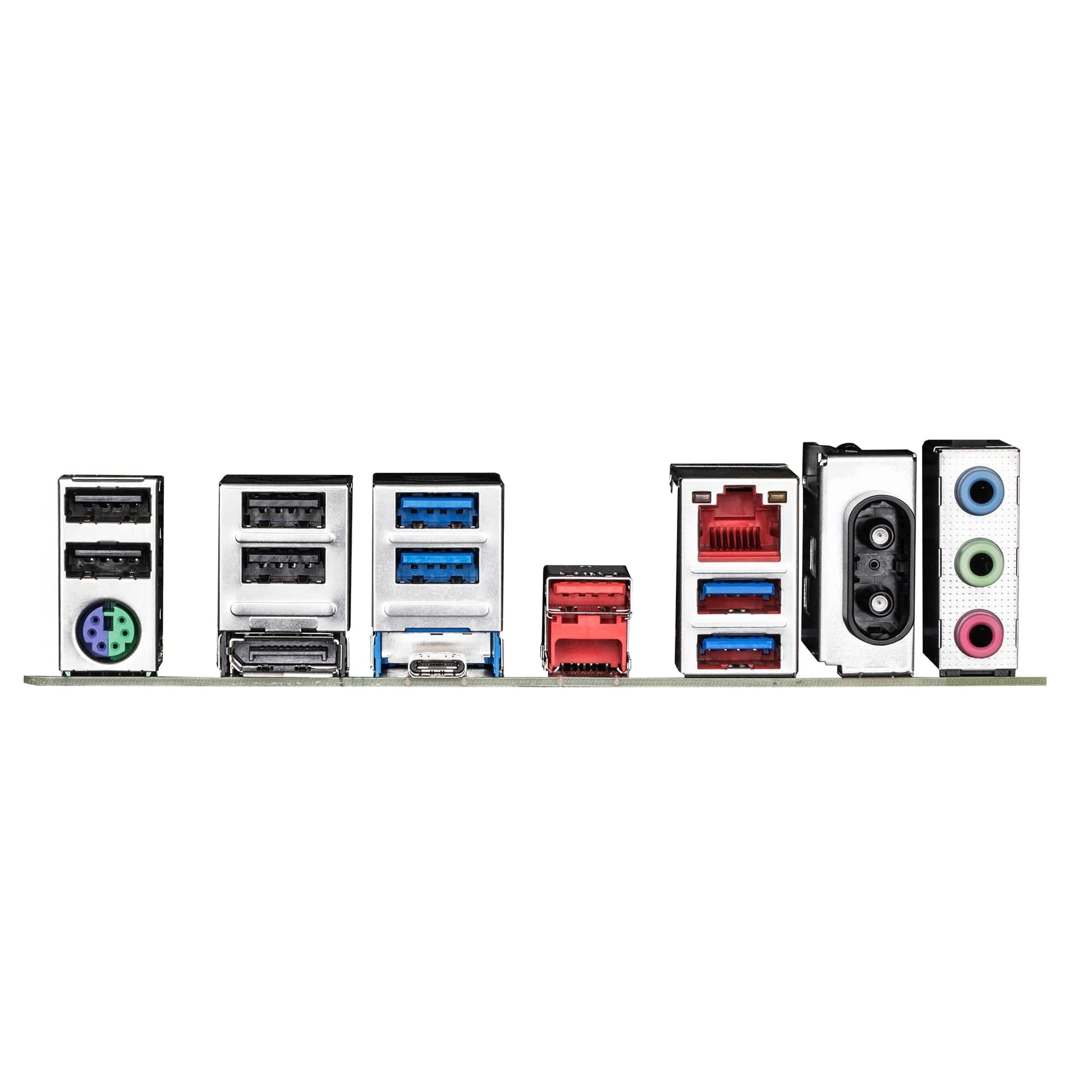

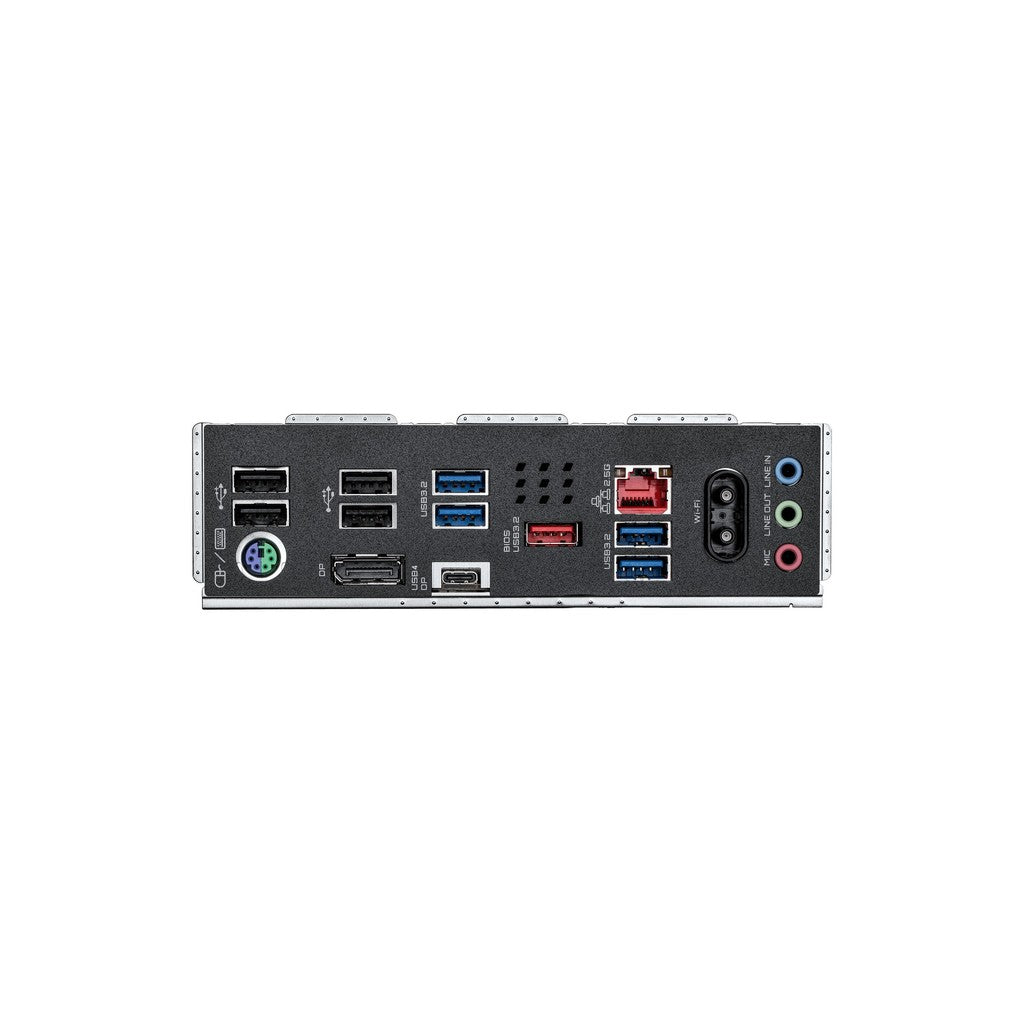

| Back Panel |
• 4 x USB 2.0/1.1 ports • 1 x PS/2 keyboard/mouse port • 1 x DisplayPort • 4 x USB 3.2 Gen 1 ports • 1 x USB4® Type-C® port • 1 x USB 3.2 Gen 2 Type-A port (red) • 1 x RJ-45 port • 2 x SMA antenna connectors (2T2R) • 3 x audio jacks |
| I/O Controller | • iTE® I/O Controller Chip |
| H/W Monitoring |
• Voltage, temperature, fan speed, water flow detection • Fan fail warning, fan speed control |
| BIOS | • 1 x 256 Mbit flash, AMI UEFI BIOS (PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0) |
| Unique Features | • GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Software/OS |
• Norton® Internet Security (OEM), LAN bandwidth management • Windows 11 64-bit |
| Form Factor | • ATX Form Factor (30.5cm x 24.4cm) |
