Gigabyte

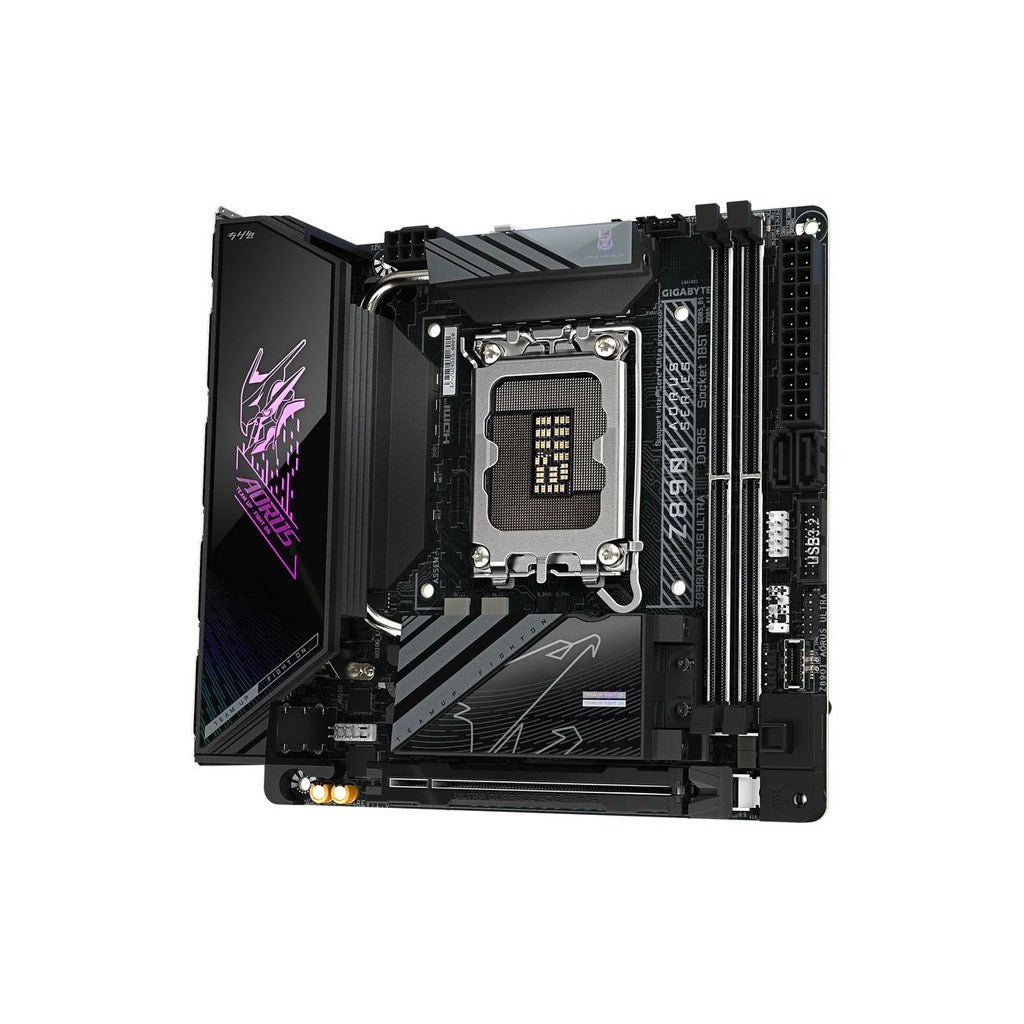

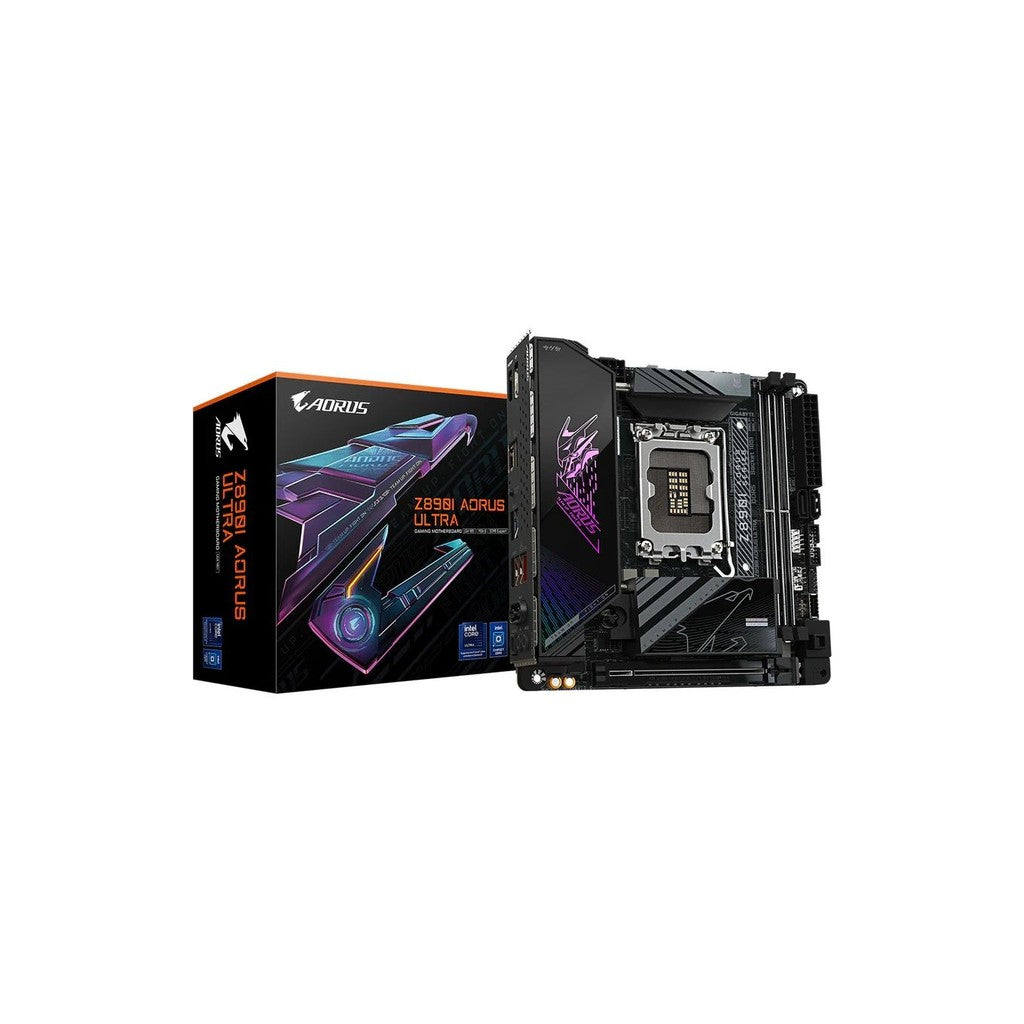

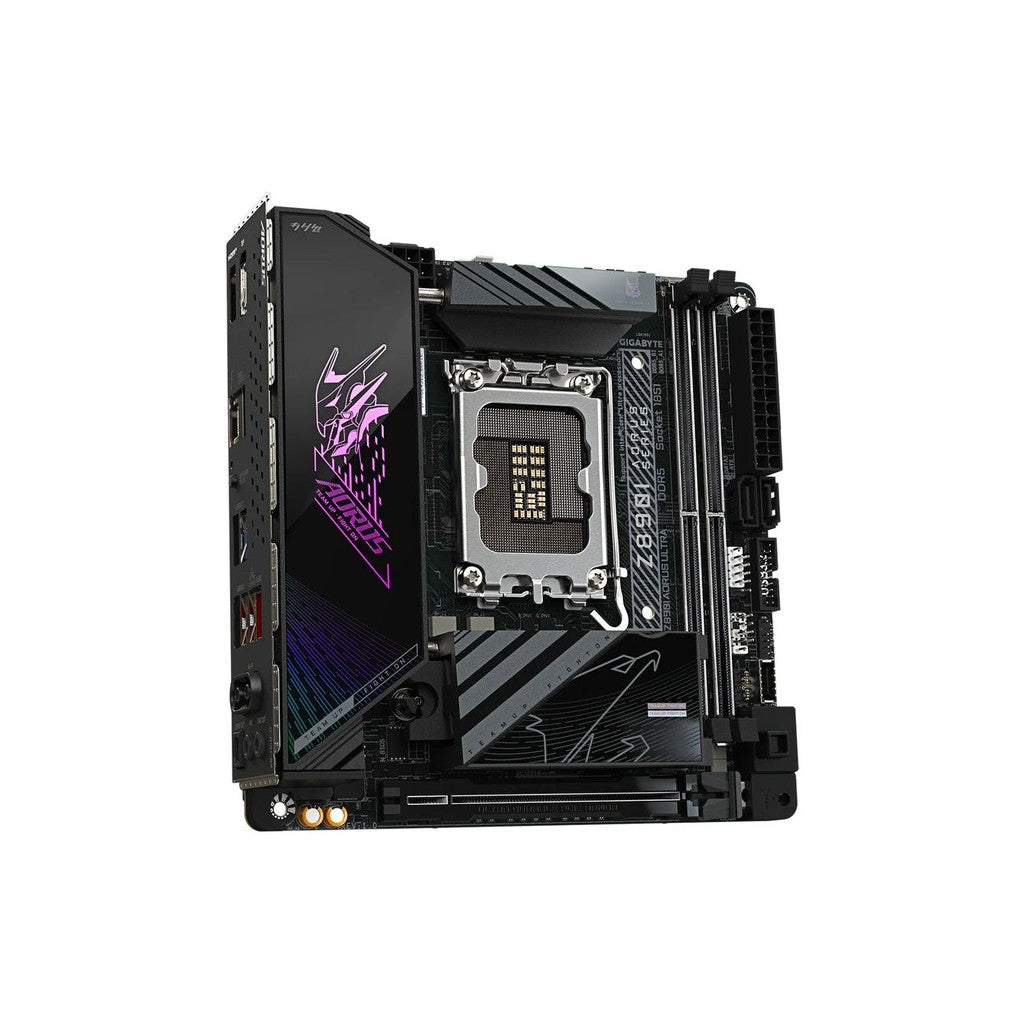

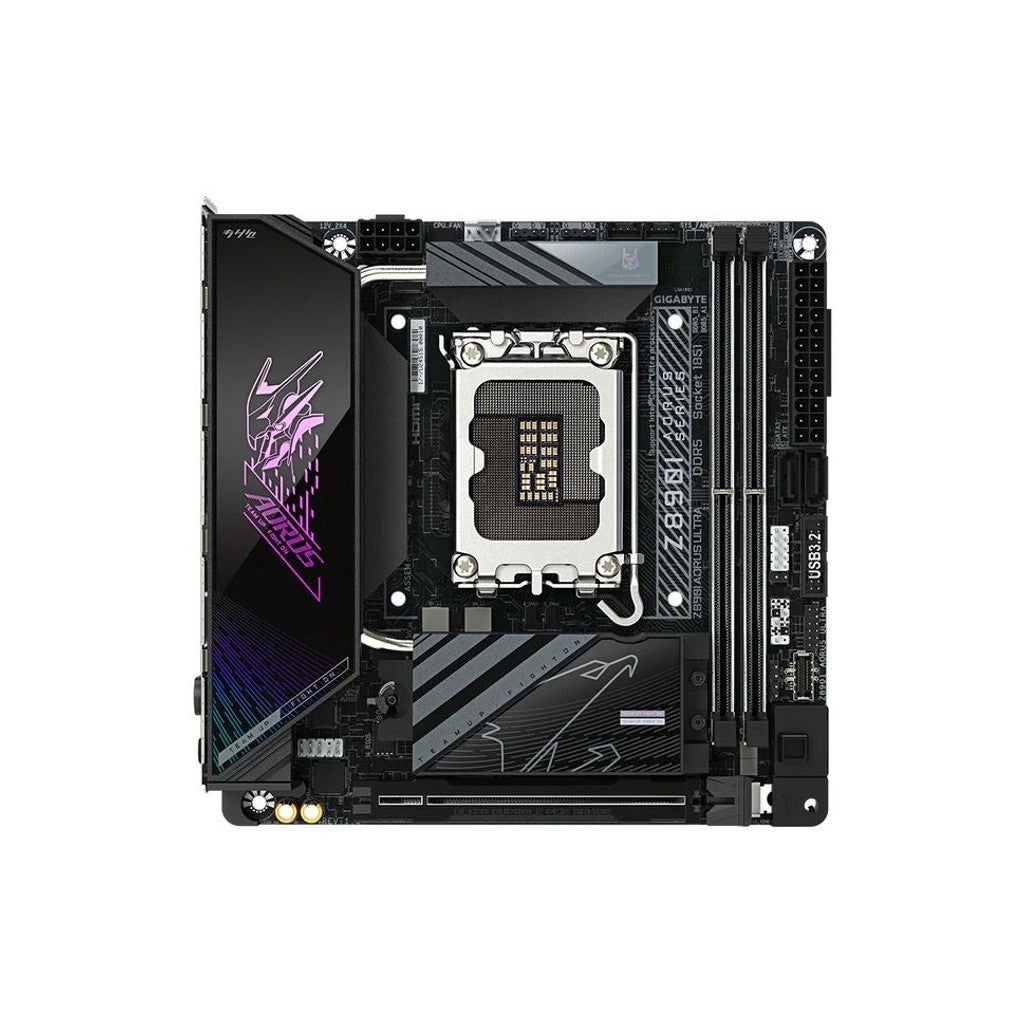

Gigabyte Z890I AORUS ULTRA Mini-ITX Motherboard
Gigabyte Z890I AORUS ULTRA Mini-ITX Motherboard
Couldn't load pickup availability
Key Features
- Supports Intel® Core™ Ultra processors (Series 2)
- Digital 8+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AORUS AI SNATCH: Auto-Overclocking Software by AI models
- AI Perfdrive: Provides optimal and customized BIOS preset profile for users
- Premium Compatibility: 2*DDR5 with XMP Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click: M.2 heatsinks with screwless design
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage: 2*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal: VRM Thermal Armor Advanced with I/O ZONE AORUS LIGHTING & M.2 Thermal Guard Ext.
- Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity: THUNDERBOLT™ 4 Type-C with DP-Alt, HDMI, DisplayPort
- PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
| Details | |
| CPU | LGA1851 socket: Support for Intel® Core™ Ultra Processors |
| Chipset | Intel® Z890 Express Chipset |
| Memory |
2 x DDR5 DIMM sockets (Max 128 GB total, 64 GB single DIMM) Supports up to DDR5 8800(O.C) MT/s Dual channel architecture Supports ECC Un-buffered (operates in non-ECC mode) and non-ECC Un-buffered memory Supports Extreme Memory Profile (XMP) |
| Onboard Graphics |
Integrated Intel® HD Graphics 1 x Intel® Thunderbolt™ 4 (USB4® Type-C®) supporting DisplayPort/Thunderbolt video 1 x DisplayPort 2.1 (up to 4096x2304@60 Hz) 1 x HDMI 2.1 (up to 4096x2160@60 Hz) Supports up to triple-display simultaneously |
| Audio |
Realtek® Audio CODEC High Definition Audio (2/4/5.1/7.1-channel) Support for S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wireless Communication |
Intel® Wi-Fi 7 BE202 (802.11a/b/g/n/ac/ax/be) Bluetooth 5.4 |
| Expansion Slots | 1 x PCI Express 5.0 x16 slot (Supports graphics card or NVMe SSD) |
| Storage Interface |
1 x M.2 PCIe 5.0 x4/x2 (CPU) 1 x M.2 PCIe 4.0 x4/x2 (Chipset, back of motherboard) 2 x SATA 6Gb/s RAID 0/1/5/10 for NVMe; RAID 0/1 for SATA |
| USB Ports (Back Panel) |
1 x USB4® Type-C® (Thunderbolt™ 4) 3 x USB 3.2 Gen 2 Type-A (red) 2 x USB 3.2 Gen 1 |
| USB Ports (Internal Headers) |
1 x USB Type-C® (USB 3.2 Gen 2) 2 x USB 3.2 Gen 1 2 x USB 2.0/1.1 |
| Internal I/O Connectors |
24-pin ATX & 8-pin ATX 12V power 1 x CPU fan, 1 x CPU fan/water pump, 1 x system fan 2 x addressable RGB Gen2 LED headers 2 x M.2 sockets, 2 x SATA ports Front panel & audio headers, speaker header TPM header, reset jumper, Clear CMOS jumper |

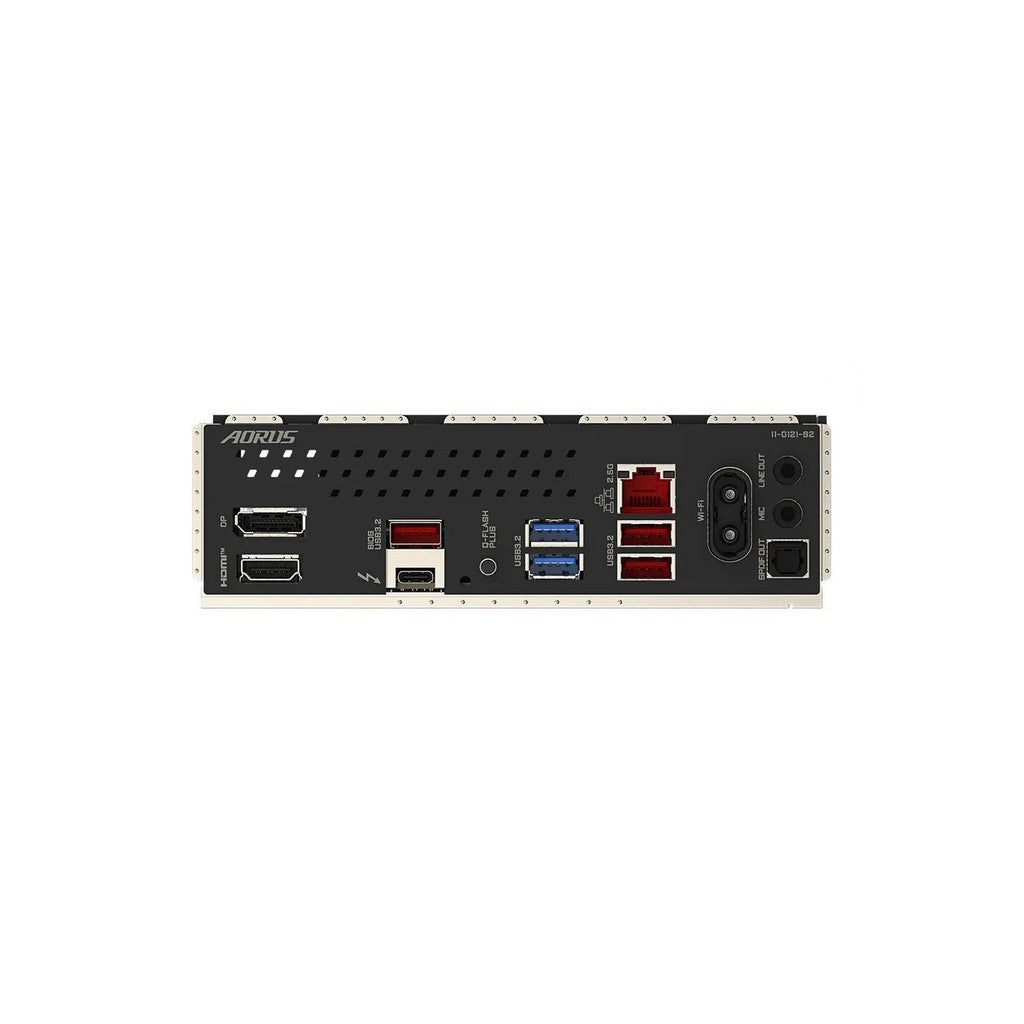

| Back Panel Connectors |
1 x DisplayPort, 1 x HDMI 1 x Thunderbolt™ 4 (Type-C®) 3 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 1 x Q-Flash Plus button 1 x RJ-45 port 2 x Wi-Fi antenna connectors 2 x audio jacks, 1 x optical S/PDIF Out |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water cooling flow rate detection; fan fail warning; fan speed control |
| BIOS | 1 x 256 Mbit flash (AMI UEFI BIOS) |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | Mini-ITX (17.0cm x 17.0cm) |
