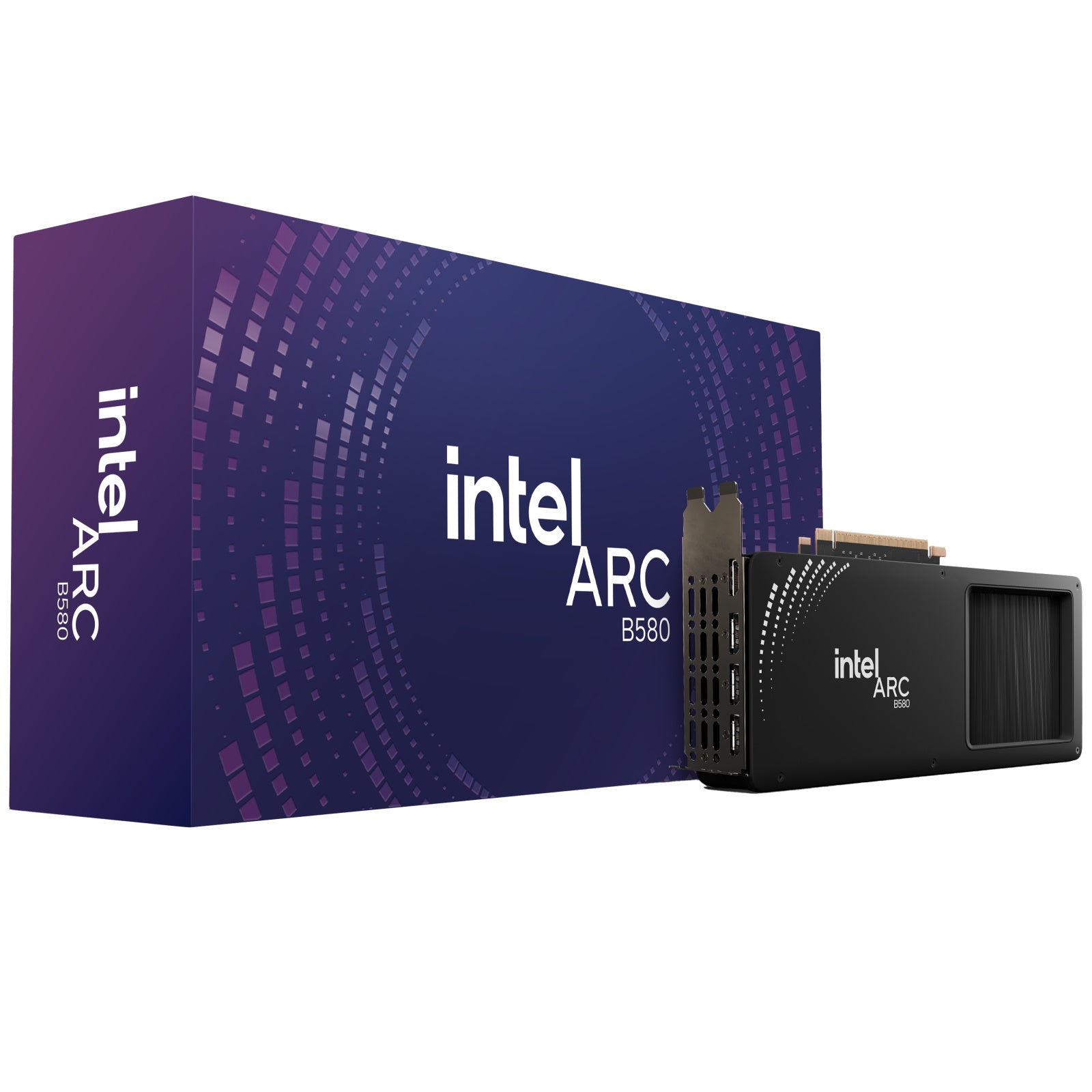

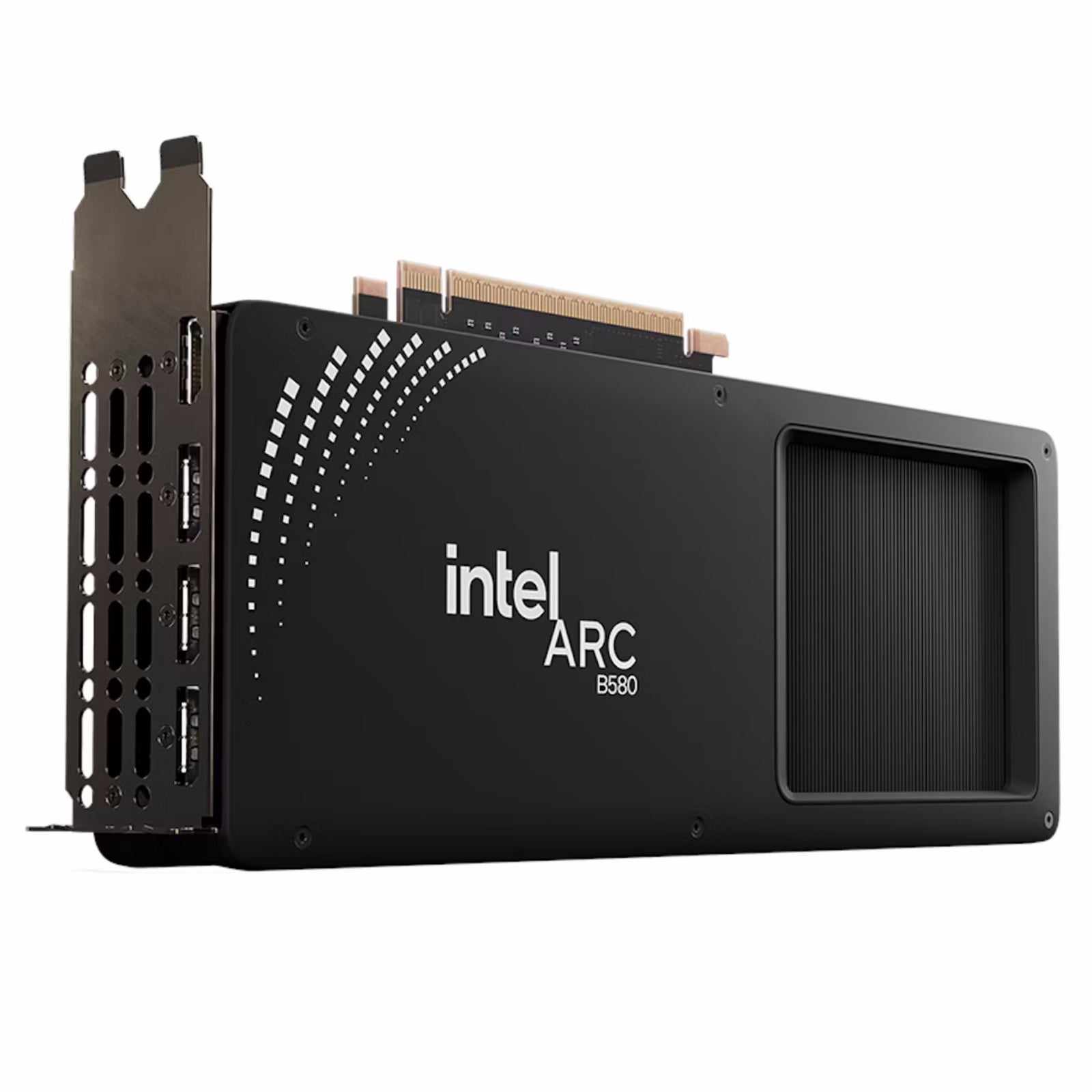

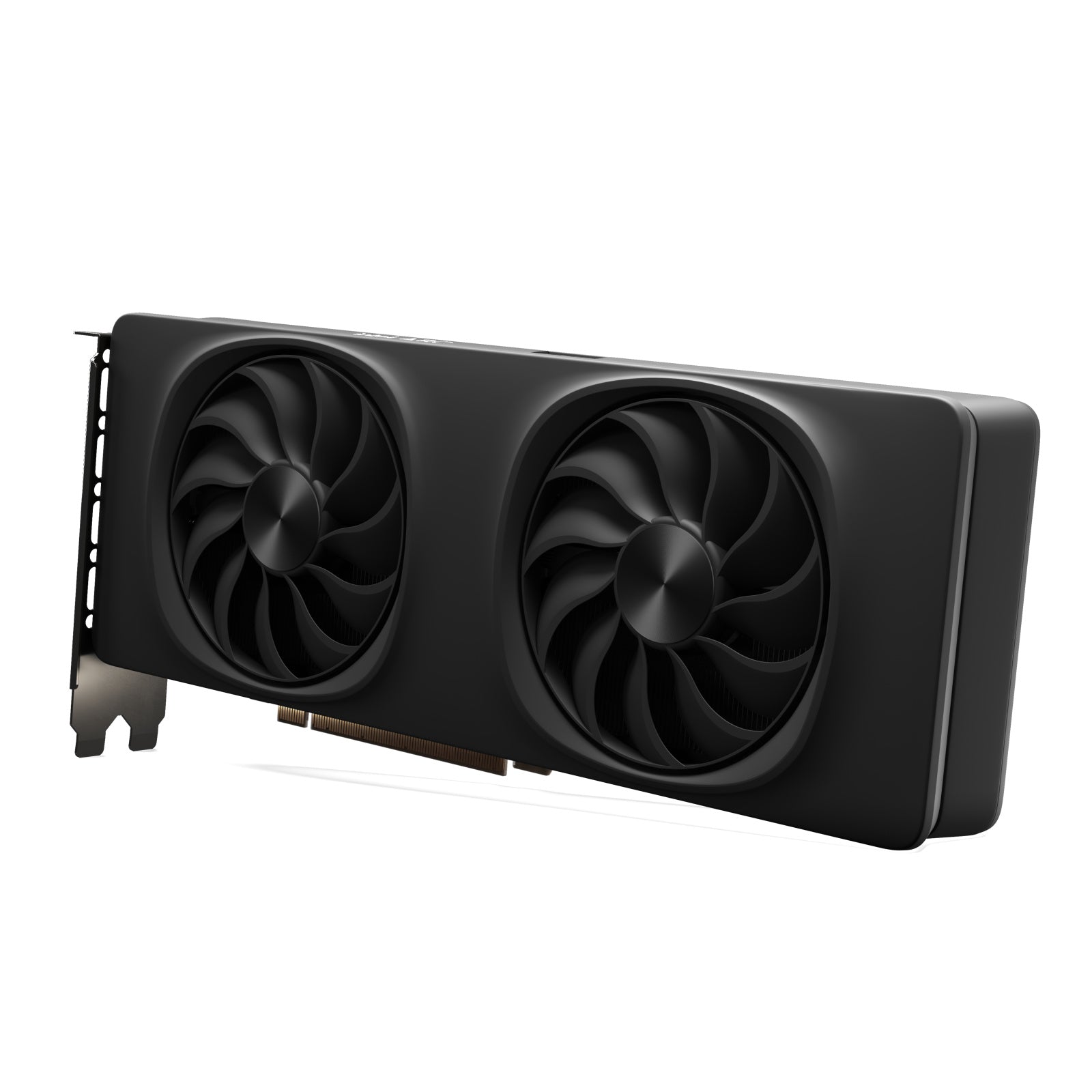

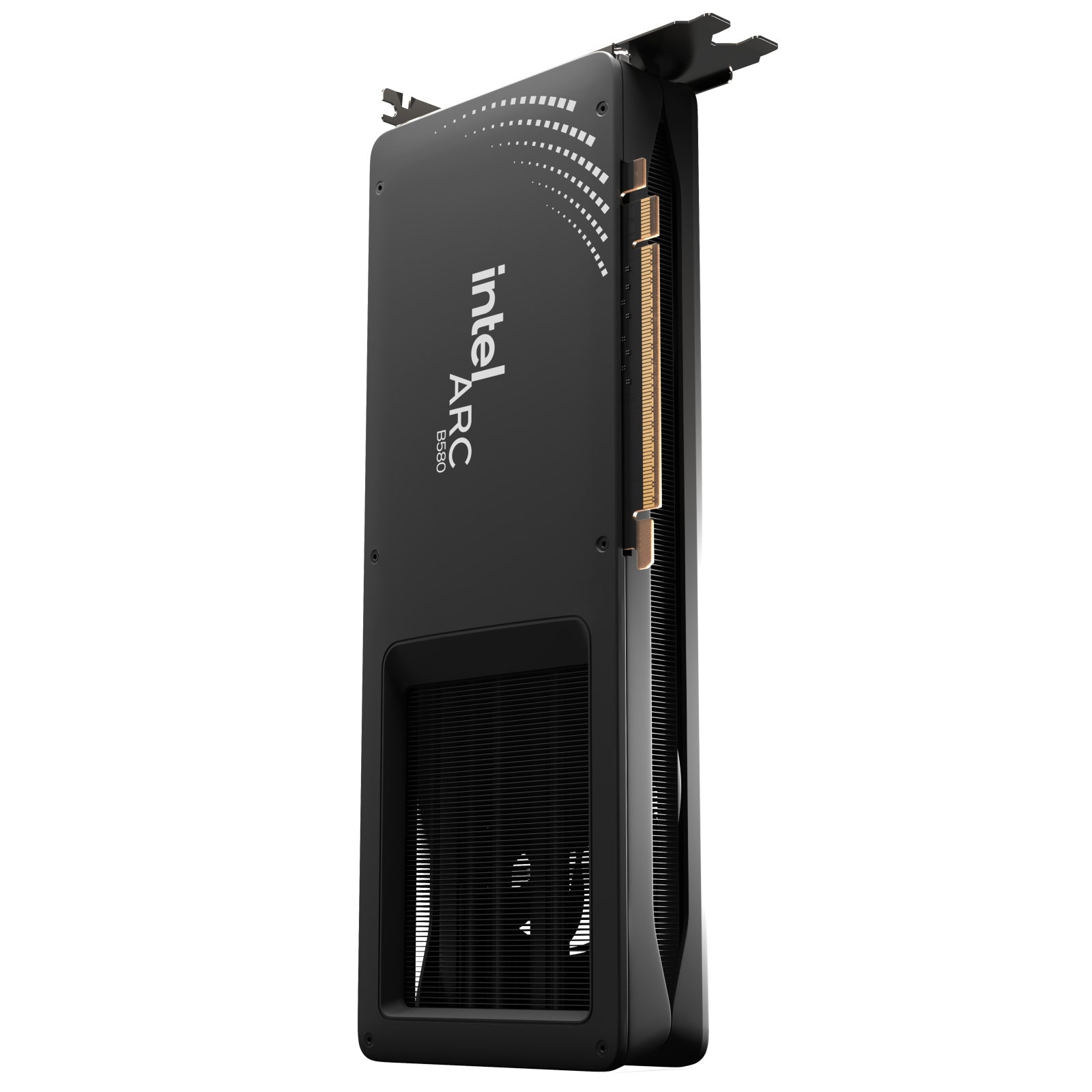

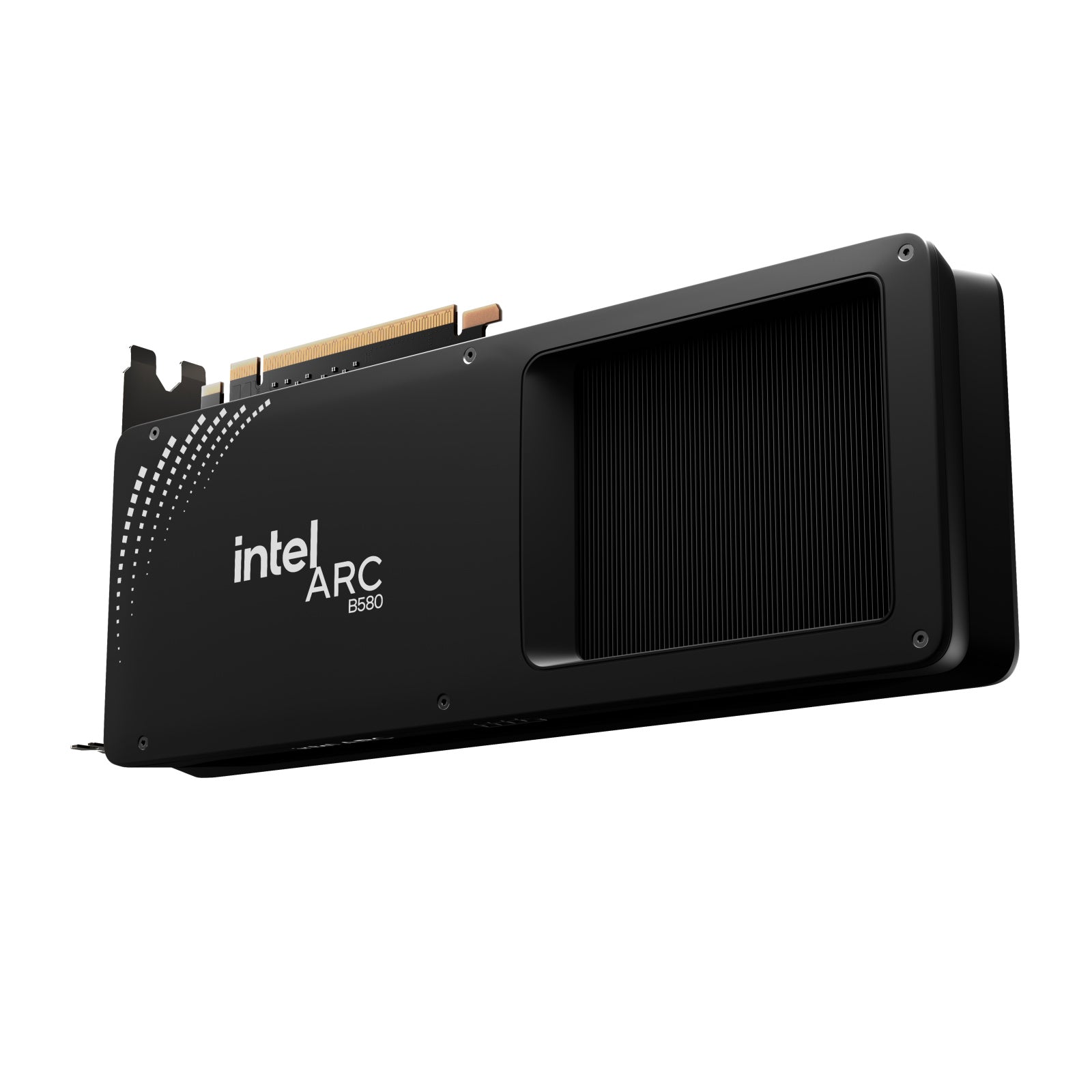

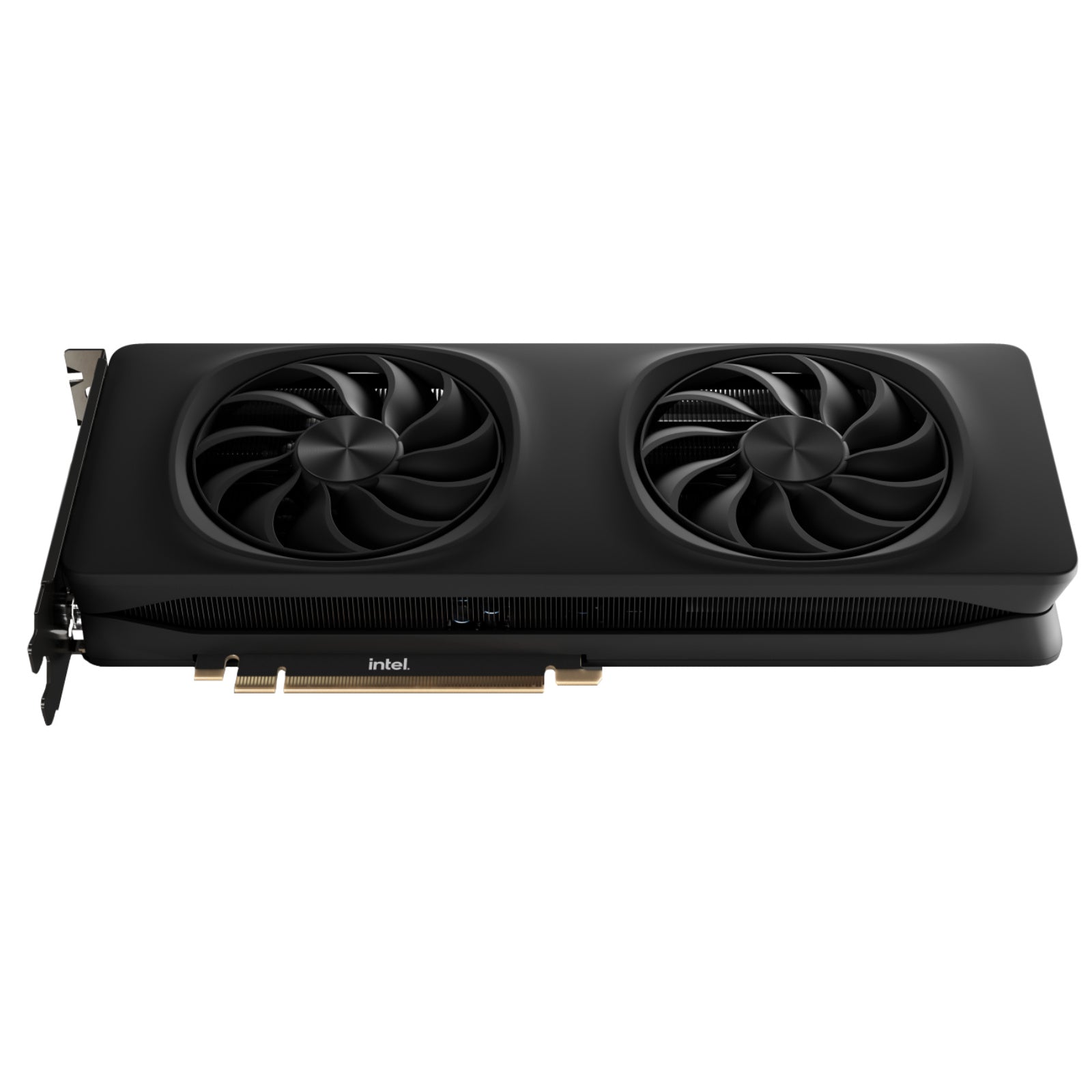

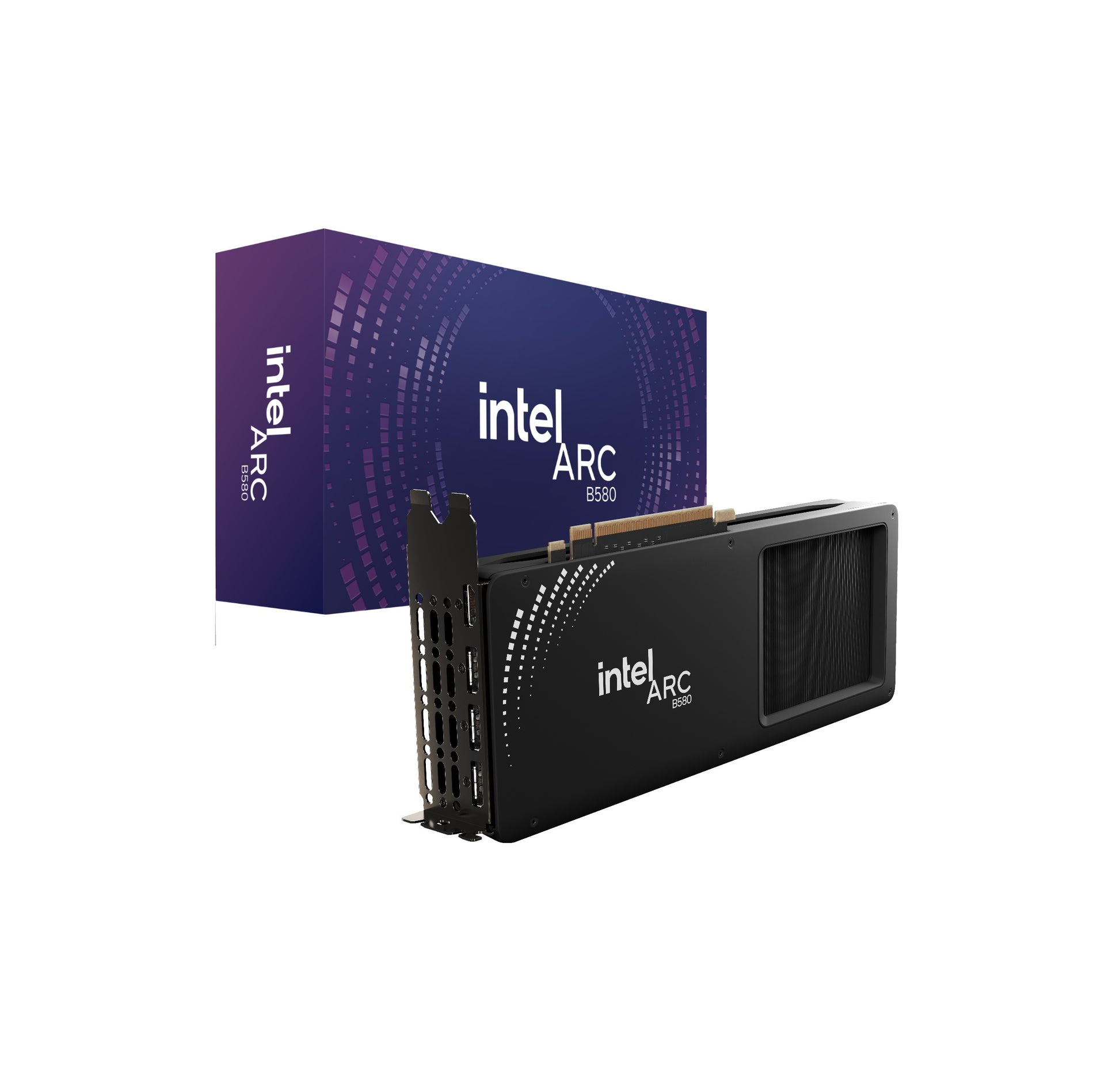

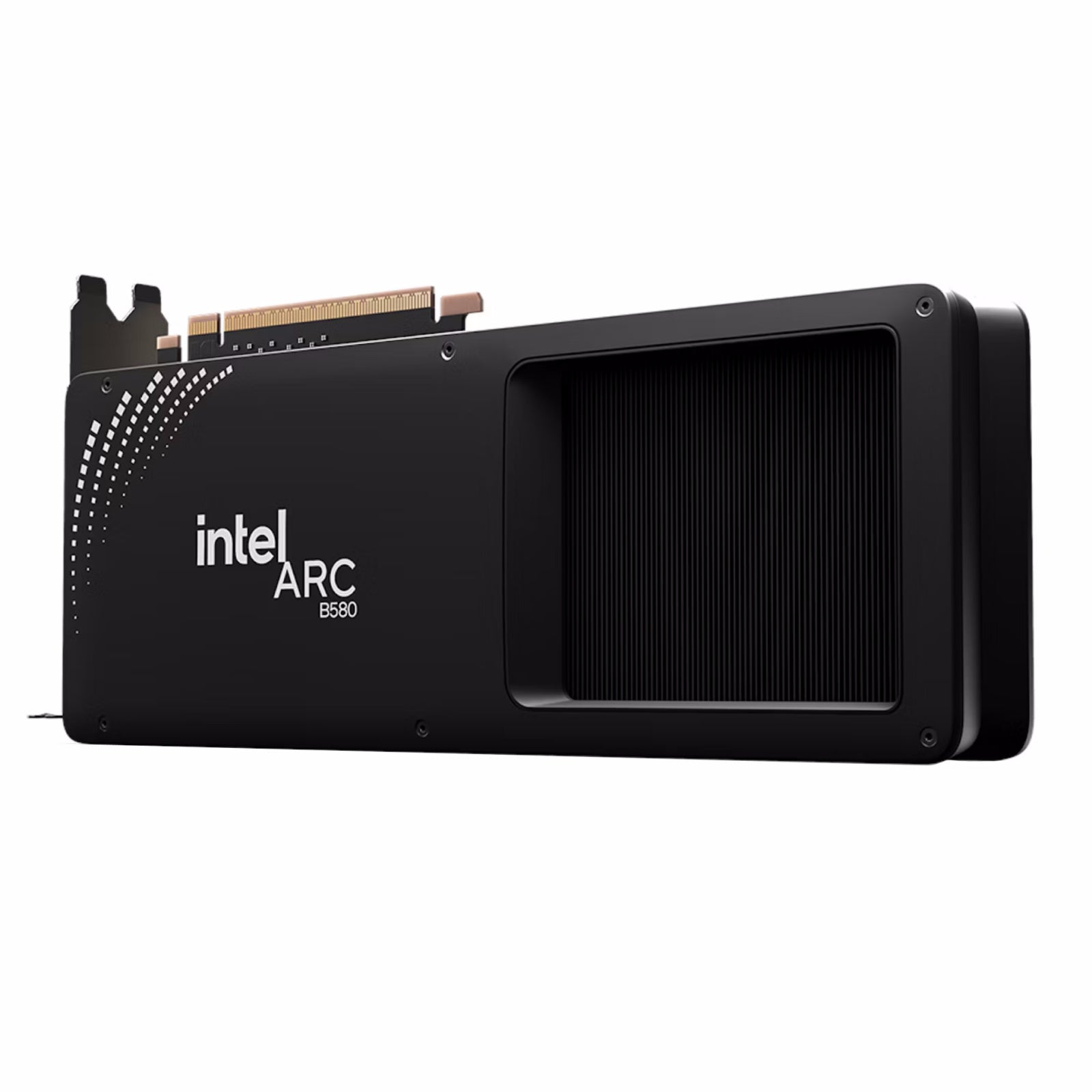

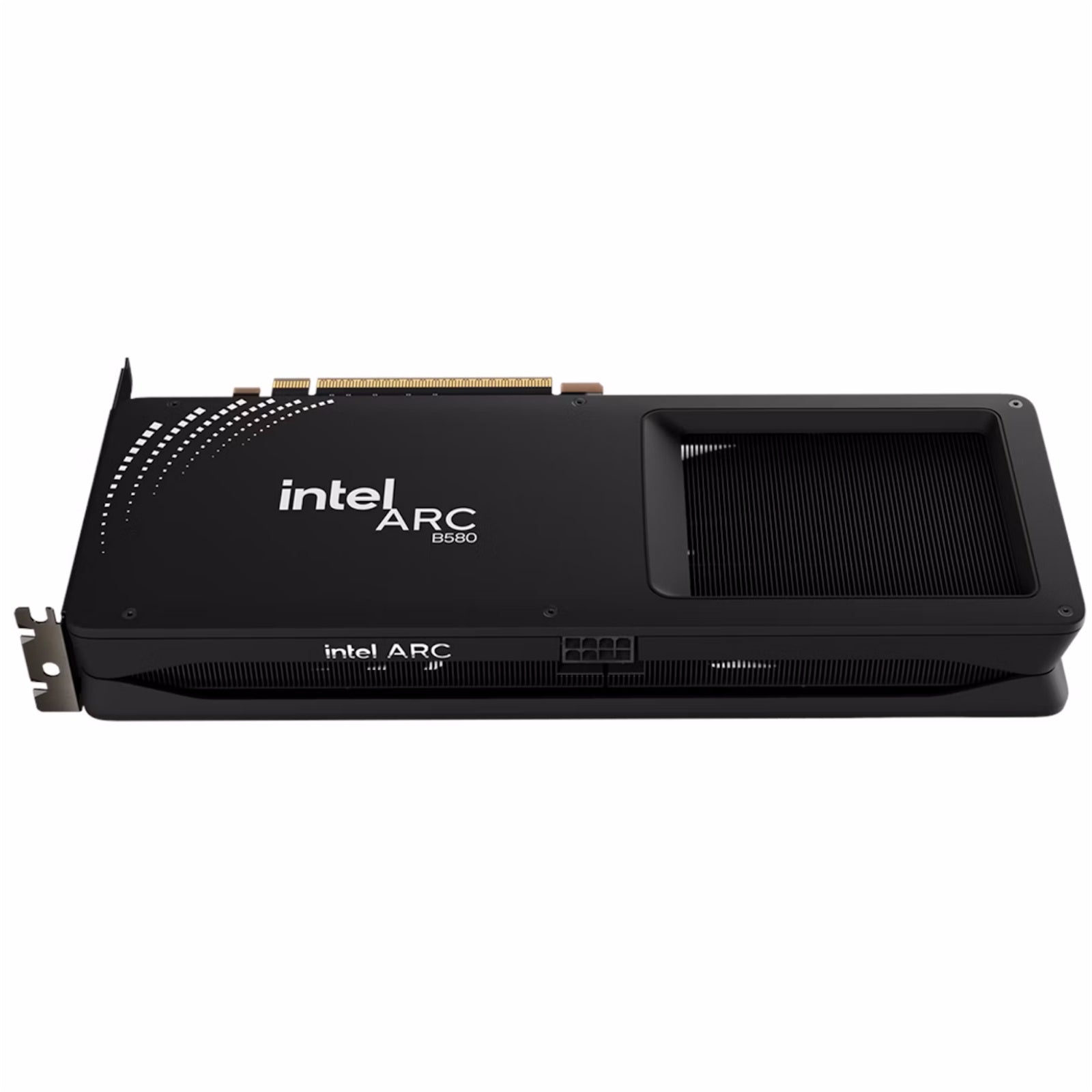

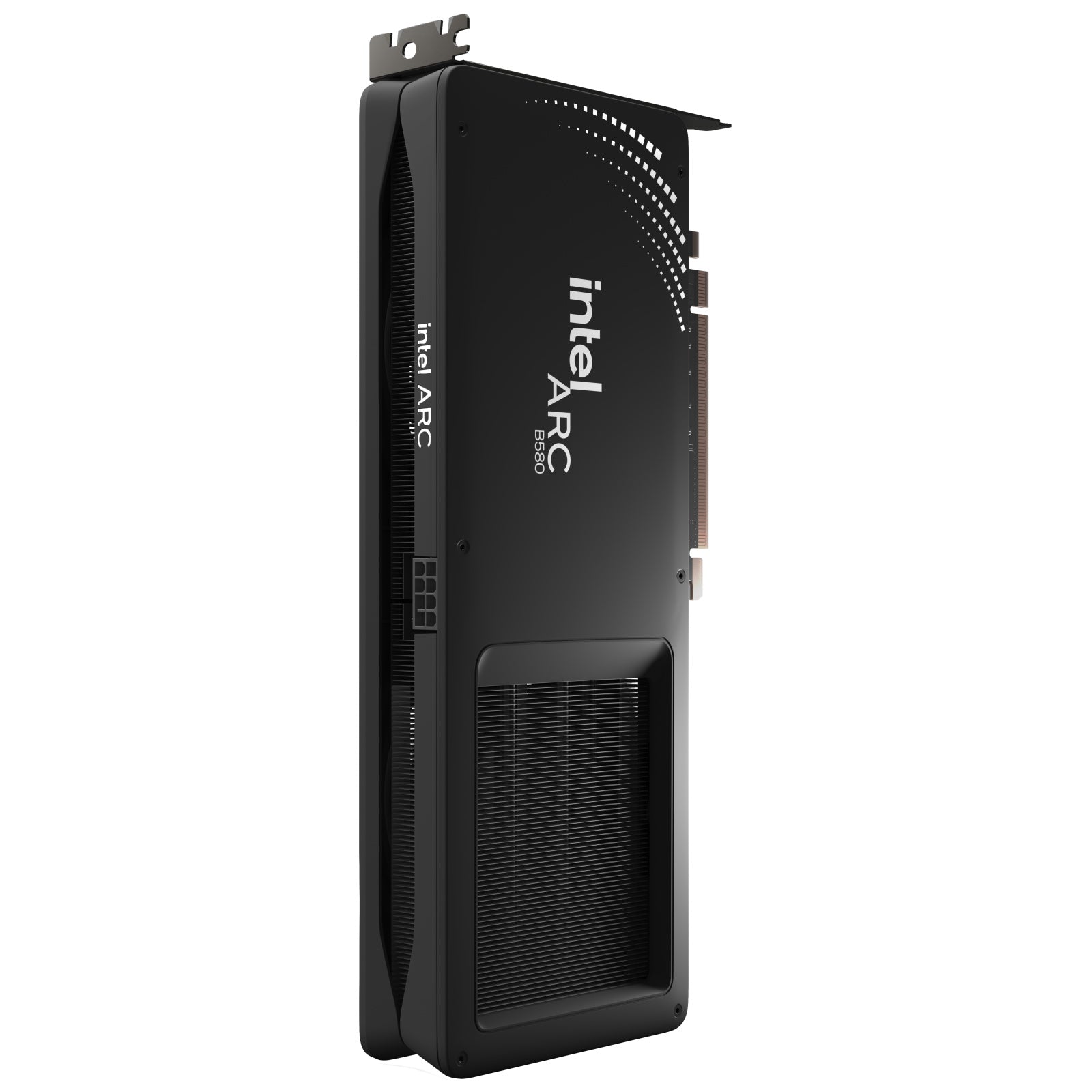

Intel Arc B580 12GB GDDR6 Graphics Card
Intel Arc B580 12GB GDDR6 Graphics Card
Couldn't load pickup availability
Features
The Complete Gaming Experience: Game at high resolutions with high frame rates and high image fidelity with Intel XeSS AI-enhanced upscaling technology and full support for ray tracing.
A Versatile Creator Toolkit: The advanced Xe Media Engine handles high throughput creation easily in up to 8K resolution, plus support for all the most popular media codecs for varied content creation.
Engineered to Accelerate AI: Powerful XMX AI Engines unlock cutting edge AI experiences including upscaled gaming and next gen creation. Experiment with next-gen AI creation such as editing effects and text to image applications - all easily accessible through Intel AI Playground
Specifications
Essentials
Product Collection
Intel® Arc™ B-Series Graphics
Model Number
B580
Code Name
Products formerly Battlemage
Microarchitecture
Xe2
Lithography Type
TSMC N5
Vertical Segment
Desktop
Embedded Options Available
No
GPU Specifications
Xe-cores
20
Render Slices
5
Ray Tracing Units
20
Intel® Xe Matrix Extensions (Intel® XMX) Engines
160
Xe Vector Engines
160
Graphics Clock
2670 MHz
GPU Peak TOPS (Int8)
233
TBP
190 W
PCI Express Configurations
PCI Express 4.0 x8
Device ID
0xE20B
Memory Specifications
Memory
12 GB GDDR6
Graphics Memory Interface
192 bit
Graphics Memory Bandwidth
456 GB/s
Graphics Memory Speed
19 Gbps
I/O Specifications
# of Displays Supported
4
Graphics Output
HDMI* 2.1, DP2.1 up to UHBR 13.5, DP2.1 up to UHBR 10
HDMI Variable Refresh Rate (VRR)
Yes
VESA Adaptive Sync
Yes
Media Profiles
HDR10, HDR10+ Gaming, Dolby Vision
Max Resolution (HDMI)
7680 x 4320 @ 120Hz
Max Resolution (DP)
7680 x 4320 @ 60Hz
Features
H.264 Hardware Encode/Decode
Yes
H.265 (HEVC) Hardware Encode/Decode
Yes
AV1 Encode/Decode
Yes
VP9 Bitstream & Decoding
Yes
Supported Technologies
Ray Tracing
Yes
oneAPI Support
Yes
OpenVINO™ Support
Yes
DirectX* Support
DirectX 12 Ultimate
Vulkan* Support
1.3
OpenGL* Support
Up to 4.6
OpenCL* Support
3.0
Multi-Format Codec Engines
2
Intel® Extension for PyTorch* (IPEX) Support
Yes
Intel® Xe Super Sampling (XeSS) Support
Yes
Intel Reference Card Attributes
Dimensions (Length x Width)
272 x 115 mm
Slots
2
Weight
779 G
Minimum Power Supply Unit
600 W
Power Connectors
1 x 8-pin
