Mercusys MA20N AC650 Nano USB Wireless Adapter
Mercusys MA20N AC650 Nano USB Wireless Adapter
3 Year Limited Warranty

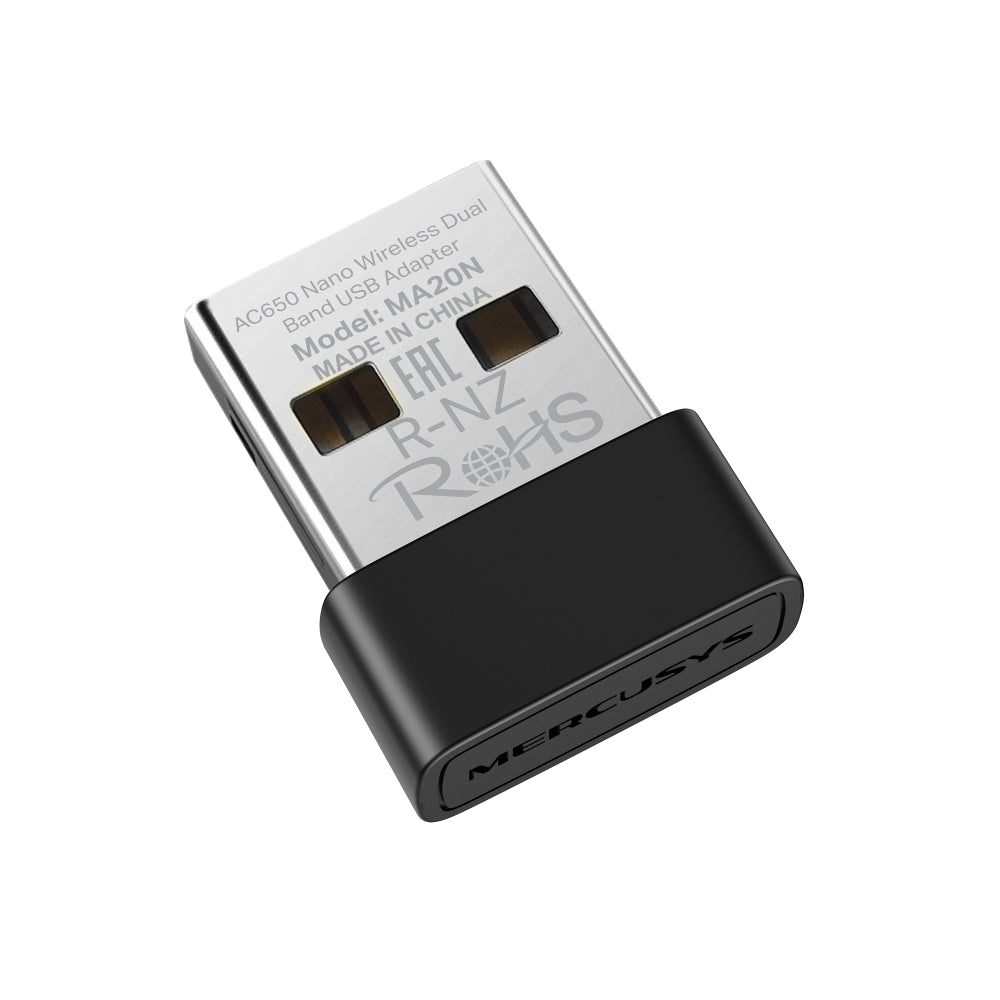

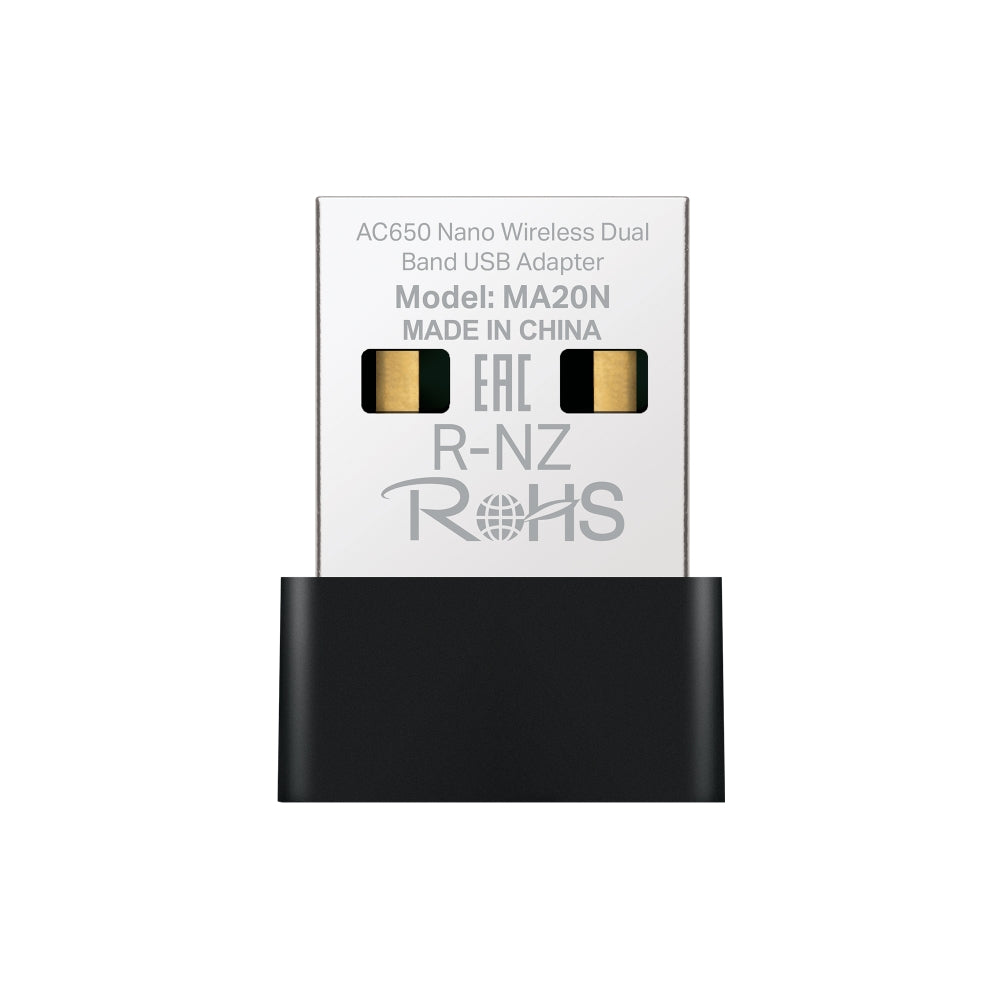

AC650 Nano Wireless Dual Band USB Adapter
Dual Band Wi-Fi Speed — Speeds up to 433 Mbps (5 GHz) + 200 Mbps (2.4 GHz)1
Plug and Play — With the built-in inbox driver by Windows operation systems, you just need to plug into your computer and play.
Nano Size— A compact, convenient solution to make your device wireless. Much smaller than a regular USB flash drive.
Improved Security — The latest security enhancement, WPA3, provides enhanced protection in personal password safety2
Windows Compatible — Supported operating system: Windows 10, 11 (32/64bit)
- Wireless
- Wireless Standards
-
IEEE 802.11ac, IEEE 802.11a,
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Frequency
-
5 GHz
2.4 GHz
- WiFi Speeds
-
Up to 433 Mbps on 5 GHz
Up to 200 Mbps on 2.4 GHz
- Reception Sensitivity
-
5GHz:
11a 6Mbps: -95dBm
11a 54Mbps: -78 dBm
11ac VHT20 MCS8: -72 dBm
11ac VHT40 MCS9: -68.5dBm
11ac VHT80 MCS9: -64.5 dBm
2.4GHz:
11g 6Mbps: -95.5 dBm
11g 54Mbps: -79 dBm
11n HT20 MCS7: -76 dBm
11n HT40 MCS7: -74 dBm
- Wireless Security
-
WPA/PSK, WPA2-PSK, WPA3-SAE
- Hardware
- Dimensions
-

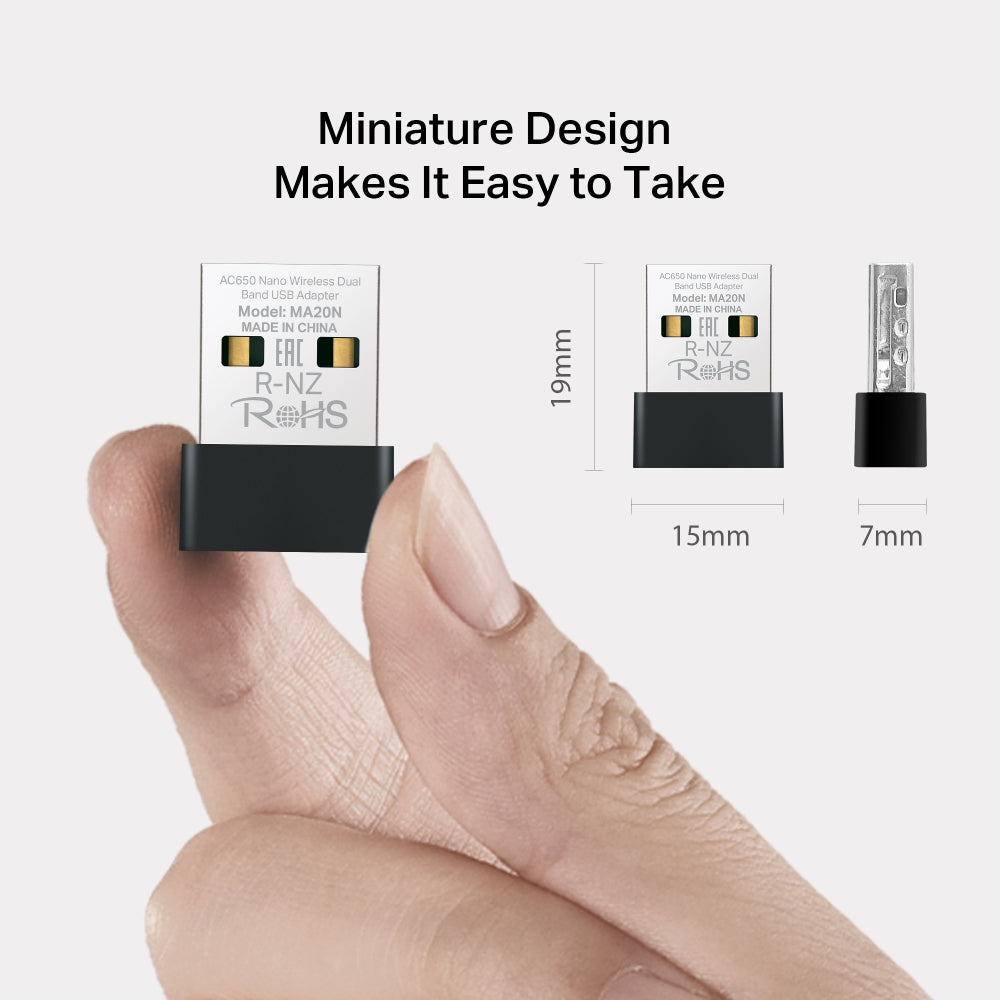

14.94*7.19*19.15mm
- Interfaces
-
USB 2.0
- Antenna Type
-
1 Internal Antenna
- Others
- Package Contents
-

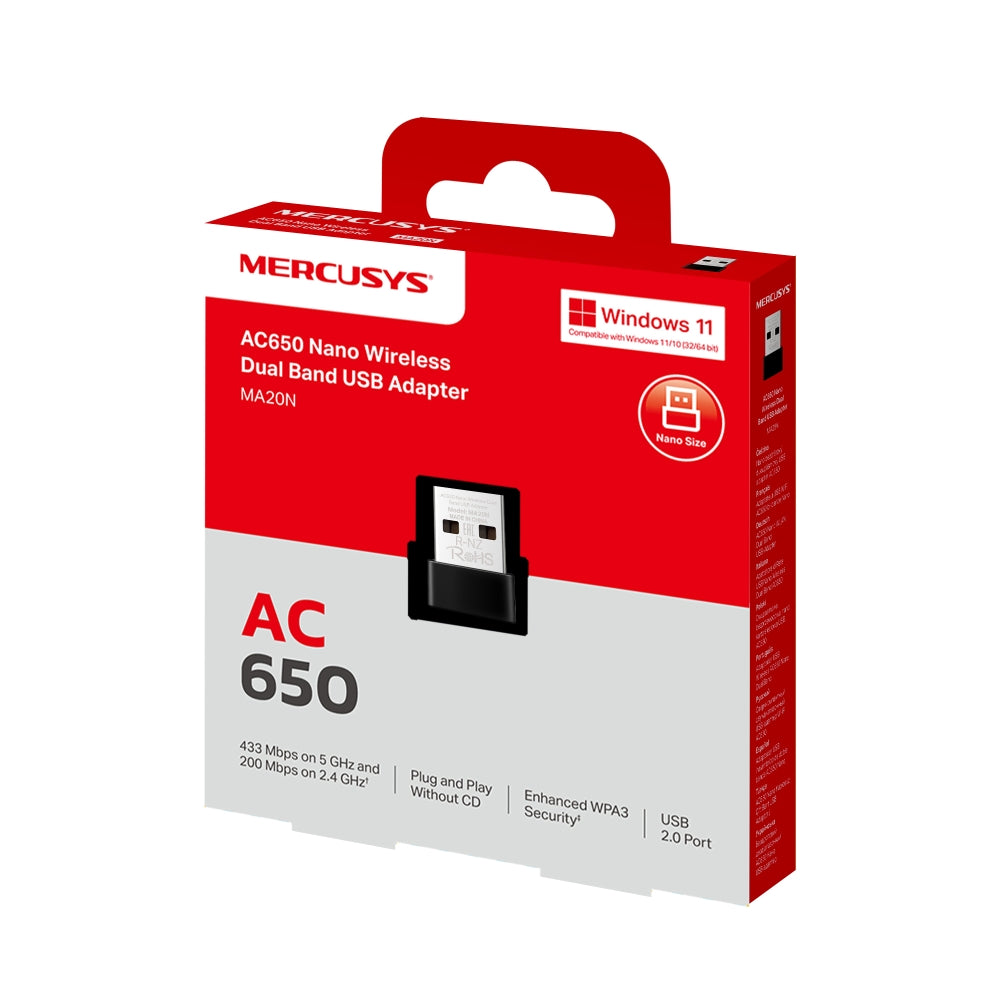

AC650 Nano Wireless Dual Band USB Adapter (MA20N)
Quick Installation Guide
- System Requirements
-
Windows 11/10 (32/64-bit)
