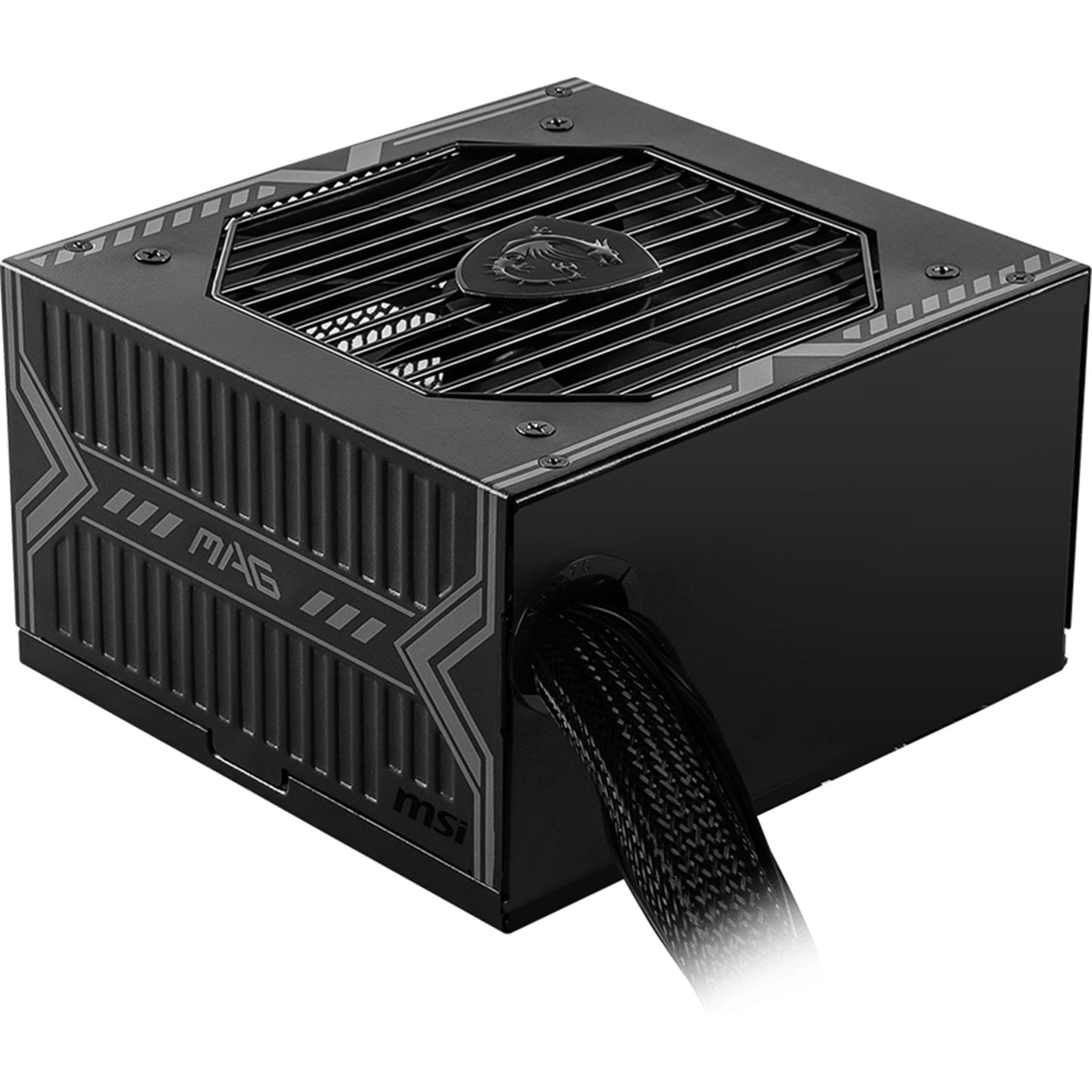

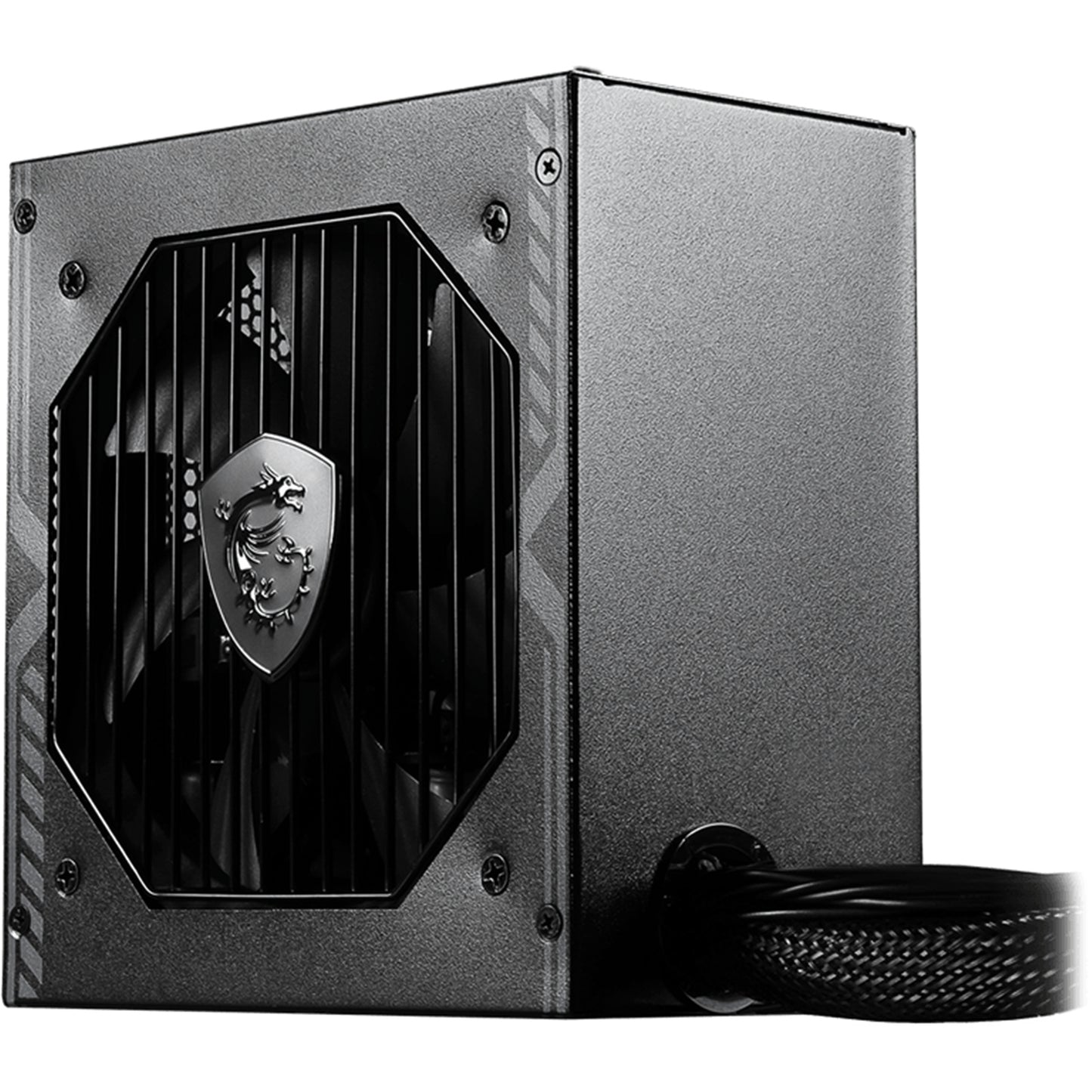

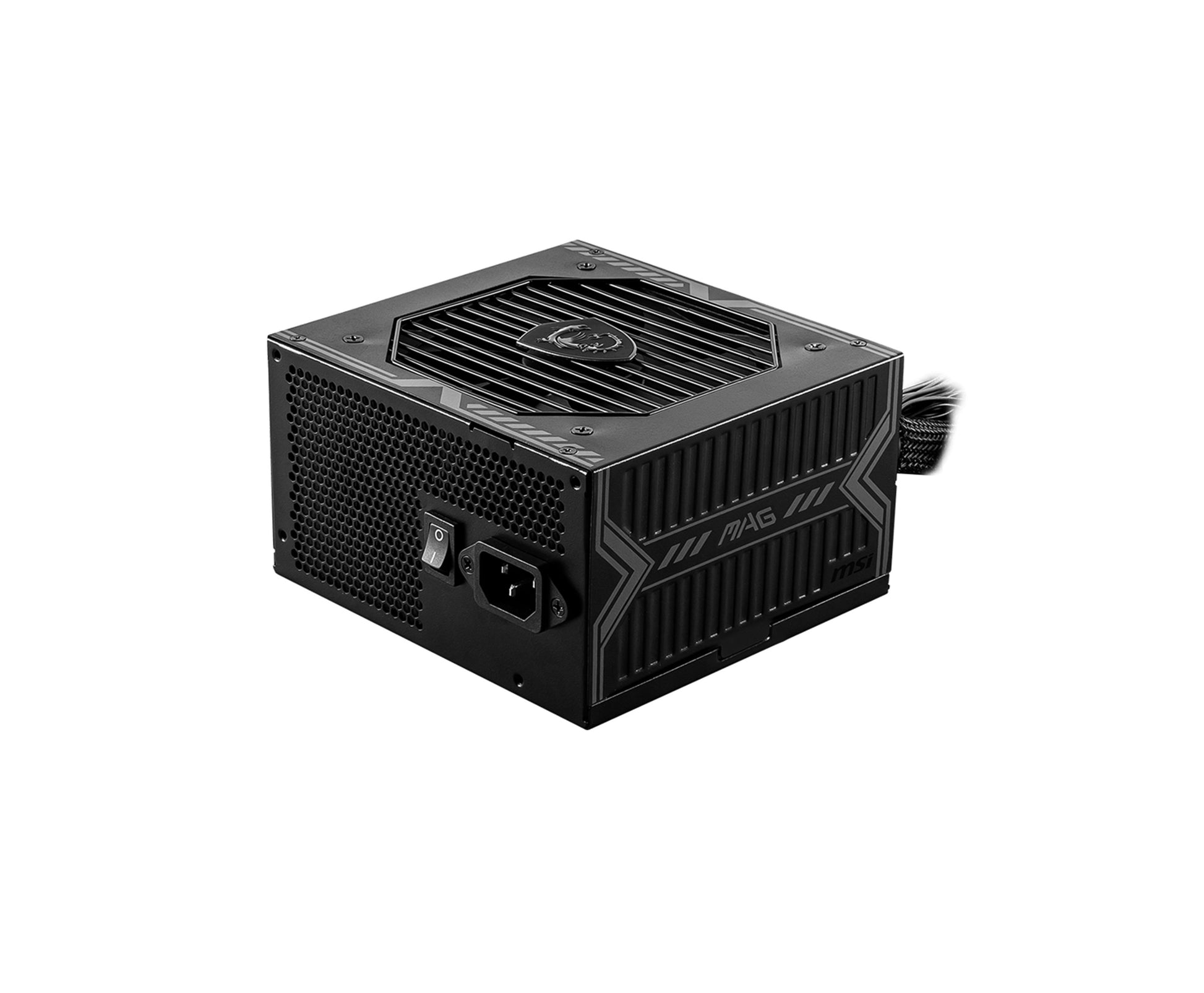

MSI MAG A650BN 650W 80 Plus Bronze 5 Year Warranty ATX PSU
MSI MAG A650BN 650W 80 Plus Bronze 5 Year Warranty ATX PSU
5 Year Limited Warranty
MAG A650BN
- 80 Plus Bronze certified for high efficiency
- 120mm Low Noise Fan
- Industrial level protection with OVP,OCP,OPP,OTP, SCP
- DC-DC Circuit Design
- Active PFC design
MAG A650BN
MAG A650BN provides players with a safe, reliable, and efficient entry-level power supply option. Its core features include 80 PLUS Bronze certification, DC to DC circuit design, 12V single rail, active PFC, and low-noise fan. The MAG A650BN will be one of the best choices for players who are just getting started with looking into DIY computers. After installation, gamers can immediately enjoy a reliable performance experience without additional settings.
80 PLUS BRONZE CERTIFIED
The efficiency of your power supply directly influences your system's performance and your power consumption. The 80 PLUS BRONZE certification promises lower energy consumption and higher efficiency.
120MM LOW NOISE FAN
The fan's sleeve bearing reduces the noise generated while maintaining excellent heat dissipation.
DC TO DC CIRCUIT DESIGN
Adopted DC-DC circuit design reduces the instability of output voltage, and ads stability to the supply of power.
COMPREHENSIVE CIRCUIT PROTECTION
Supports OCP, OVP, SCP, OPP, OTP protection mechanisms and provides comprehensive protection.
EFFICIENCY RATING
80 PLUS Bronze (up to 85%)
MODULAR
No
FAN SIZE
120 mm
FAN BEARING
Sleeve Bearing
DIMENSIONS (DXWXH)
140 x 150 x 86 mm
PFC TYPE
Active PFC
INPUT VOLTAGE RANGE
100~240 VAC
POWER WATT
650W
INPUT FREQUENCY RANGE
50~60 Hz
PROTECTION
OCP / OVP / OPP / OTP / SCP

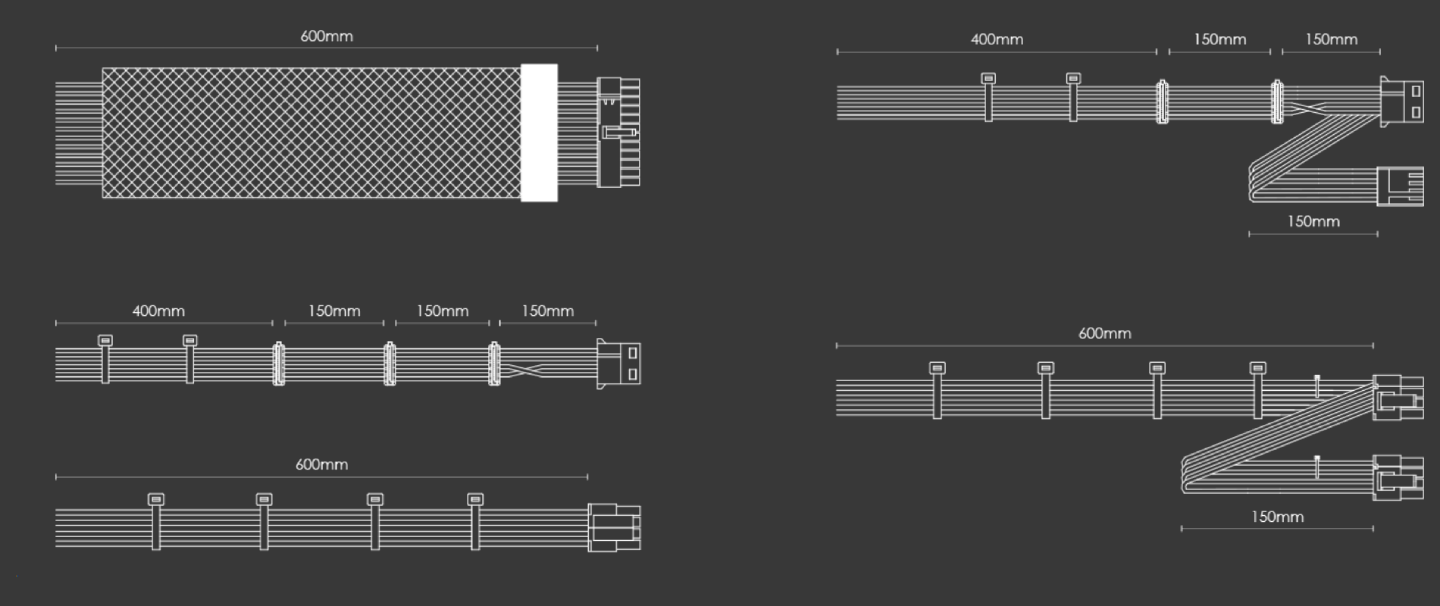

ATX (24 PIN)
1
EPS (4+4 PIN)
1
PCI-E (6+2 PIN)
2
SATA (15 PIN)
5
MOLEX (4 PIN)
2
FDD (4 PIN)
1
