MSI MAG M100R Black mATX Mini Tower Case
MSI MAG M100R Black mATX Mini Tower Case
Couldn't load pickup availability
MAG FORGE M100R
- Can install up to 6x system fans, providing ventilation and stable performance to the whole system.
- Tempered Glass Side Pane displaying RGB lighting effects.
- The magnetic filter on the top vents being easily remove for cleaning.
- Use the fan cable to create more possibilities for adding more fans to your system.
- Click through the profile at ease and choose a favorite.
- Built-in ARGB fans with striking lighting and vivid lighting effects.
- Through the LED Switch button can intuitively control & switch 9 lighting effects.
MESH CERTIFIED MAKES IT WORK
The front mesh panel allows air to flow into the case easily without obstruction, providing the best system cooling performance. The micro-atx chassis provide small footprint but big performance.
HEAT DISSIPATION
You don't need to worry about system cooling with the help of the gaming cases.
OPTIMIZED AIRFLOW
The MAG FORGE M100 Series is optimized to provide generous and effective airflow for system cooling. The MAG FORGE M100 Series can mount up to 6 fans.
COMPONENTS CLEARANCE
HARDWARE COMPATIBILITY
The gaming cases offers extensive support for the installation of your hardware components.
STORAGE YOU NEED
Configure your own storage layout and install up to 3x2.5"+1x3.5" or 2x2.5" + 2x3.5" storages.
MOTHERBOARD SUPPORT
EASY TO INSTALL
The gaming case has many features that make the installation process all the easier.
1 TO 6 ARGB CONTROL BOARD
User can intuitively control & switch 9 lighting effects through the LED switch button.
1-TO-4 FAN CABLE
Use the 1-to-4 Fan Cable to create more possibilities for adding more fans to your system.
FANCY APPEARANCE
Build and display the coolest PC with controllable ARGB lighting.
TEMPERED GLASS WINDOW
The 3mm tempered glass window offers the best durability and sytem accessibility.
INSTA-LIGHT LOOP BUTTON
Quickly control the fan and front LED strip's lighting effects with Insta-Light Loop at the touch of a button. Click through the profiles at ease and choose a favorite.
ARGB SHOWROOM
Create your own ARGB battle station with the MAG FORGE M100R, fully supported by MSI Mystic Light.

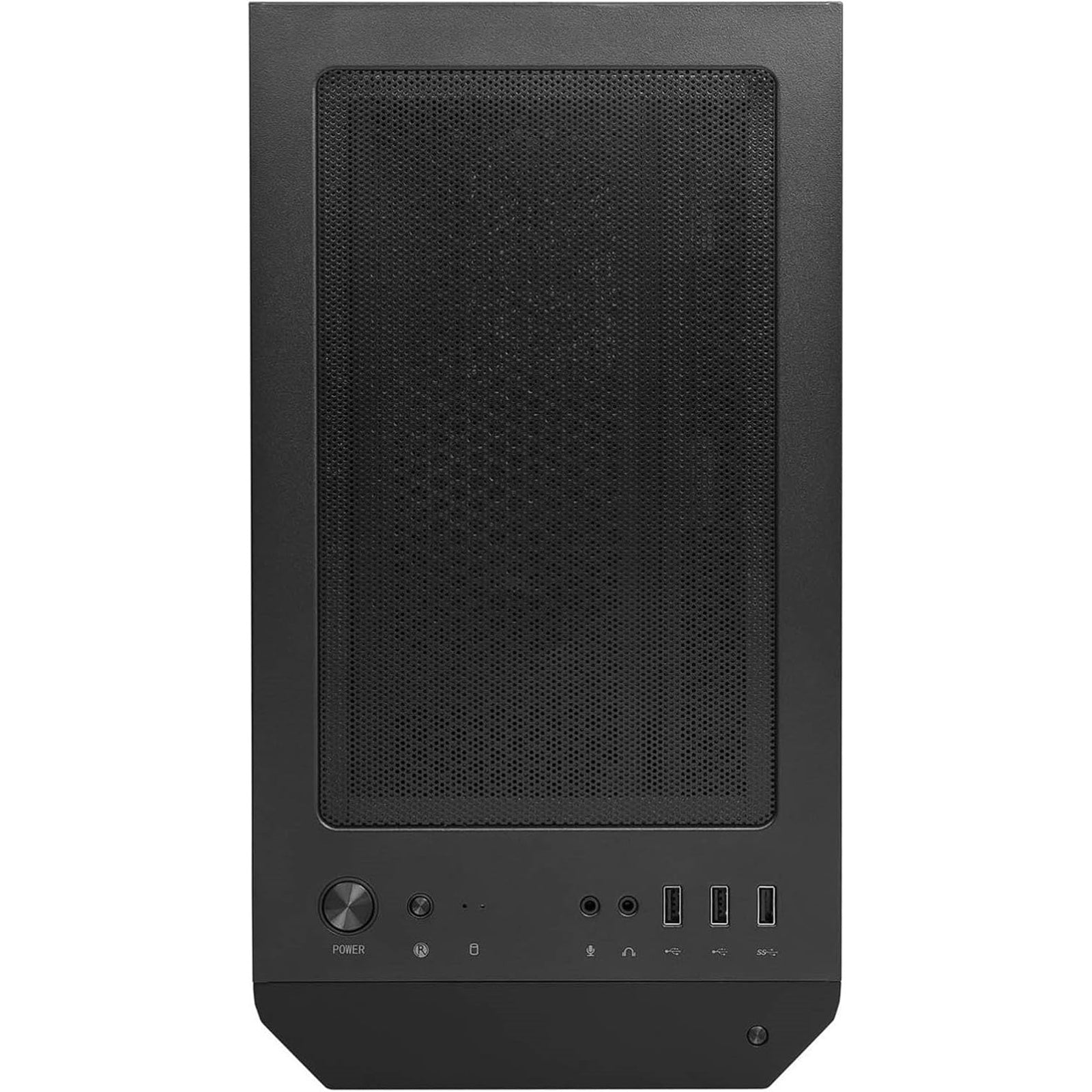

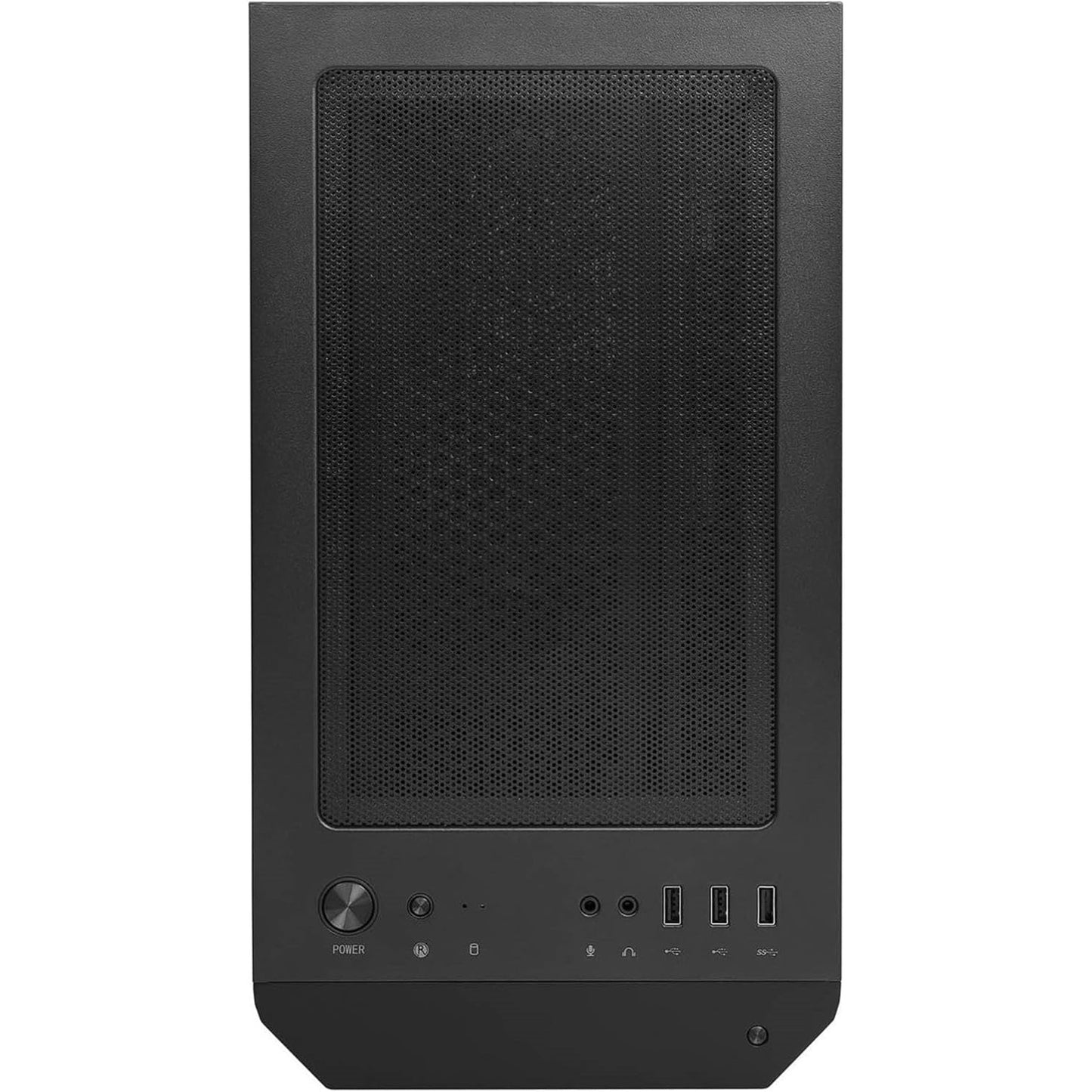

Connectable Front I/O
Specifications
Product Name
MAG FORGE M100R
Case Form Factor
Micro ATX Tower
Motherboard Form Factor Support
Micro-ATX / Mini-ITX
I/O Ports
2x USB 2.0 Type-A
1x USB 3.2 Gen 1 Type-A
1x Audio
1x Mic
Drive Mount Support
2x 2.5"
1x 2.5" / 3.5"
1x 3.5"
Expansion Slots
4
Maximum GPU Length
300 mm / 11.81 inches
Maximum CPU Cooler Height
160 mm / 6.3 inches
Power Supply Support
ATX
Maximum PSU Length
300 mm / 11.81 inches (without 3.5" HDD tray installed)
Fan Size Support
Front: 3 x 120 mm
Top: 2 x 120 mm
Rear:1 x 120 mm
Pre-installed Fan Size
Front: 3 x 120mm
Rear: 1 x 120mm
Pre-installed Fan Type
Front: 3 x ARGB Fan
Rear: 1 x ARGB Fan
Radiator Size Support
Front: 120 / 240 mm
Top: 120 / 240 mm
Rear: 120 mm
Dimensions (DxWxH)
388 x 200 x 423mm / 15.28 x 7.87 x 16.65 inches
Net Weight
4.14 kg / 9.13 lbs
Gross Weight
5.03 kg / 11.09 lbs
Connection
Power Button
Reset Button
Mic in / Audio out
2x USB 2.0 Type-A
1x USB 3.2 Gen 1 Type-A
LED Switch Button
