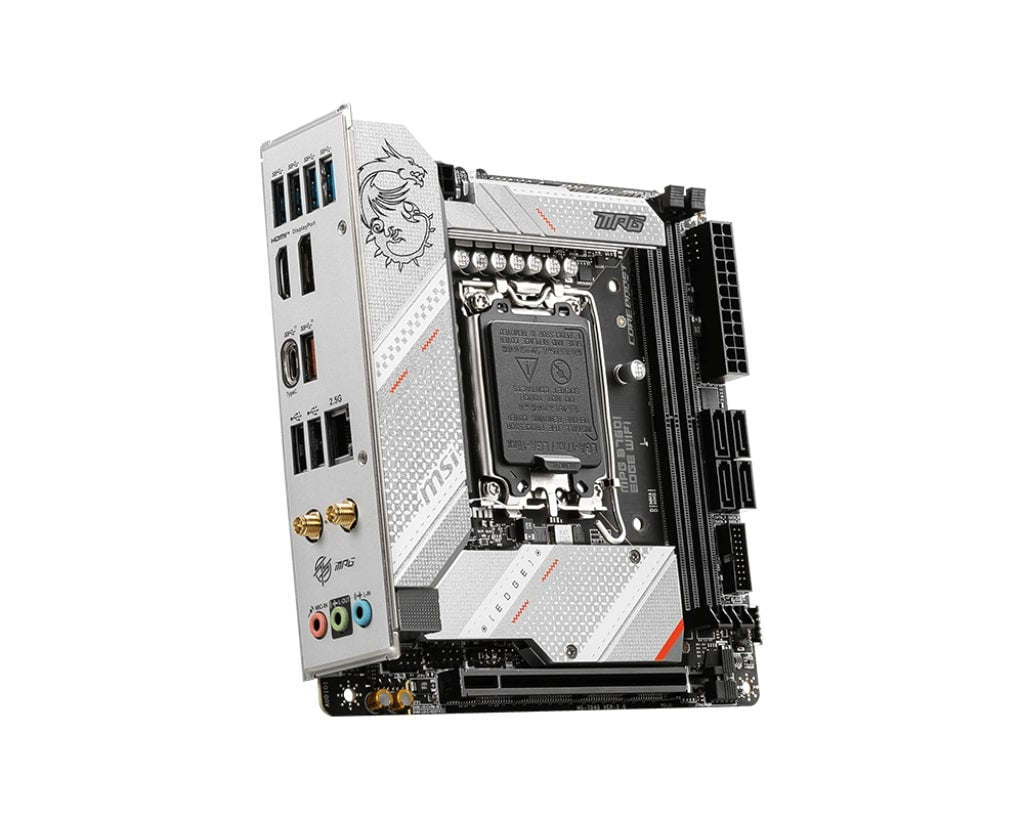

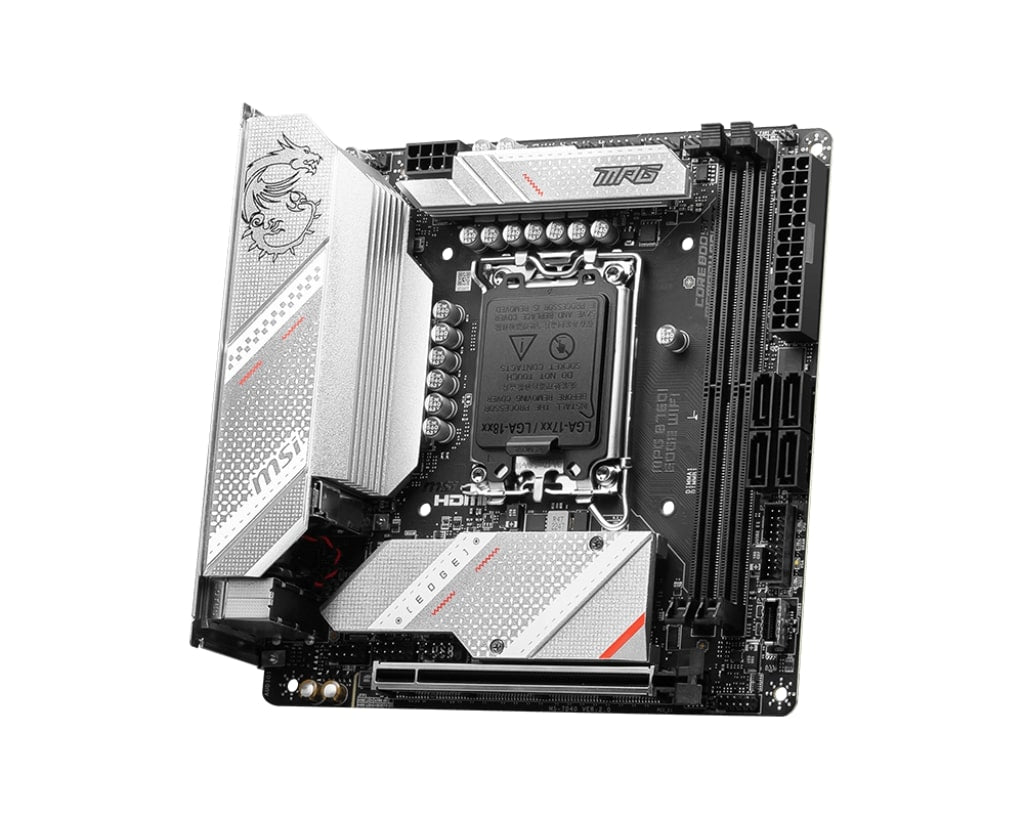

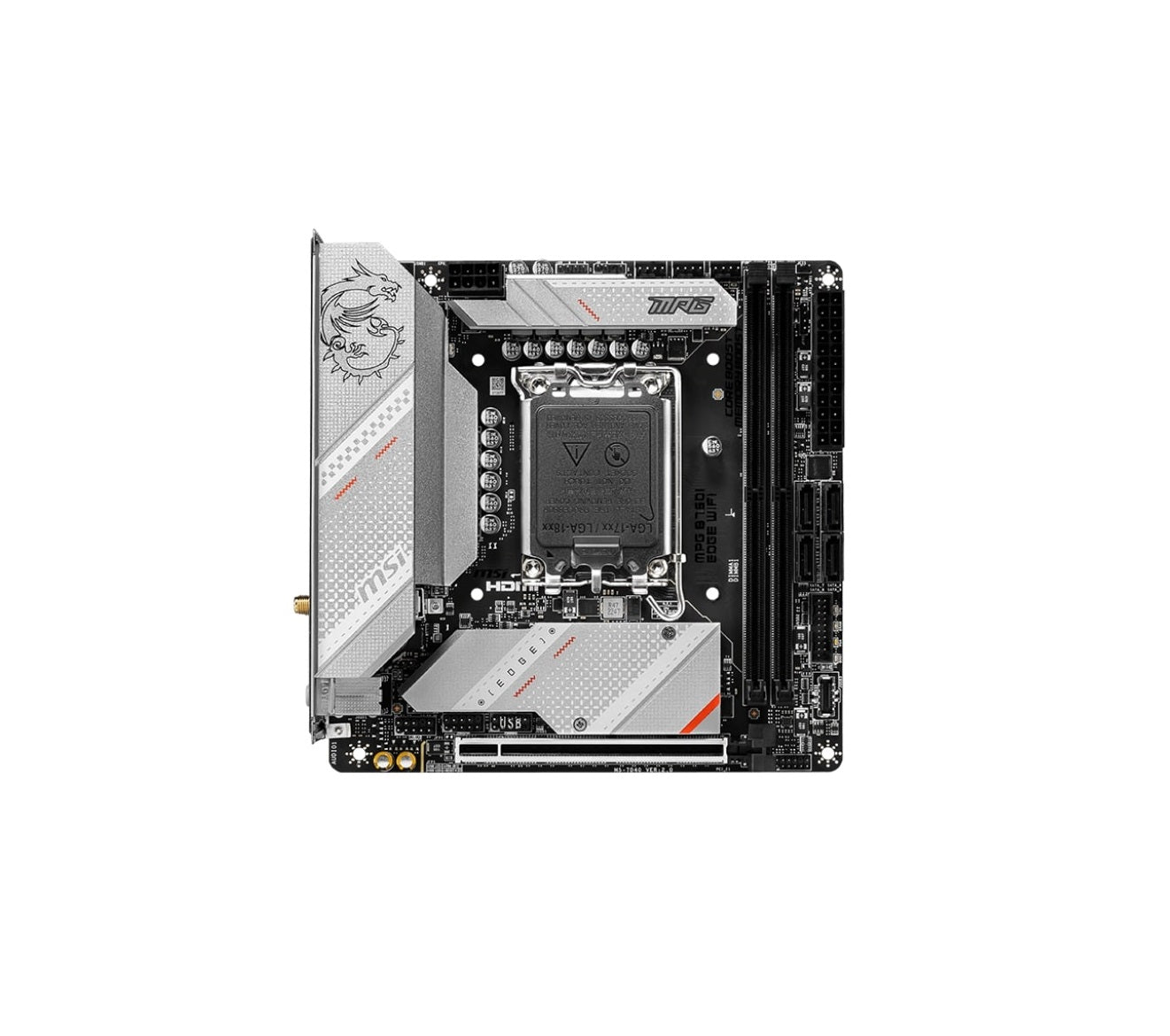

MSI MPG B760I EDGE WIFI DDR5 ITX Motherboard

BE AHEAD, POP YOUR STYLE

The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

COOLING OVERVIEW

• Extended Heatsink

  Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.

• 7W/mK Thermal Pad

  High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

• M.2 Shield Frozr

  Keeps M.2 SSDs safe while preventing throttling, making them run faster.

• Pump Fan Support

  Control watercooling pump speeds for best flow and noise control.

• 8-Layer Server Grade PCB

  8-layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.

FULL FAN CONTROL

• CONTROL IN ONE CLICK

  MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.

• FROZR AI COOLING

  Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

• AUTO DETECT YOUR FAN

  MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

DIRECT 8+1+1 PHASES POWER DESIGN

Unleash and sustain the maximum performance with a flagship VRM design built with a total of direct 8+1+1 digital power phases. Combining Core Boost and 90A Smart Power Stage, MPG B760I EDGE WIFI is ready for the challenge of high-end processors.

• DIGITALL POWER DESIGN

  A fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision.

• CORE BOOST

  Premium layout not only support the multi-core CPU, also create the perfect conditions for your CPU overclocking.

FAST AND FUTURE-READY STORAGE

MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

LATEST DDR5 MEMORY WITH SMT SLOT

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG B760I EDGE WIFI is ready to deliver the world class memory performance.

The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.

EASY OVERCLOCKING WITH XMP PROFILE

The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.

MSI CENTER

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

CLICK BIOS 5

Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!

EXCLUSIVE UI OF AIDA64 EXTREME

MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.

OPT-IN TO CYBER SAFETY WITH NORTON 360 DELUXE

Multiple layers of protection for your devices, online privacy features including our Secure VPN, plus Dark Web Monitoring - all in a single solution. With MSI motherboards, you can enjoy a 60-day free trial of Norton 360 Deluxe.

FIND WITH TILE

Intel's Wi-Fi solution integrated with Tile's tracking technology will help you locate your PC device in no time.

RESIZEABLE BAR

Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.

AUDIO BOOST

• HIGH DEFINITION AUDIO PROCESSOR

• HIGH QUALITY AUDIO CAPACITORS

• HIGH WUALITY AUDIO JACKS

• ISOLATED AUDIO SIGNAL

• DE-OP PROTECTION

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

• Wi-Fi 6E

• Bluetooth 5.3

• 2.5G Lan

Chipset	INTEL B760
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory	2x DDR5, Maximum Memory Capacity 128GB Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear) 2x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front)
LAN	Realtek® RTL8125BG 2.5Gbps LAN
Internal IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE	4x EZ Debug LED

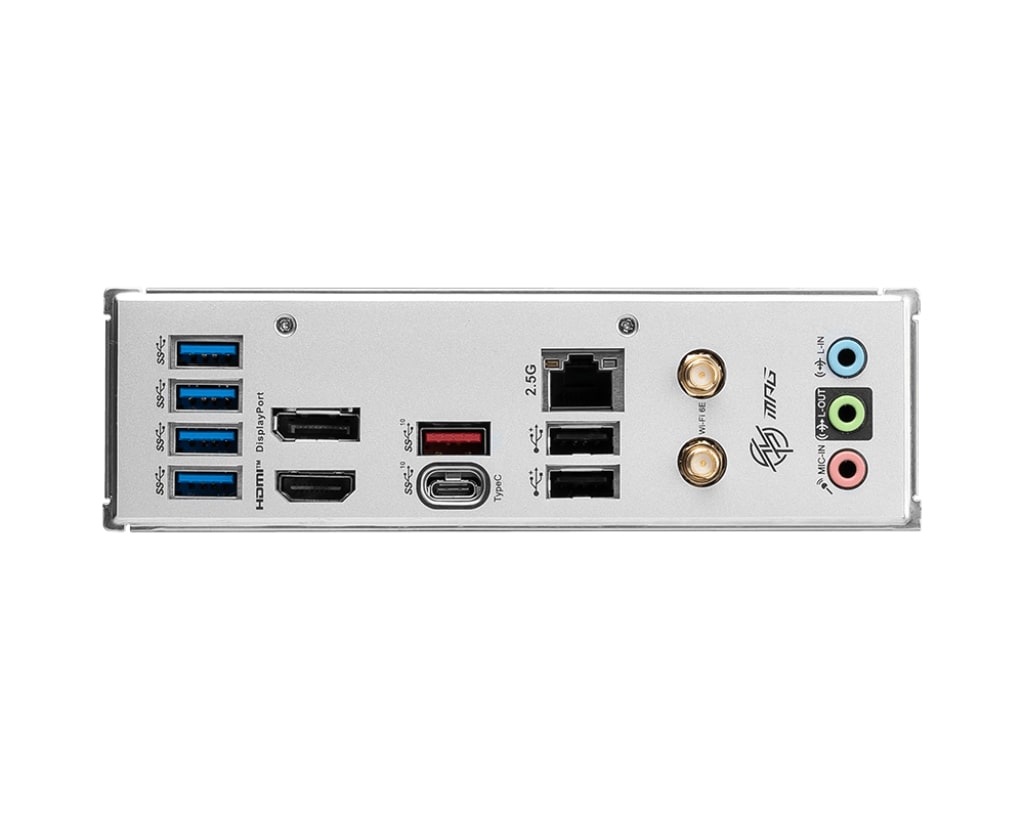

BACK PANEL PORTS	USB 5Gbps Display Port USB 10Gbps 2.5G LAN Audio Connectors HDMI™ USB 10Gbps (Type-C) USB 2.0 Wi-Fi / Bluetooth
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
