MSI MPG B850I EDGE TI WIFI ITX AM5 Motherboard
MSI MPG B850I EDGE TI WIFI ITX AM5 Motherboard
Couldn't load pickup availability
MPG B850I EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN, and the latest PCIe 5.0 compatibility, Supplemental PCIe Power, and this is the best white theme B850 ITX motherboard for AMD Ryzen™ 9000 series processors.
MSI's premium MPG series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG's commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.
| Chipset | • AMD B850 |
| CPU |
• Socket AM5 • Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Memory |
• 2 x DDR5 UDIMM sockets, up to 128 GB maximum capacity • Speeds from 4800 MT/s (JEDEC) up to 10000 MT/s (O.C.) • Dual-Channel, Non-ECC, Un-buffered • Supports AMD EXPO™ and Memory Overclocking • Supports CUDIMM (Clock Driver bypass mode only) |
| Onboard Graphics | • 1 x HDMI™ 2.1 (Supports FRL, up to 8K 60Hz) |
| Audio |
• Realtek® ALC4080 Codec (7.1-Channel USB High-Performance) • Supports up to 32-Bit/384 kHz playback on front panel • Supports S/PDIF output |
| LAN | • 1 x Realtek® 8126 5G LAN |
| Wireless & Bluetooth |
• Wi-Fi 7: 802.11 a/b/g/n/ac/ax/be, 2.4GHz/5GHz/6GHz (320MHz) up to 5.8Gbps, MU-MIMO TX/RX • Bluetooth® 5.4: MLO, 4KQAM |
| Expansion Slots |
CPU: • 1 x PCIe x16 slot (PCI_E1) • PCIe 5.0 x16 (Ryzen™ 9000/ 7000 Series) • PCIe 4.0 x8 (Ryzen™ 8700/ 8600/ 8400 Series) • PCIe 4.0 x4 (Ryzen™ 8500/ 8300 Series) |
| Storage |
CPU: • 1 x M.2_1 slot (PCIe 5.0 x4 for Ryzen 9000/7000, PCIe 4.0 x4 for Ryzen 8000, supports 2280) Chipset: • 1 x M.2_2 slot (PCIe 4.0 x4, supports 2280) • 2 x SATA 6G ports • RAID 0/1 support for NVMe and SATA devices |
| USB |
• 1 x USB-C® 20Gbps (back panel) • 1 x USB-C® 10Gbps (front panel internal) • 3 x USB 10Gbps Type-A (back panel) • 4 x USB 5Gbps Type-A (2 back panel, 2 front panel internal) • 2 x USB 2.0 (front panel internal) |
| Internal I/O |
• Power: 1 x ATX_PWR, 1 x CPU_PWR • Cooling: 1 x CPU Fan, 1 x Combo Fan (Pump/Sys), 1 x System Fan • RGB/LED: 1 x Addressable V2 RGB LED connector (JARGB_V2), 4 x EZ Debug LED, 1 x EZ Memory Detection LED • Headers: 1 x EZ Conn-header (JAF_2), 2 x Front Panel, 1 x Chassis Intrusion, 1 x Front Audio, 1 x TPM 2.0 pin header |

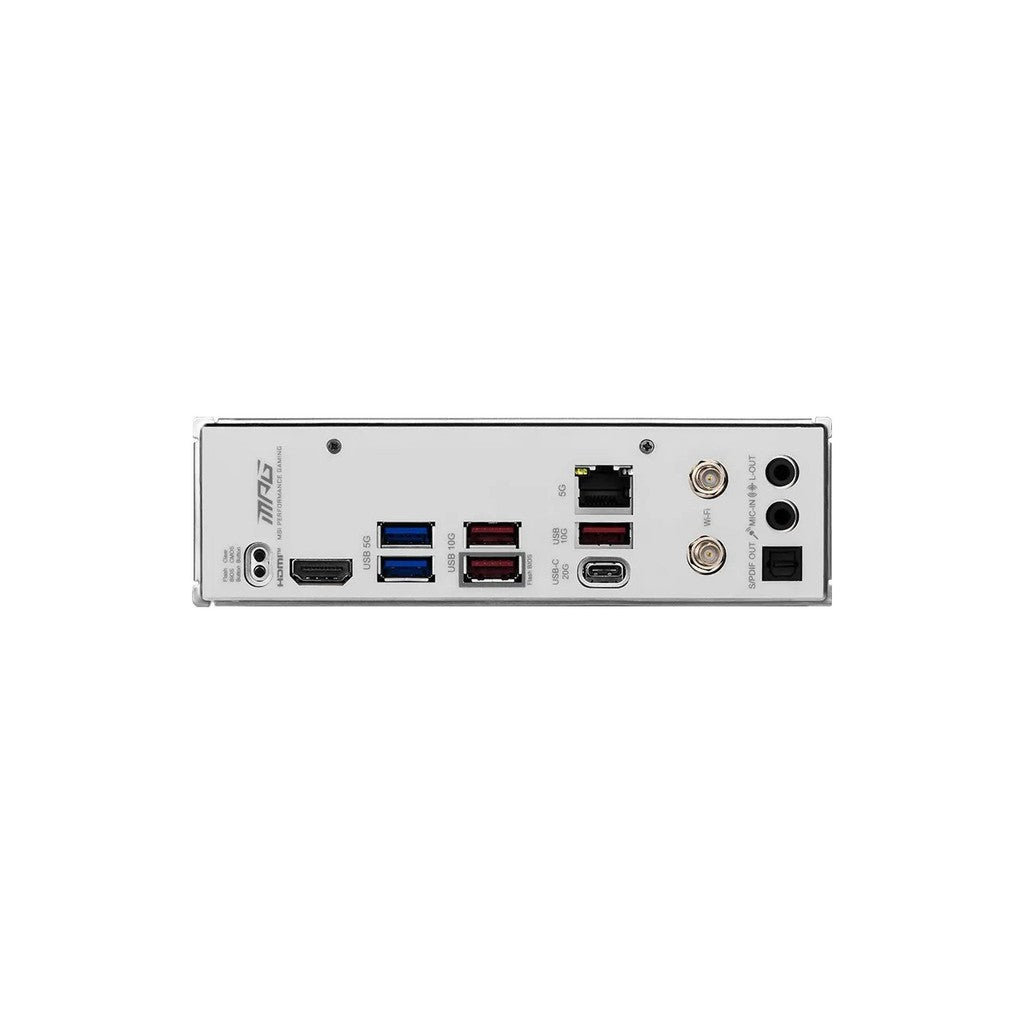

| Back Panel |
• 1 x Clear CMOS Button • 1 x Flash BIOS Button • 1 x HDMI™ port • 1 x USB-C® 20Gbps port • 3 x USB 10Gbps Type-A ports • 2 x USB 5Gbps Type-A ports • 1 x 5G LAN port • Wi-Fi / Bluetooth antenna connectors • Audio Connectors & Optical S/PDIF Out |
| Operating System | • Support for Windows® 11 64-bit |
| Form Factor | • Mini-ITX (170mm x 170mm) |
