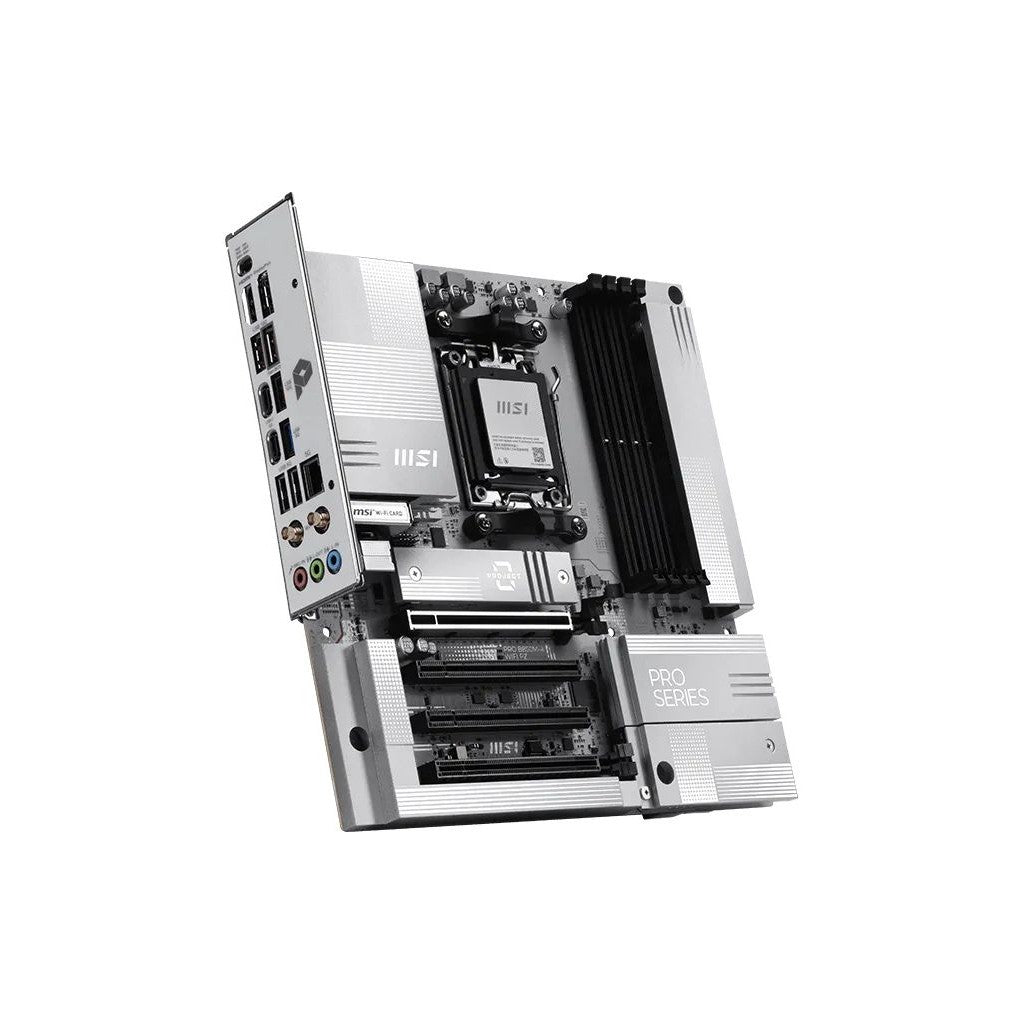

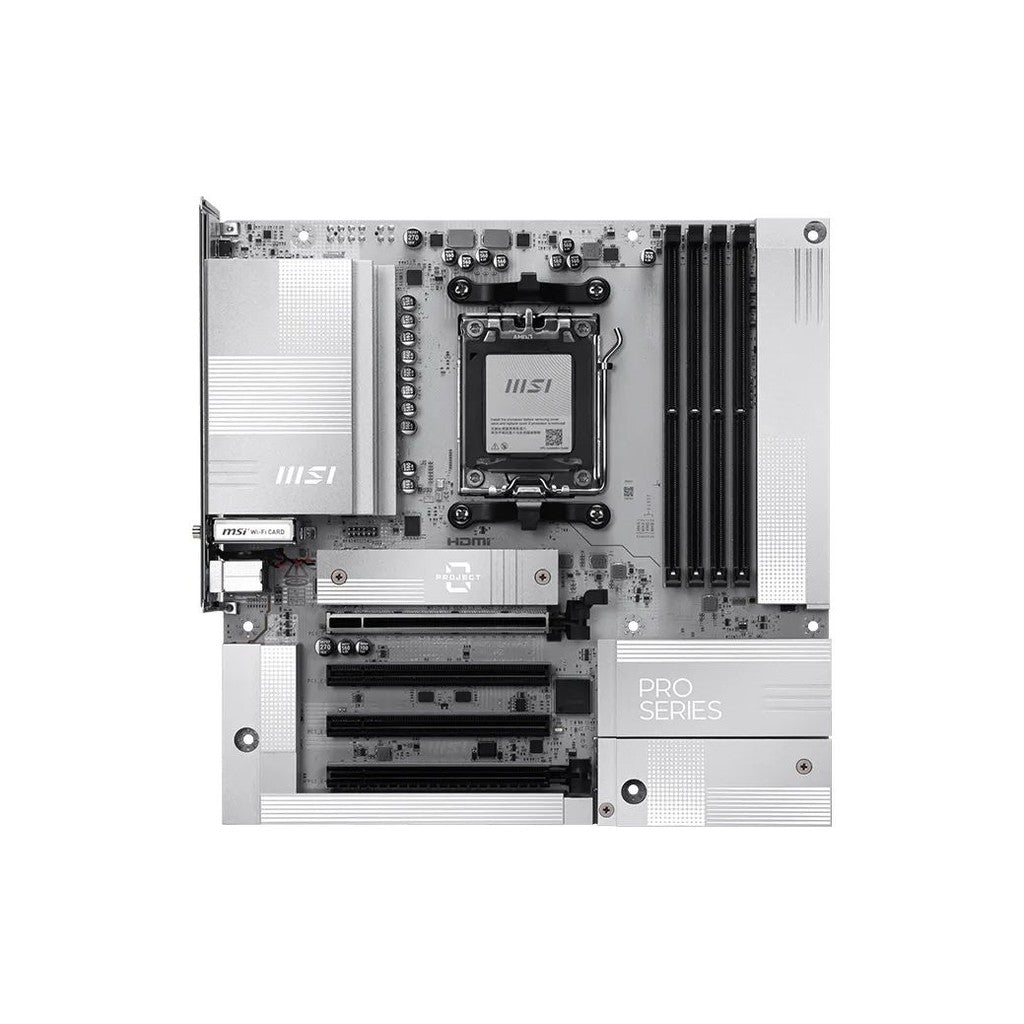

MSI PRO B850M-A WIFI PZ mATX AM5 Motherboard
MSI PRO B850M-A WIFI PZ mATX AM5 Motherboard
Regular price
$385.00
Regular price
Sale price
$385.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

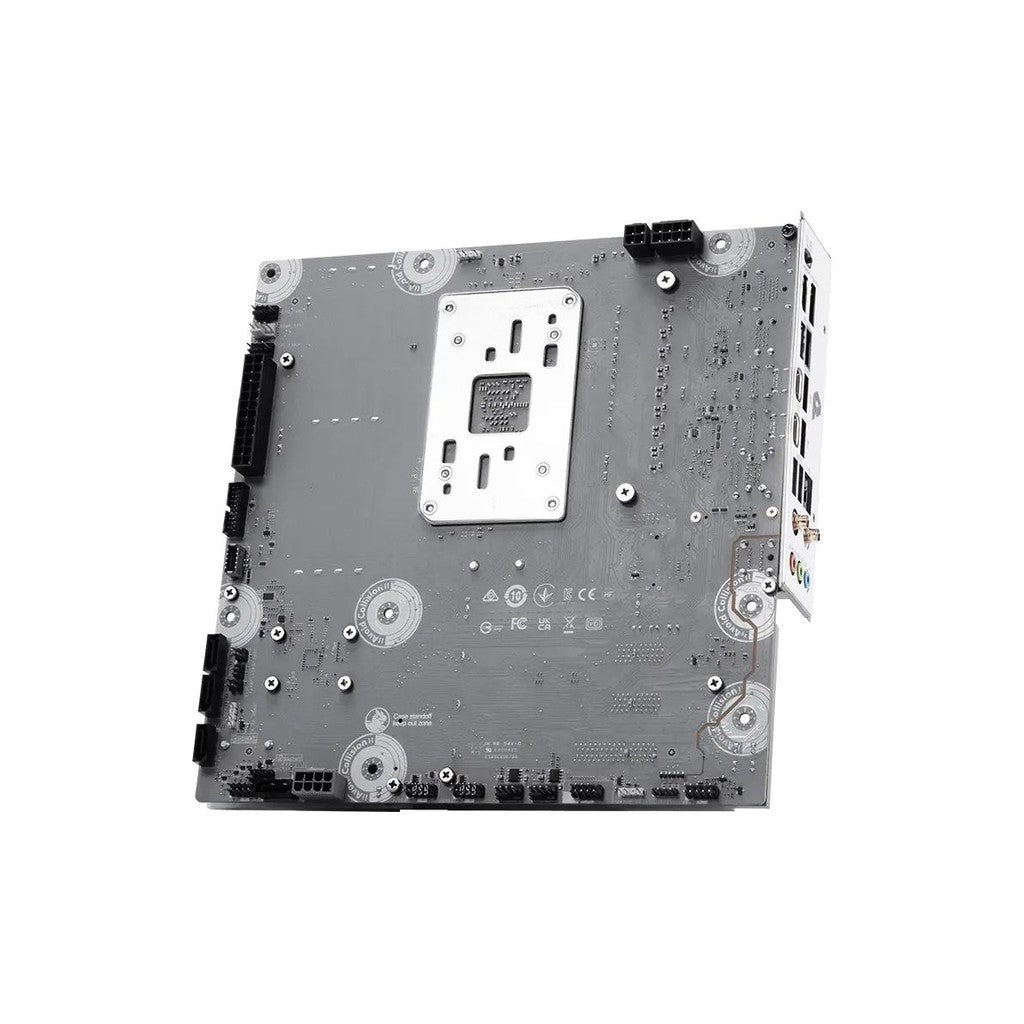

PRO B850M-A WIFI PZ offers a sleek design with a harmonious silver-white color scheme that perfectly matches white PC builds. Its innovative back-connect design reduces the complexity of cable management, resulting in an aesthetically pleasing appearance for the system. It is engineered with many exclusive features of MSI, Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.
| Specification | |
|---|---|
| Chipset | AMD B850 |
| CPU Socket | AMD Socket AM5 |
| Supported Processors | AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors |
| Form Factor | ATX |
| Memory Support | 4 × DDR5 DIMM, Up to 256GB |
| Memory Speeds | DDR5 4800–8200+ MT/s (OC) |
| Memory Features | Dual Channel, AMD EXPO™, Non-ECC Unbuffered, CUDIMM Support (CPU Dependent) |
| Graphics Outputs | 1 × HDMI 2.1, 1 × DisplayPort 1.4 (Up to 4K 60Hz, CPU with Integrated Graphics Required) |
| PCIe Slots | 1 × PCIe 5.0 x16, 1 × PCIe 4.0 x4, 2 × PCIe 3.0 x1 |
| M.2 Slots | 2 × M.2 NVMe (1 × PCIe 5.0 x4, 1 × PCIe 4.0 x4)* |
| SATA Ports | 4 × SATA 6Gb/s |
| RAID Support | RAID 0, 1 (NVMe), RAID 0, 1, 10 (SATA) |
| USB Rear I/O | 2 × USB 10Gbps Type-C, 3 × USB 10Gbps Type-A, 3 × USB 5Gbps Type-A |
| Internal USB Headers | 1 × USB 10Gbps Type-C, 2 × USB 5Gbps Type-A, 4 × USB 2.0 |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| Wired Networking | Realtek® 8126 5GbE LAN |
| Wireless | Wi-Fi 7 (802.11a/b/g/n/ac/ax/be), Bluetooth® 5.4 |

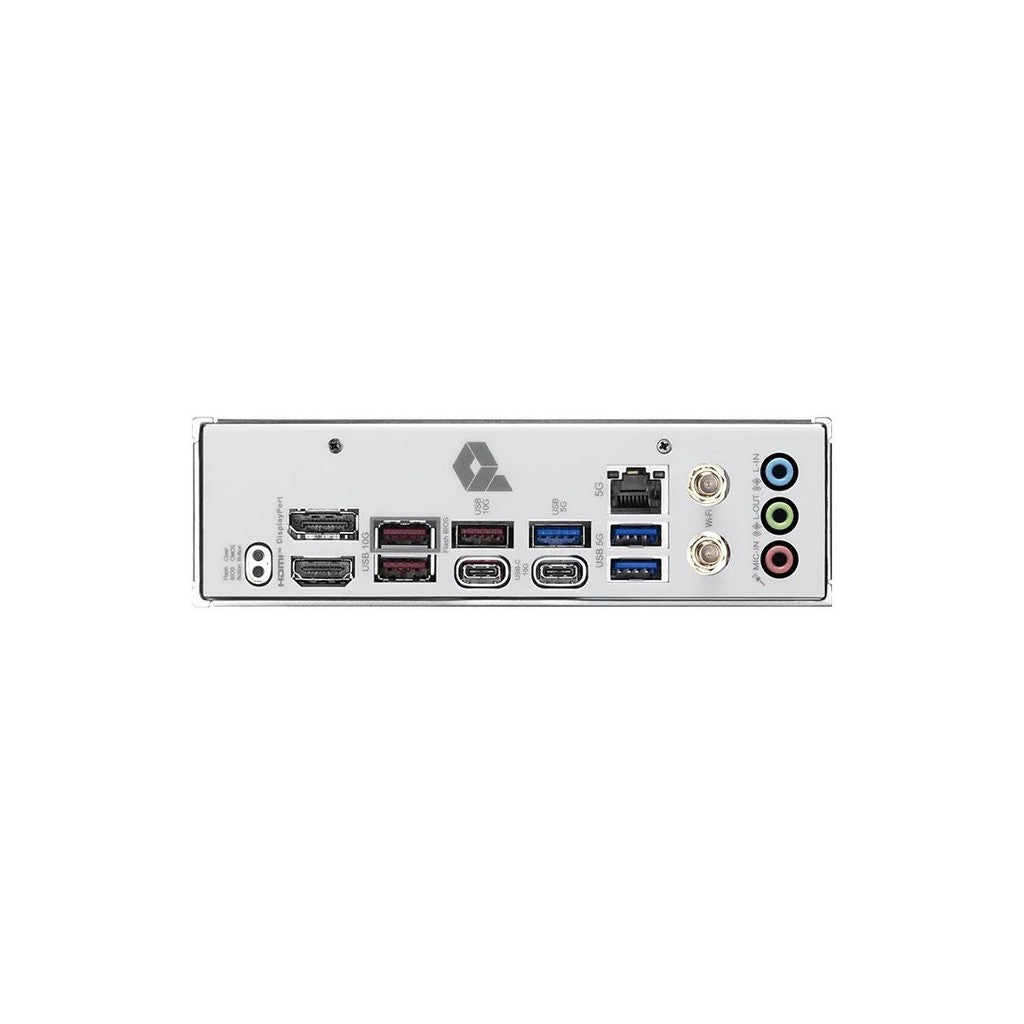

| Rear I/O Ports | HDMI, DisplayPort, 2 × USB 10Gbps Type-C, 3 × USB 10Gbps Type-A, 3 × USB 5Gbps Type-A, 5GbE LAN, Wi-Fi Antenna Connectors, Audio Jacks, Clear CMOS Button, Flash BIOS Button |
| Power Connectors | 24-pin ATX, 2 × 8-pin CPU, 1 × 8-pin PCIe |
| Fan Headers | 1 × CPU Fan, 1 × Pump/System Fan, 3 × System Fan |
| RGB Headers | 3 × Addressable RGB Gen2, 1 × RGB LED |
| Internal Connectors | TPM Header, Front Audio, Front Panel Headers, COM Header, Chassis Intrusion, JDASH Tuning Connector |
| LED Features | 4 × EZ Debug LEDs, 1 × EZ Memory Detection LED |
| Operating System Support | Windows® 11 64-bit |
| Special Features | Flash BIOS Button, Clear CMOS Button, Wi-Fi 7, Bluetooth 5.4, PCIe 5.0, DDR5 Memory Support |
*PCIe lane speeds and M.2 functionality vary depending on the installed Ryzen processor.
