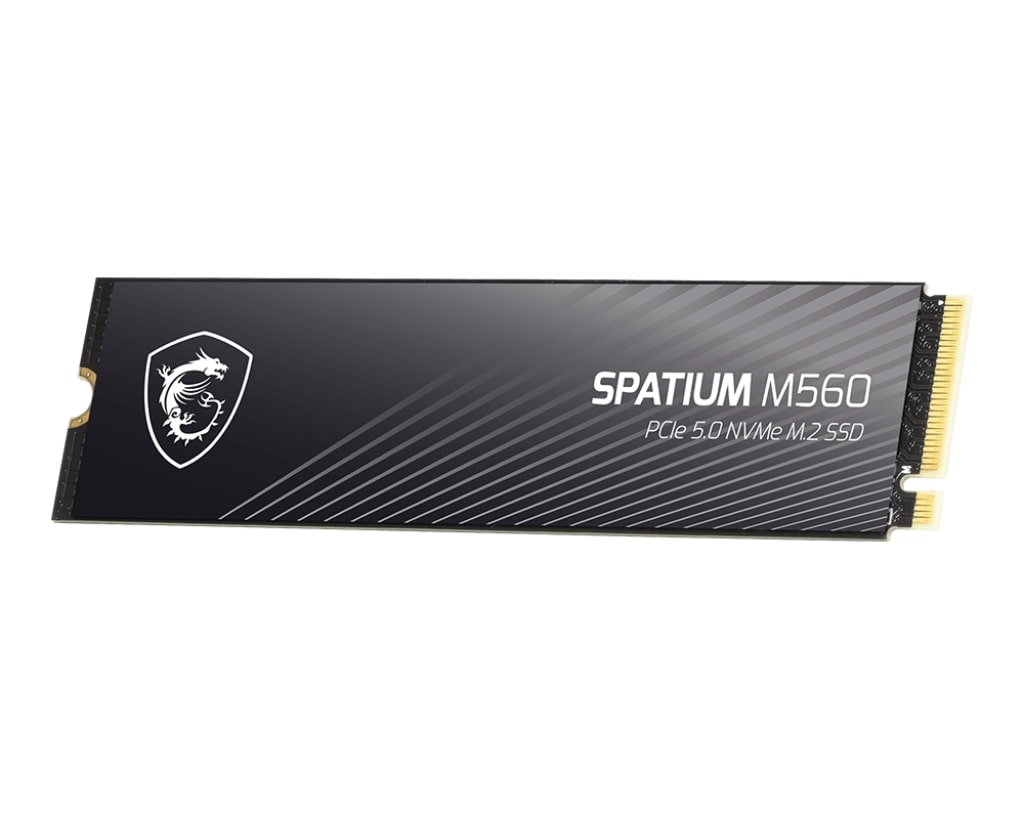

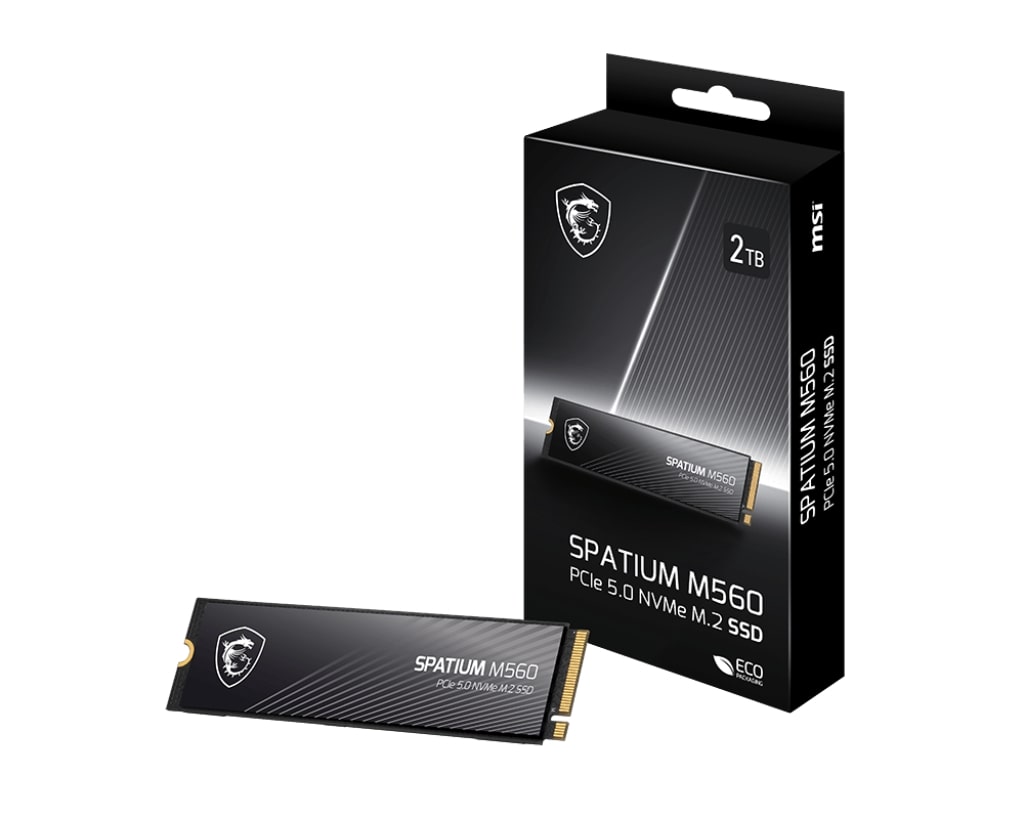

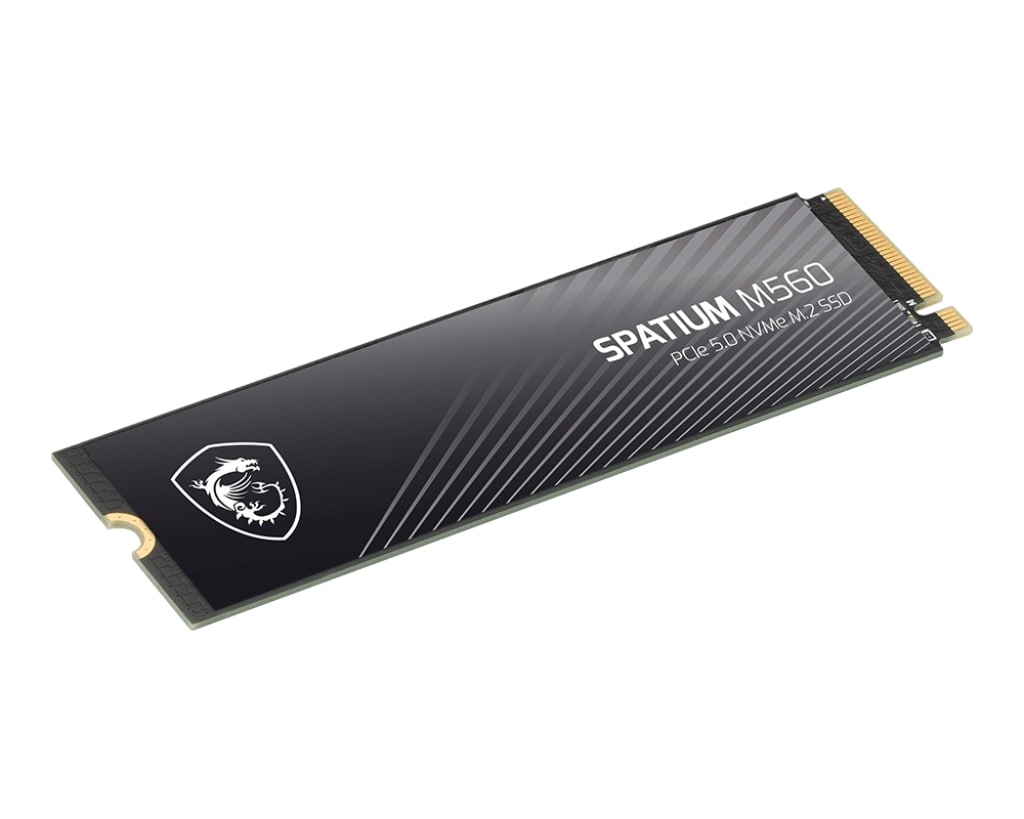

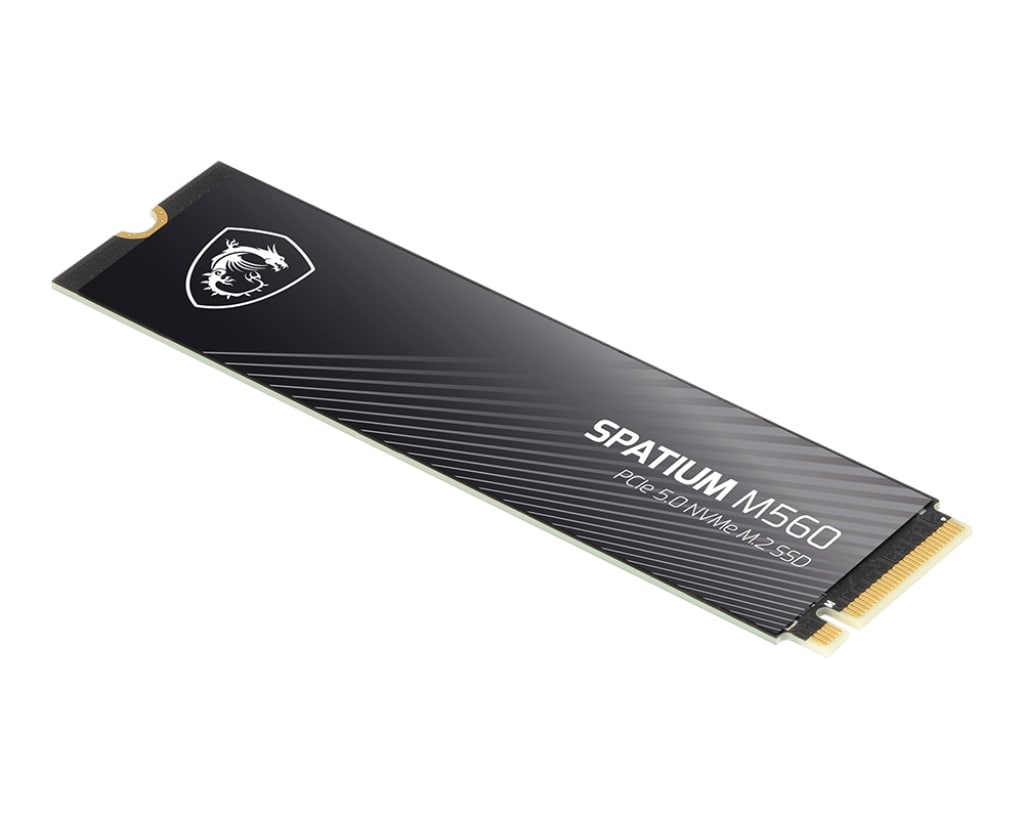

MSI Spatium M560 1TB 10,200MB/s PCIe 5.0 M.2 2280 NVMe SSD
MSI Spatium M560 1TB 10,200MB/s PCIe 5.0 M.2 2280 NVMe SSD
Couldn't load pickup availability
5 Year or 600TBW Limited Warranty
1TB Storage
Up to 10,200MB/s Read
Up to 8400MB/s Write
PCIe Gen 5.0 x4
M.2 2280 Form Factor
NVMe 2.0
CHARGING AHEAD WITH SPEED
From the MSI universe comes storage with blazing speeds and incredible performance. Take your system to the next level with SPATIUM.
SUPERCHARGED WITH
PCIe 5.0
Get excited for next-generation storage performance that unites the latest PCIe Gen 5 controller technology and state-of-the-art 3D NAND flash, providing up to 1.8 times faster read/write speeds compared to the previous generation SSDs.
The SPATIUM M560 delivers immense performance and capabilities that effortlessly handle even the most extreme gaming or productivity workflows, representing a significant advancement over PCIe 3.0 and SATA technologies.
TAKING GIANT
LEAPS
The SPATIUM M560 delivers immense performance and capabilities that effortlessly handle even the most extreme gaming or productivity workflows, representing a significant advancement over PCIe 3.0 and SATA technologies.
FULFILL UNLIMITED POTENTIAL
Built-in data security and error-correction capabilities extend the endurance and longevity of the NAND flash storage, empowering you to break records in games or take your talents to the next level.
BUILT TO WIN
With the gamers’ first attitude, SPATIUM SSDs optimized for high-performance bandwidth and throughput enable you to wait less at loading games and play to win with minimal latency.
CREATE. PRODUCE. DONE.
With the gamers’ first attitude, SPATIUM SSDs optimized for high-performance bandwidth and throughput enable you to wait less at loading games and play to win with minimal latency.
TAKE CARE OF YOUR DATA
Migrate your data, monitor drive health and performance metrics in real-time with MSI Center. Prevent loss of data using the provided Actiphy software solution which includes backup & restore functionality.
| Model Name | SPATIUM M560 PCIe 5.0 NVMe M.2 | |
| Capacity | 1TB | 2TB |
| Controller | PHISON E31T | |
| Flash Memory | 3D NAND | |
| Form Factor | M.2 2280 | |
| Interface | PCIe Gen5x4, NVMe 2.0 | |
| Compatibility | PCIe Gen5 /PCIe Gen4 / Gen3 / Gen2 / Gen1 | |
| Dimensions | 80.00mm (L) x 22.00mm (W) x 2.15mm (H) | |
| Sequential Read up to (MB/s) | 10,200 | 10,300 |
| Sequential Write up to (MB/s) | 8,400 | 8,700 |
| Random Read 4KB up to (IOPS) | 1,300,000 | |
| Random Write 4KB up to (IOPS) | 1,400,000 | |
| Maximum Operating Power (W) | 5.9 | |
| Idle Power PS3 (mW) | 50 | |
| Low Power L1.2 (mW) | 3.5 | |
| Operating Temperatures | 0°C – 70°C | |
| Storage Temperatures | 40°C – 85°C | |
| Terabytes Written (TBW) | 600 | 1200 |
| Mean Time Between Failure (MTBF) | Up to 1,500,000 Hours | |
| Limited Warranty | 5 Years, or the coverage for the maximum TBW as stated, whichever comes first. | |
| Advanced Features | TRIM (Performance Optimization, OS support required) SMART (Self-Monitoring, Analysis and Reporting Technology) LDPC (Low Density Parity Check) ECC Algorithm End to End Data Path Protection APST (Autonomous Power State Transition) |
|
