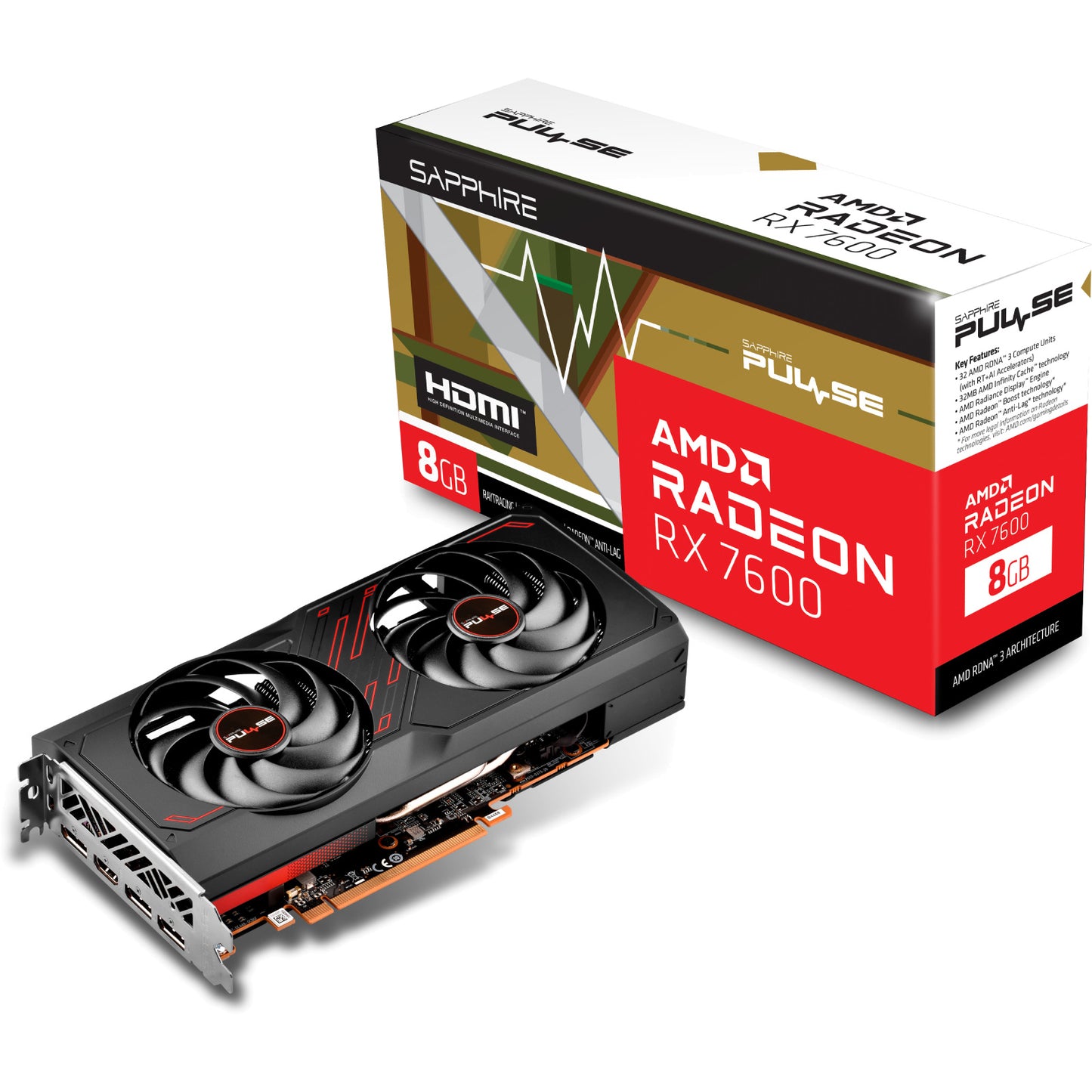

Sapphire PULSE AMD Radeon RX 7600 Gaming 8GB GDDR6 Graphics Card

Name: Sapphire PULSE AMD Radeon RX 7600 Gaming 8GB GDDR6 Graphics Card
Brand: Sapphire
Price: 575.00 NZD
Availability: InStock

$575.00

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

AMD RDNA™ 3 Architecture

Fuse Protection

In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.

Optimized Composite Heatpipe

The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.

Two-Ball Bearing

These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.

Tough Metal Backplate

The all-aluminum backplate provides additional rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation.

AMD RDNA™ 3

Specifications

GPU

AMD Radeon™ RX 7600 Graphics Card
AMD RDNA™ 3 Architecture

Engine Clock

Boost Clock: Up to 2755 MHz
Game Clock: Up to 2355 MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

2048

Compute Units

32 CU

Infinity Cache

32MB

Ray Accelerators

Memory Size/Bus

8GB/128 bit GDDR6

Memory Clock

18 Gbps Effective

Displays

Maximum 4 Displays

Resolution

HDMI™: 7680×4320
DisplayPort 1.4: 7680×4320

Interface

PCI-Express 4.0 x8

Output

1x HDMI
3x DisplayPort

BIOS Support

UEFI

Game Index

1080P Ultimate

Sapphire Features

Fuse Protection
Dual-X Cooling Technology
Intelligent Fan Control
Precision Fan Control
Metal Backplate
Two-Ball Bearing Fans
Optimized Composite Heatpipe
TriXX Supported
TriXX Boost

AMD Features

AMD RDNA 3 Architecture
DirectX 12 Ultimate
AMD Smart Access Memory
AMD Infinity Cache
PCI Express 4.0 Support
AMD FreeSync™ Technology
DisplayPort 1.4 with DSC
HDMI
Video Streaming up to 8K
AMD Radeon VR Ready Premium
AMD Radeon Image Sharpening
AMD Radeon Anti-Lag
AMD Software: Adrenalin Edition™ Technology
Game Driver Optimizations

Cooling

2 Fans

Form Factor

2 slot, ATX
Dimension: 240(L)X 107.1(W)X 44.07 (H)mm

Power Consumption

185W Total Board Power

Linux®, Windows® 10, and Windows 11. 64-bit operating system required

System Requirement

Minimum 550 Watt Power Supply
1 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
