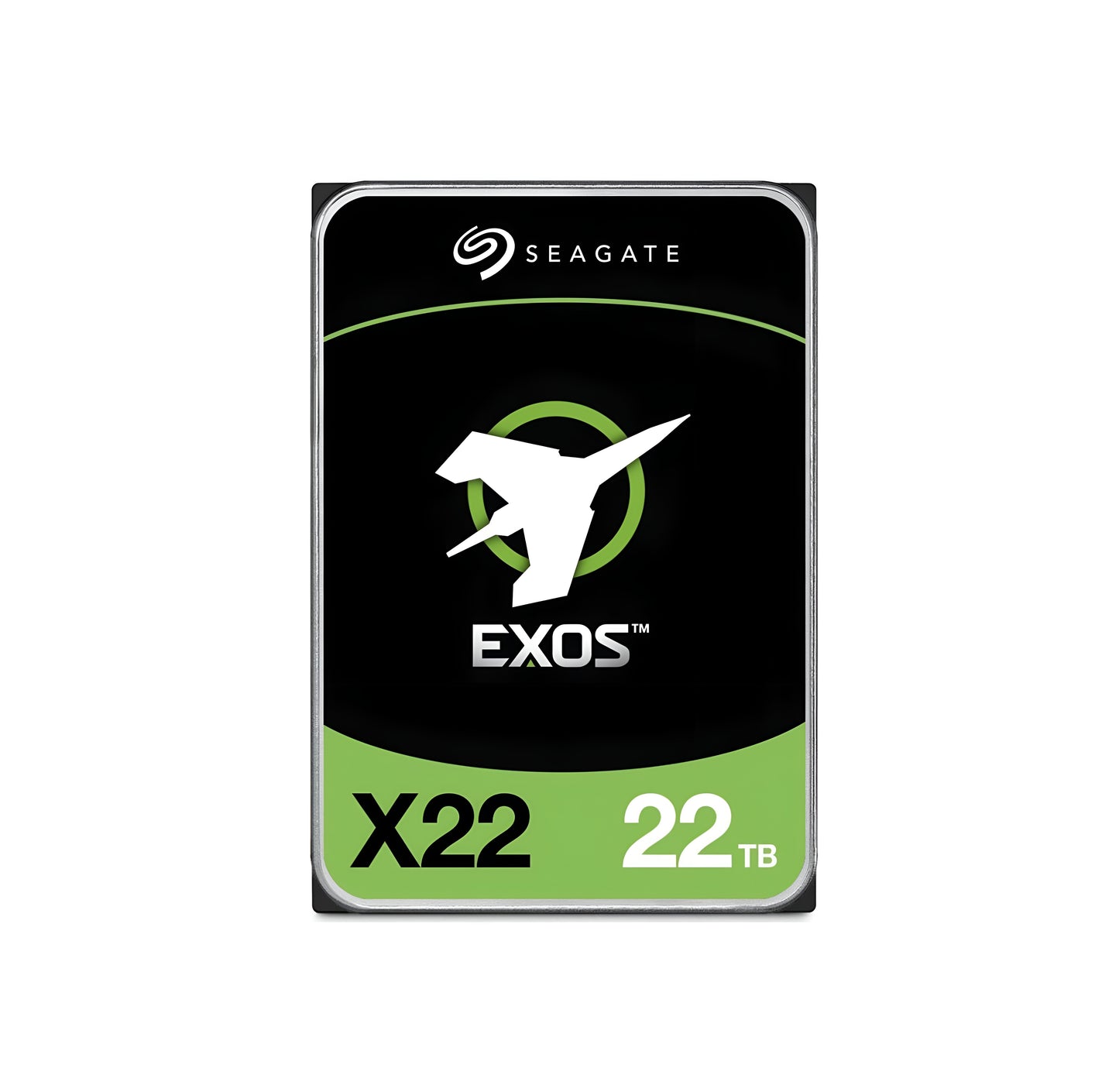

Seagate Exos X22 22TB 3.5" Internal HDD 5Yr Wty

5 Year Limited Warranty

Exos X22-Powerful performance. Proven technology. Scalable design.
Powerful performance with proven technology-Seagate's ® Exos® X22 drives are built off the platform that's shipped millions globally and deployed in leading cloud service provider solutions-making them the most sought-after drives in our datasphere. Designed with the highest rack-space efficiency and protected with Seagate Secure™, Exos X22 offers extreme market-leading capacity, earning customer confidence by delivering trusted peace of mind.

Maximum Storage Capacity for Highest Rack Space Efficiency
- Market-leading 22TB HDD offering the highest capacity available for more petabytes per rack [1]
- Highly reliable performance with enhanced caching-making it the logical choice for cloud data center and massive scale-out data center applications
- Hyperscale SATA model tuned for large data transfers and low latency
- PowerBalance™ feature optimizes watts per TB
- Maximize total cost of ownership savings through lower power and weight with helium-sealed drive design
- Proven helium side-sealing weld technology for added handling, robustness, and leak protection
- Digital environmental sensors to monitor internal drive conditions for optimal operation and performance
- Data protection and security-featuring Seagate Secure for safe, affordable, fast, and easy drive retirement
- Proven enterprise-class reliability backed by a 2.5M-hr MTBF rating

Best-Fit Applications
- Scalable hyperscale applications/cloud data centers
- Massive scale-out data centers
- Big data applications
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays
- Distributed file systems, including Hadoop and Ceph
- Enterprise backup and restore-D2D, virtual tape
- Centralized surveillance

[1] Compared to 20TB competitive product



Specifications

SATA 6Gb/s

Capacity

22TB

Standard Model FastFormat™ (512e/4Kn)

ST22000NM001E

Features

Helium Sealed-Drive Design

Yes

Conventional Magnetic Recording (CMR)

Yes

Protection Information (T10 DIF)

-

Super Parity

Yes

Low Halogen

Yes

PowerChoice™ Idle Power Technology

Yes

PowerBalance™ Power/Performance Technology

Yes

Hot-Plug Support

Yes

Cache, Multisegmented (MB)

512

Organic Solderability Preservative

Yes

RSA 3072 Firmware Verification (SD&D)

Yes

Reliability/Data Integrity

Mean Time Between Failures (MTBF, hours)

2500000hr

Reliability Rating @ Full 24×7 Operation (AFR)

0.35%

Nonrecoverable Read Errors per Bits Read

1 sector per 10E15

Power-On Hours per Year (24×7)

8760

512e Sector Size (Bytes per Sector)

512

4Kn Sector Size (Bytes per Sector)

4096

Performance

Spindle Speed (RPM)

7200RPM

Interface Access Speed (Gb/s)

6.0, 3.0

Max. Sustained Transfer Rate OD (MB/s,MiB/s)

285/272

Random Read/Write 4K QD16 WCD (IOPS)

168/550

Average Latency (ms)

4.16ms

Interface Ports

Single

Rotation Vibration @ 20-1500 Hz (rad/sec²)

12.5

Power Consumption

Idle A (W) Average

5.74W

Max Operating, Random Read/Write 4K/16Q (W)

9.4, 6.4

Power Supply Requirements

+12 V and +5 V

Environmental

Temperature, Operating (°C)

5°C - 60°C

Vibration, Nonoperating: 2 to 500Hz (Grms)

2.27

Shock, Operating 2ms (Read/Write) (Gs)

40Gs

Shock, Nonoperating, 2ms (Gs)

200

Physical

Height (in/mm, max)

1.028in/26.11mm

Width (in/mm, max)

4.010in/101.85mm

Depth (in/mm, max)

5.787in/147.0mm

Weight (gm/lb)

680g/1.499lb
