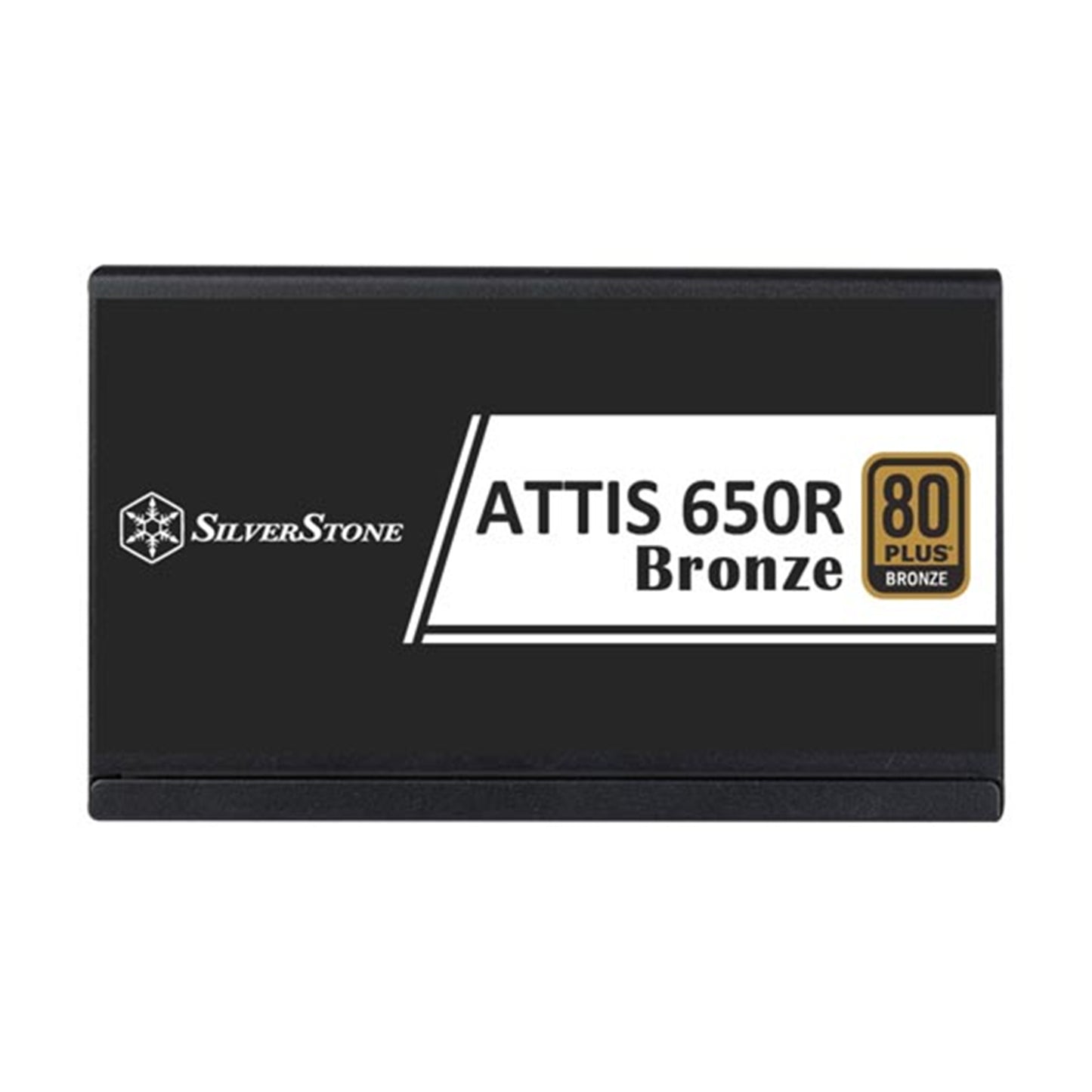

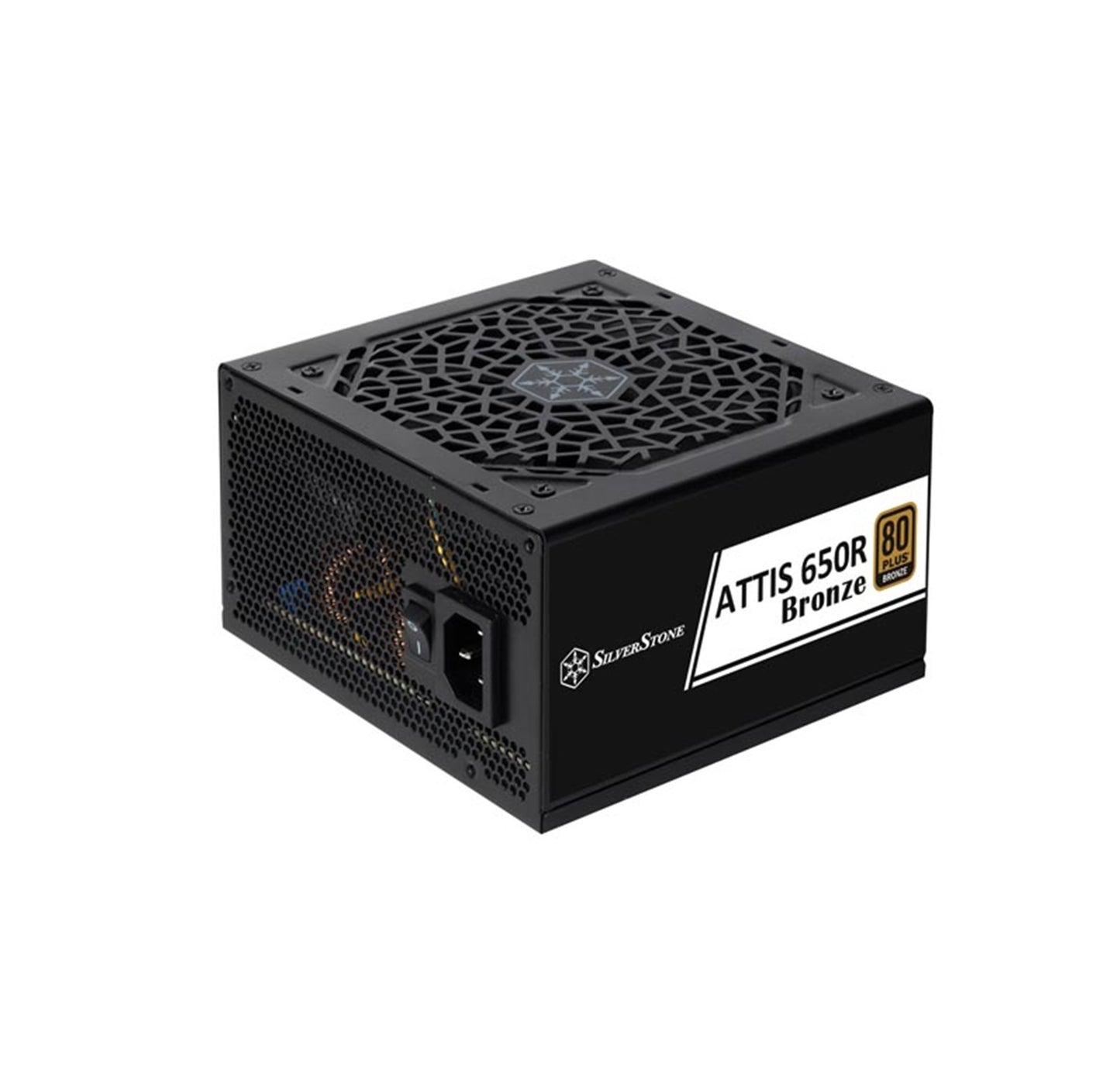

SilverStone ATTIS 650R 650W 80Plus Bronze ATX PSU
SilverStone ATTIS 650R 650W 80Plus Bronze ATX PSU
Couldn't load pickup availability
ATTIS 650R Bronze
80 PLUS Bronze 650W ATX 3.1 ATX Power Supply
- Compliant with ATX 3.1 standards and supports up to 2X power excursion
- High efficiency with 80 PLUS Bronze certification
- 24/7 continuous power output with 50? operating temperature
- Japanese primary capacitor
- Silent running 120mm fan with 18 dBA minimum
- Multiple protection circuitry
- Flat cable design
- Active PFC+Double forward+DC to DC Design
Compliant with ATX 3.1 standards and supports up to 2X power excursion
Bronze Efficiency Certified
Designed for 80 Plus Bronze level efficiency to minimize heat while considerably reducing electricity consumption.

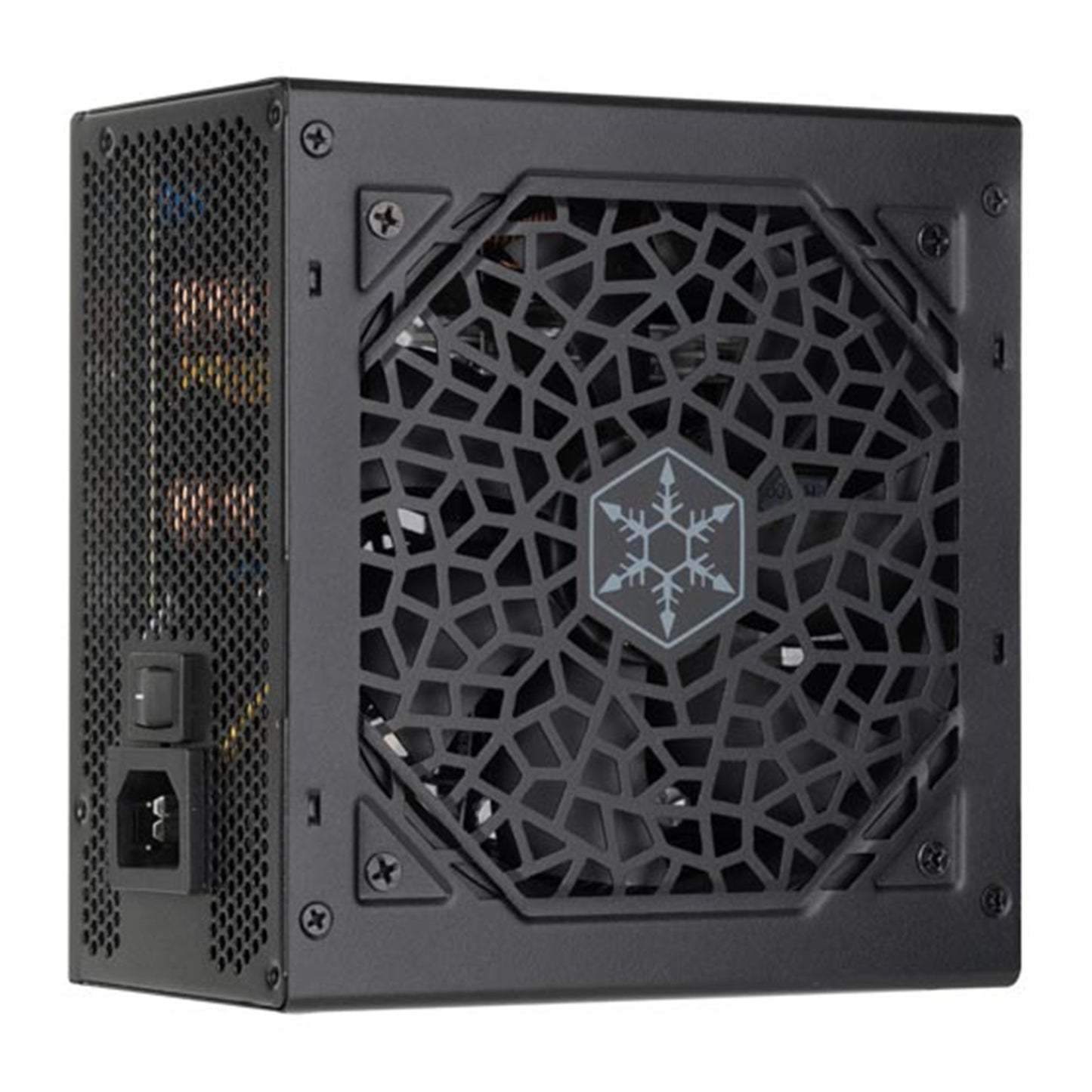

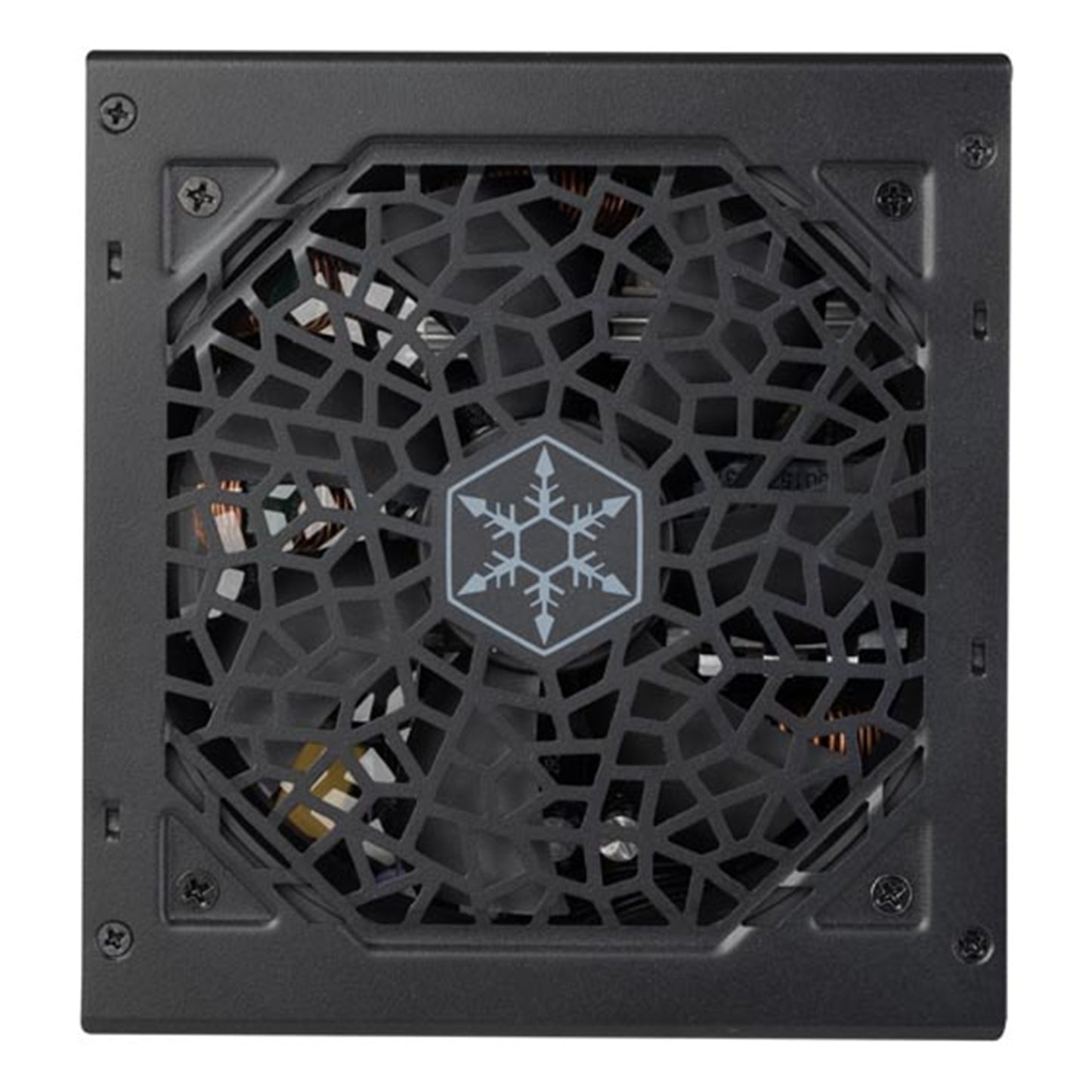

High Reliability Cooling Fan
The cooling is entrusted to a 120mm fan that offers exceptional airflow and low operational-induced noise level.
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking
Flat cables have much greater flexibility to allow for tighter folding and management of cables
Advanced protections for safety and security
- Over power protection
- Over voltage protection
- Short circuit protection
- Under voltage protection
Connectors / Cable

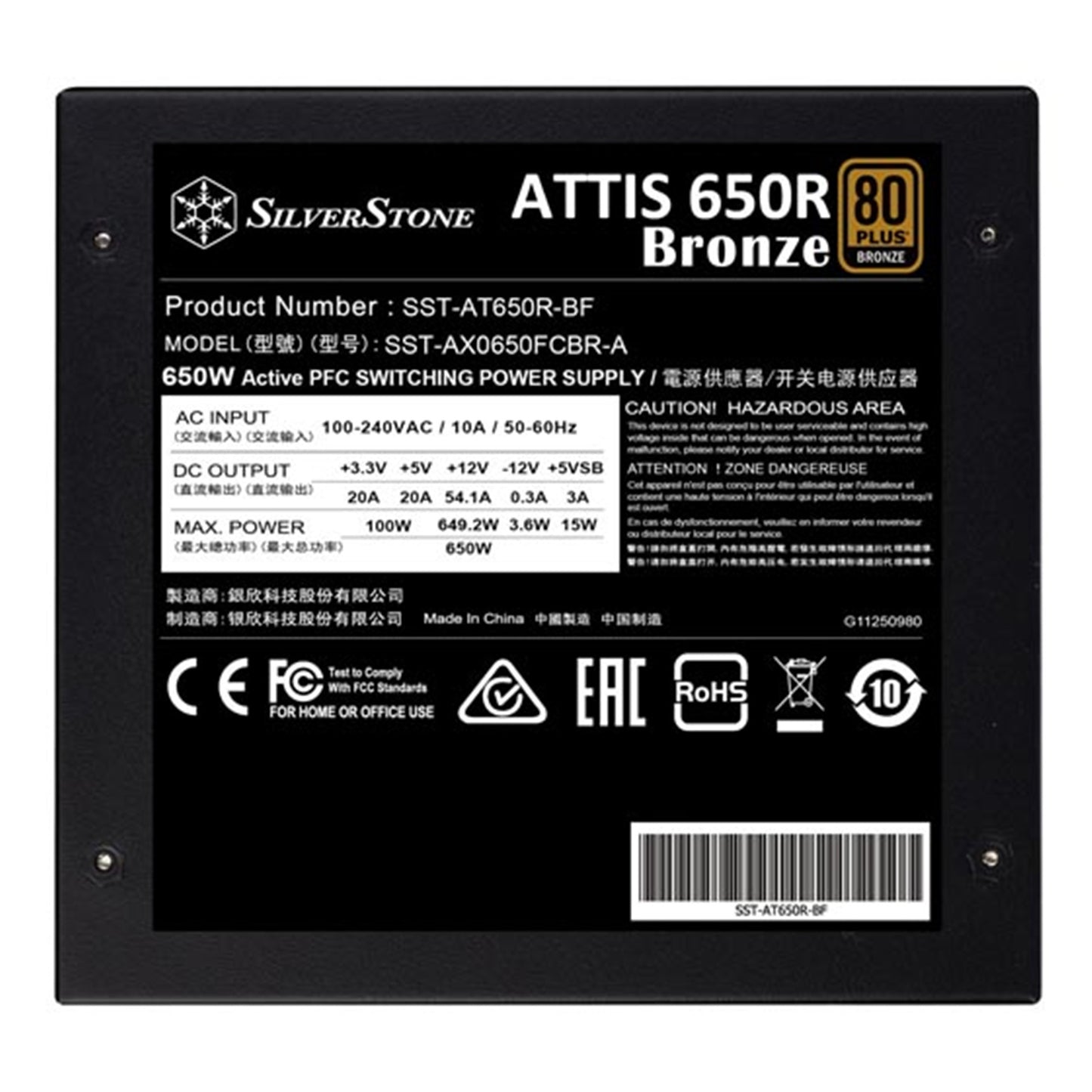

Specifications
Product No.
SST-AT650R-BF (Black)
Model (safety certification)
SST-AX0650FCBR-A
Color
SST-AT650R-BF: Black (lead-free paint)
Max. DC Output
650W
Combined +3.3V & +5V
100W
Combined +12V
649.2W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
82% ~ 85% (at 20% ~ 100% loading)
MTBF
100,000 hours
Operating temperature
0°C ~ 50°C
Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under Voltage Protection
Connectors
1 x 24 / 20-Pin motherboard connector
2 x 4-Pin + 4-Pin ATX 12V connectors
4 x 8 / 6-Pin PCIe connectors
6 x SATA connectors
3 x 4-Pin Peripheral connector
Cooling System
Silent 120mm fan
Noise Level
18 dBA minimum
Certification
80 PLUS Bronze
Form factor
ATX (PS2)
Dimension
150mm (W) × 86mm (H) × 140mm (D)
5.91" (W) x 3.39" (H) x 5.5" (D)
Weight
1.52 kg
