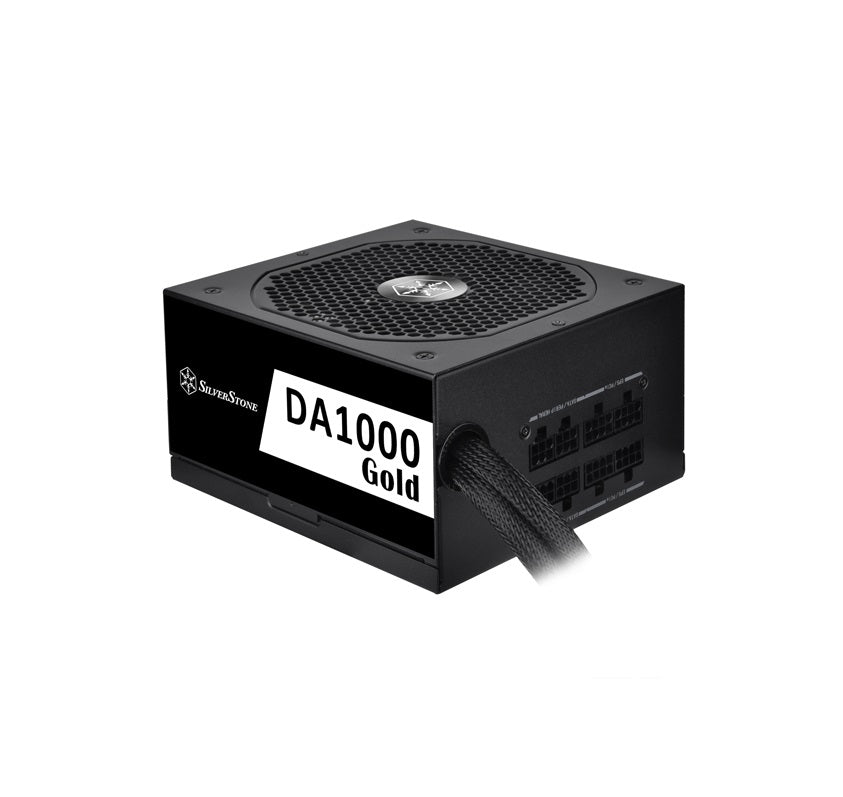

Silverstone DA1000-GH Strider Gold 1000W Modular ATX PSU

5 Year Limited Warranty

DA1000 Gold

Cybenetics Gold 1000W semi-modular ATX power supply
High efficiency with 1000W Cybenetics 230V Gold / 115V Silver certification

Semi-modular cabling design

Japanese primary capacitors

24/7 continuous power output with 40℃ operating temperature

Class-leading single +12V rail

Silent running 140mm fan with 18 dbA minimum

Dual EPS 8 pin with multiple PCIe 8 / 6 pin connectors

Product No.
SST-DA1000-GH
Model (safety certification)
SST-AX1000HCBR-A
Color
Black (lead-free paint)
Max. DC Output
1000W
Power density
484W per liter
Load Range
Output    +3.3V    +5V    +12V    +5VSB    -12V
Max.(Amps)    20A    20A    83.33A    3A    0.3A
Min.(Amps)    0A    0A    0A    0A    0A
Range (%)    ±5%    ±5%    ±5%    ±5%    ±10%
Line Reg.(%)    ±1%    ±1%    ±1%    ±2.5%    ±2.5%
Ripple(mVp-p)    50mV    50mV    70mV    50mV    80mV
Combined +3.3V & +5V
100W
Combined +12V
999.66W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
≥87% & <89%
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under Voltage Protection
Over Temperature Protection
No load operation

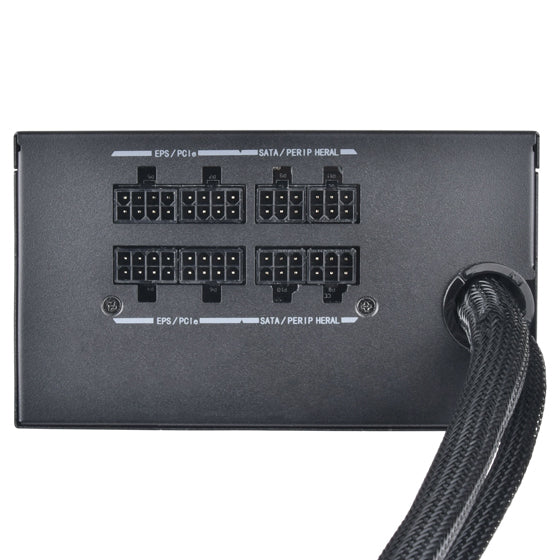

Connectors
1 x 24 / 20-Pin motherboard connector
1 x 8-Pin EPS & 1 x 8 / 4-Pin ATX 12V connector
8 x 8 / 6-Pin PCIe connector
12 x SATA connector
4 x 4-Pin Peripheral connector
Cooling System
Silent 140mm FDB fan
Noise Level
18 dBA minimum
Certification
Cybenetics Gold
Form factor
ATX (PS2)
Dimension
150mm (W) × 86mm (H) × 160mm (D)
5.91" (W) x 3.39" (H) x 6.3" (D)
Weight
2.24 kg
