SilverStone

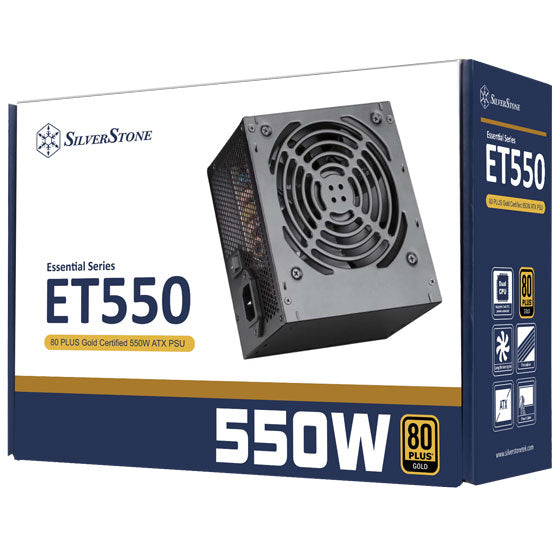

SilverStone ET550-G 550W 80Plus Gold ATX PSU 5 Year Warranty

SilverStone ET550-G 550W 80Plus Gold ATX PSU 5 Year Warranty

$119.00
$119.00
Sale Sold out
Tax included. Shipping calculated at checkout.
  • High efficiency with 80 PLUS Gold certification
  • 24/7 continuous power output with 40℃ operating temperature
  • Class-leading single +12V rail
  • Silent running 120mm fan with 18 dBA
  • PCIe 8pin and PCIe 6pin connectors support
  • All-black flat cables design
  • Dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support (V1.2)
Product Specifications
Product No.
SST-ET550-G
Color
Black（Lead-Free Paint）
Max. DC Output
550W
Power density
305W per liter
Load Range
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 20A 20A 45A 2.5A 0.3A
Peak (Amps) / / / 3.0A /
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±5% ±5% ±5% ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV
Combined +3.3V & +5V
110W
Combined +12V
540W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC（PF>0.9 at full load）
Efficiency
87% ~ 90% at 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over current protection

Over power protection

Over voltage protection

Short circuit protection

Over temperature protection
Connectors
1 x 24 / 20-Pin motherboard connector (500mm)

*1 x 8-Pin EPS and 1 x 4-Pin + 4-Pin ATX 12V connector (750mm / 150mm)

2 x 8 / 6-Pin PCIe connector (500mm / 150mm)

8 x SATA connector ("500mm / 150mm / 150mm / 150mm" x 2)

3 x 4-Pin Peripheral connector (500mm / 150mm / 150mm)

1 x 4-Pin Floppy connector (500mm / 150mm / 150mm / 150mm)
Cooling System
Single 120mm silent fan
Noise Level
18dBA minimum
Certification
80 PLUS Gold
Form factor
ATX
Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)
Weight
1.54 Kg
Other
GPU Support list
