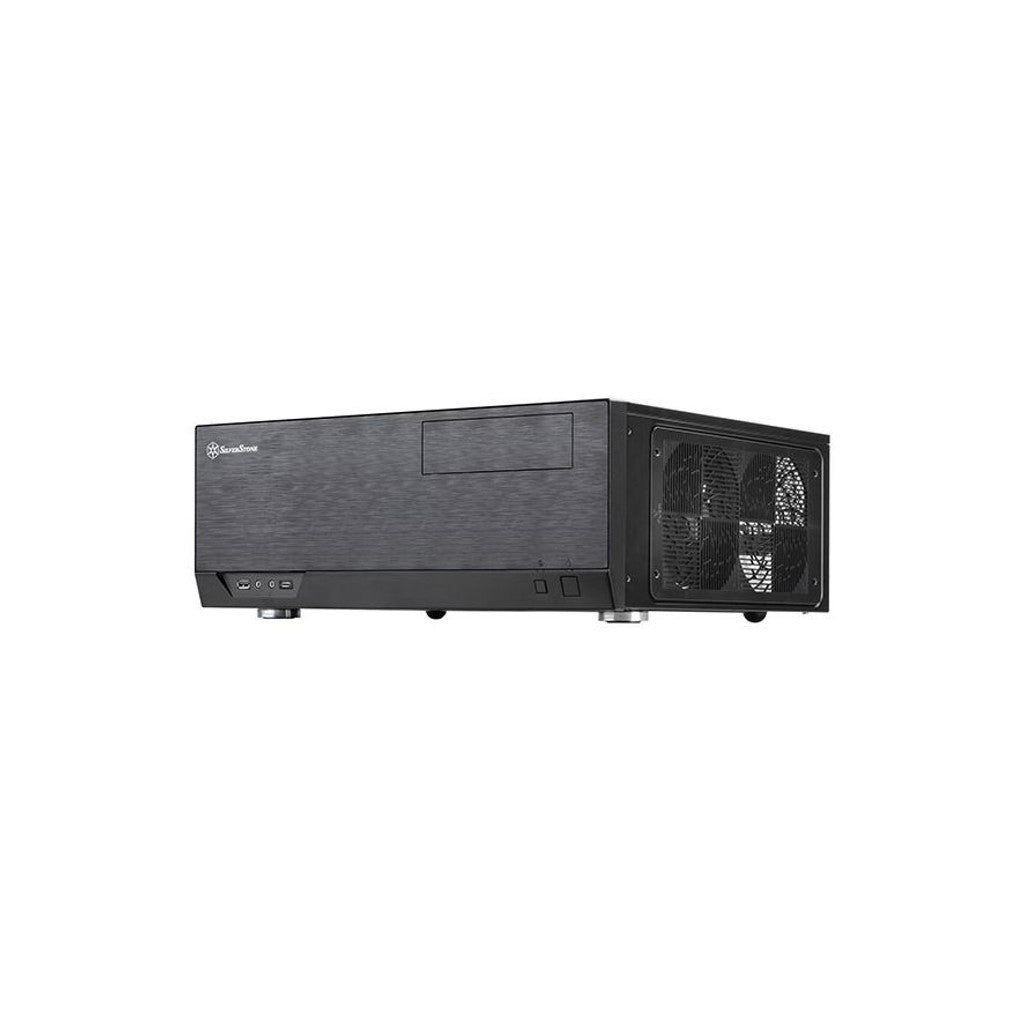

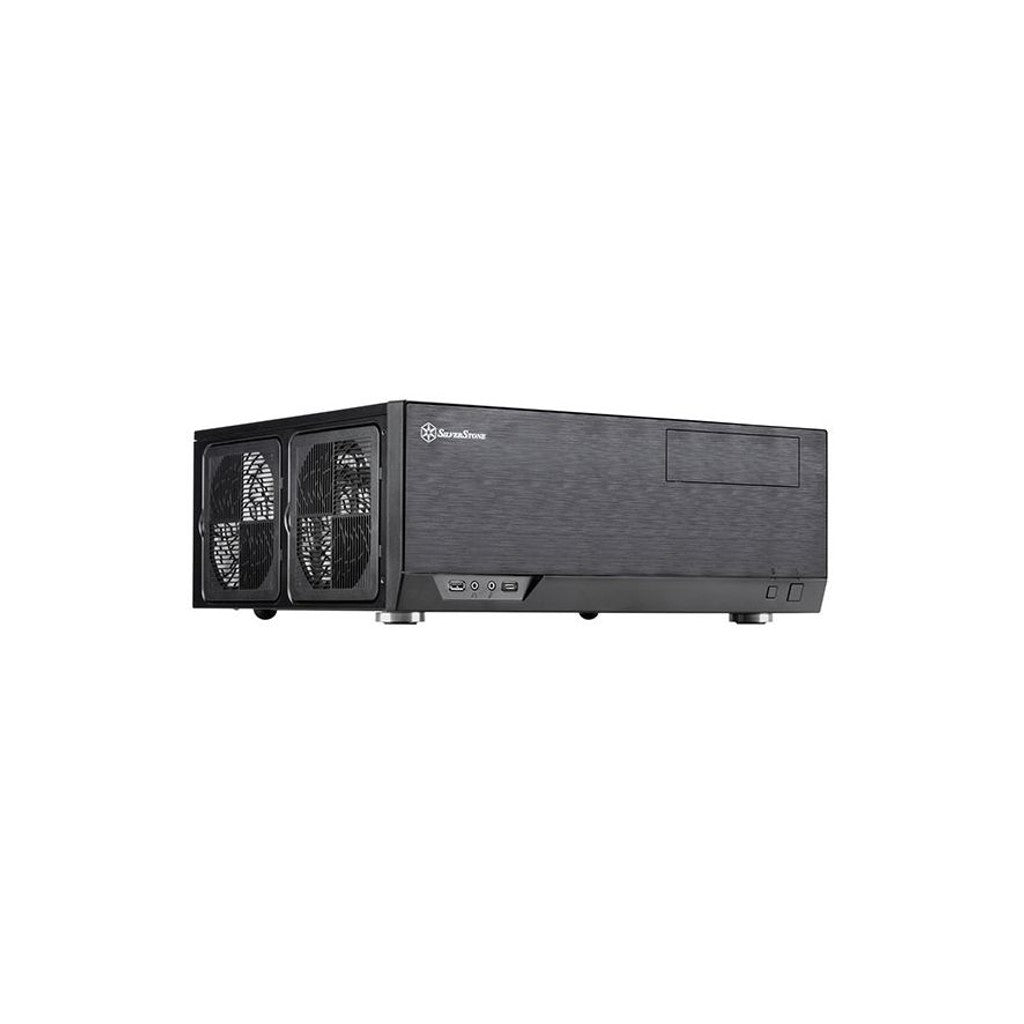

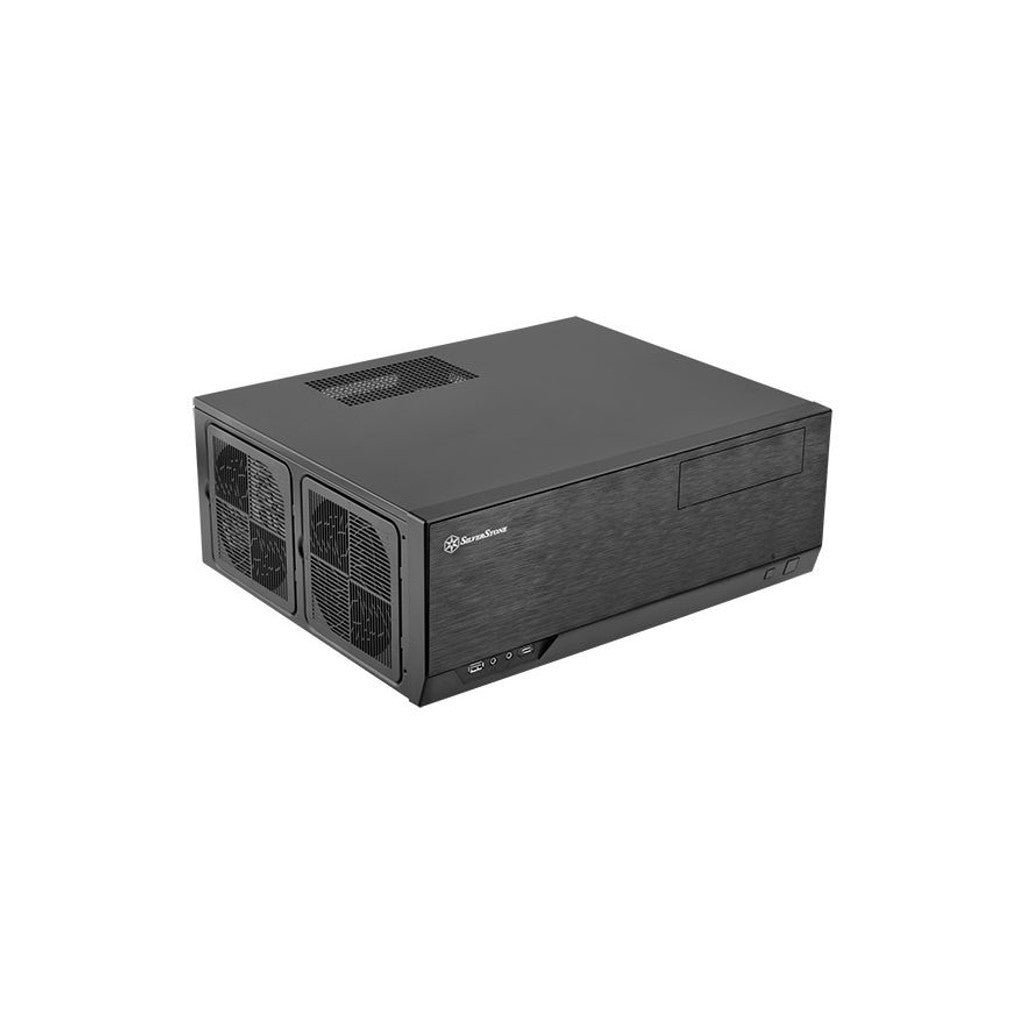

SilverStone GD09B-C Grandia ATX Black HTPC Case
SilverStone GD09B-C Grandia ATX Black HTPC Case
Regular price
$179.00
Regular price
Sale price
$179.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
GD09
- Includes USB Type-C front port (SST-GD09B-C only)
- Positive air pressure design for excellent cooling/quietness and dust-prevention
- Supports SSI-CEB, ATX, Micro-ATX motherboards
- Support SilverStone RA02 rackmount ears

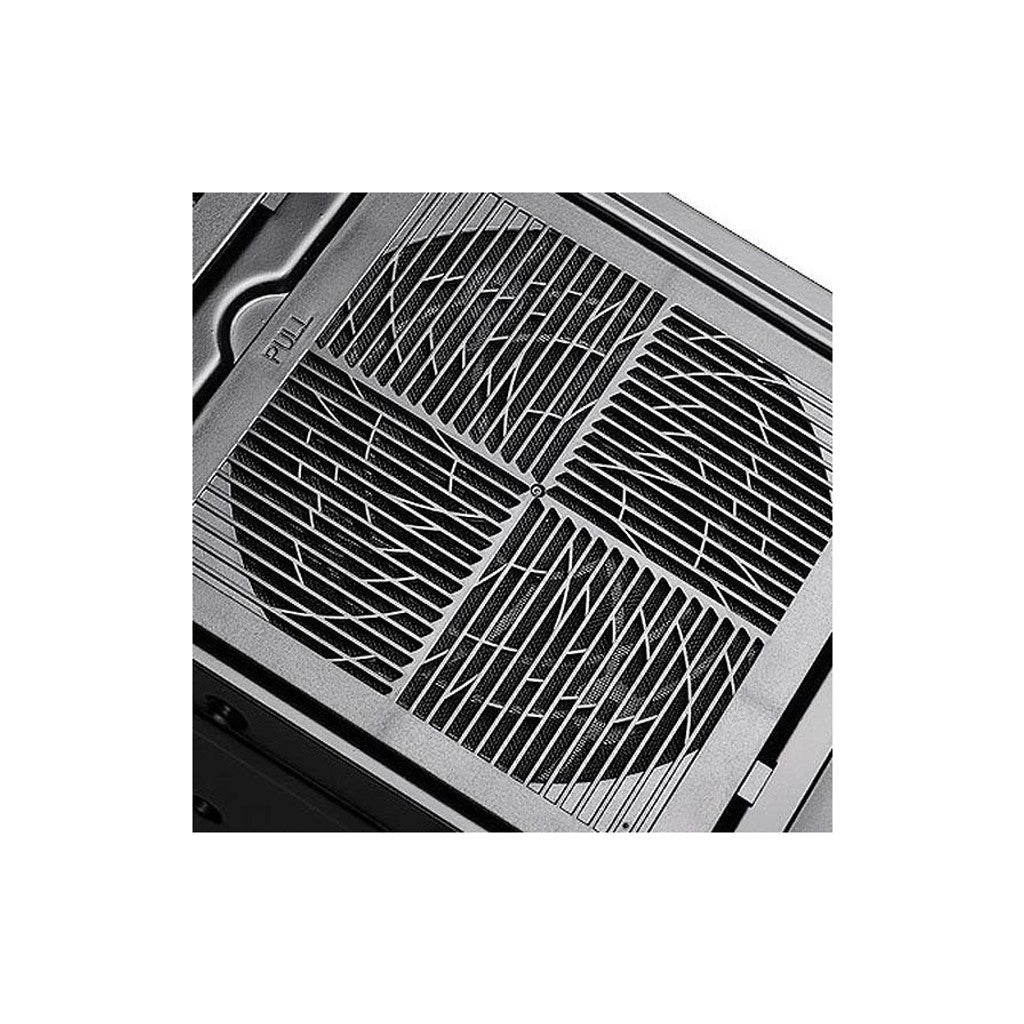

- Quick access filters included
- Incredible 358mm depth to fit comfortably inside home theater cabinet
- Drive cages with multi-purpose mounts eliminate need for adapters
Product Specifications
Model No.
SST-GD09B-C (black, Type-C port)
Material
Plastic front panel with faux aluminum finish, 0.8mm steel body
Motherboard

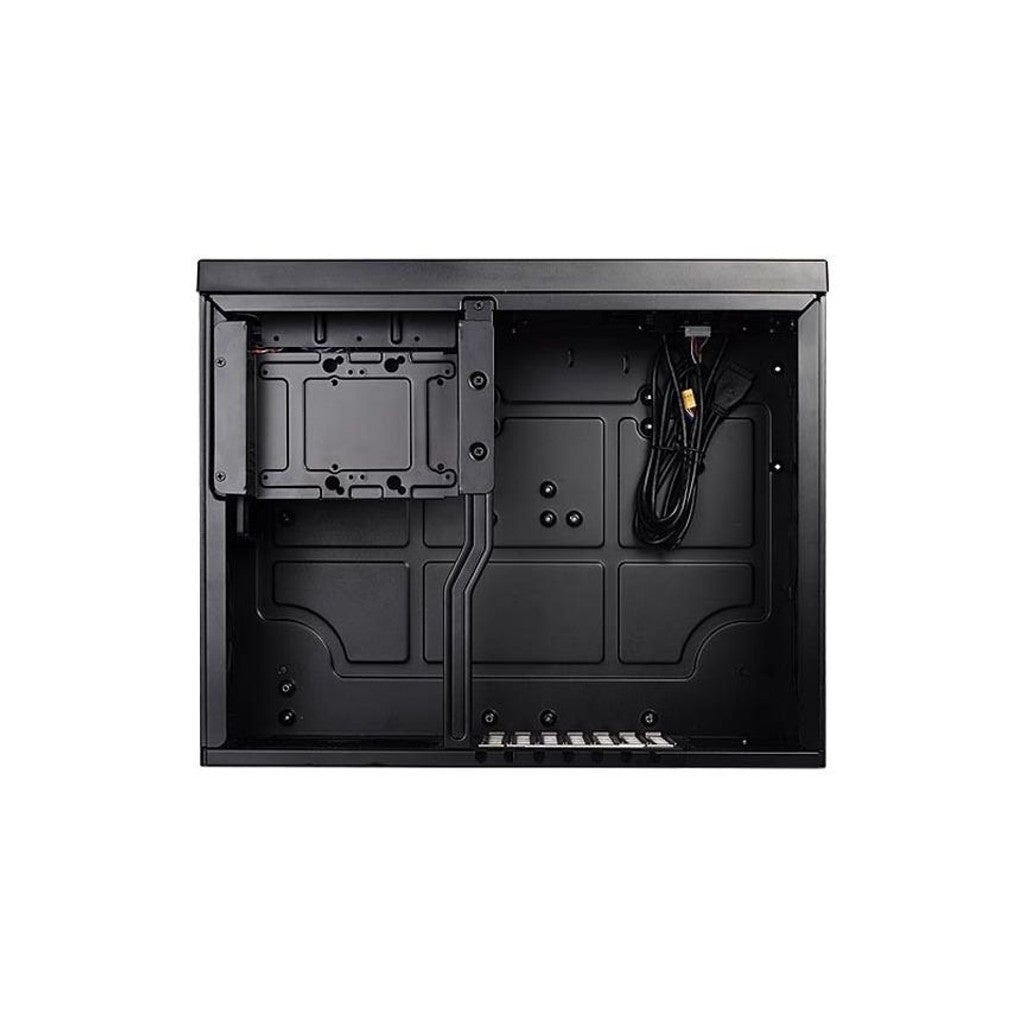

Drive bay
External
- 5.25" x 1 (compatible with 3.5" x 1 or 2.5" x 2)
Internal
- 3.5" x 2 (one compatible with 2.5"), 2.5" x1
Cooling system

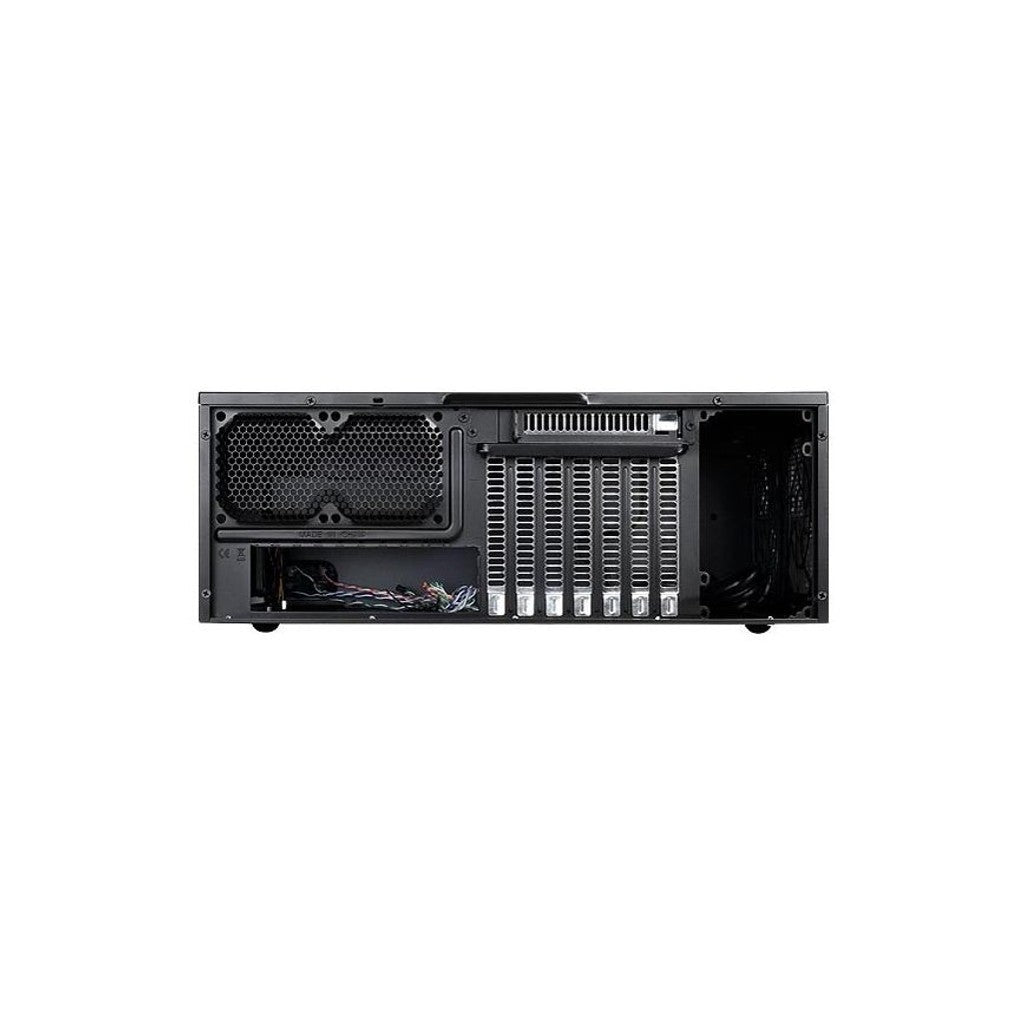

Rear
- 80mm x 2

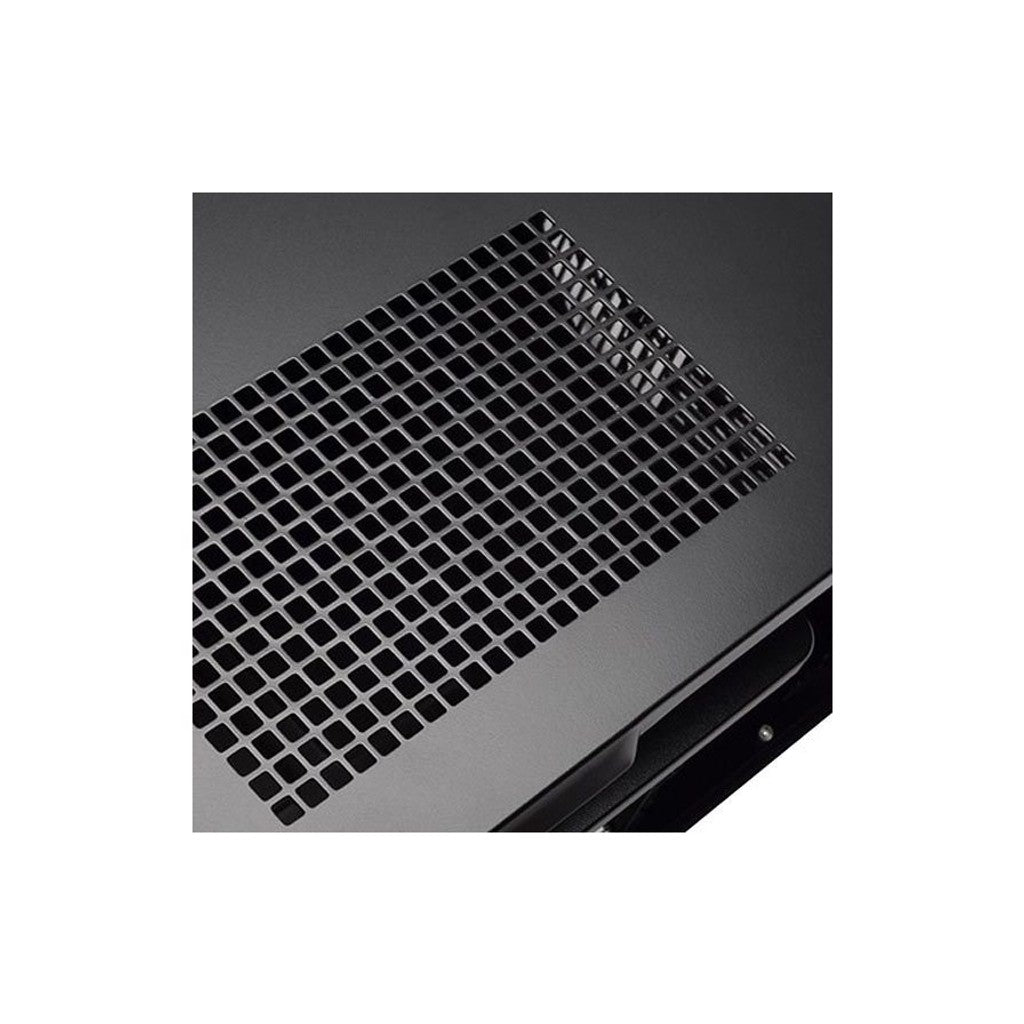

Top
- Expansion card vent

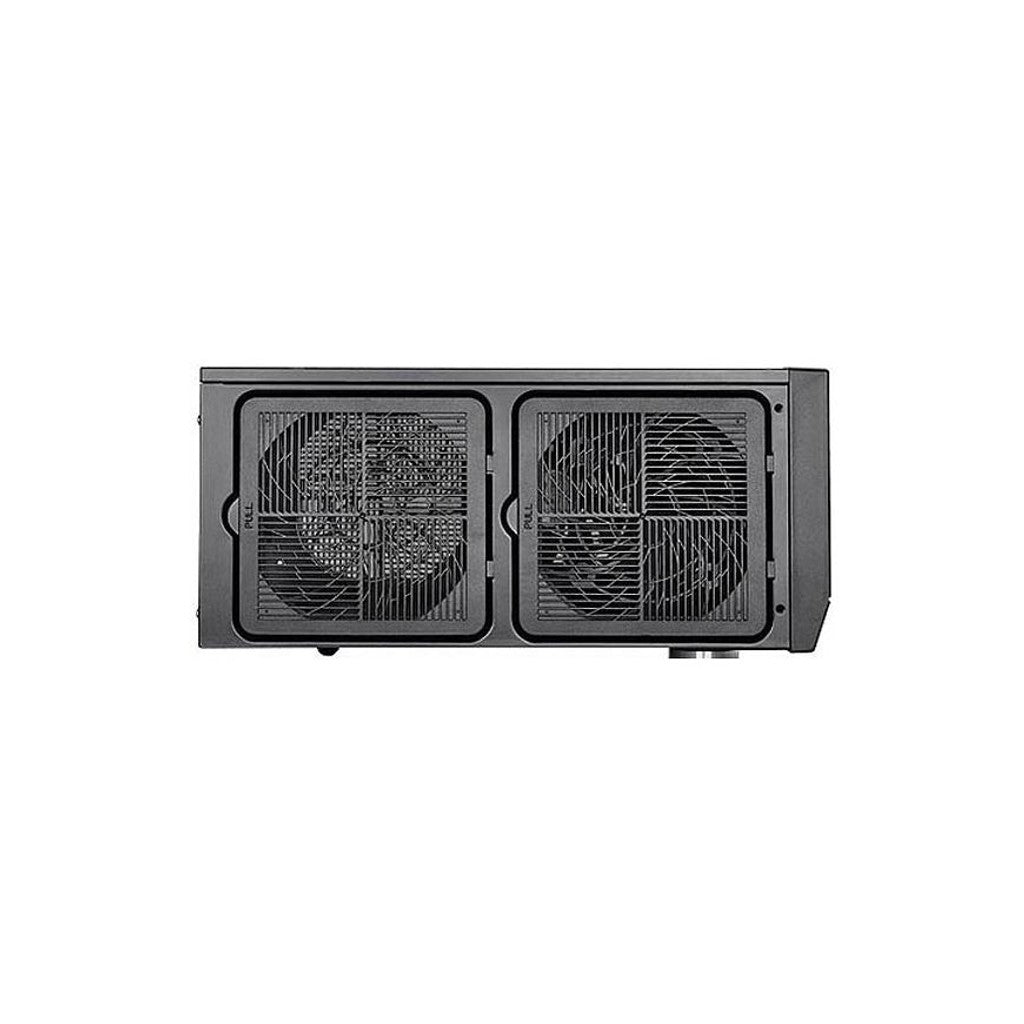

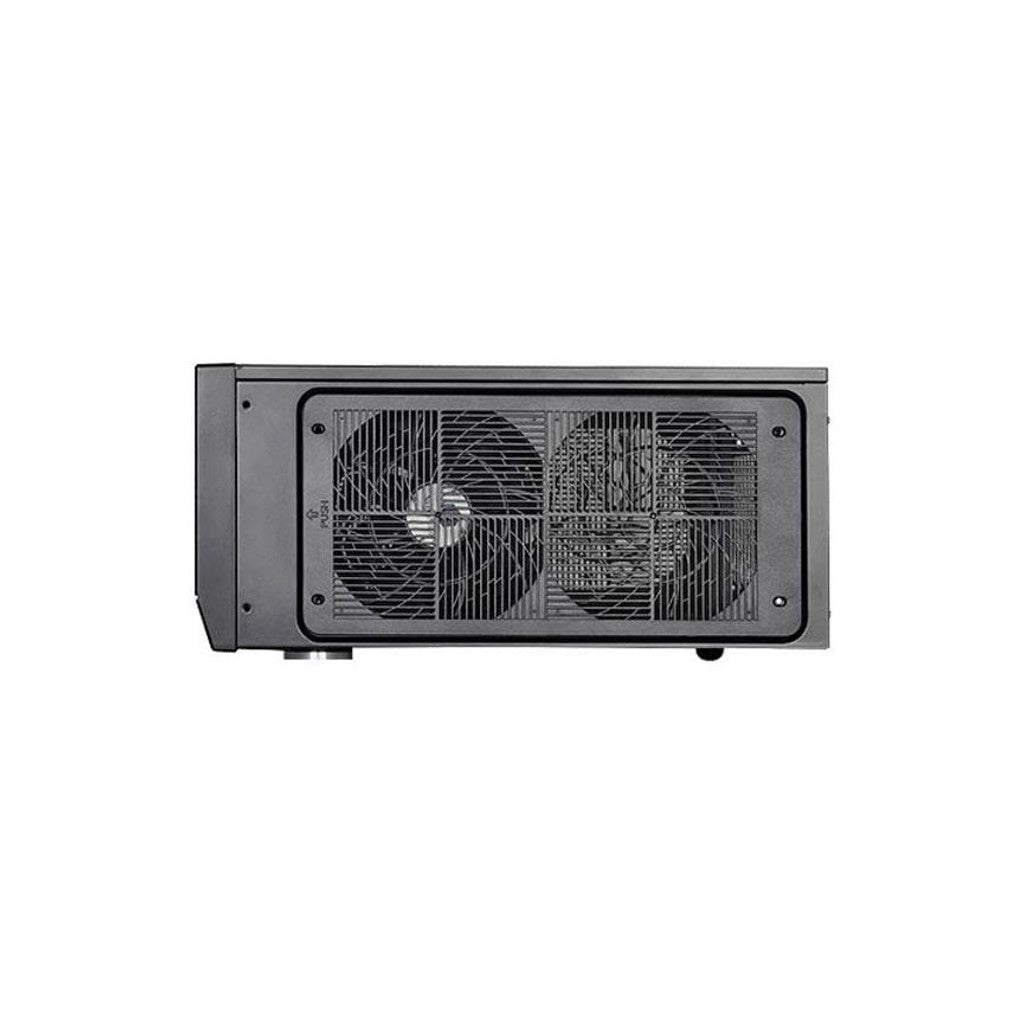

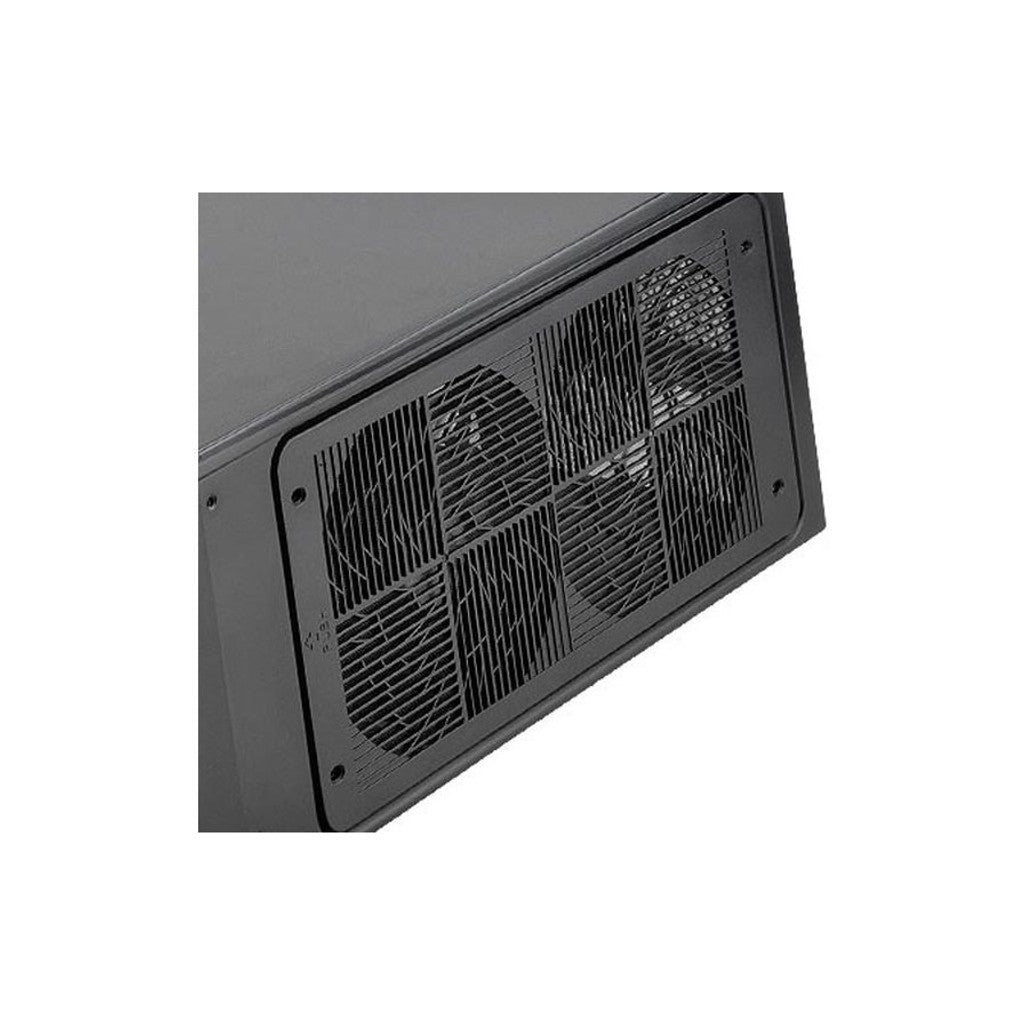

Side
- Right:120mm x 2 (120mm x 1 fan included)
Left:120mm x 1 or 80mm x 1
Limitation of CPU cooler
138mm*

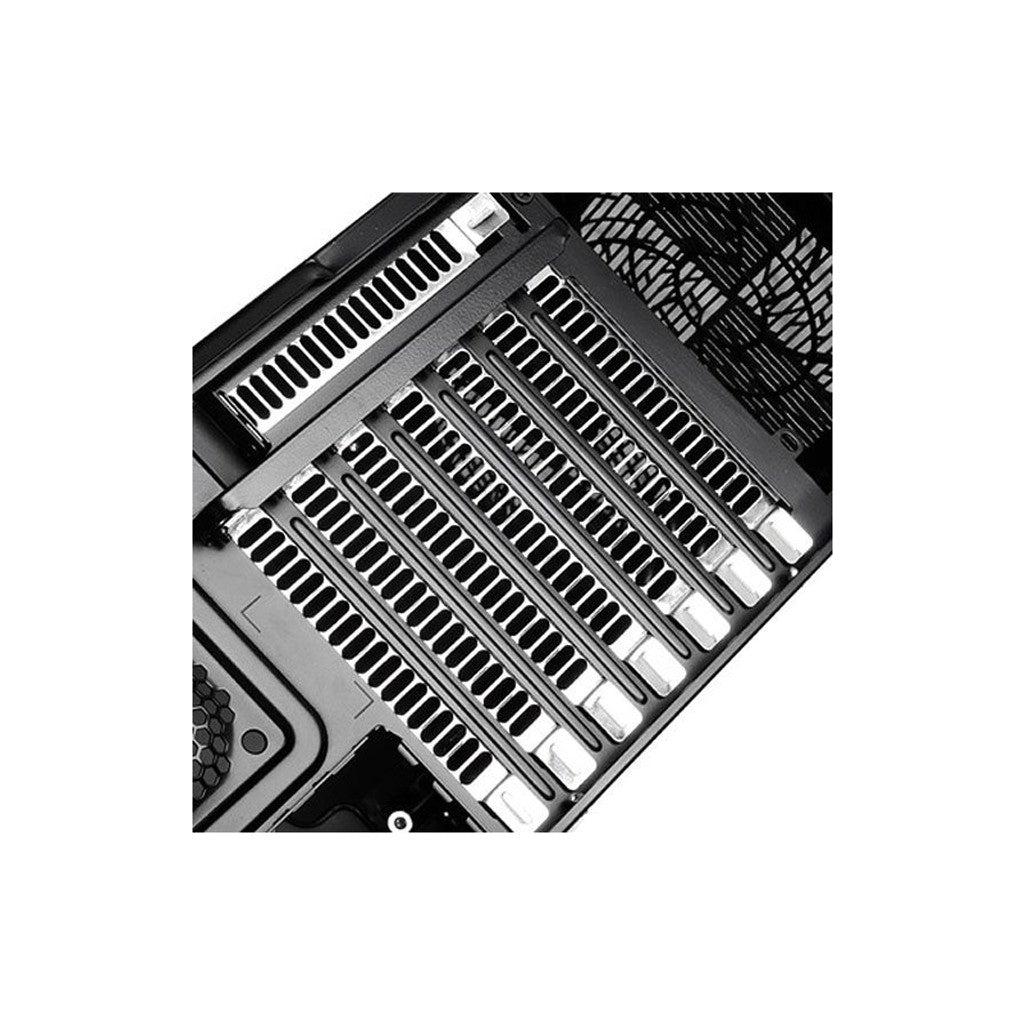

Expansion slot
7+1
Limitation of expansion card
Compatible up to 12.2" (309mm) long, width restriction-5.25" (133mm)
Power supply
Standard PS2 (ATX)
Limitation of PSU
170mm

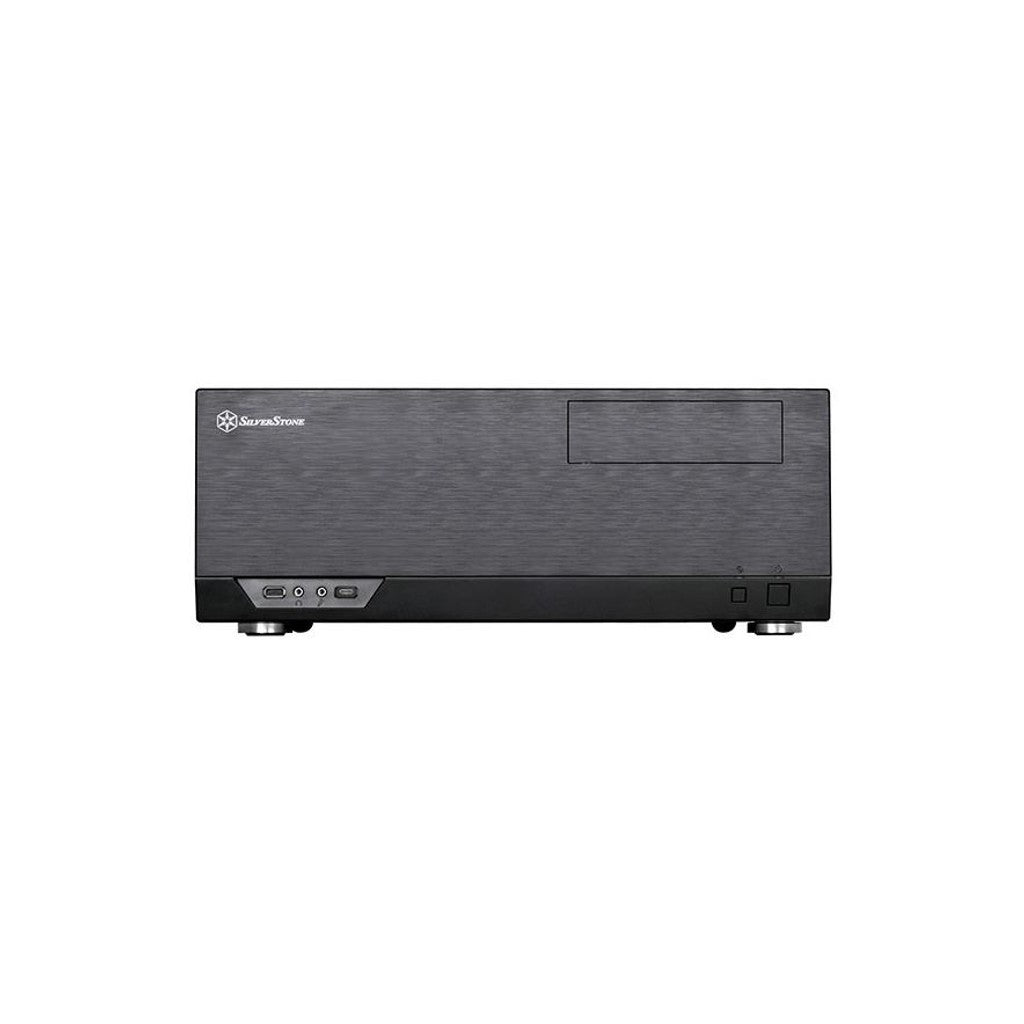

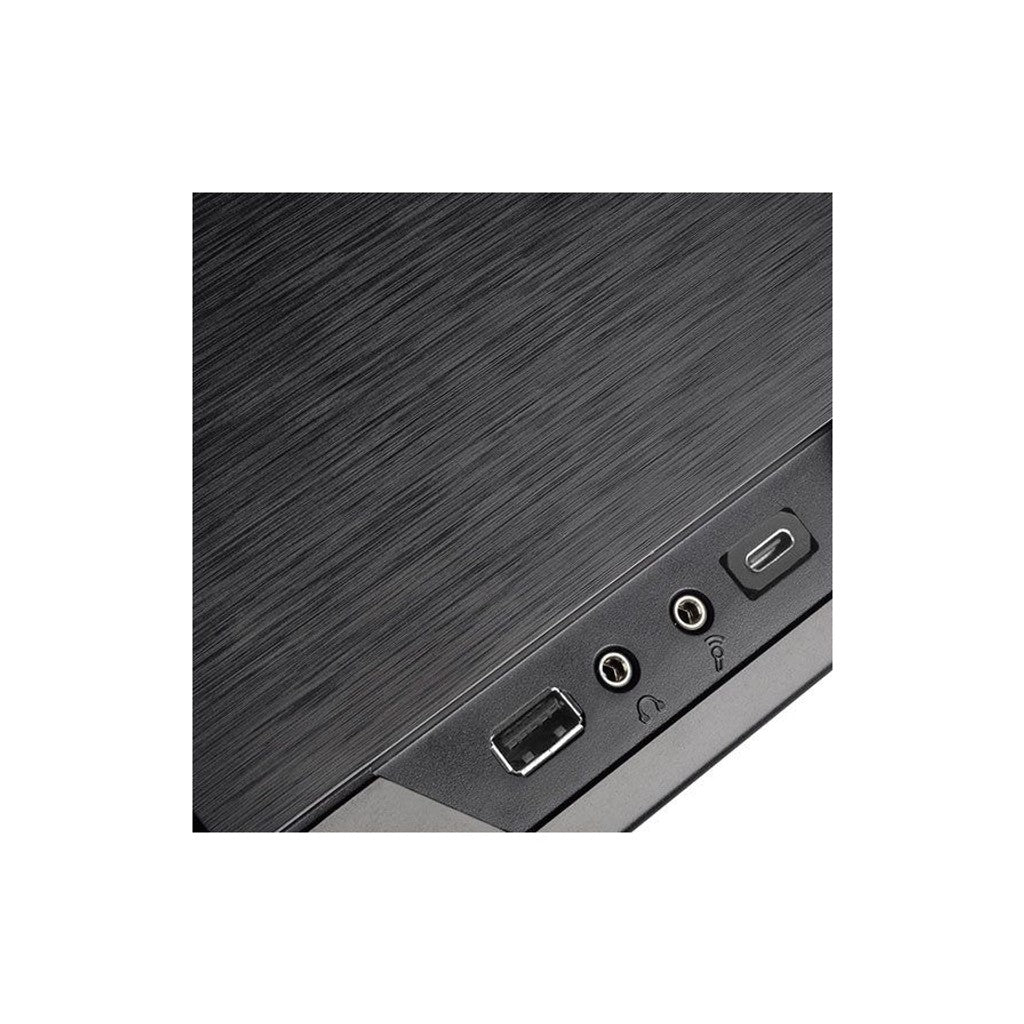

Front I/O port
SST-GD09B-C: USB Type-C x 1, USB 3.0 x 1, Audio x 1, MIC x 1
Dimension
440mm (W) x 170mm (H) x 358mm (D), 26.8 liters
17.32" (W) x 6.69" (H) x 14.09" (D), 26.8 liters
17.32" (W) x 6.69" (H) x 14.09" (D), 26.8 liters
Net weight
4.2kg
Extra
Support Kensington lock
* With limitations, please refer to manual for more information.
