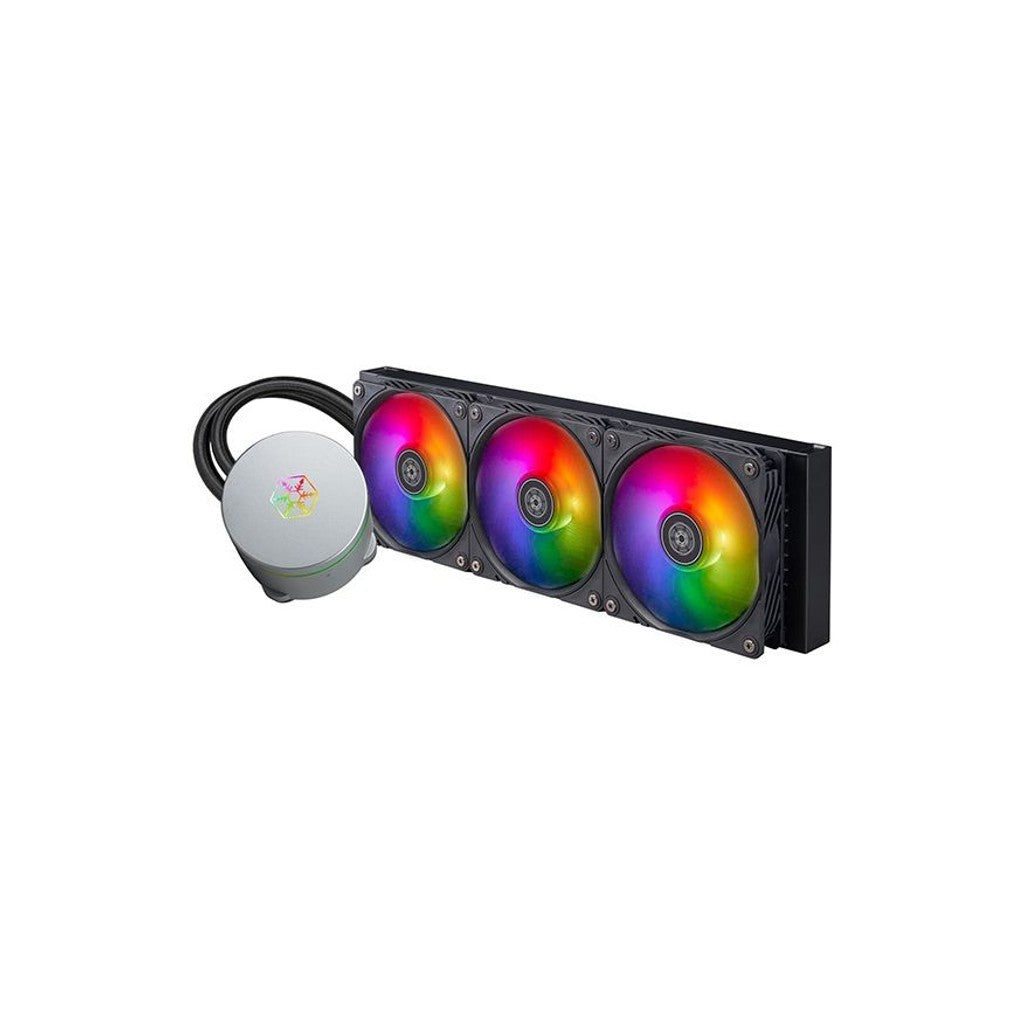

Silverstone IM360-ARGB IceMyst 360mm ARGB AIO Liquid Cooler
Silverstone IM360-ARGB IceMyst 360mm ARGB AIO Liquid Cooler
Couldn't load pickup availability
IceMyst 360
Premium All-In-One liquid cooler with ARGB lighting
- SilverStone's newly designed expandable water block features a seamless 360° rotatable top cover

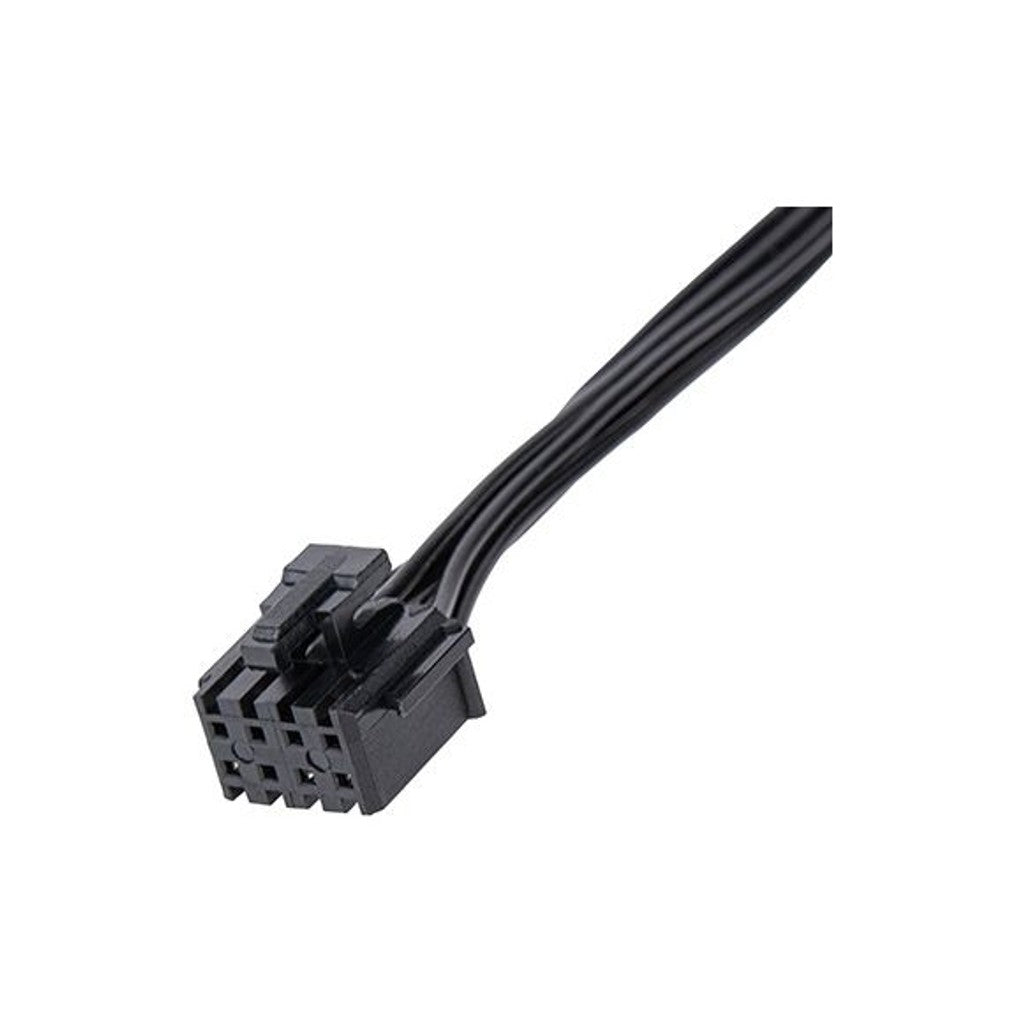

- Modular cabling design greatly simplifies connection and management of cables
- Slight-convexed copper baseplate ensures firm contact with the processor
- Radiator-optimized cooling fans with tremendous airflow and static pressure figures
- Three-phase, six-pole motor design
- ARGB controller included with 10 lighting modes, along with adjustable brightness and color-changing speed

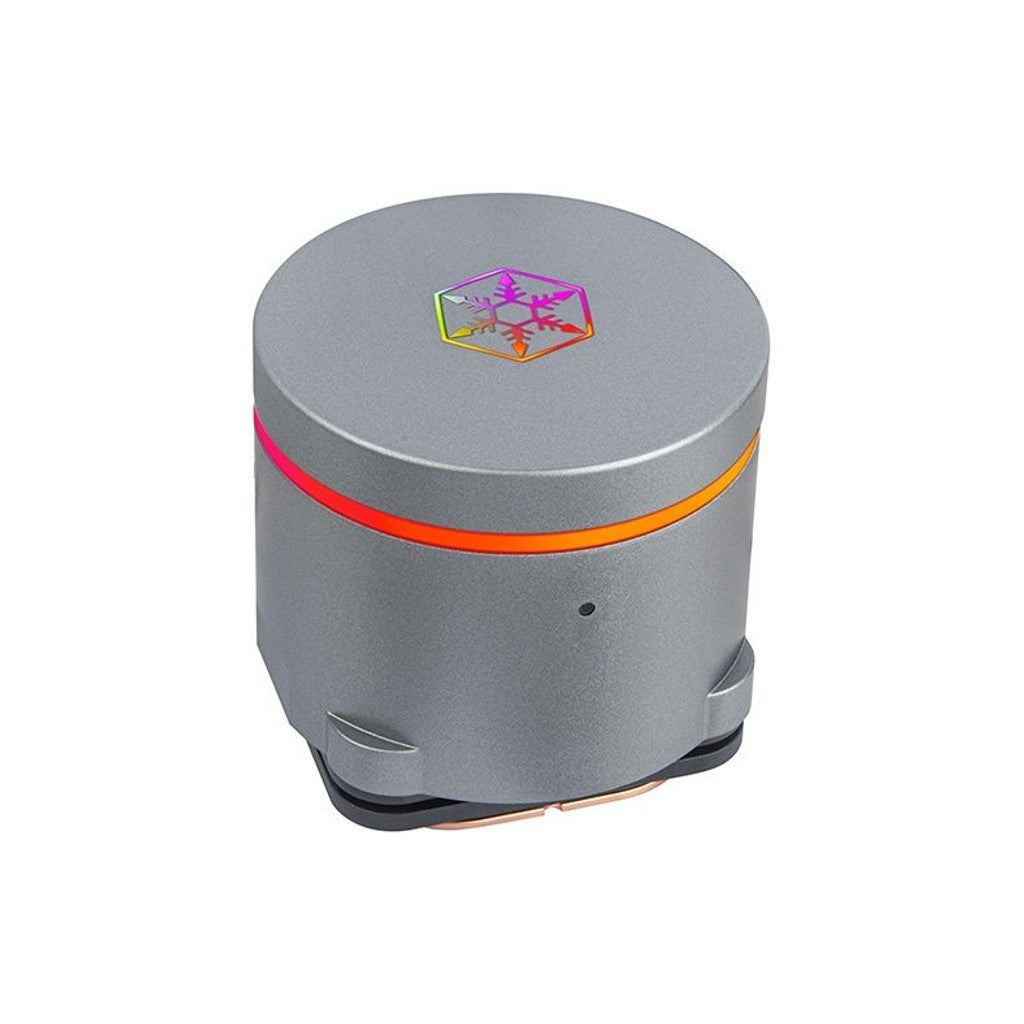

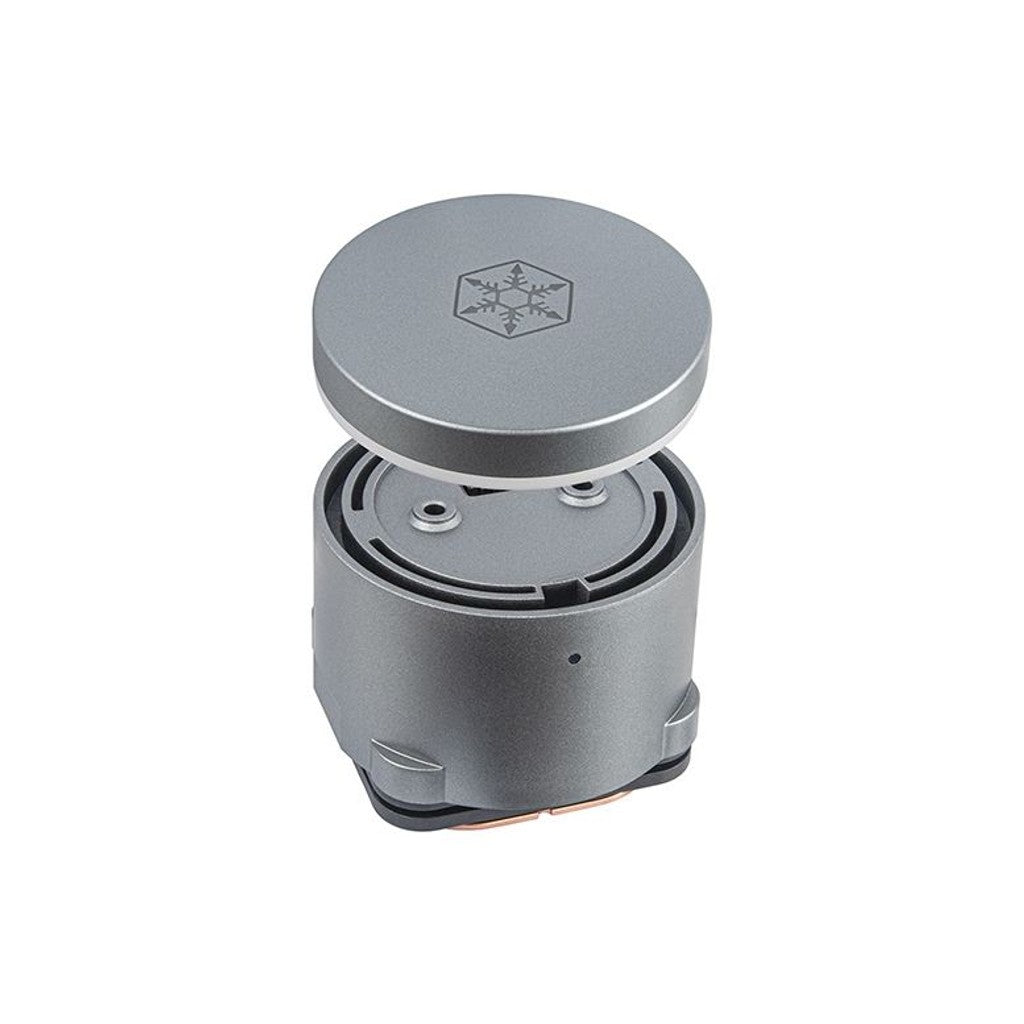

SilverStone's next-generation All-In-One water block

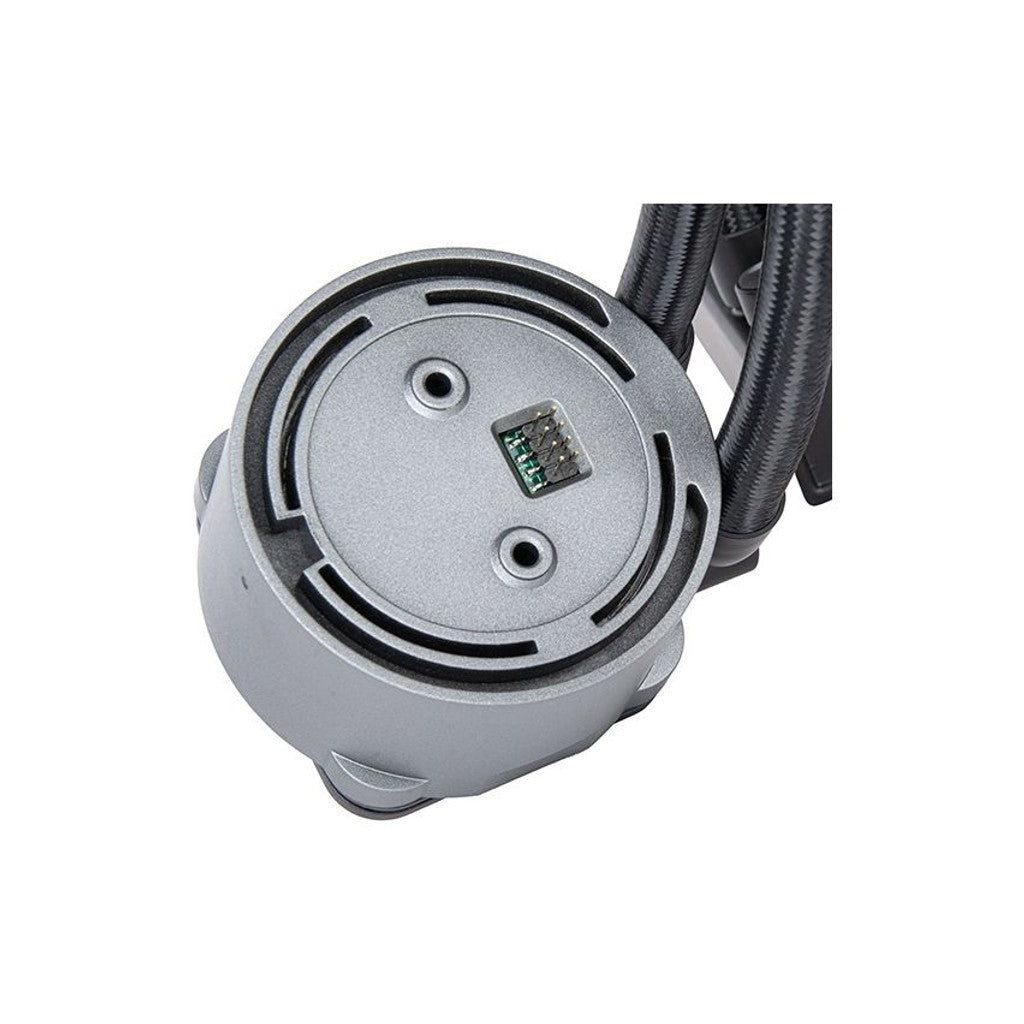

Unlike other AIOs on the market, where the water block acts solely as a housing for the pump, SilverStone's newly designed water block allows for the direct mounting of IMF70 ARGB fans on top of the pump housing while also being 360° rotatable. This innovation enables you to dedicate a single IMF70 ARGB exclusively to a specific hotspot on the motherboard.

Aesthetically pleasing lighting effects
IceMyst series features integrated ARGB lighting effects on the water block and fans, providing tasteful internal system lighting.

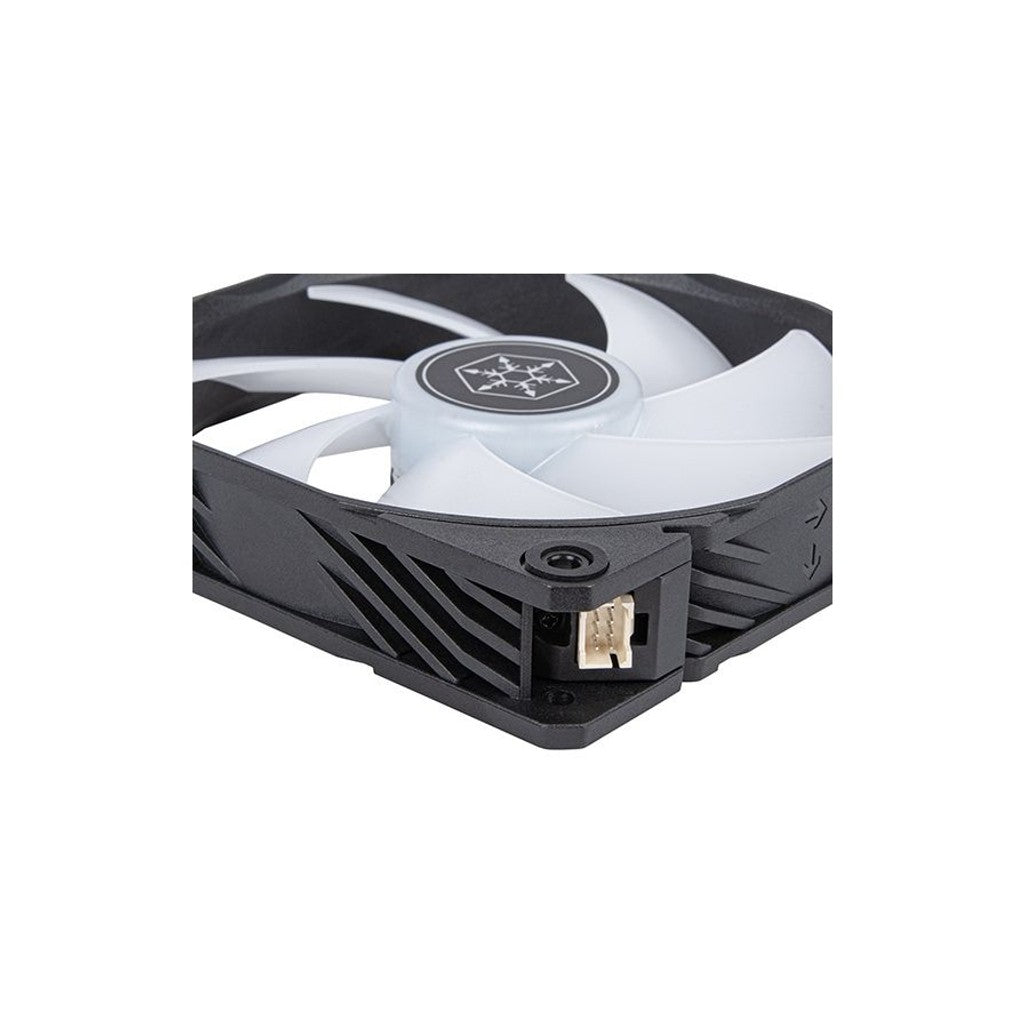

Straightforward connection / effortless cable management

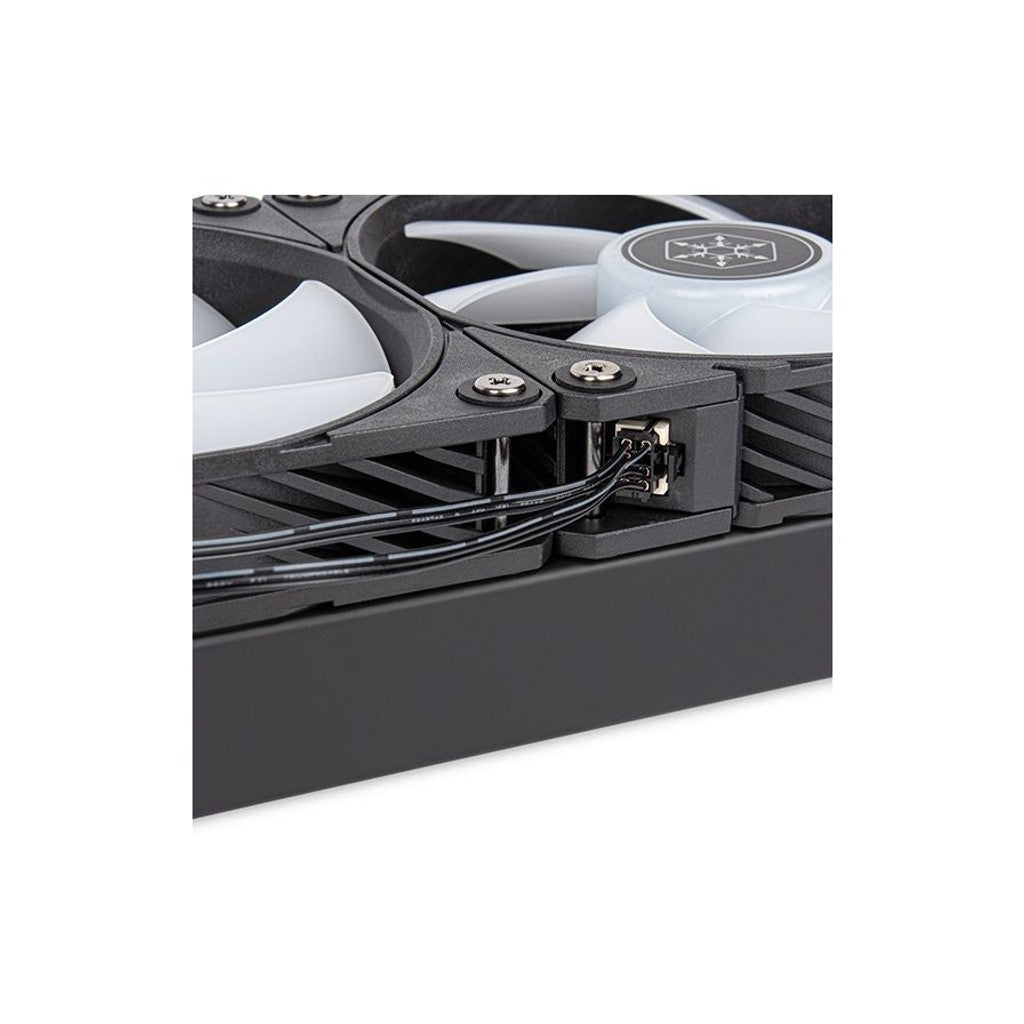

Instead of connecting multiple fans to a fan hub, IceMyst series fans are designed with perfectly measured daisy-chain cables. This design allows for PWM and ARGB synchronization from one header to multiple fans, eliminating the need for long cable management routings.

High-reliability pump
The pump motor utilizes a three-phase, six-pole design for smoother and quieter operation compared to the more common single-phase, four-pole design. Additionally, this design enhances energy efficiency.

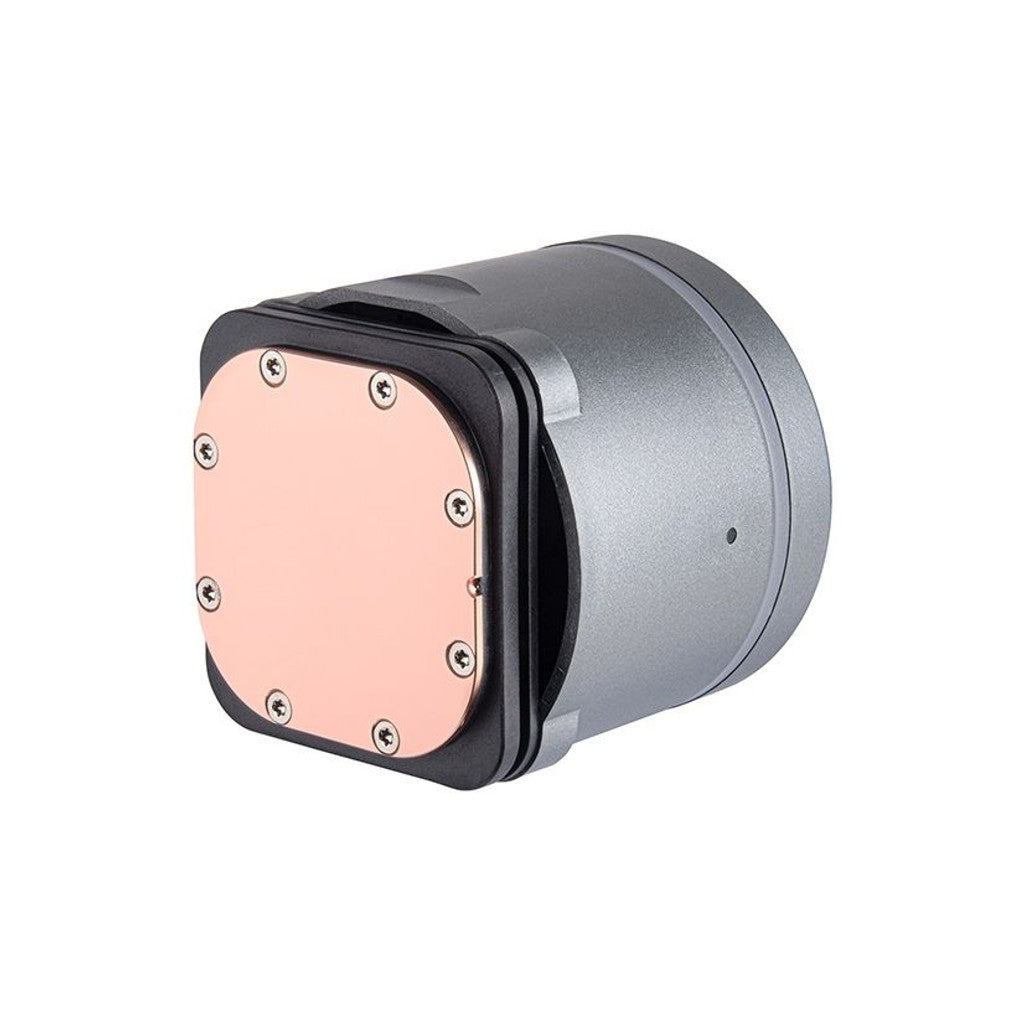

Slight-convexed copper baseplate ensures firm contact with the processor

Specifications
Model No.
SST-IM360-ARGB
Application
Intel LGA 115X/1200/1700/1851/2011/2066
AMD socket AM5/AM4
Water block
Dimension
73mm (W) x 70mm (H) x 84mm (D)
2.87" (W) x 2.76" (H) x 3.31" (D)
Material
Copper base with plastic body
Pump
Motor speed
3,100 ±10% RPM
Rated Voltage
12V
Rated Current
0.38A
Connectors
2510 - 3 pin

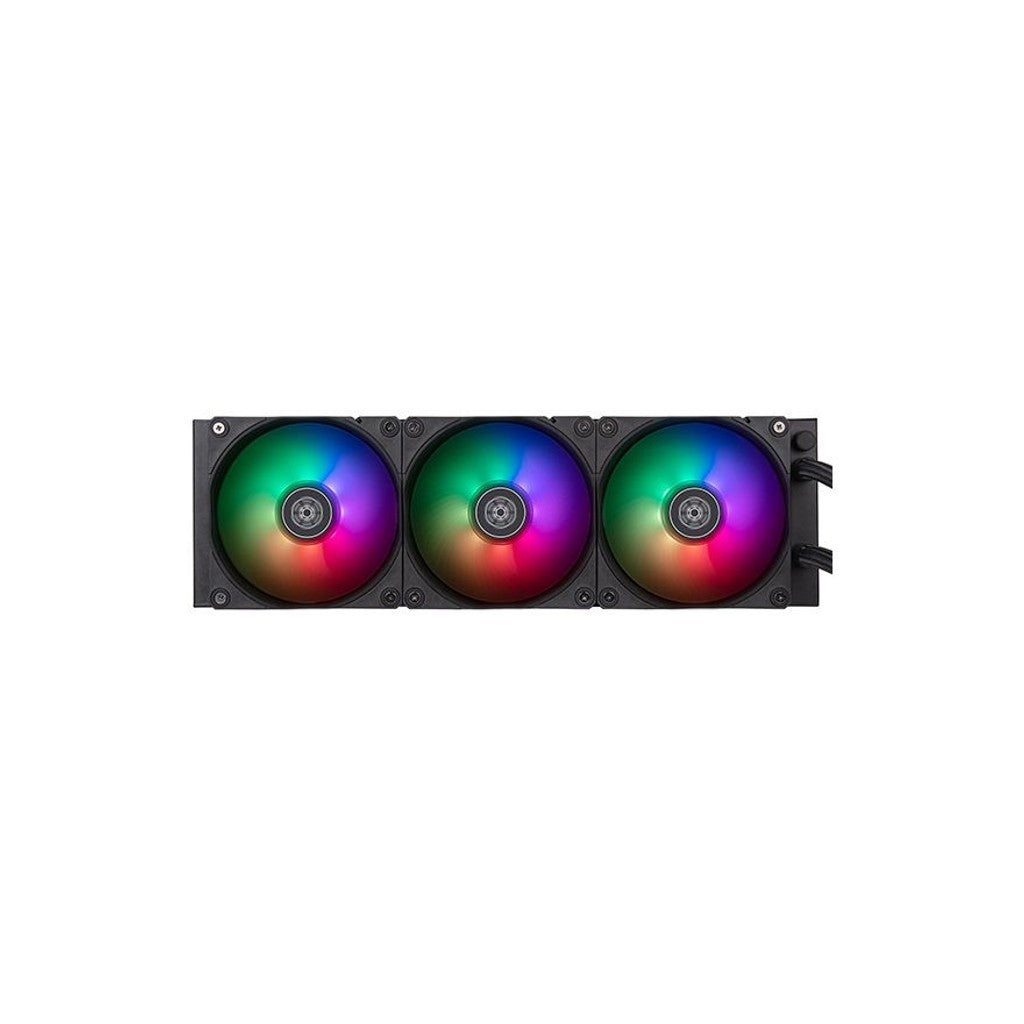

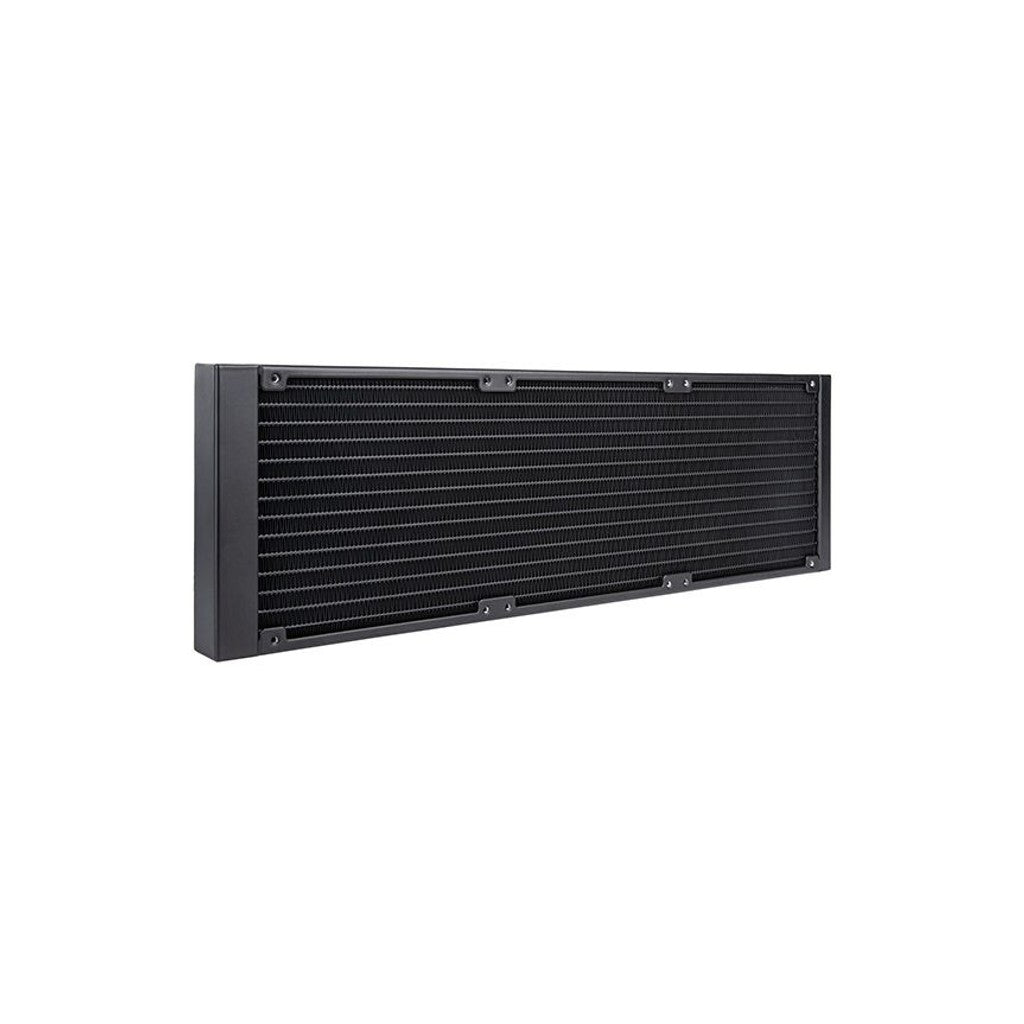

Radiator
Dimension
120mm (W) x 28mm (H) x 396mm (D)
4.72" (W) x 1.1" (H) x 15.6" (D)
Material
Aluminum
Tube
Length
460mm
Material
Rubber

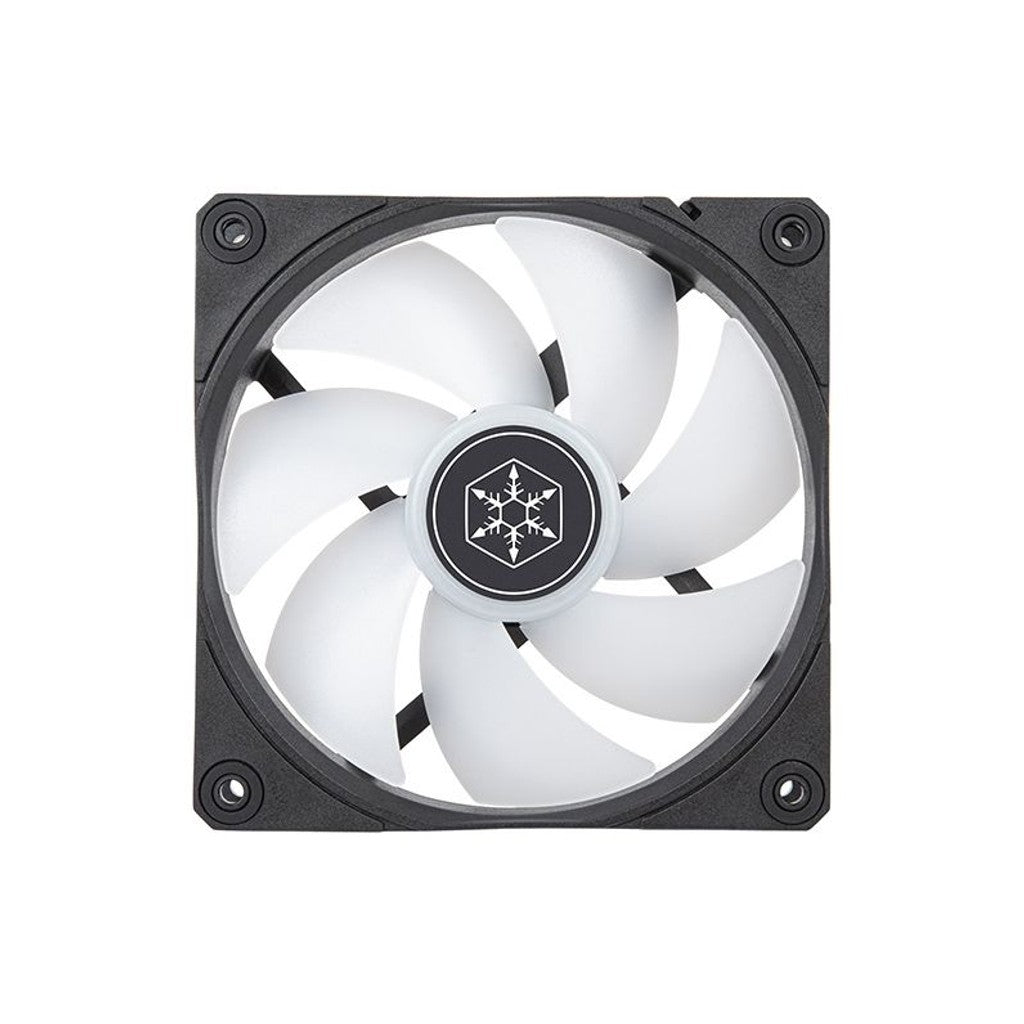

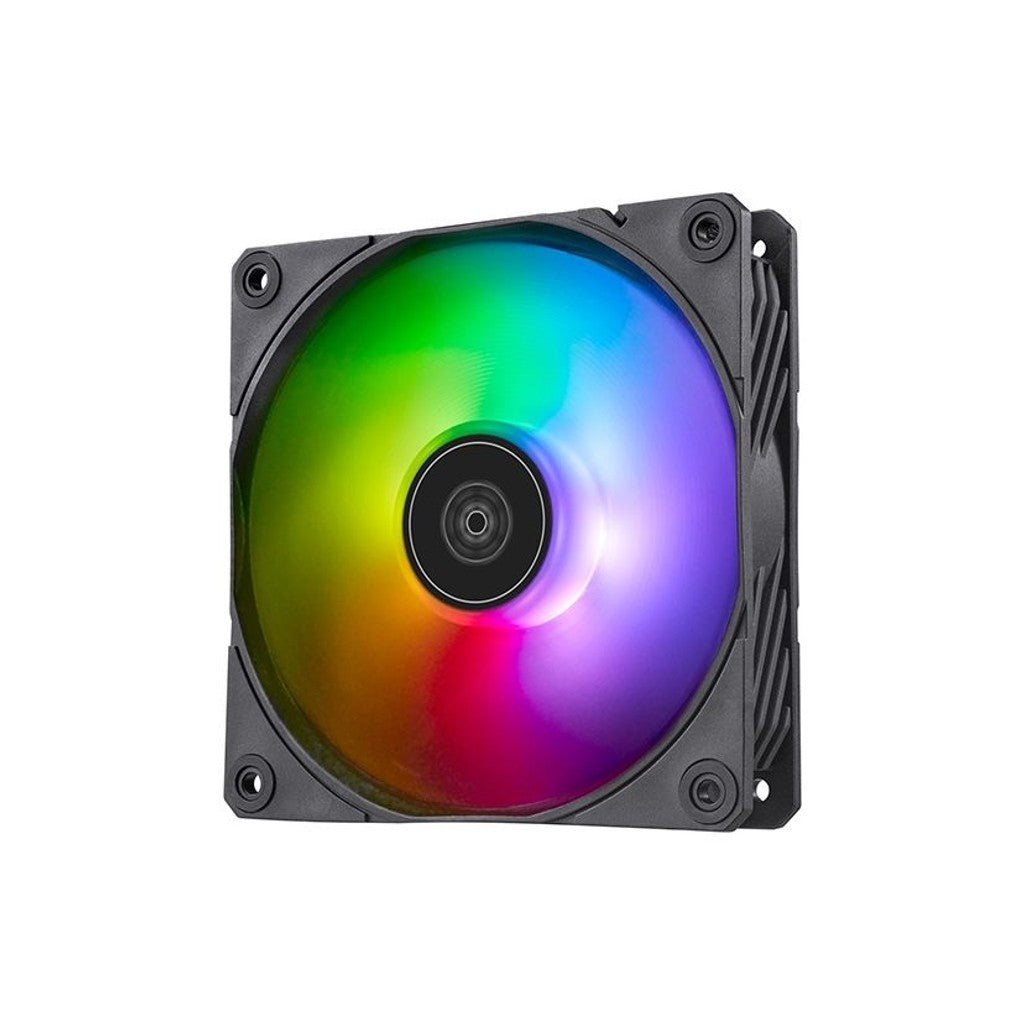

Fan
Dimension
120mm (W) x 25mm (H) x 120mm (D)
4.72" (W) x 0.98" (H) x 4.72" (D)
Speed
500 ~ 2,200 RPM
Noise level
12.1 ~ 33.1 dBA
Rated Voltage
12V
Max airflow
75.74 CFM
Max air pressure
3.4mmH2O
Connector
4 pin PWM & 4-1 pin ARGB (5V LED)
Remark
* Please ensure that the control box and the RGB port on the motherboard you wish to connect are compatible with the RGB port definition of the IM360-ARGB. An incorrect connection may result in malfunctions or damage.
