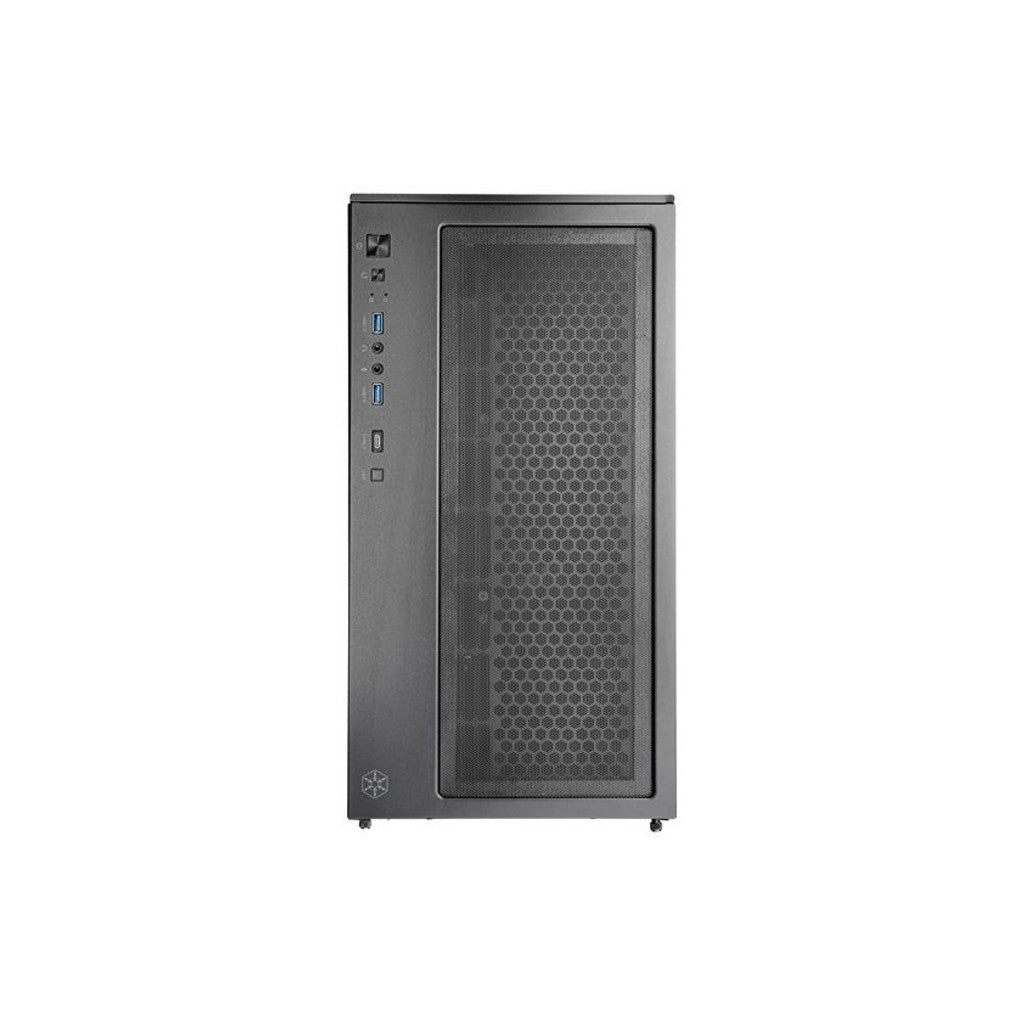

SilverStone Lucid 05 ATX Mid Tower Case

Name: SilverStone Lucid 05 ATX Mid Tower Case
Brand: SilverStone
SKU: HT5132
Price: 115.00 NZD
Availability: InStock

$115.00

Sale Sold out

Taxes included. Shipping calculated at checkout.

Lucid 05

Exquisite ATX Chassis with a Bold 270° Panoramic View

270° panoramic tempered glass design
Supports graphics card up to 410mm with 7 PCI slots
Compatible with 360mm radiators
Optimized airflow layout with support for up to 11 cooling fans
Top I/O panel includes 1 x USB Type-C, 2 x USB 3.0, 1 x Audio, and 1 x Mic

Feature	Specification
Model No.	SST-LD05-B-ARGB (Black)
Material	Steel, plastic, tempered glass
Motherboard	ATX (12" x 9.6"), Micro-ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7")
Drive bay	Internal: 3.5" x 1 / 2.5" x 1 / 2.5" x 2 [1] 3.5" x 1 2.5" x 1

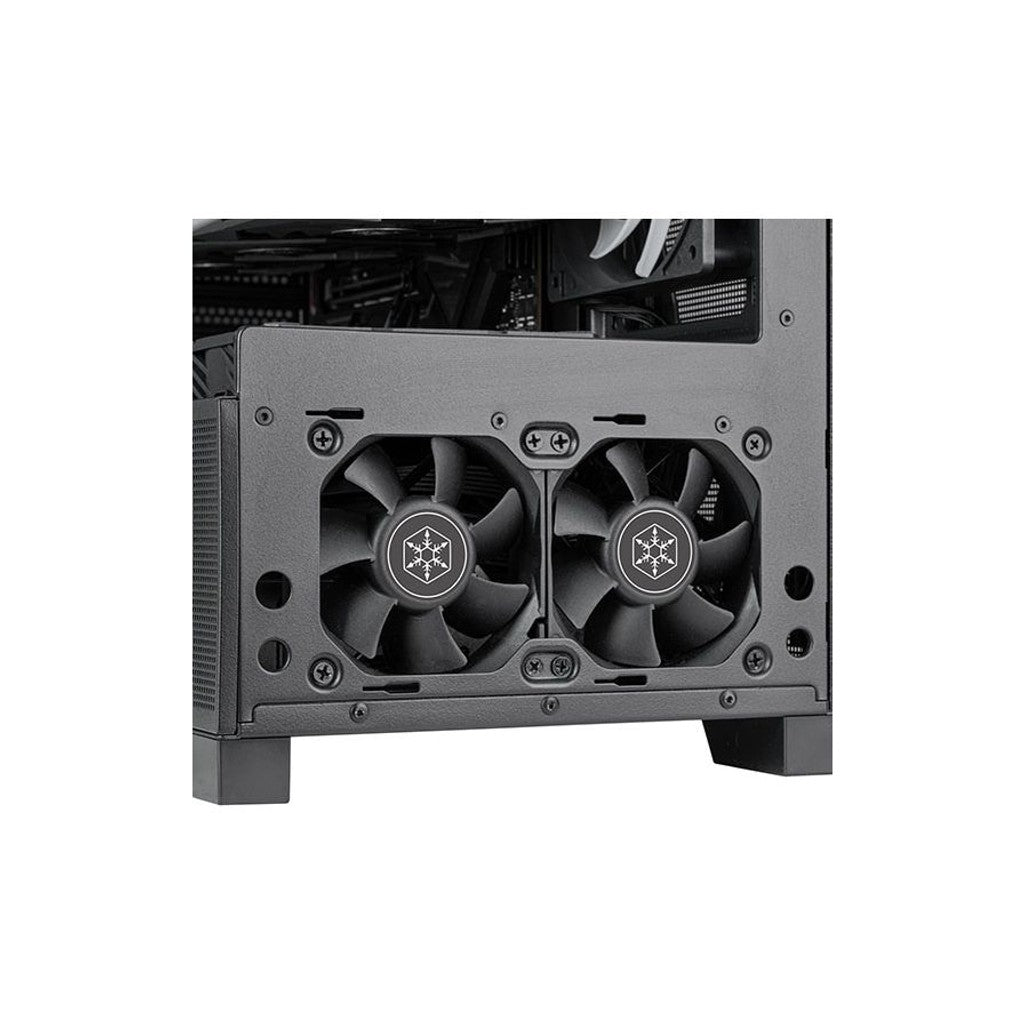

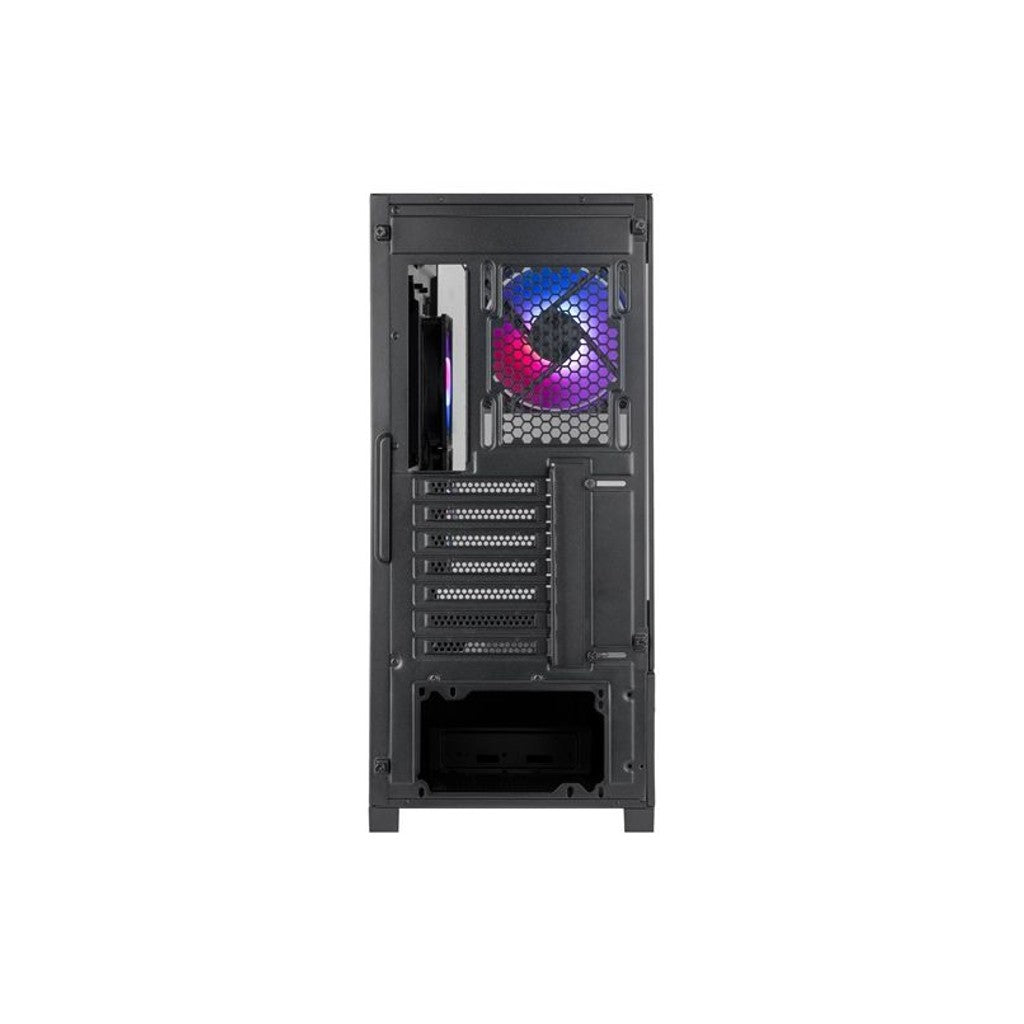

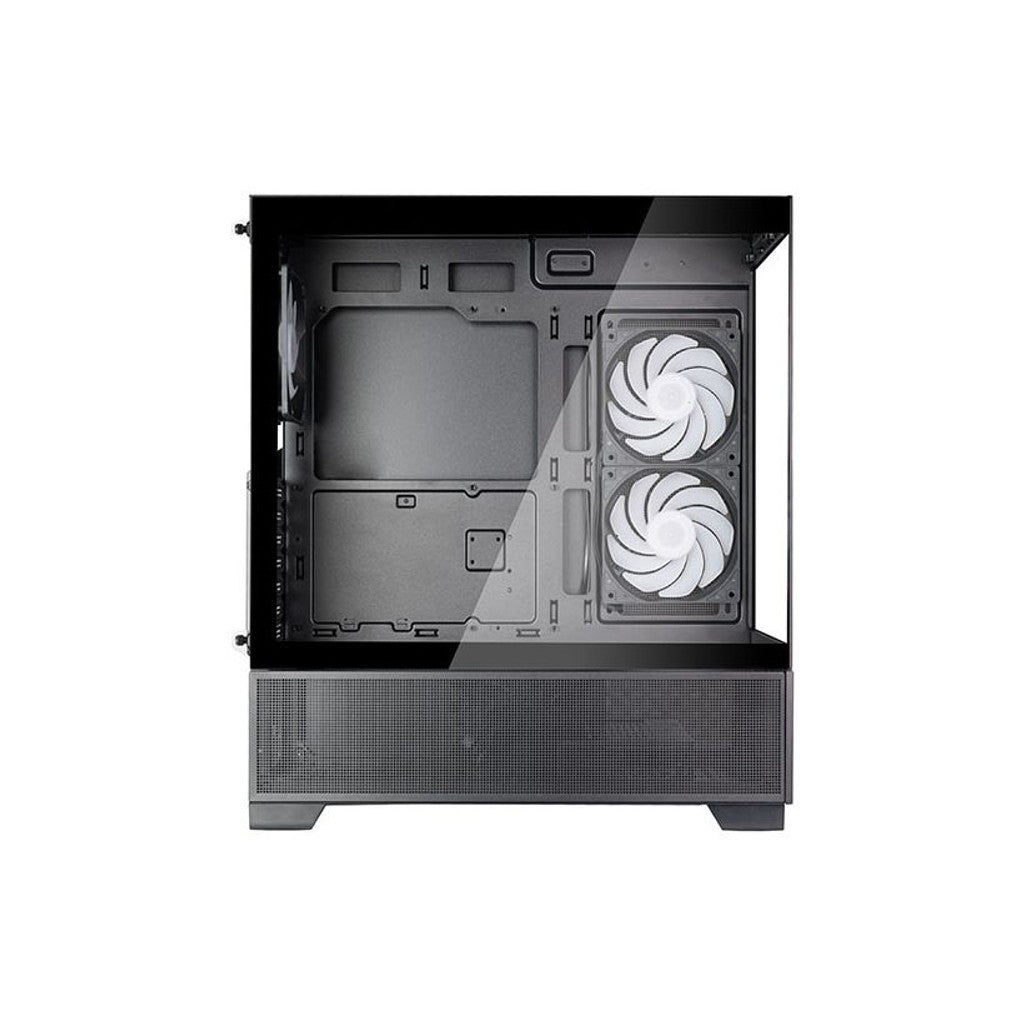

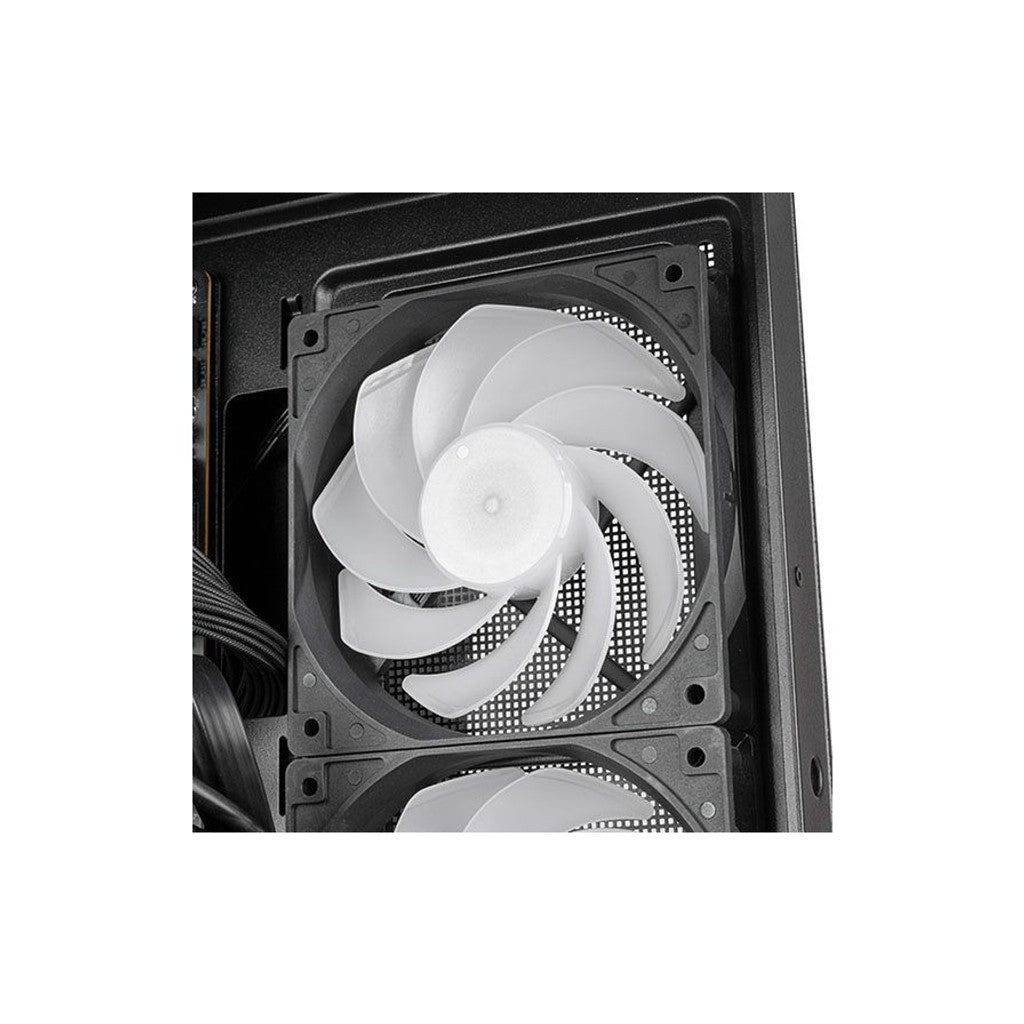

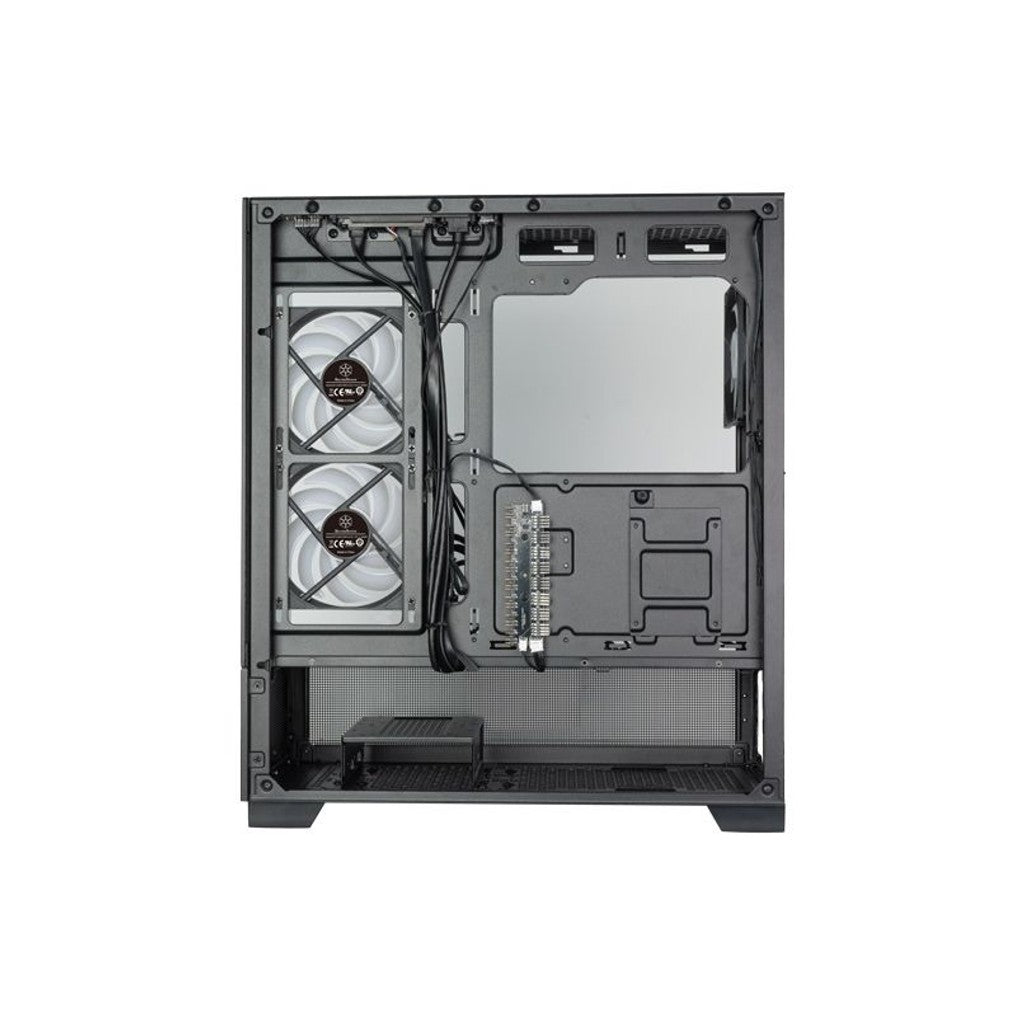

Cooling system	Rear: 120mm x 1 (120mm x 1 ARGB fan included) Top: 120mm x 3 / 140mm x 2 Internal: Motherboard Tray: 120mm x 2 (120mm x 2 ARGB fans included) PSU Shroud Top: 120mm x 3 PSU Shroud Front: 80mm x 2
Radiator support	Rear: 120mm Top: 120mm / 140mm / 240mm / 280mm / 360mm [2] Internal: Motherboard Tray: 240mm [3]
Limitation of CPU cooler	173mm
Expansion slot	7
Limitation of expansion card	Length: 410mm Width: 179mm
Power supply	Standard PS2 (ATX)
Limitation of PSU	200mm
Front I/O port	USB Type-C x 1 USB 3.0 x 2 Audio x 1 Mic x 1
Dimension	220mm (W) x 491.5mm (H) x 427.6mm (D), 46.24 liters 8.66" (W) x 19.35" (H) x 16.83" (D), 46.24 liters
Remark [1]	When installing two 2.5" SSDs in this position, ensure the connectors face the rear to prevent interference.
Remark [2]	When mounting a 360mm radiator in this position, ensure the inlet and outlet tubes are orientated toward the front to prevent interference.
Remark [3]	When mounting a 240mm radiator in this position, graphics card clearance is limited to 281mm, including power connectors. Ensure the fans are installed between the radiator and motherboard tray to accommodate this restriction.

Bold from Every Perspective

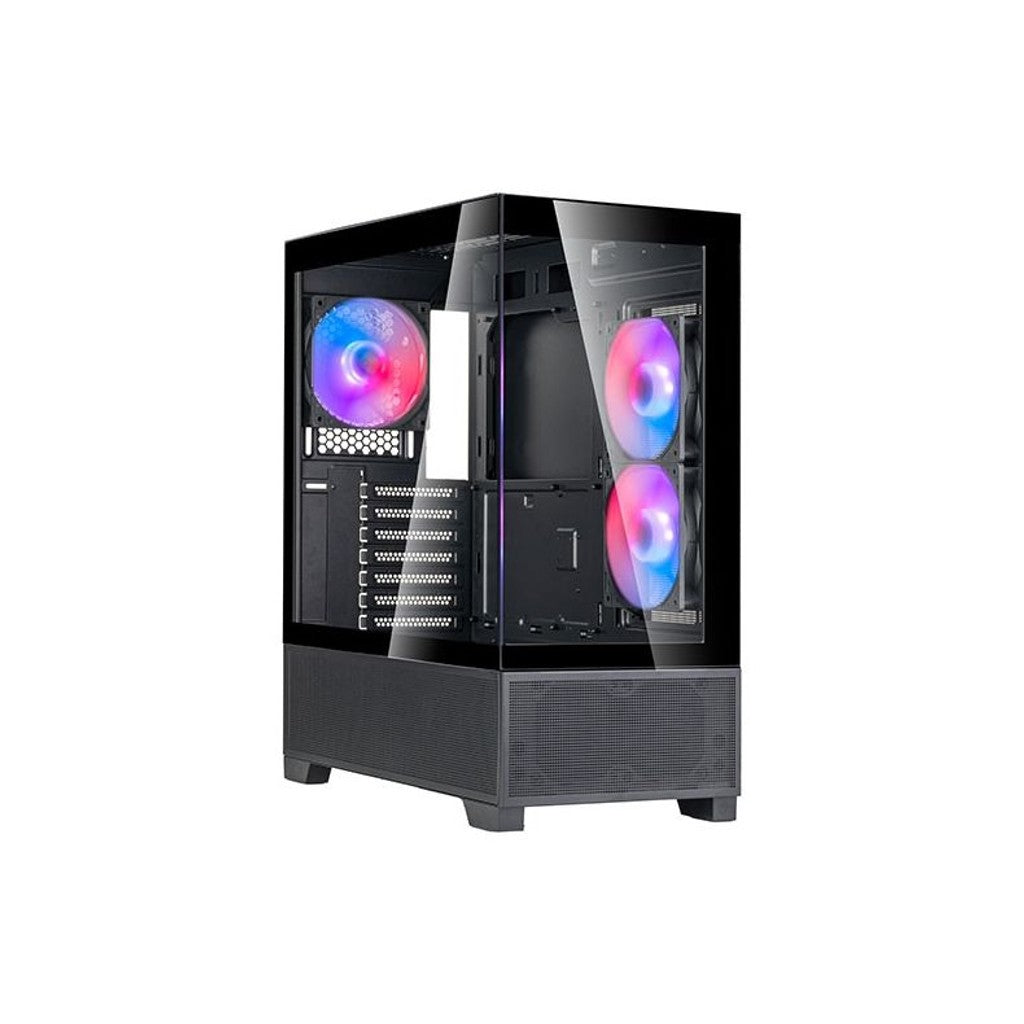

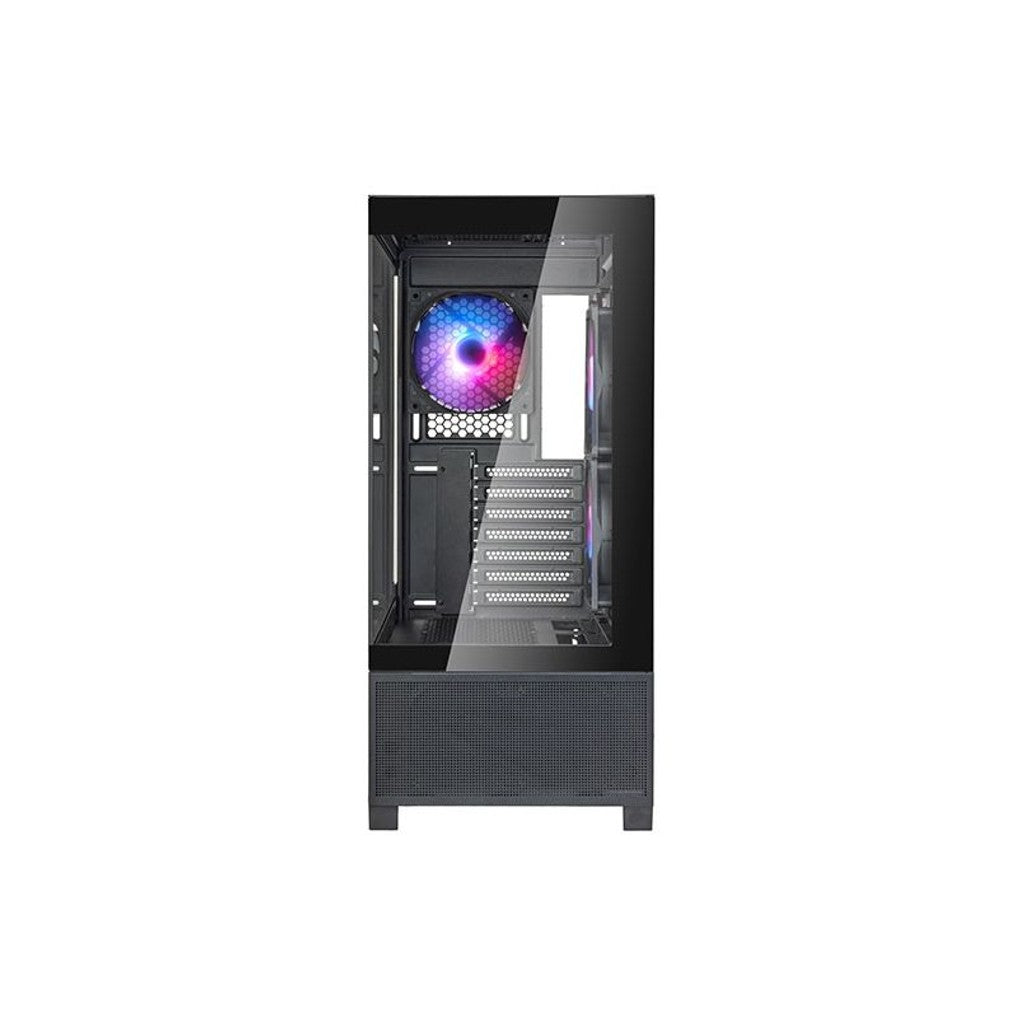

With a 270° panoramic view through seamless tempered glass panels on the front and side, the Lucid 05 puts your components on full display, offering an immersive showcase from nearly every angle.

Outstanding Cooling Capability

The Lucid 05 features a total of 11 fan mounts, delivering effective airflow not only to the CPU and GPU, but also to the system and storage drives. The top compartment supports a 360mm liquid cooling radiator to ensure efficient heat dissipation for high-performance systems.
