SilverStone

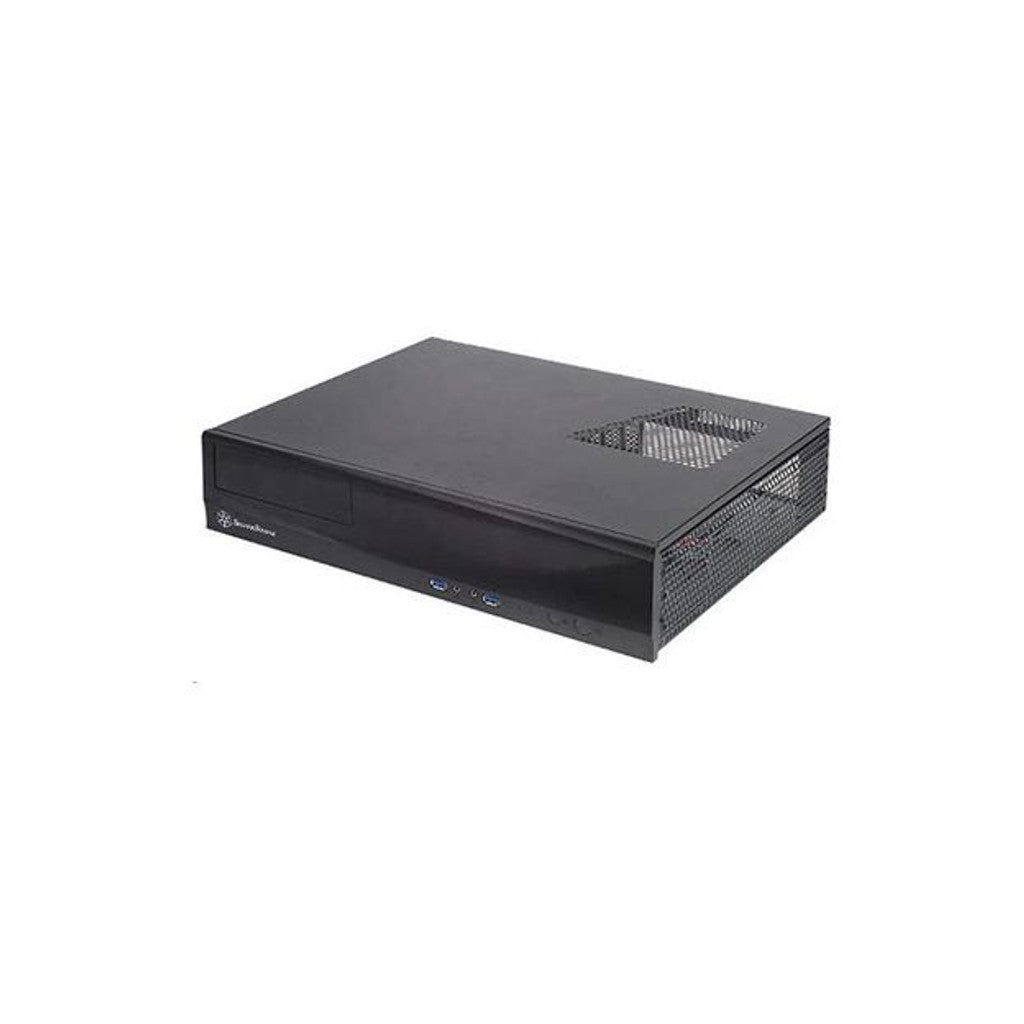

Silverstone Milo ML03B mATX Case
Silverstone Milo ML03B mATX Case
Regular price
$139.00
Regular price
Sale price
$139.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Continuing where the popular Grandia GD05 left off, the Milo ML03 HTPC case again combines the full size features of Grandia series with small form factor dimensions. The slimmer Milo ML03 has a profile of 105mm height and 340mm depth, making it extremely easy to integrate into any living room furniture. Incredibly, this case can accommodate up to three 3.5" hard drives or five 2.5" HDD/SSD through its smartly designed drive cages that can mount either size without any use of adapters. For cooling, the ML03 can be fitted with up to four 80mm fans so users can choose to build a quiet system with low power components or a powerful HTPC with 140W CPU if needed. There are also numerous small touches including pre-cut hole for VGA (D-SUB) connector, Kensington lock support, and an additional full size expansion slot for installing extra motherboard I/O, fan controller, or accessories products such as CLEARCMOS. For those looking to build an HTPC with good expansion and cooling capability but has limited room and budget, the SilverStone Milo ML03 is the one to get.
- Supports up to four 80mm fans
- Drive cages with multi-purpose mounts eliminate need for adapters
- Easy to install and cable route
- Supports standard PS2(ATX) power supplies
- Supports low profile expansion cards
- Includes two USB 3.0 ports
- Supports up to four 80mm fans
- Drive cages with multi-purpose mounts eliminate need for adapters
- Easy to install and cable route
- Supports standard PS2(ATX) power supplies
- Supports low profile expansion cards
- Includes two USB 3.0 ports
Specifications
Material
Aluminum skin reinforced plastic front panel, 0.8mm SECC body
Motherboard
Micro-ATX, Mini-DTX, Mini-ITX
Drive Bay
External
5.25" x 1 (compatible with one 3.5" HDD or two 2.5" HDD/SSD)
Internal
3.5" x 2 (compatible with one 2.5" HDD each), 2.5" x1
Cooling System
Side
Right 4 x 80mm fan slot; Left Hard drive vents
Top
Oversized CPU vents
Expansion Slot
4 low profile +1 utility
Front I/O Port
USB 3.0 x 2 (backwards compatible with USB 2.0)
audio x 1
MIC x 1
Power Supply
1 x standard PS2(ATX), depth limit = 140mm
Expansion Card
4x low profile, width restriction-2.95"
Limitation of CPU cooler
70mm
Limitation of PSU
140mm
Net Weight
3.3 kg
Dimension
440 mm (W) x 105 mm (H) x 340 mm (D), 15.7 liters
Extra
support Kensington lock
Aluminum skin reinforced plastic front panel, 0.8mm SECC body
Motherboard
Micro-ATX, Mini-DTX, Mini-ITX
Drive Bay
External
5.25" x 1 (compatible with one 3.5" HDD or two 2.5" HDD/SSD)
Internal
3.5" x 2 (compatible with one 2.5" HDD each), 2.5" x1
Cooling System
Side
Right 4 x 80mm fan slot; Left Hard drive vents
Top
Oversized CPU vents
Expansion Slot
4 low profile +1 utility
Front I/O Port
USB 3.0 x 2 (backwards compatible with USB 2.0)
audio x 1
MIC x 1
Power Supply
1 x standard PS2(ATX), depth limit = 140mm
Expansion Card
4x low profile, width restriction-2.95"
Limitation of CPU cooler
70mm
Limitation of PSU
140mm
Net Weight
3.3 kg
Dimension
440 mm (W) x 105 mm (H) x 340 mm (D), 15.7 liters
Extra
support Kensington lock
