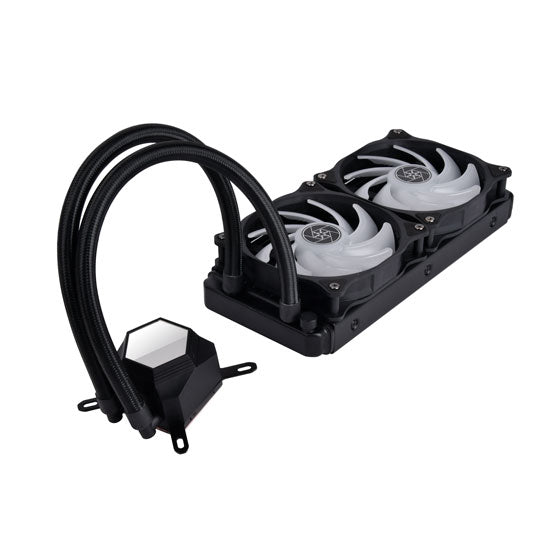

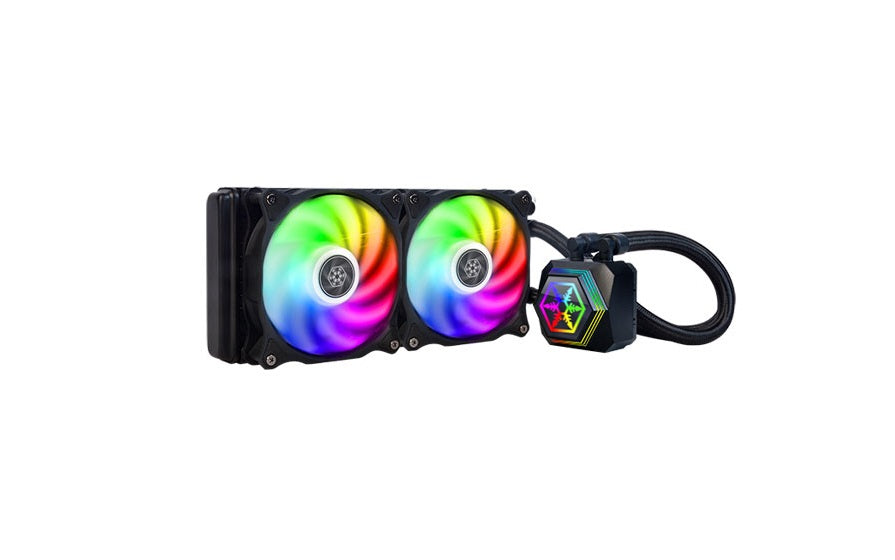

Silverstone PF240-ARGB V2 240mm RGB AIO Liquid Cooler

2 Year Limited Warranty

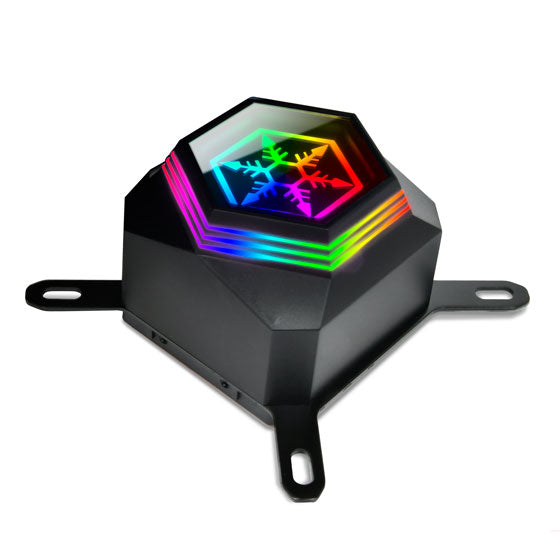

High efficiency multi-chamber pump design

Water block includes a pump with multi chamber design that isolates hot and cold liquid channels to prevent heat bleeding, thus making it more effective at removing heat away from the water block.

Superior motor construction

The pump motor utilizes three phase, six pole design for smoother, quieter operation compared to most single phase, four pole design. Energy efficiency also improves as well.

0.2mm micro-liquid channels

0.2mm micro liquid channels evenly distribute liquid flow for improved heat dissipation.

Automotive grade sine wave generator

An automotive grade sine wave generator is used to drive the pump motor. This ensures electrical noise and vibration are kept to a minimum. It is also AEC-Q100 certified according to Automotive Electronics Council’s standard so it has great quality and durability.

Automotive grade radiator

Automotive grade radiator is used so it has excellent anti-corrosive properties and can easily survive harsh elements that includes vapor, liquid, grease, solvent.

Pressure optimized radiator fan

Included PWM fan (Air Blazer 120R) has unique ribbed edge fan blades that suppress air turbulent noise with geometry optimized for both air flow and pressure. This ensure maximum performance with lowest possible noise.

Model No.
SST-PF240-ARGB-V2

Application
Intel Socket LGA115x/1200/1700/2011/2066
AMD Socket AM2/AM3/AM4/AM5/FM1/FM2

Water block
Dimension
61mm (L) x 61mm (W) x 50mm (H)

Material
Copper base with plastic body

Pump
Motor speed
3400±10% RPM

Rated Voltage
12V*

Rated Current
0.39A

Radiator
Dimension
272mm (L) x 120mm (W) x 28mm (H)

Material
Aluminum

Tube
Length
400mm

Material
Rubber

Fan
Dimension
120mm (L) x 120mm (W) x 25mm (D)

Speed
600~2200RPM

Noise level
7.4~35.6 dBA

Rated Voltage
12V

Rated Current
0.32A

Max airflow
94CFM

Max air pressure
3.53mm/H2O

Connector
4 Pin PWM & 4-1 Pin ARGB (5V LED)
