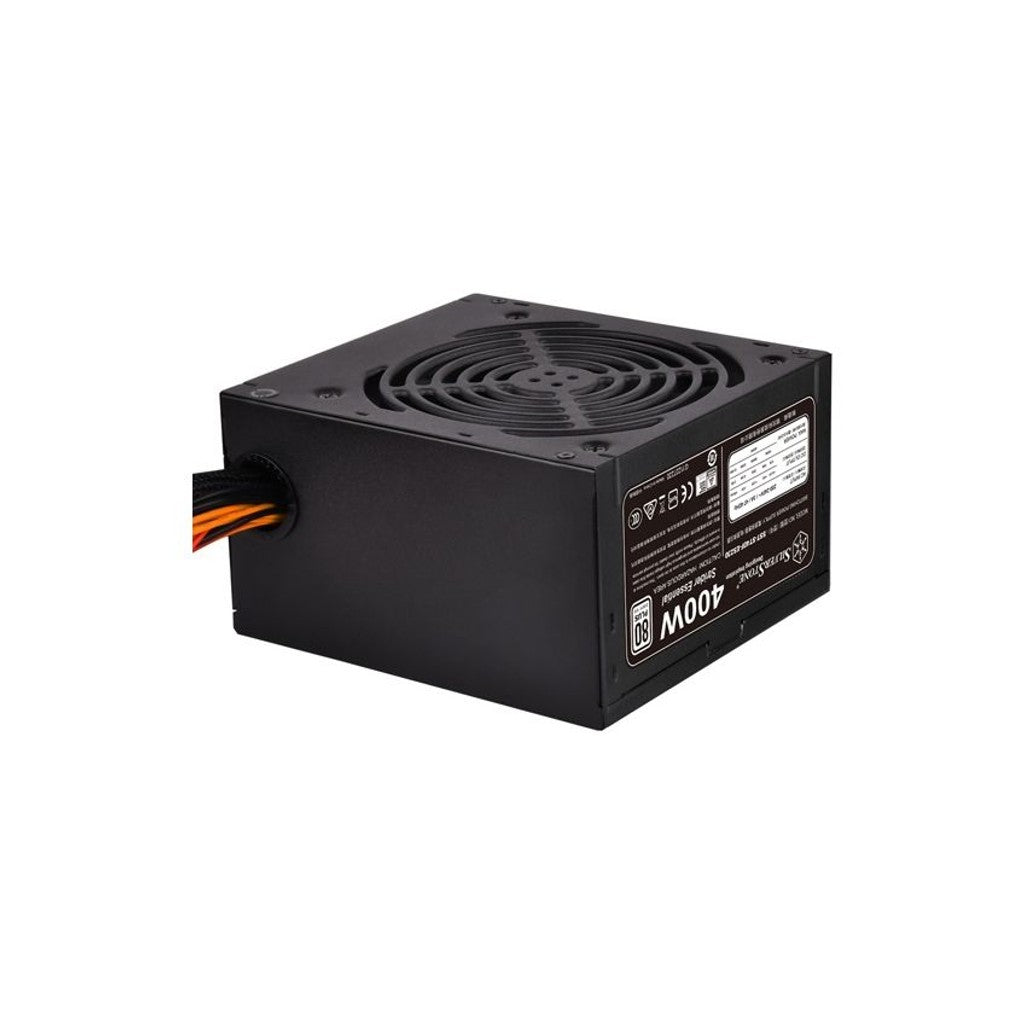

SilverStone ST40F-ES230 Strider Essential 400W 80 Plus ATX PSU

SilverStone ST40F-ES230 Strider Essential 400W 80 Plus ATX PSU

$75.00
$75.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
ST40F-ES230
80 PLUS 230V EU 400W ATX power supply
  • High efficiency with 80 PLUS certification
  • 24/7 continuous power output with 40℃ operating temperature
  • Class-leading single +12V rail
  • Active PFC Circuitry
  • PCI-E 8pin and PCI-E 6pin connector support
  • Silent running 120mm fan with 18dBA
Product No.
SST-ST40F-ES230

Color
Black（Lead-Free Paint）

Max. DC Output
400W

Power density
221W per liter

Load Range
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 17A 16A 30A 2.5A 0.3A
Peak (Amps) / / / / /
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±5% ±5% ±5% ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV

Combined +3.3V & +5V
100W

Combined +12V
360W

Input Voltage
180V~264V

Input Frequency Range
47Hz~63Hz

PFC
Active PFC（PF>0.9 at full load）

Efficiency
82% ~ 85% at 20% ~ 100% loading

MTBF
100,000 hours

Operating temperature
0°C ~ 40°C

Protection
Over power protection
Over voltage protection
Short circuit protection

Connectors
1 x 24 / 20-Pin motherboard connector（500mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（750mm）
2 x 8 / 6-Pin PCIE connector（"500mm / 150mm" x 2）
4 x SATA connector（"500mm / 150mm" x 2）
2 x 4-Pin Peripheral connector（500mm / 150mm / 150mm / 150mm）
1 x 4-Pin Peripheral connector（500mm / 150mm / 150mm）
1 x 4-Pin Floppy connector（500mm / 150mm / 150mm / 150mm）

Cooling System
Single 120mm silent fan

Noise Level
18 dBA minimum

Certification
80 PLUS

Form factor
ATX

Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)

Weight
1.26 kg
